Description

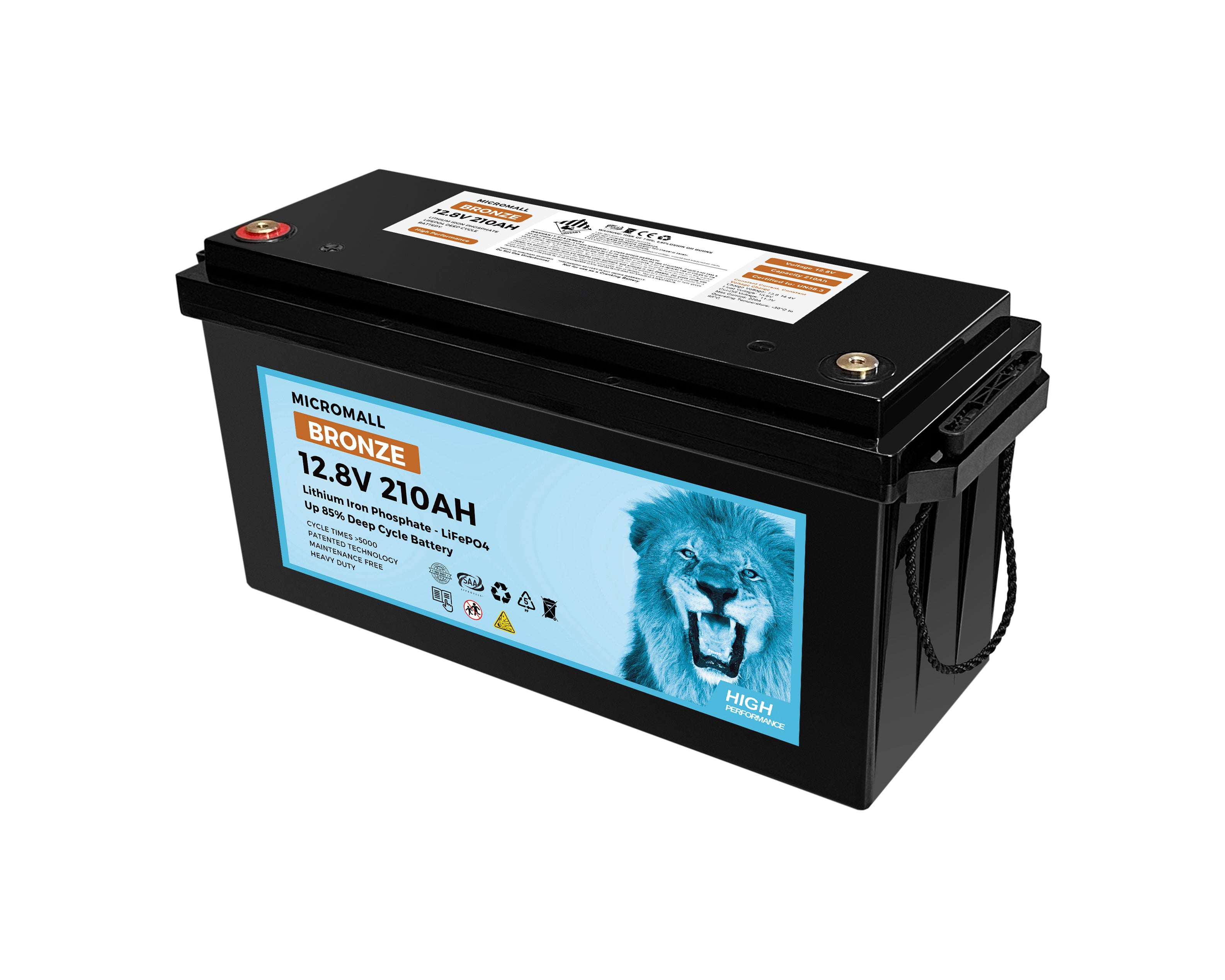

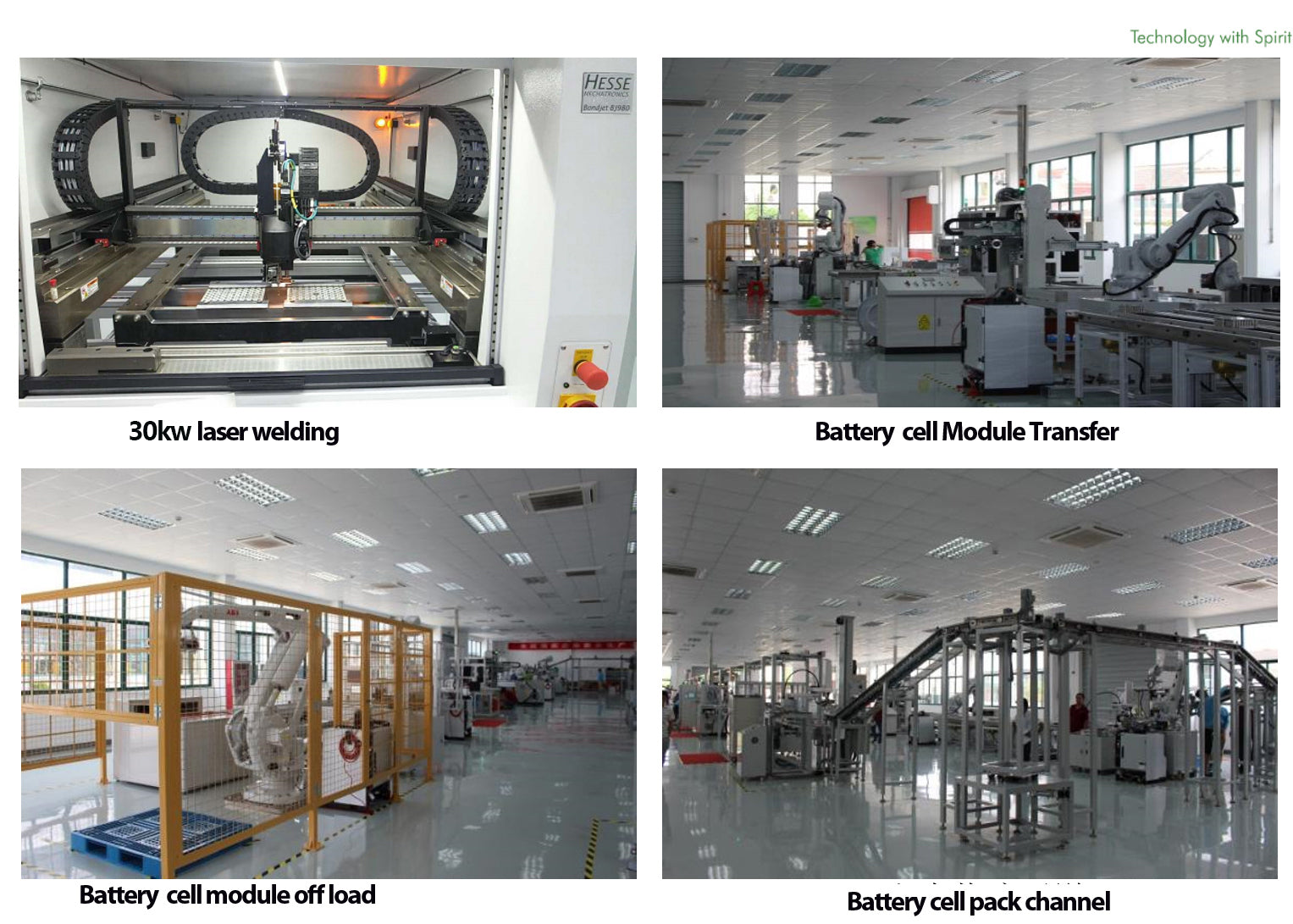

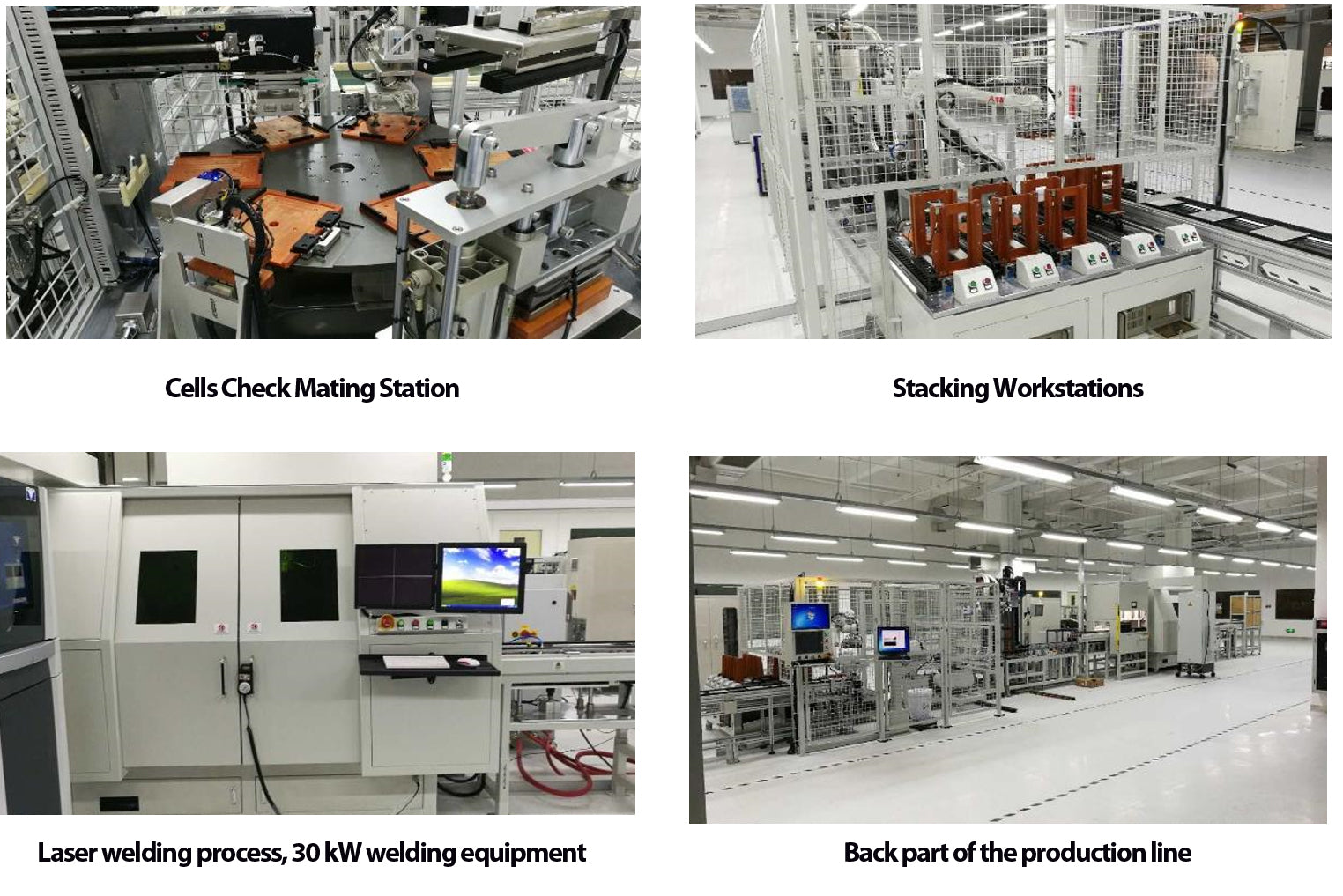

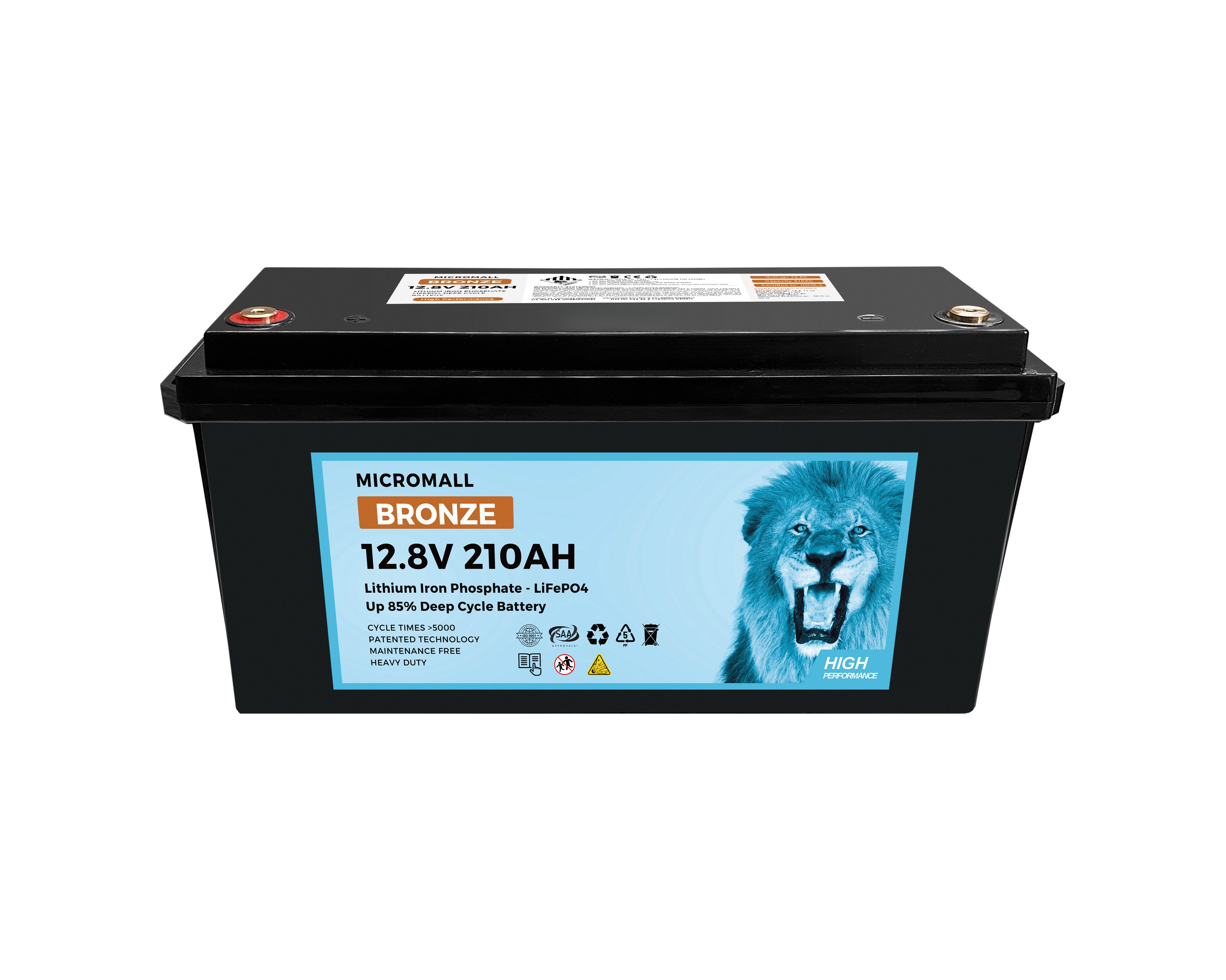

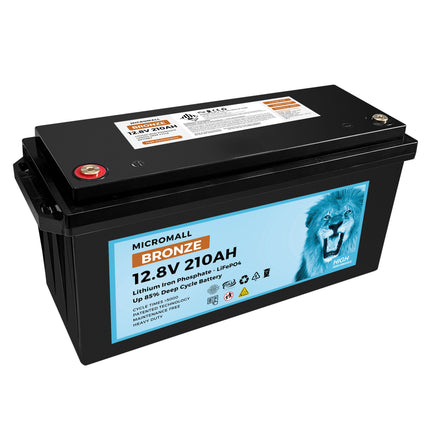

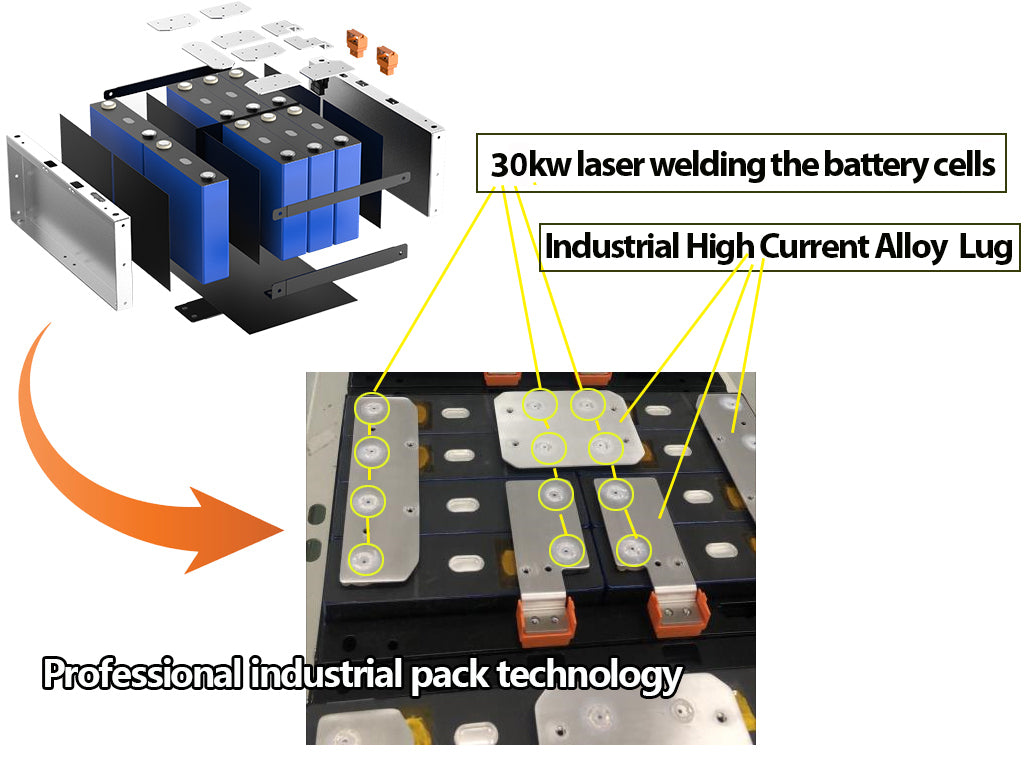

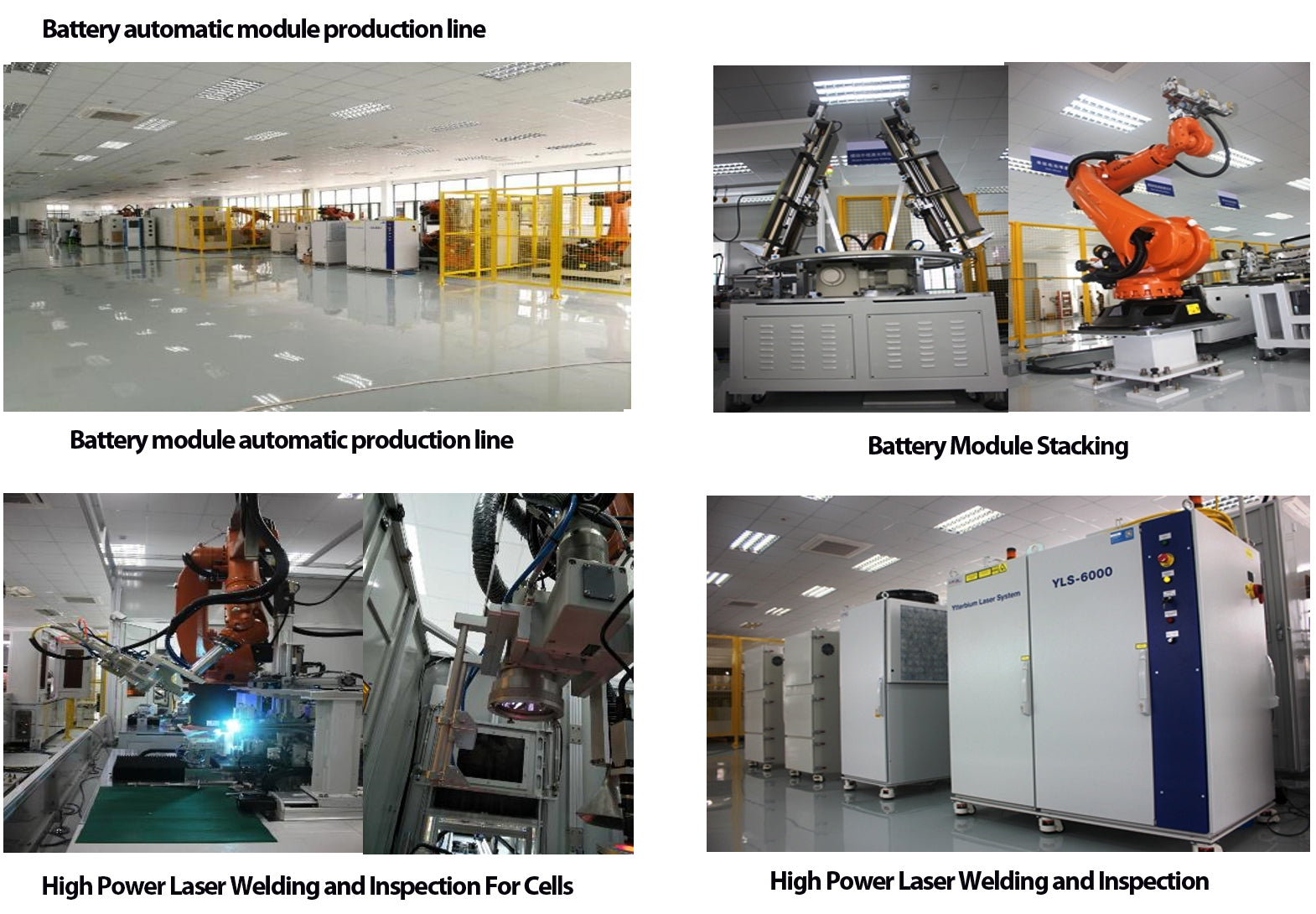

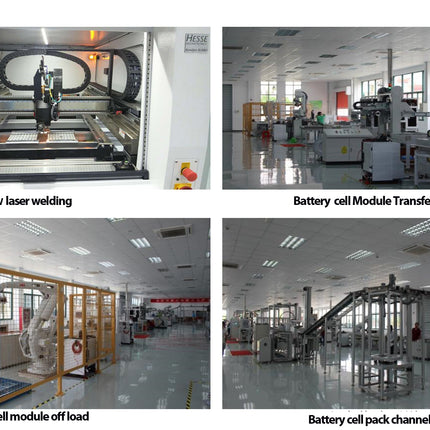

This battery is developed by our local New Zealand company micromallnz ltd. utilizing laser welding and cell internal resistance equalizer technology. It incorporates four patented technologies to ensure that the battery's capacity remains at or above 80% over 10 years and 70% over 20 years. It has a lifespan of 5000 cycles, lasting up to 30 years
A grade brand new cells
6 years warranty + 4 years repair warranty
State-of-the-Art Design: Features the latest Grade A cells, making it one of the safest LiFePO4 batteries globally.
Longevity: 80% capacity retention after 5000 deep cycles, promising a 20-year lifespan.
Integrated Monitoring: Comes with a professional extension monitor for precise cell detail visualization and an AI BMS system for optimal cell equalization.
Performance & Application:
High Energy Density: This next-gen lithium battery outperforms lead-acid batteries in energy density, offering significant weight savings.
Versatile Use: Ideal for RVs, solar energy storage, yachts, vehicles, and water pumps. It's a direct replacement for original batteries without the need for circuit modifications.
Advanced BMS: The built-in Battery Management System offers protection from over-discharge, over-charge, short circuits, and thermal runaway.
Water-resistant

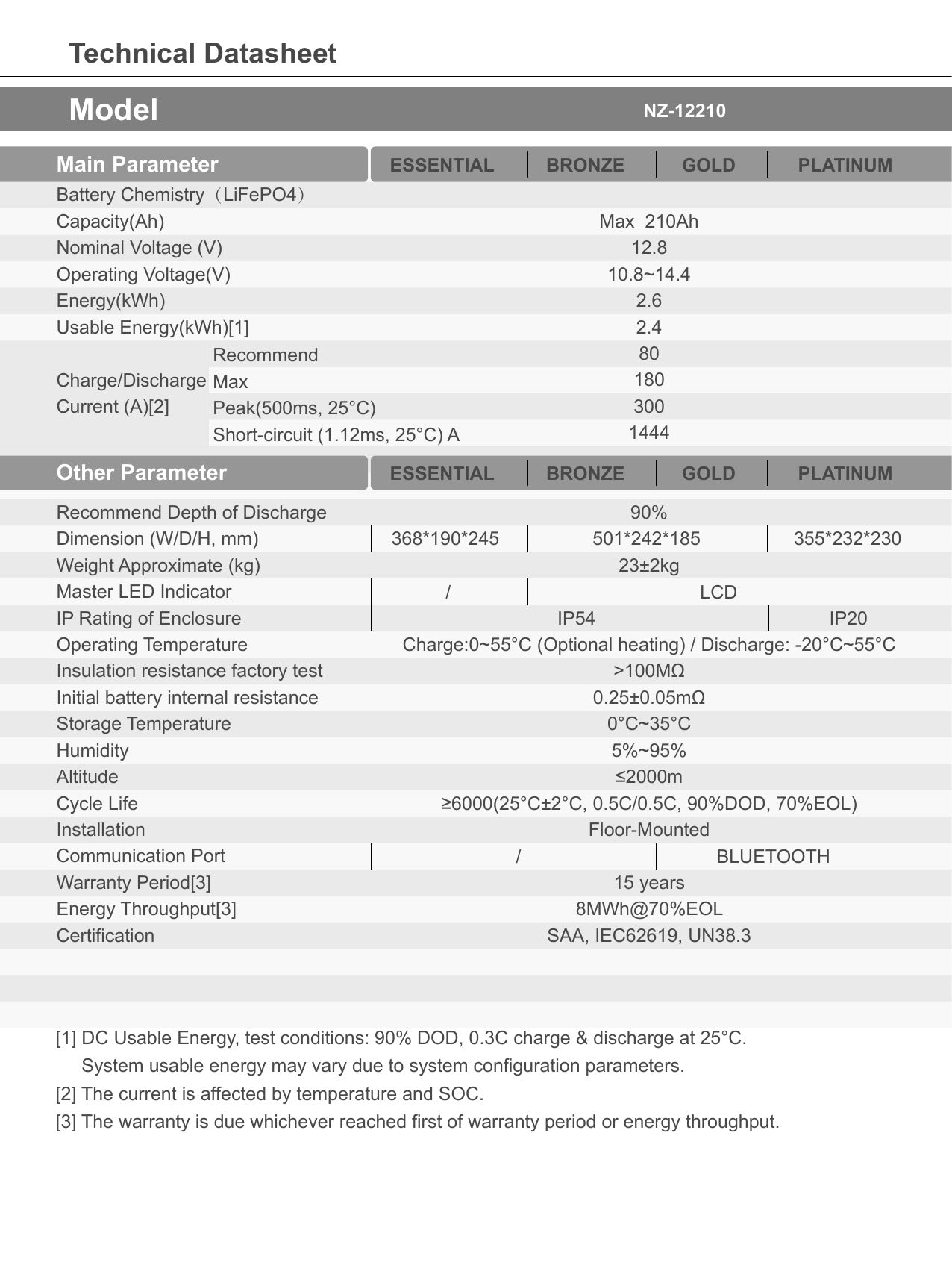

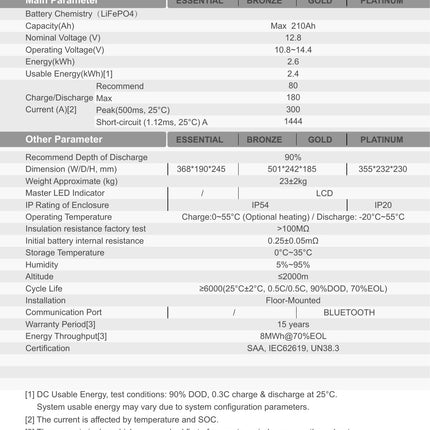

Technical Specifications:
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimensions: 501mm (L) x 185mm (W) x 235mm (H)
Weight: 22kg
Protection & Features:
BMS System
Overload & Short Circuit Protection
3A Equalizer for High Current Equalization
Over-discharge & Overcharge Protection
