Description

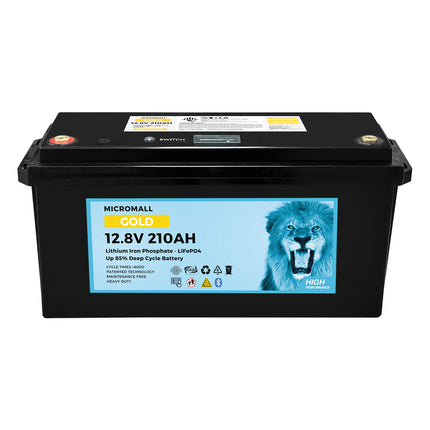

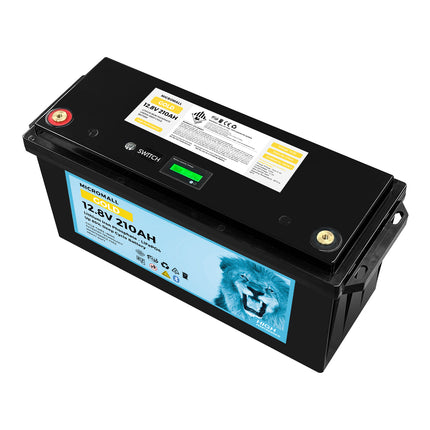

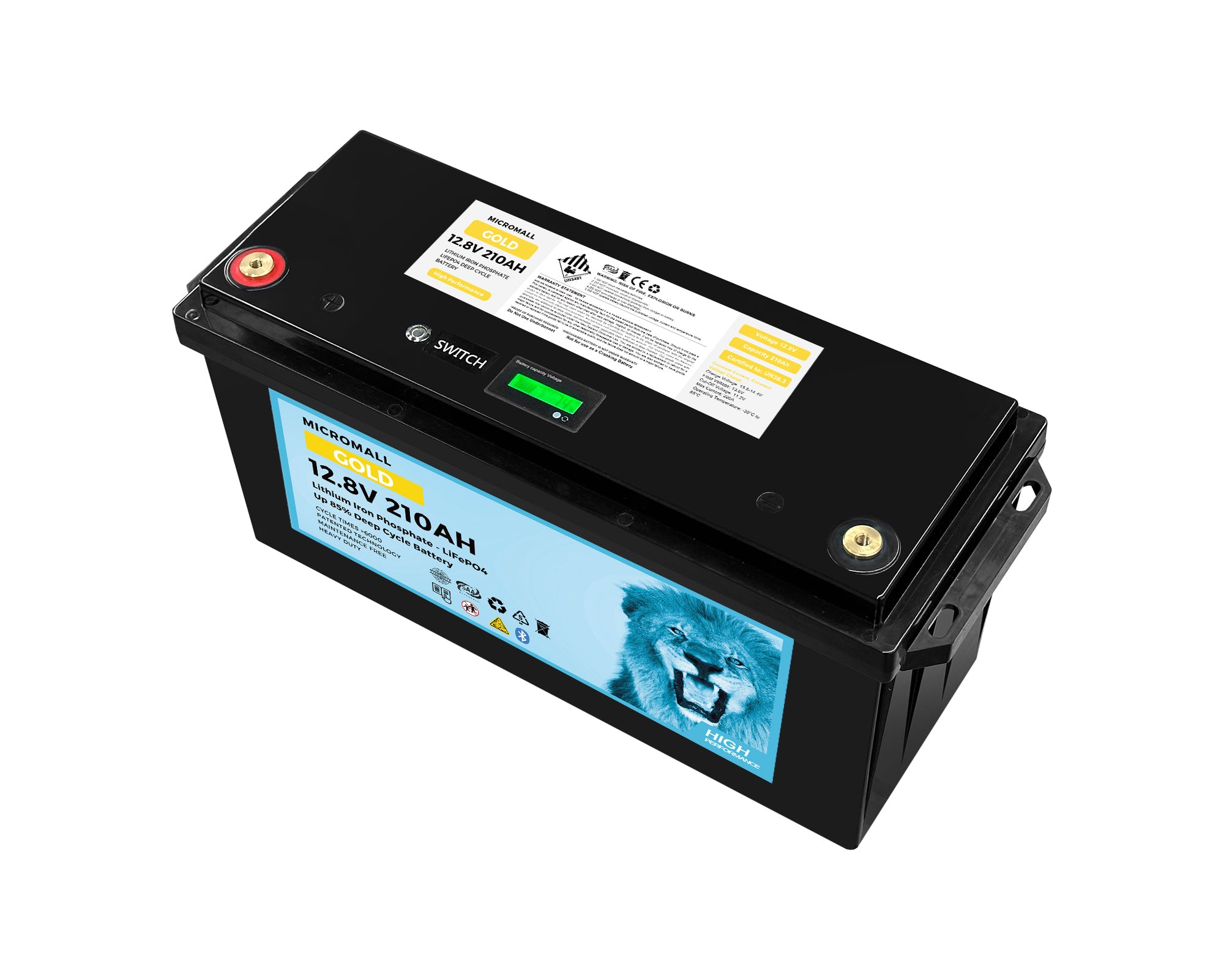

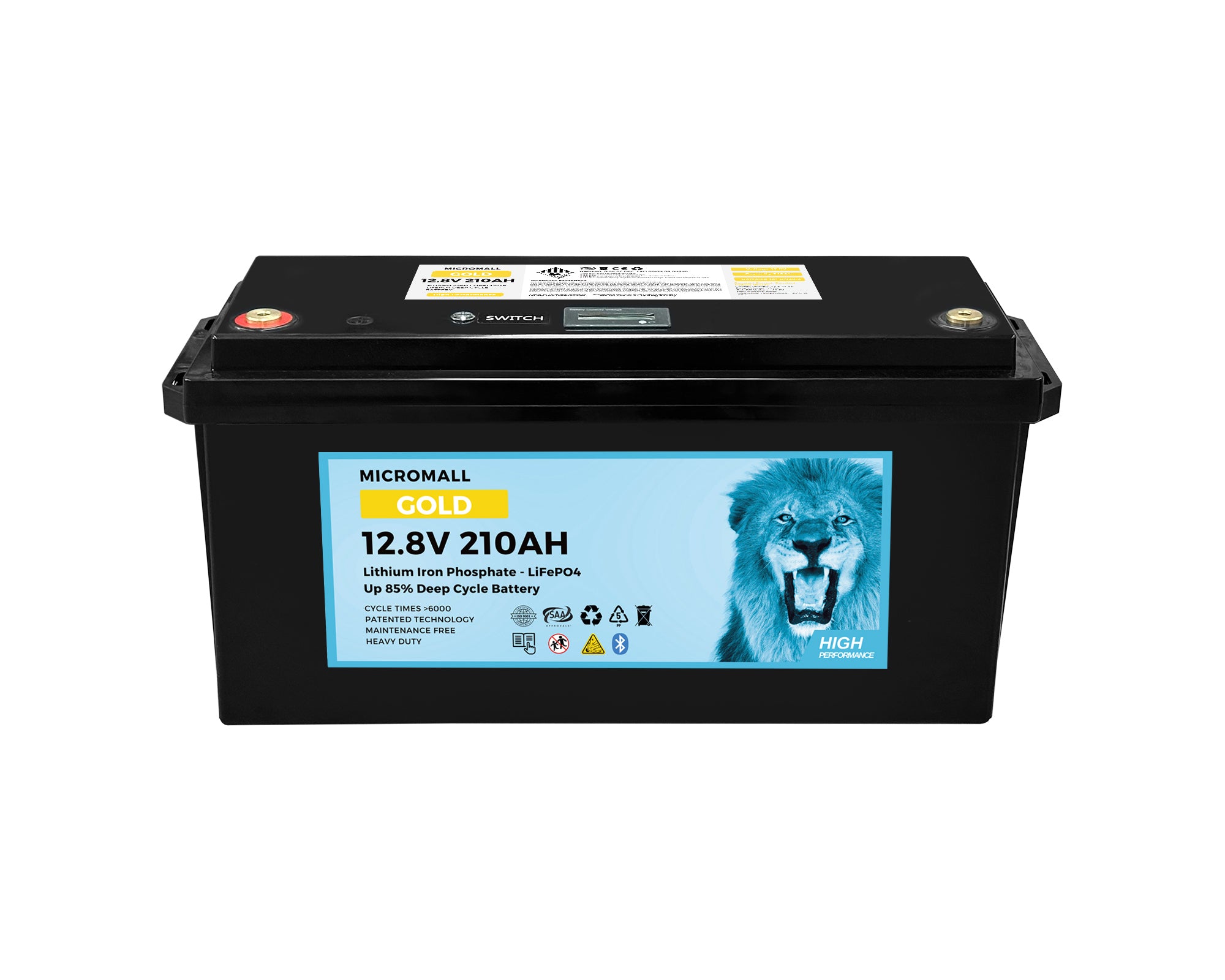

2025 12V 200/210Ah Max LiFePO4 (Lithium Iron Phosphate) Battery GOLD version : Advanced Energy Storage
- Key Features:
- State-of-the-Art Design: Features the latest CATL Grade A cells, making it one of the safest LiFePO4 batteries globally.
- Longevity: 80% capacity retention after 6000 deep cycles, promising a 20-year lifespan.
- Integrated Monitoring: Comes with a professional extension monitor for precise cell detail visualization and an AI BMS system for optimal cell equalization.
- Warranty: A 10-year full warranty with an added 5 years repair warranty ensures confidence in its durability.
Performance & Application:
- High Energy Density: This next-gen lithium battery outperforms lead-acid batteries in energy density, offering significant weight savings.
- Versatile Use: Ideal for RVs, solar energy storage, yachts, vehicles, and water pumps. It's a direct replacement for original batteries without the need for circuit modifications.
- Advanced BMS: The built-in Battery Management System offers protection from over-discharge, over-charge, short circuits, and thermal runaway.
Water-resistant
- Technical Specifications:
- Battery Chemistry: LiFePO4
- Capacity(Ah): Max 210Ah
- Nominal Voltage (V): 12.8V
- Operating Voltage(V): 10.8 - 14.4V
- Energy(kWh): 2.6kWh
- Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
- Recommend: 80A
- Max: 180A
- Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
- Recommend Depth of Discharge: 90%

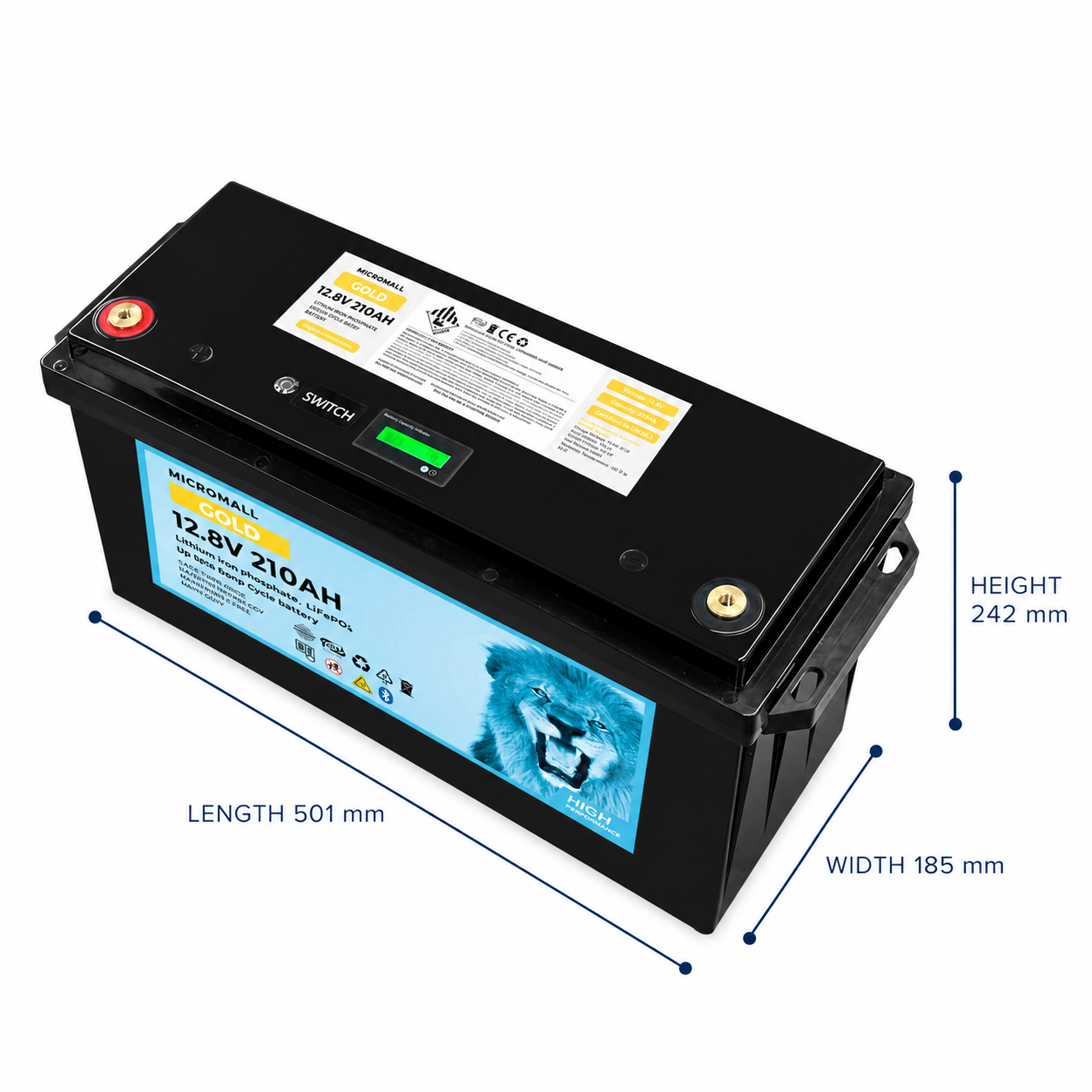

- Dimensions: 501mm (L) x 185mm (W) x 235mm (H)
- Weight: 22kg
Protection & Features:
BMS System

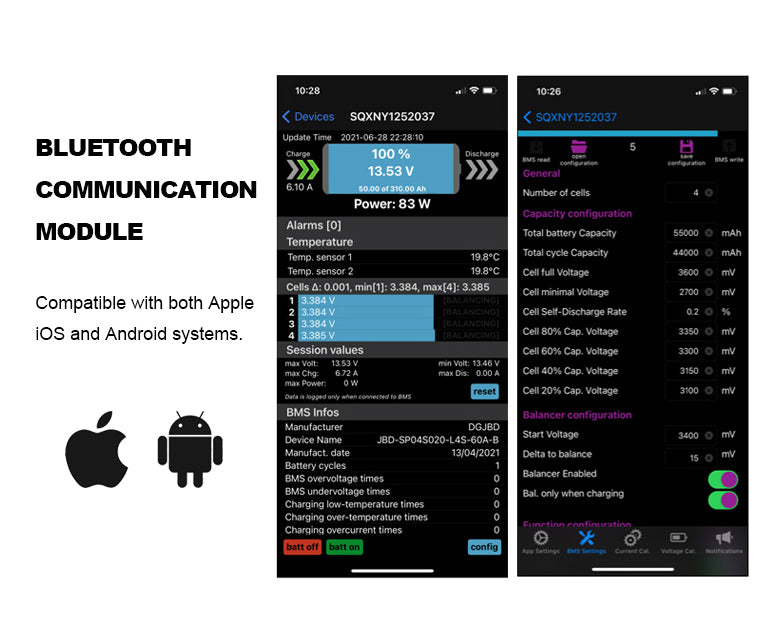

Bluetooth Connectivity
Overload & Short Circuit Protection
3A Equalizer for High Current Equalization
Over-discharge & Overcharge Protection
- Equip yourself with the future of energy storage: a reliable, safe, and high-performance LiFePO4 battery.
