Description

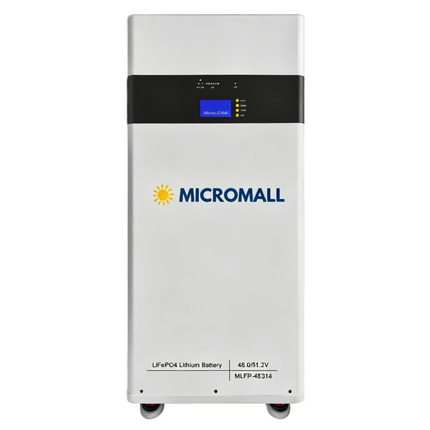

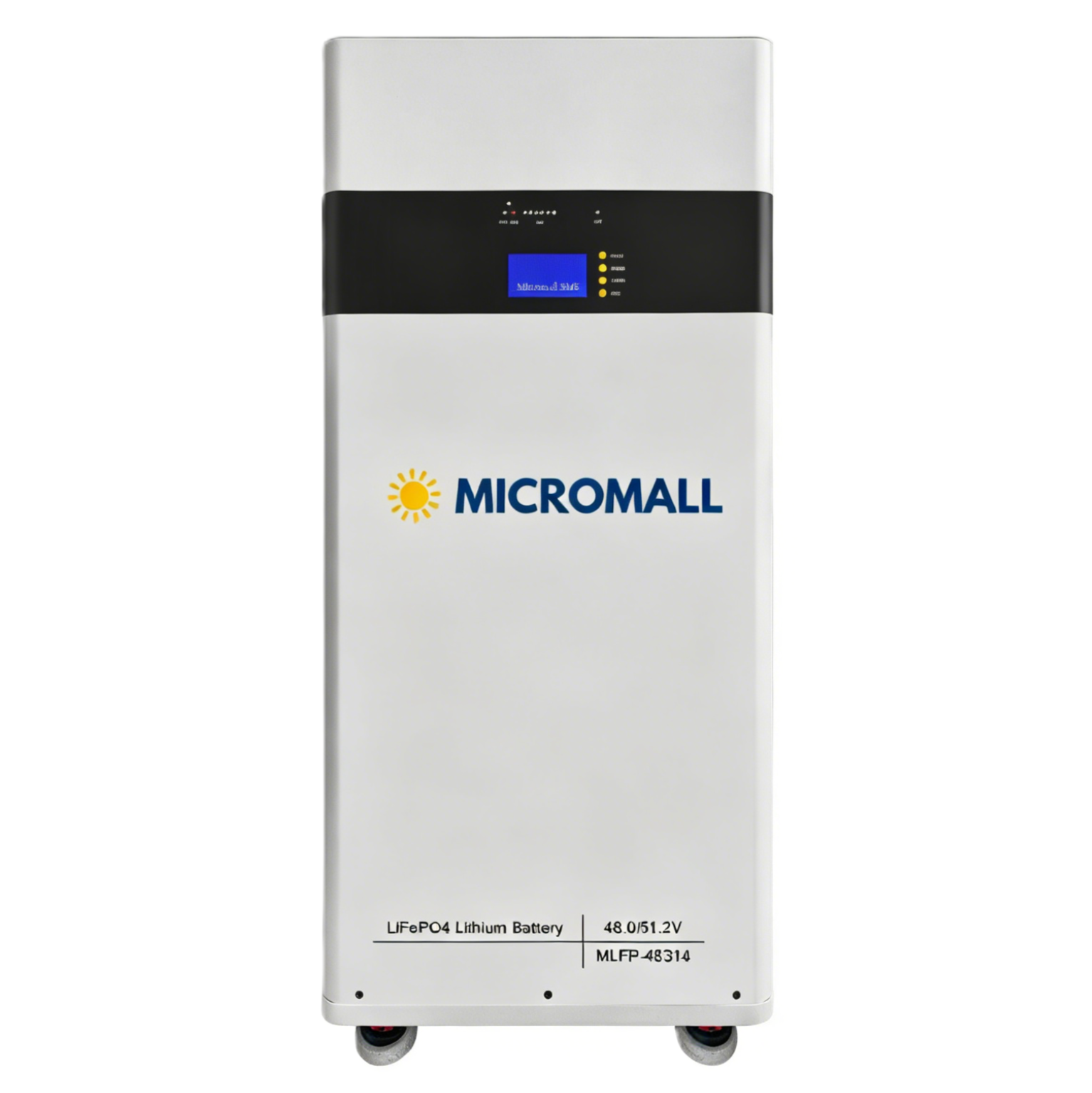

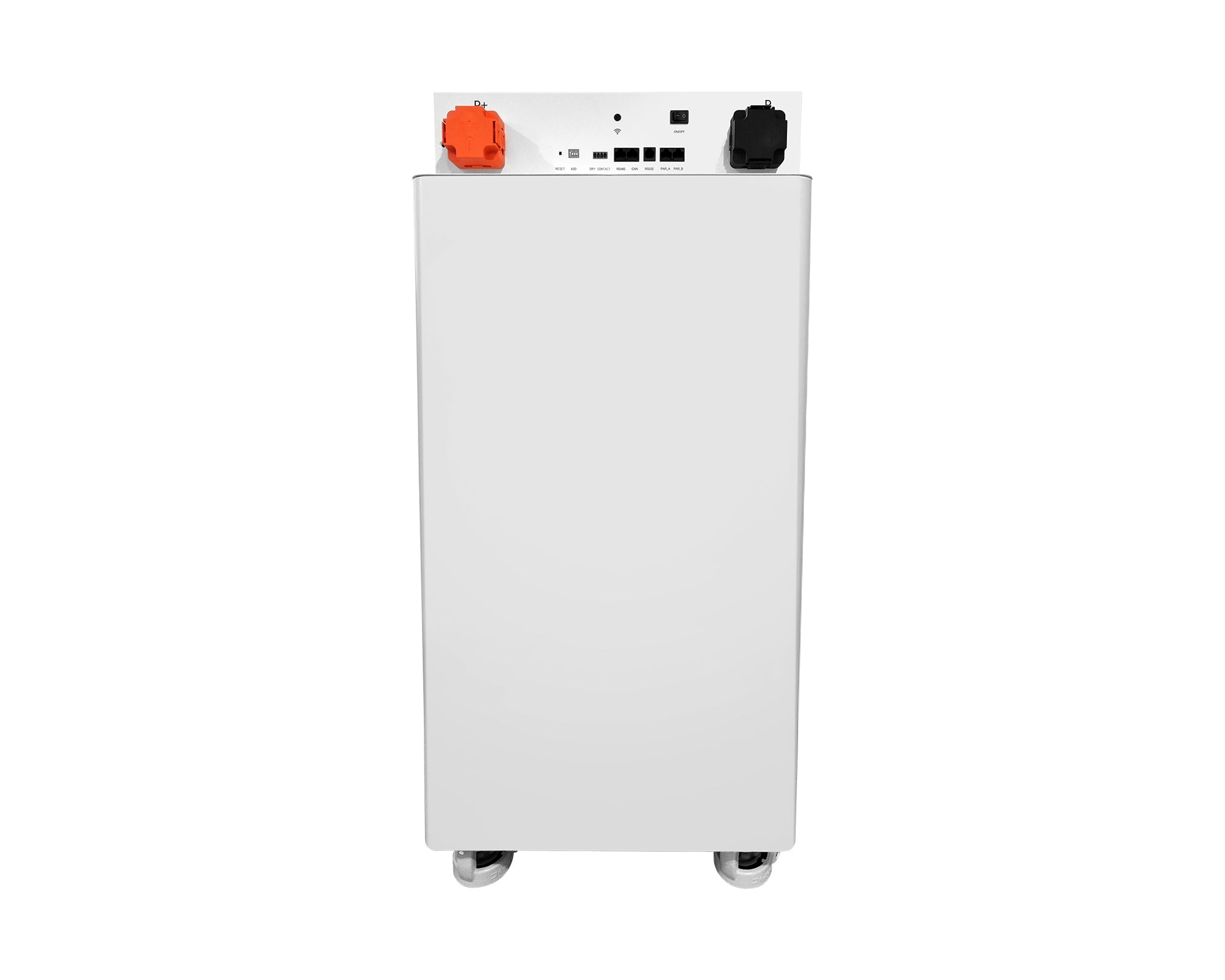

Micromall 48V 51.2V 314Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery
This system can be compatible with various inverter protocols available on the market. When used in conjunction with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load. It improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Performance Features:
Good temperature performance.
- Comprehensive Protection Functions: Over-voltage, Under-voltage, Short Circuit, Reverse Connection, Over-current, Over-temperature, Balancing.
With a long life span.
Easy to operate and maintain, integrated BMS design, support self-surplus power management.

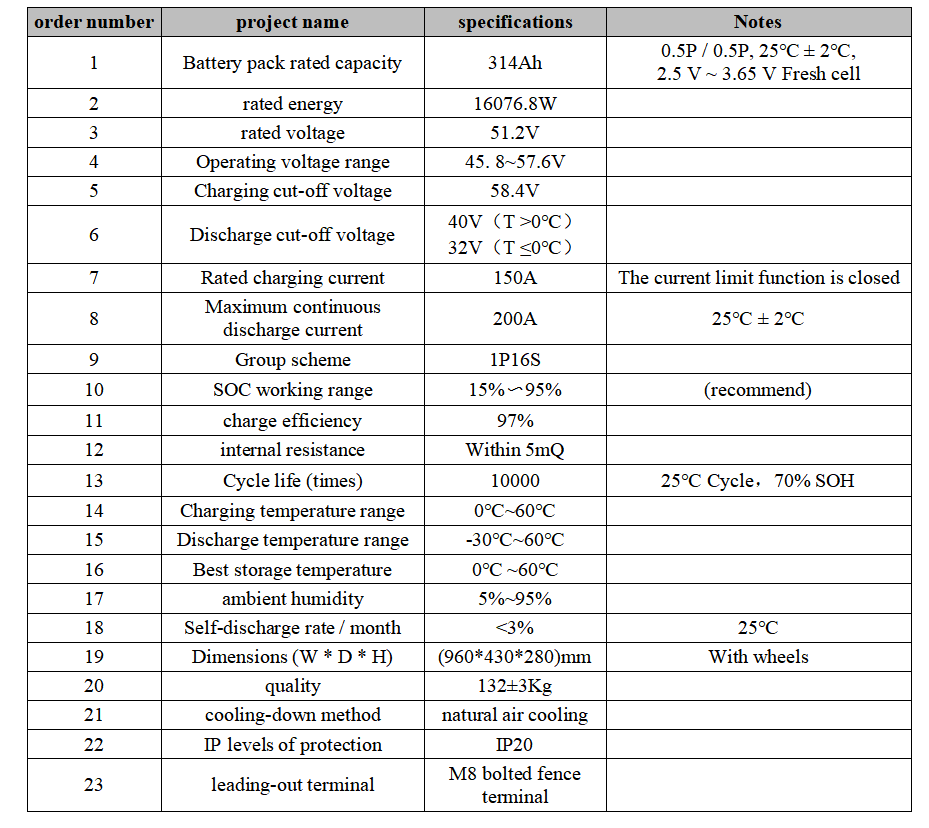

Specifications
- Battery pack rated capacity: 314AH
- Rated energy: 16.07kWh
- Rated voltage: 51.2V
- Operating voltage range: 45.8 - 57.6V
- Charging cut-off voltage: 58.4V
- Discharge cut-off voltage: 40V（T >0°C）, 32V（T ≤0°C）
- Rated charging current: 150A
- Charge efficiency: 97%
- Charging temperature range: 0°C - 60°C
- Discharge temperature range: -30°C - 60°C
- Best storage temperature: 0°C - 60°C
- Ambient humidity: 5% - 95%

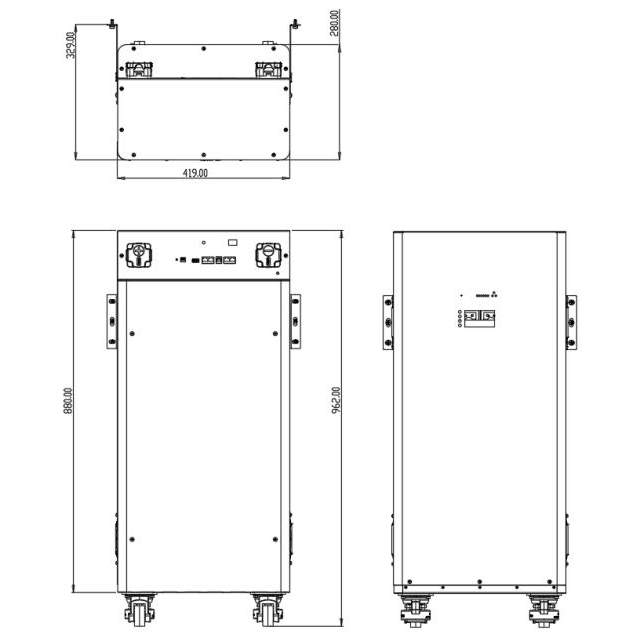

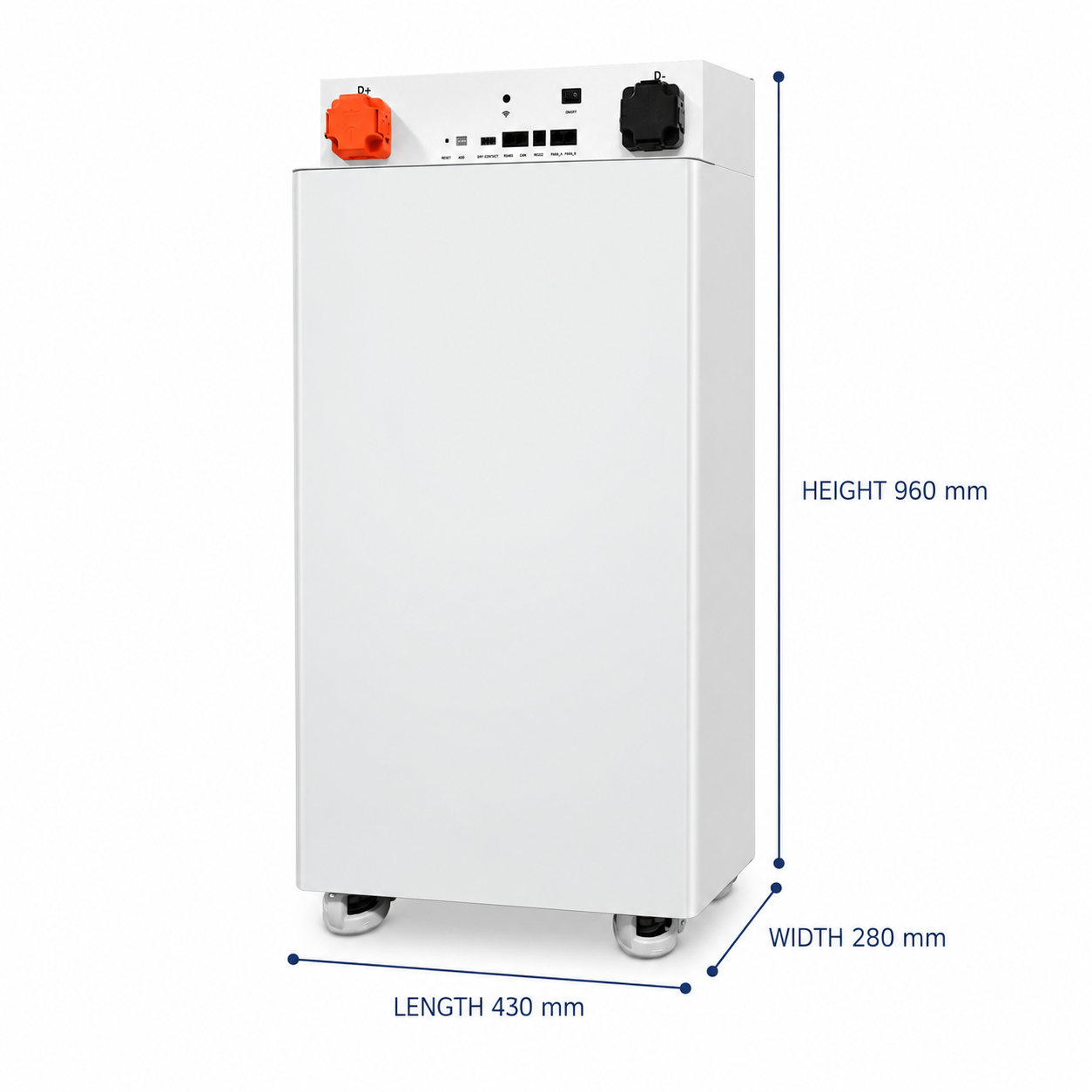

- Dimensions (W x D x H): 960x430x280mm
- Weight: 132Kg
- IP levels of protection: IP20
15 Years New Zealand Local Warranty
