Description
CATL 3.2V 150Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***

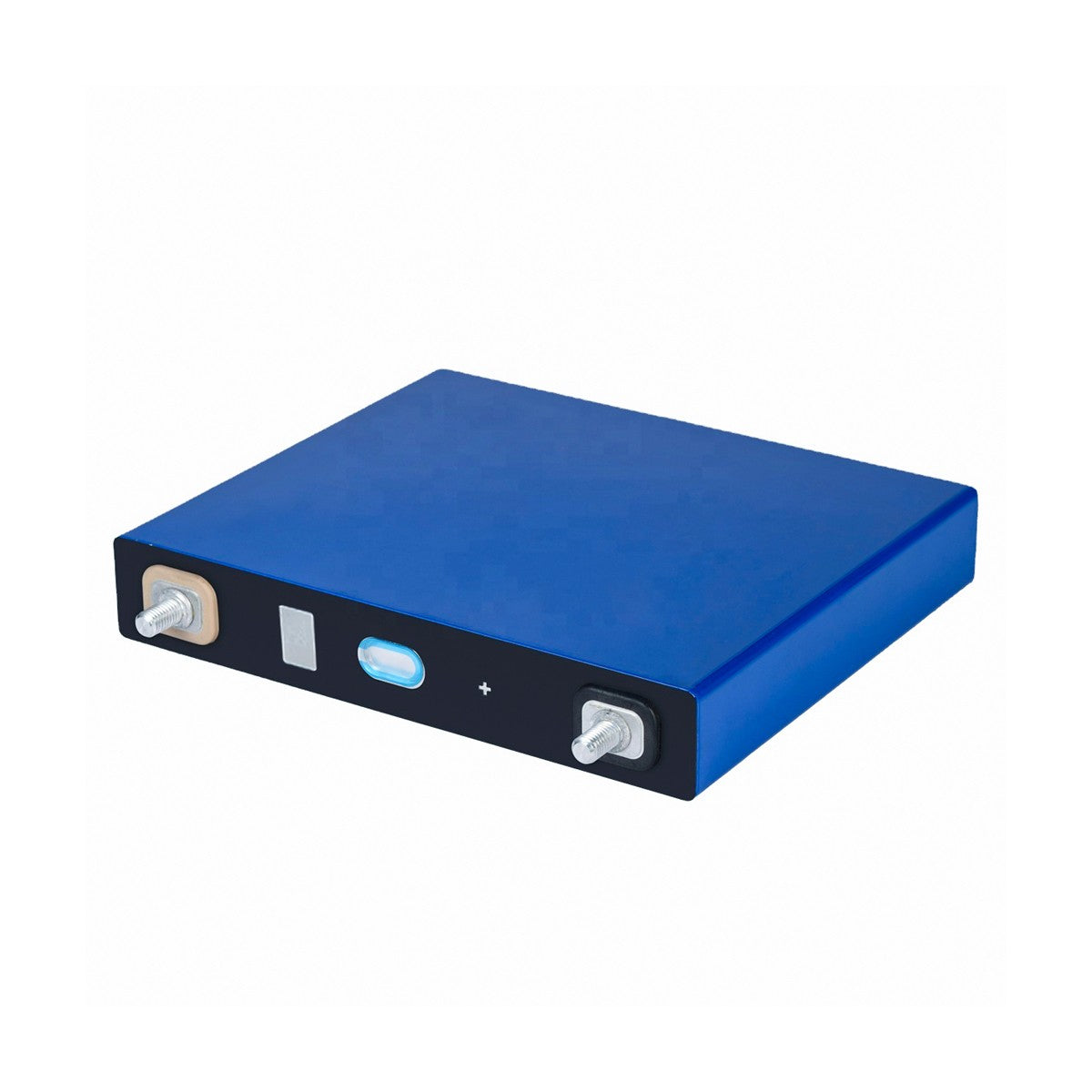

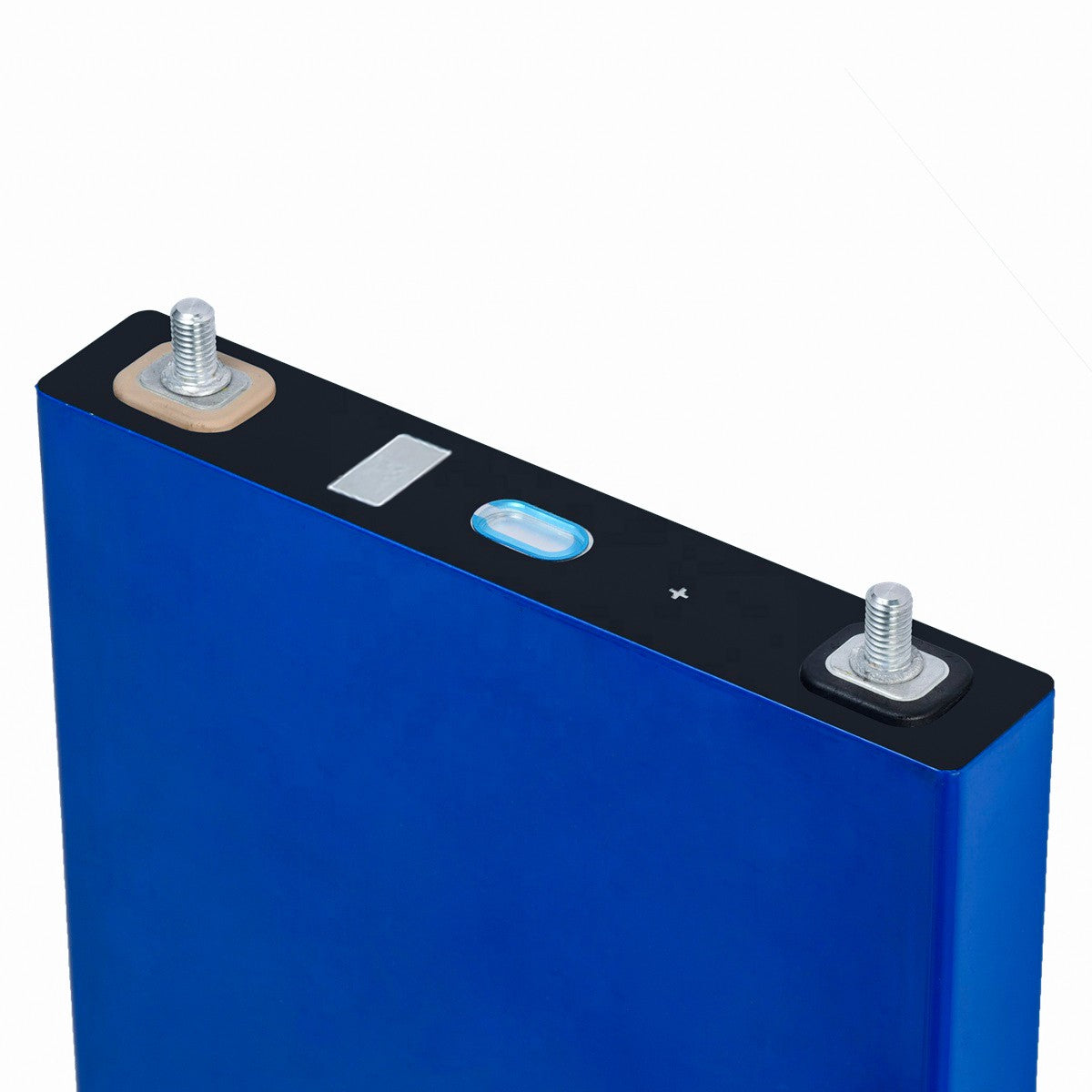

Introducing the CATL 3.2V 150Ah LiFePO4 prismatic battery cell, designed for reliable energy storage, solar systems, battery packs, electric vehicles and a wide range of deep-cycle applications.
With a nominal capacity of 150Ah and approximately 480Wh of energy per cell, this compact lithium iron phosphate cell offers excellent energy density, low internal resistance and long cycle life.
Specification
Brand: CATL
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
Cell Type: Prismatic
Nominal Voltage: 3.2V
Nominal Capacity: 150Ah
Nominal Energy: 480Wh
Operating Voltage Range: 2.5V – 3.65V
Internal Resistance: 0.34 ± 0.05mΩ
Standard Charge Current: 75A (0.5C)
Maximum Continuous Charge Current: 150A (1C)
Maximum Continuous Discharge Current: 150A (1C)
Charging Temperature: 0°C – 60°C
Discharging Temperature: -30°C – 60°C
Cycle Life: 3500+ cycles at 80% DOD
Battery Weight: Approx. 2.95 ± 0.3kg

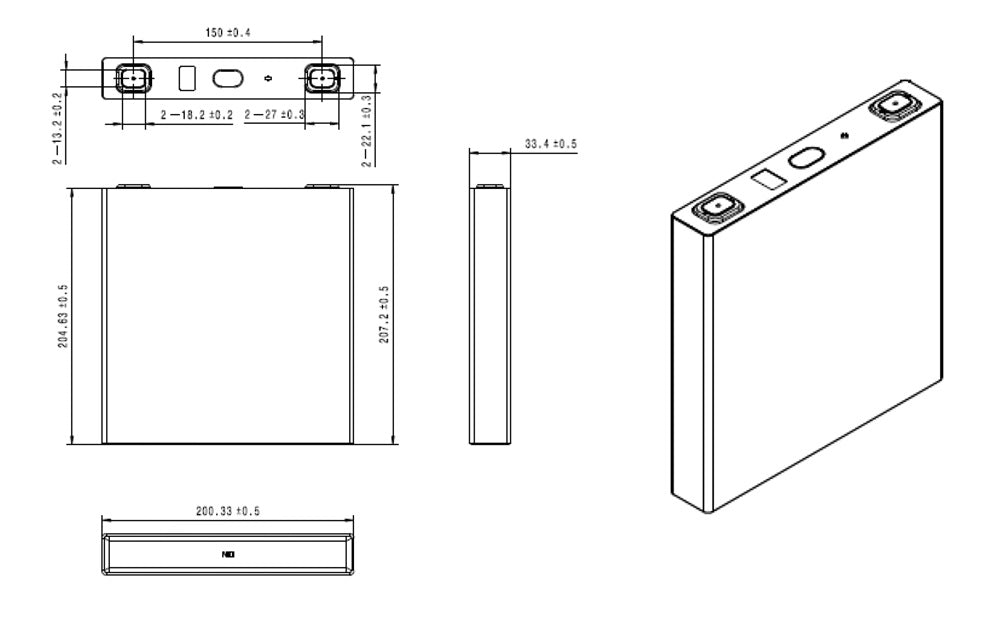

Dimensions: Approx. 200.33mm × 207.2mm × 33.4mm
Ideal Applications
Suitable for a wide range of applications including:
- Solar and off-grid energy storage systems
- Residential and commercial ESS
- RVs and campervans
- Electric vehicles and mobility applications
- DIY LiFePO4 battery packs
- UPS and backup power systems
- Telecommunications
- Golf carts
- Forklifts
- Electric tools and equipment
- Marine and deep-cycle battery systems
LiFePO4 chemistry is widely used for energy-storage applications thanks to its long service life, stable performance and excellent thermal characteristics.
Warranty: 2 Years
