Description
Product Features:
RoHS/CE Compliant Design
94% High Efficiency (@ 12V Input)
Non-isolated Input-Output
Reliable Imported Capacitors
100% Full Load Burn-in Tested
Heavy-Duty Design with Soft Start
Constant Current Output
Over-Temperature, Short-Circuit, Over-Voltage Protection
Waterproof Epoxy Potting
Surface-Mountable Aluminum Shell
Cooling by Free Air Convection
Specifications:
Brand: Szwengao
Model: WG8-36BC14R520
Input Voltage: 8-36V DC
Efficiency: 94% (@ 12V Input)
Output Voltage: 14.5V DC
Max Rated Output Current: 20A (Constant Current)
Charging Power: 290W
Voltage Regulation: ±1%
Load Regulation: < 2%
Soft Start: Yes
Ripple & Noise: 180mVp-p
Operating Temperature: -40°C to +80°C
Operating Humidity: 10% to 90% RH
Storage Temperature: -40°C to +100°C
Weight: ≤ 550g

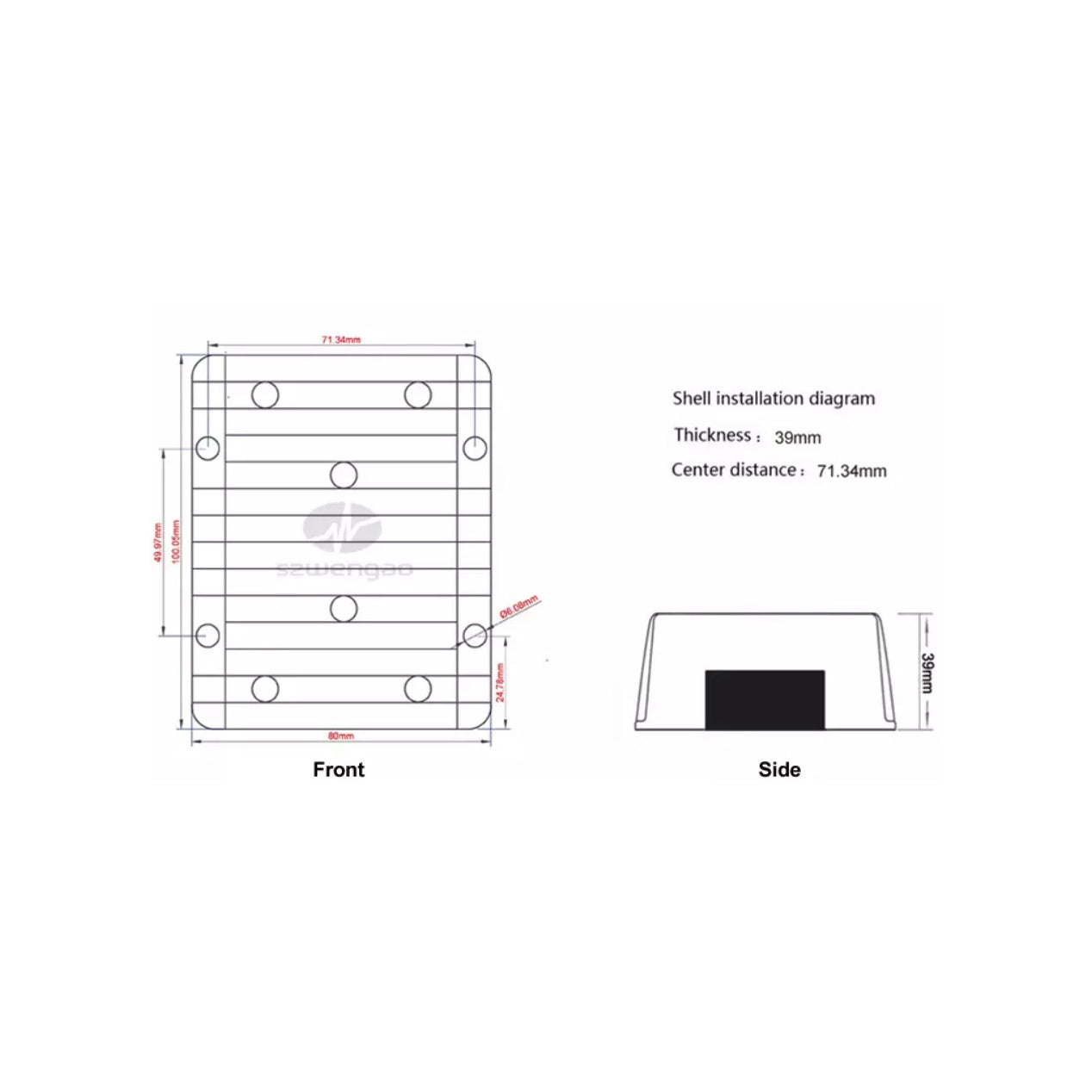

Dimensions: 100x80x39mm (3.94x3.15x1.54 inches)

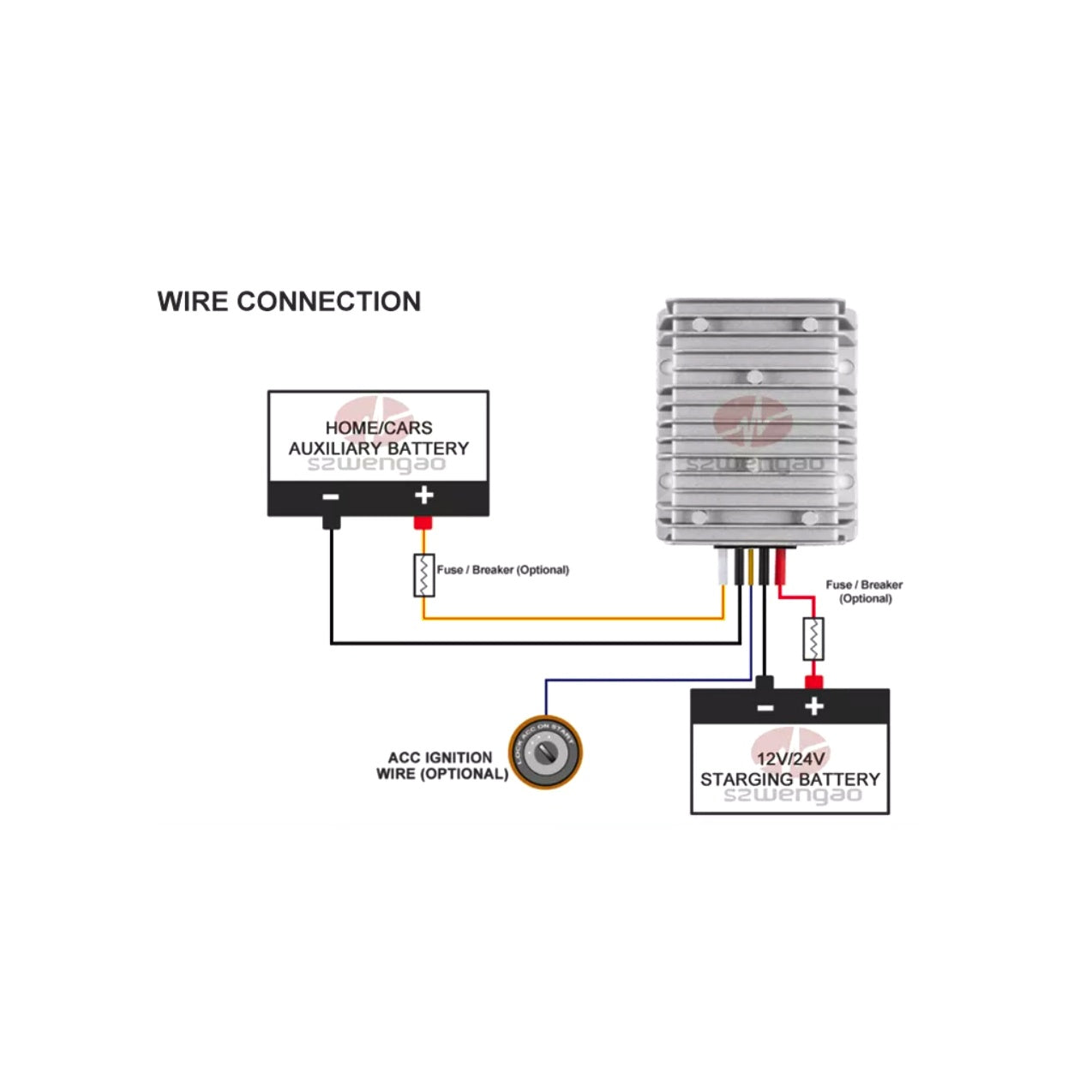

Input Connector: 10AWG (R+, B-) Cables @ 16-17cm Length
Output Connector: 12AWG (W+, B-) Cables @ 16-17cm Length
Packing Type: Box
Cooling: Free Air Convection
Warranty:
12 Months
