Description
Introducing the EITAI ELESHELL 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery:
built for seamless communication with Victron, and Deye off/grid tie, goodwe, Growatt, BlueSun, MustPower,sofar
Advantages of Power-Wall Battery:

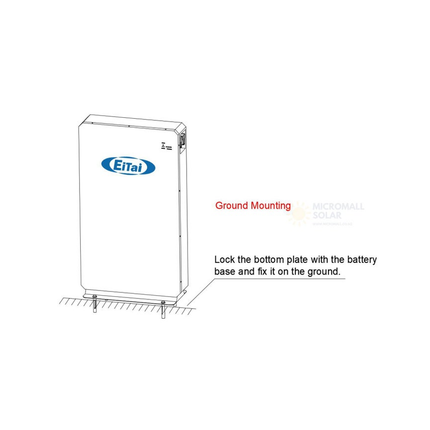

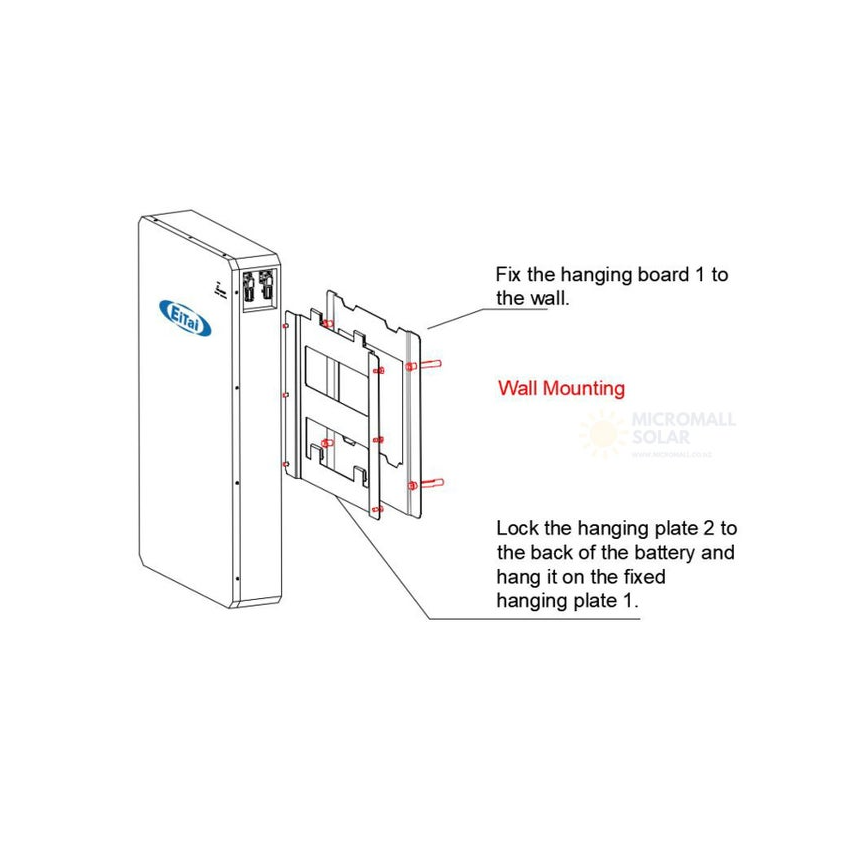

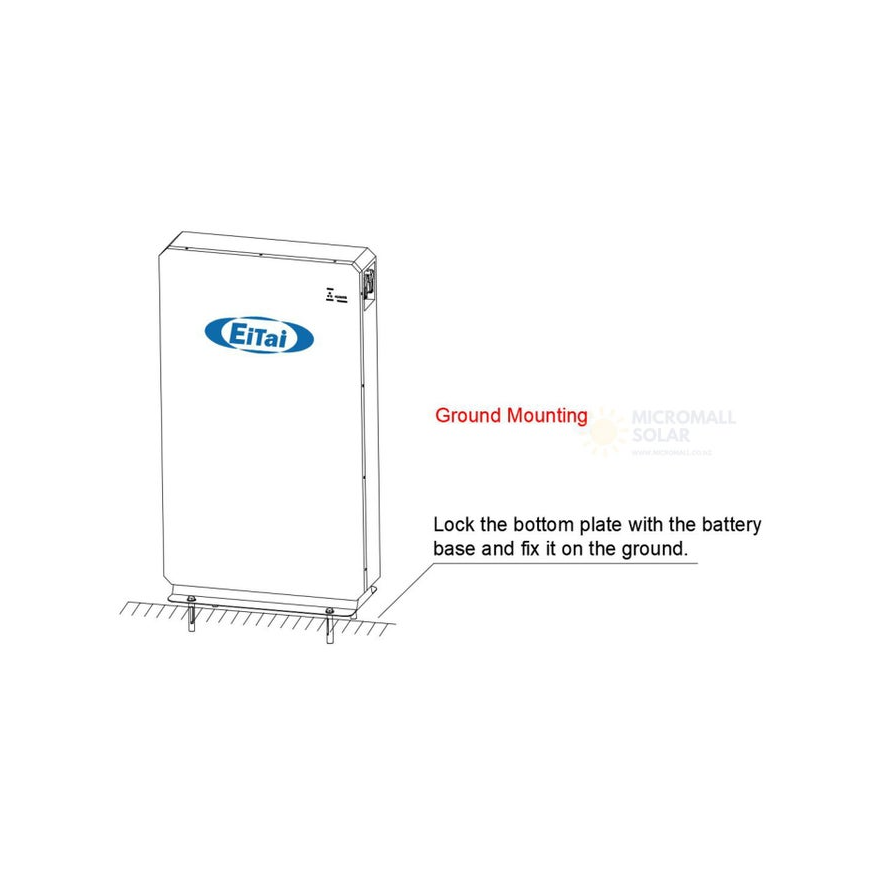

Wall-mounted / ground mounted.
Parallel up to 15pcs.
ip rated: 54
Capacity: 10.75kWh
Excellent Safety with cobalt-free LiFePO4 battery.
Easy installation with modular and stacked design.
Exceptional lifespan: 30 years of runtime with a 15-year warranty.

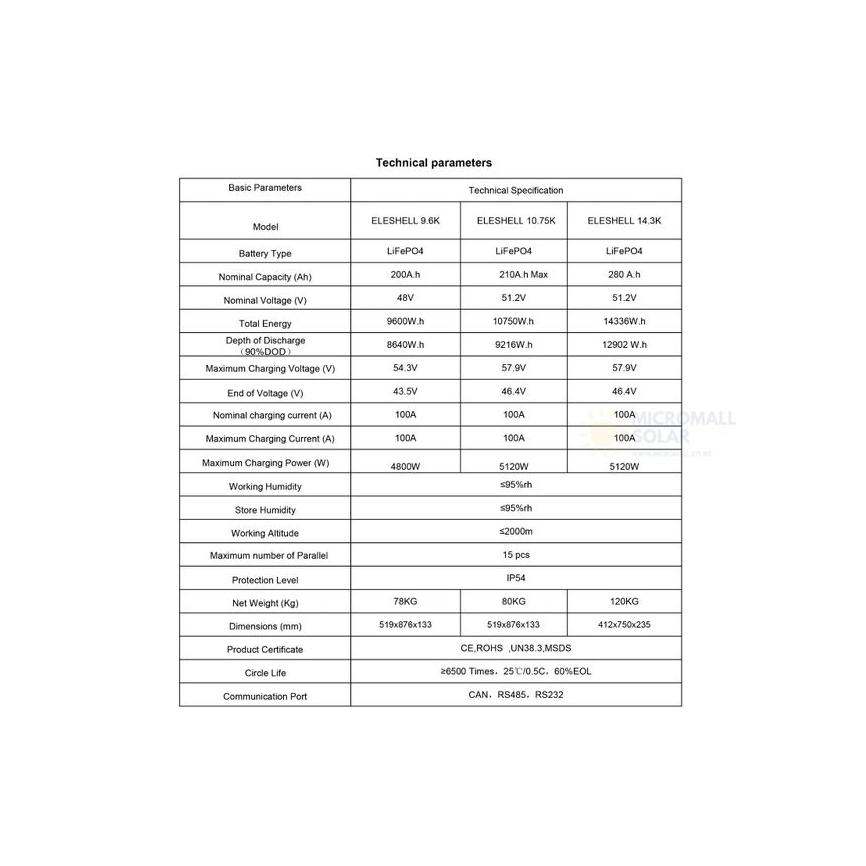

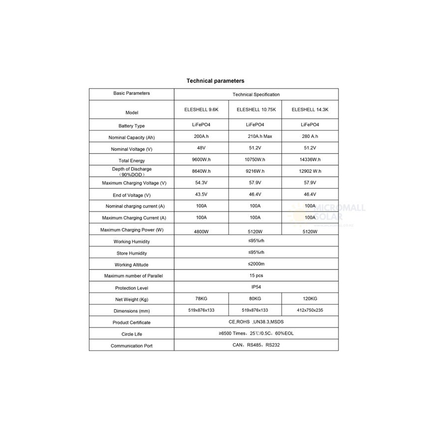

Technical Parameters:
Model: ELESHELL 10.75K
Battery Type: LiFePO4
Nominal Capacity: 210Ah
Nominal Voltage: 48V/51.2v (real 16 cells)
Total Energy: 10,750Wh
Depth of Discharge (90% DOD): 9,216Wh
Maximum Charging Voltage: 57.9V
End of Voltage: 46.4V
Nominal Charging Current: 100A
Maximum Charging Current: 100A
Maximum Charging Power: 5,120W
Working Humidity: =95%rh
Store Humidity: =95%rh
Working Altitude: =2000m
Maximum number of Parallel: 15 PCS
Protection Level: IP54
Net Weight: 89.50KG

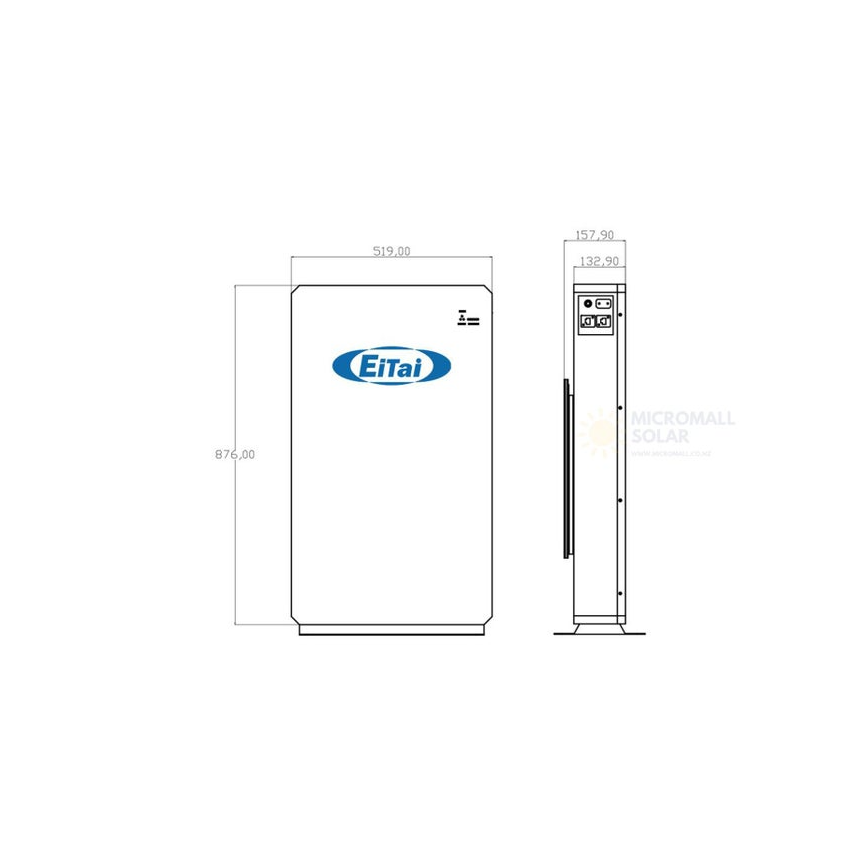

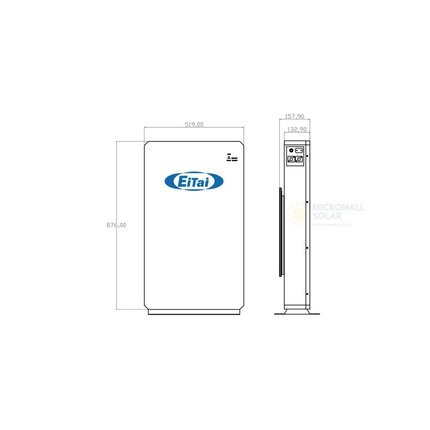

Dimensions: 519 x 876 x 133mm
Product Certificate: CE, ROHS, UN38.3, MSDS
Cycle Life: =6500 Times at 25°C/0.5C, 60% End of Life (EOL)

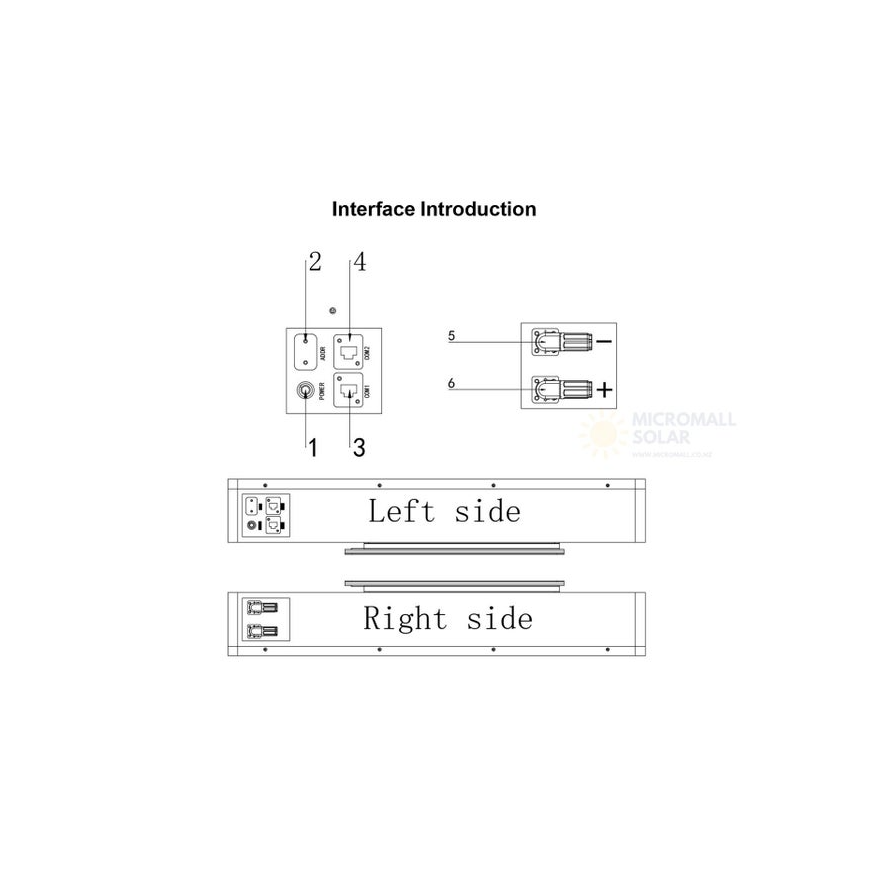

Communication Port: CAN, RS485, RS232
Operating temperature: 0°C ~ 60°C
Storage temperature: =25°C for 12 months; =35°C for 6 months; =45°C for 3 months
Note: Operating current derating according to the cell voltage and temperature.
