Description

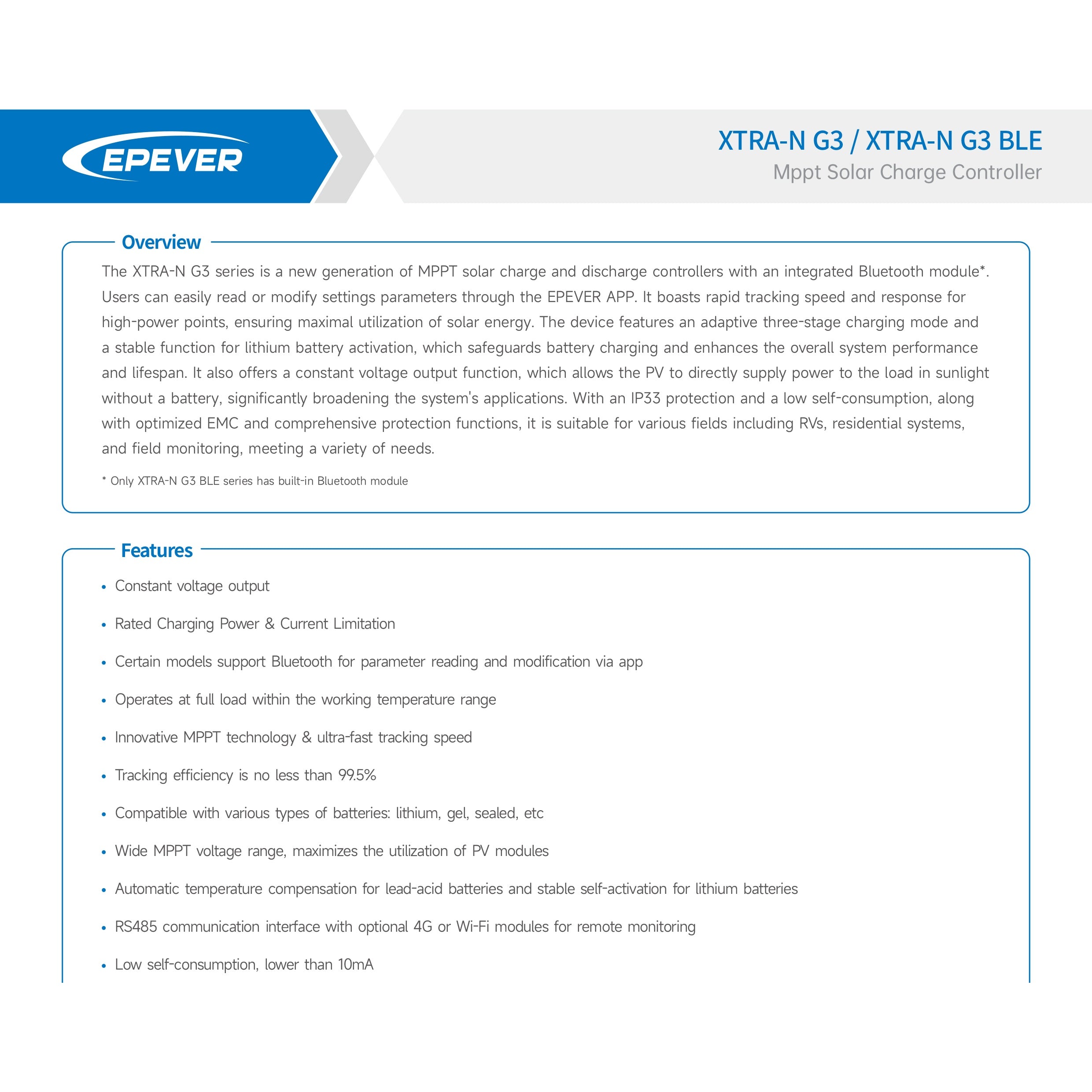

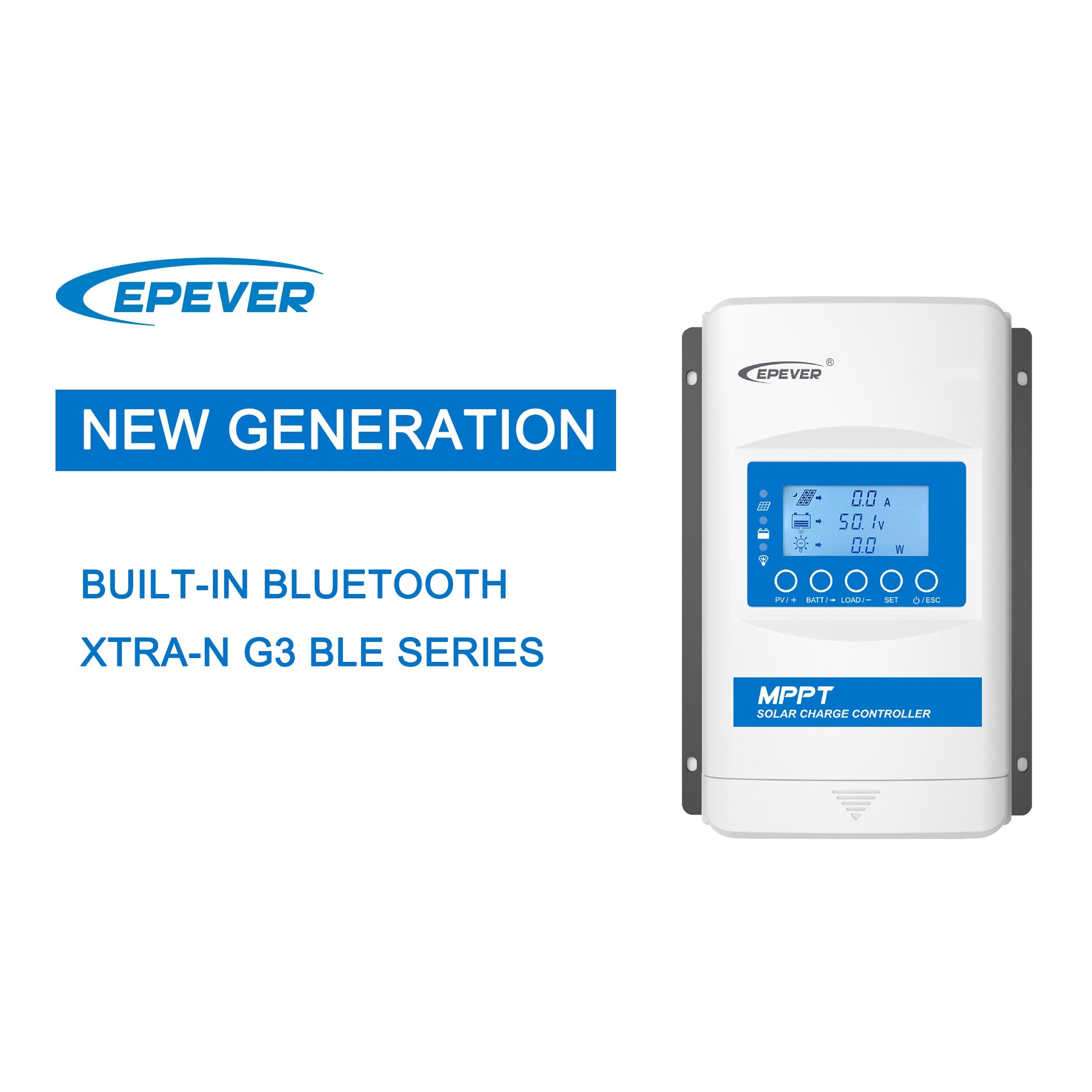

The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed

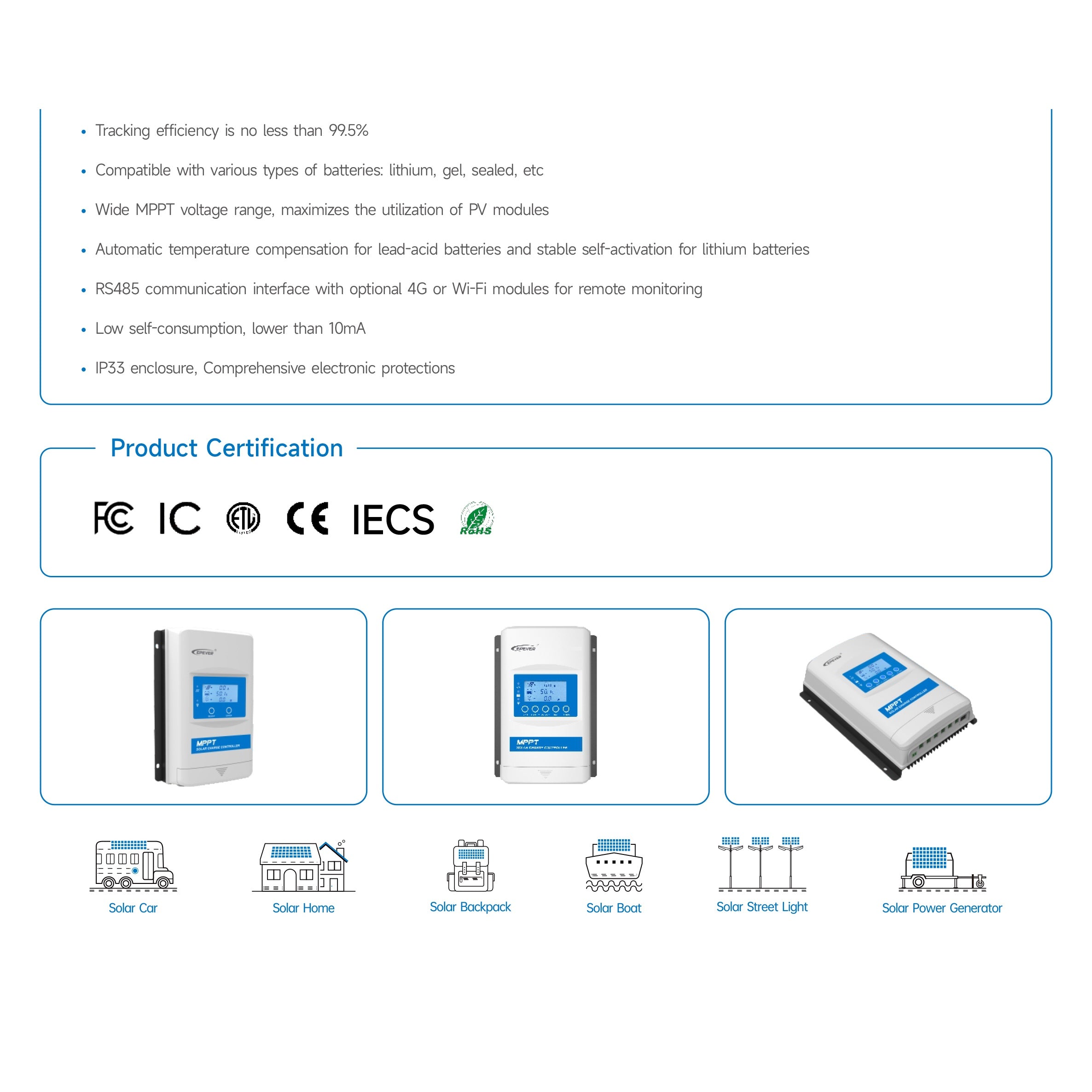

Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure

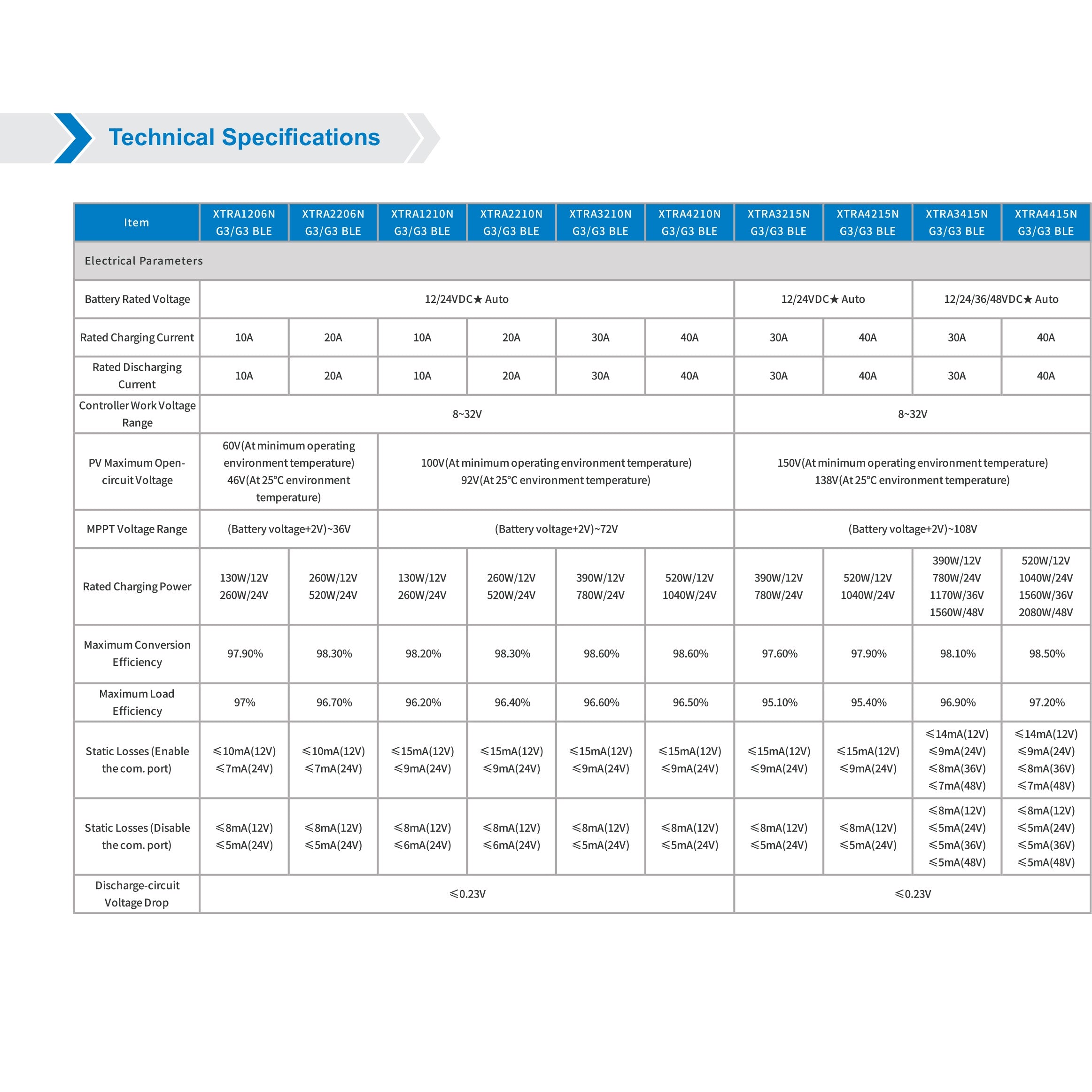

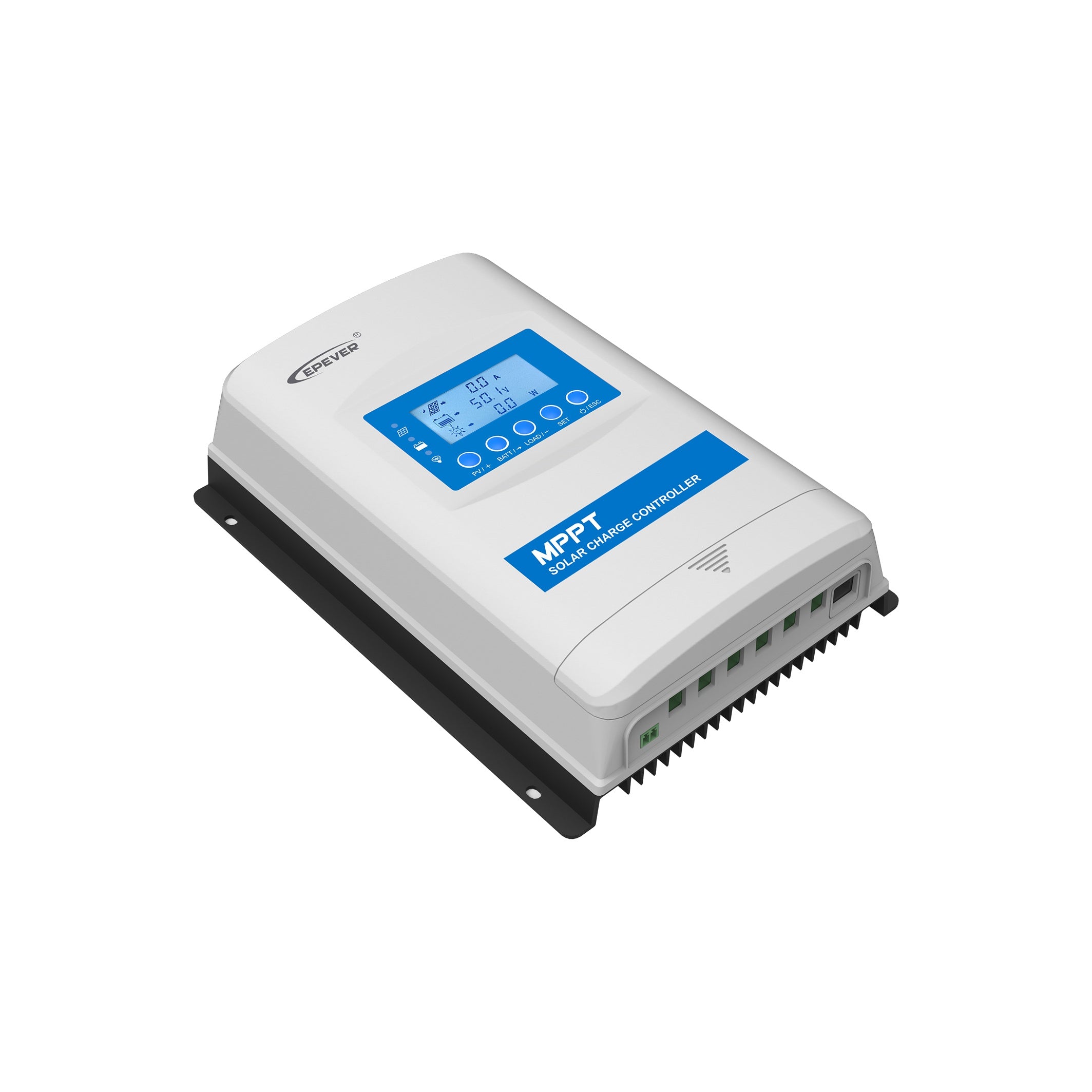

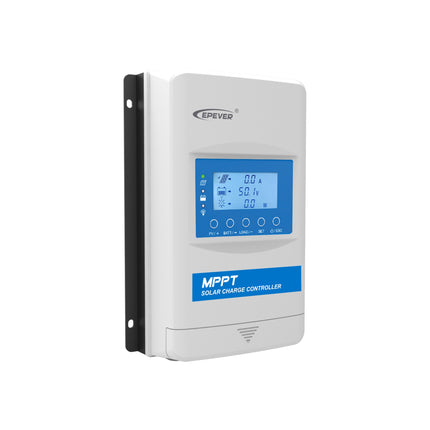

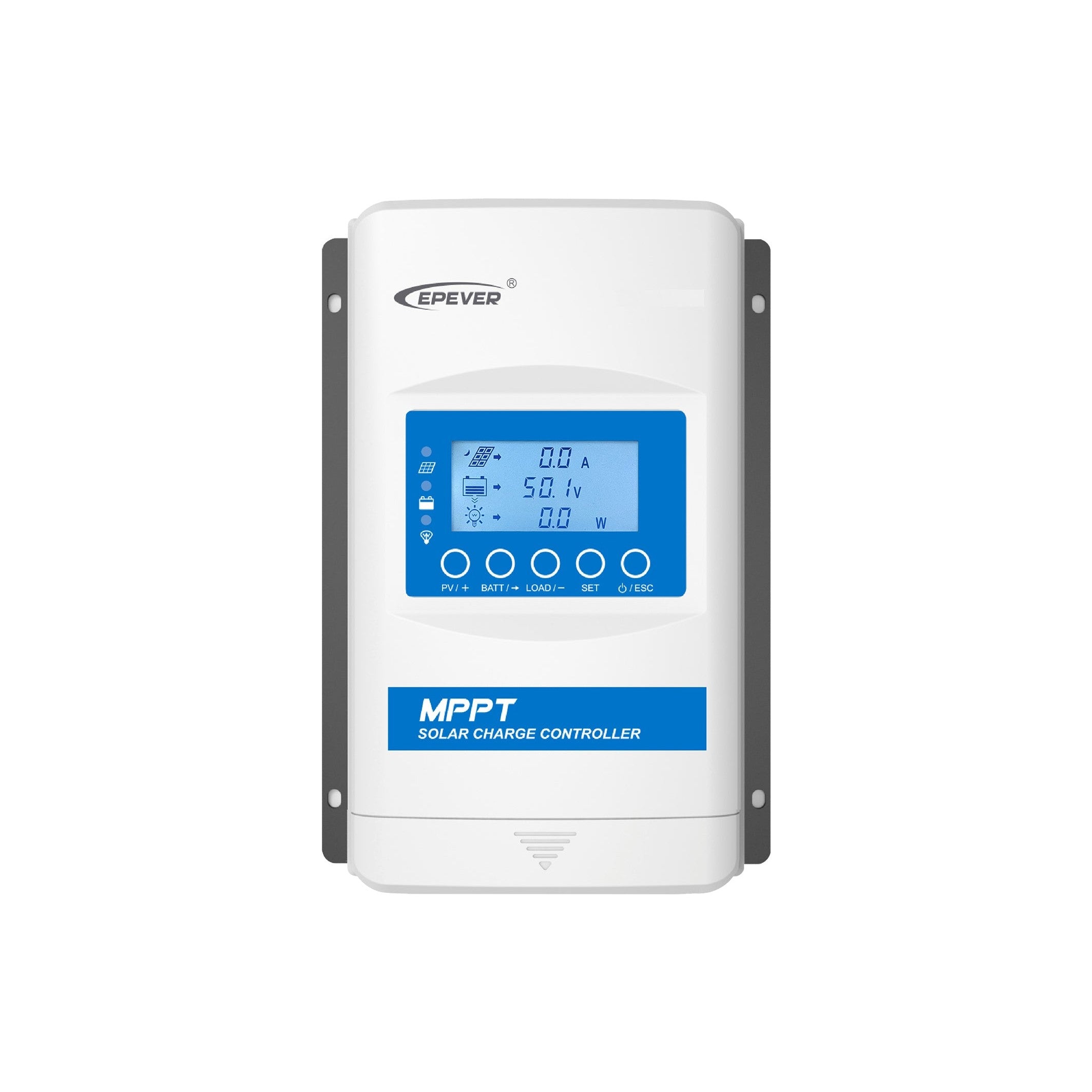

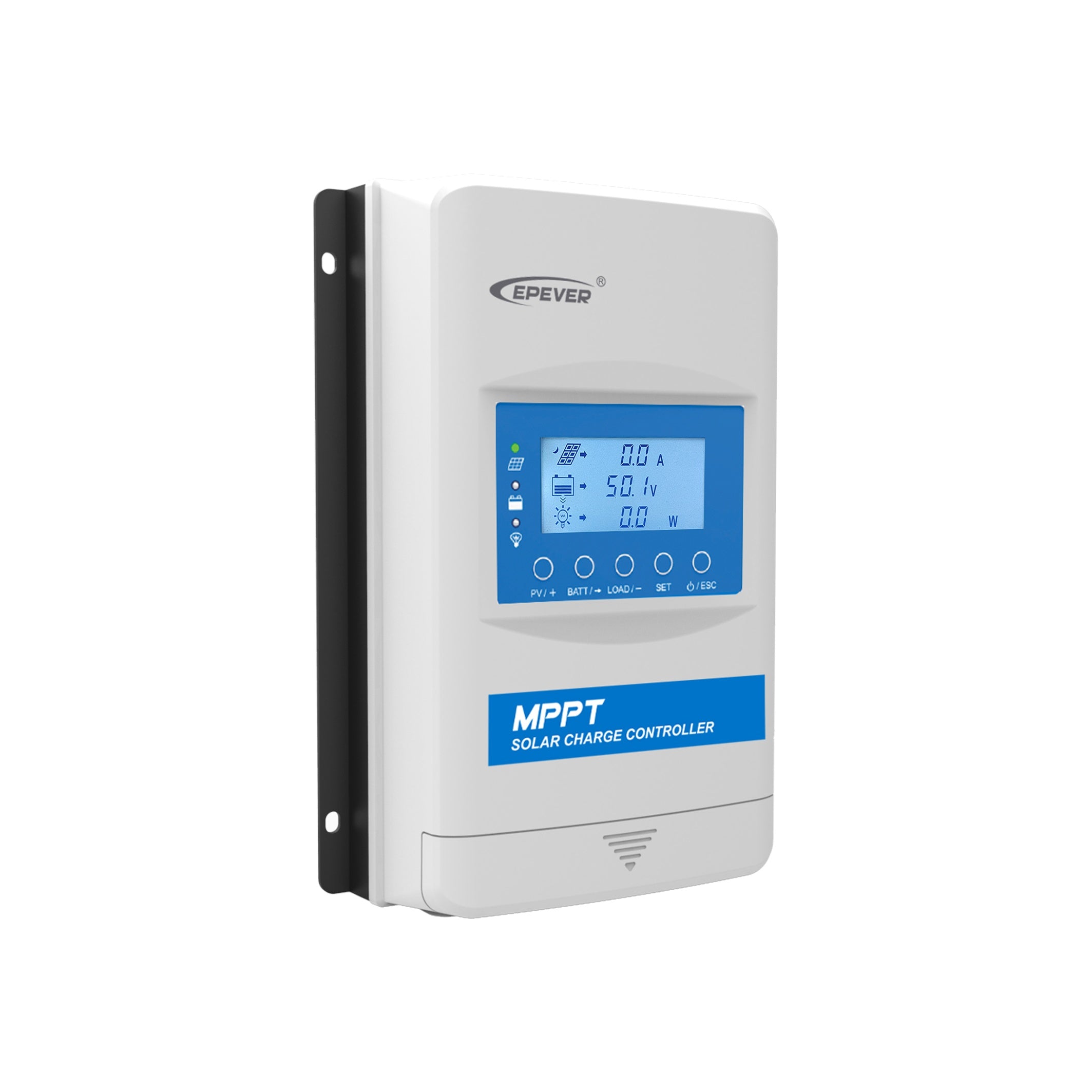

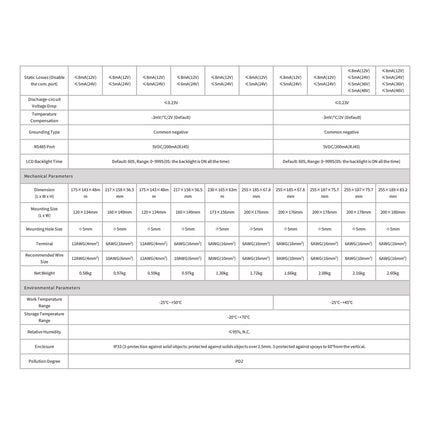

Model: XTRA2210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.40%

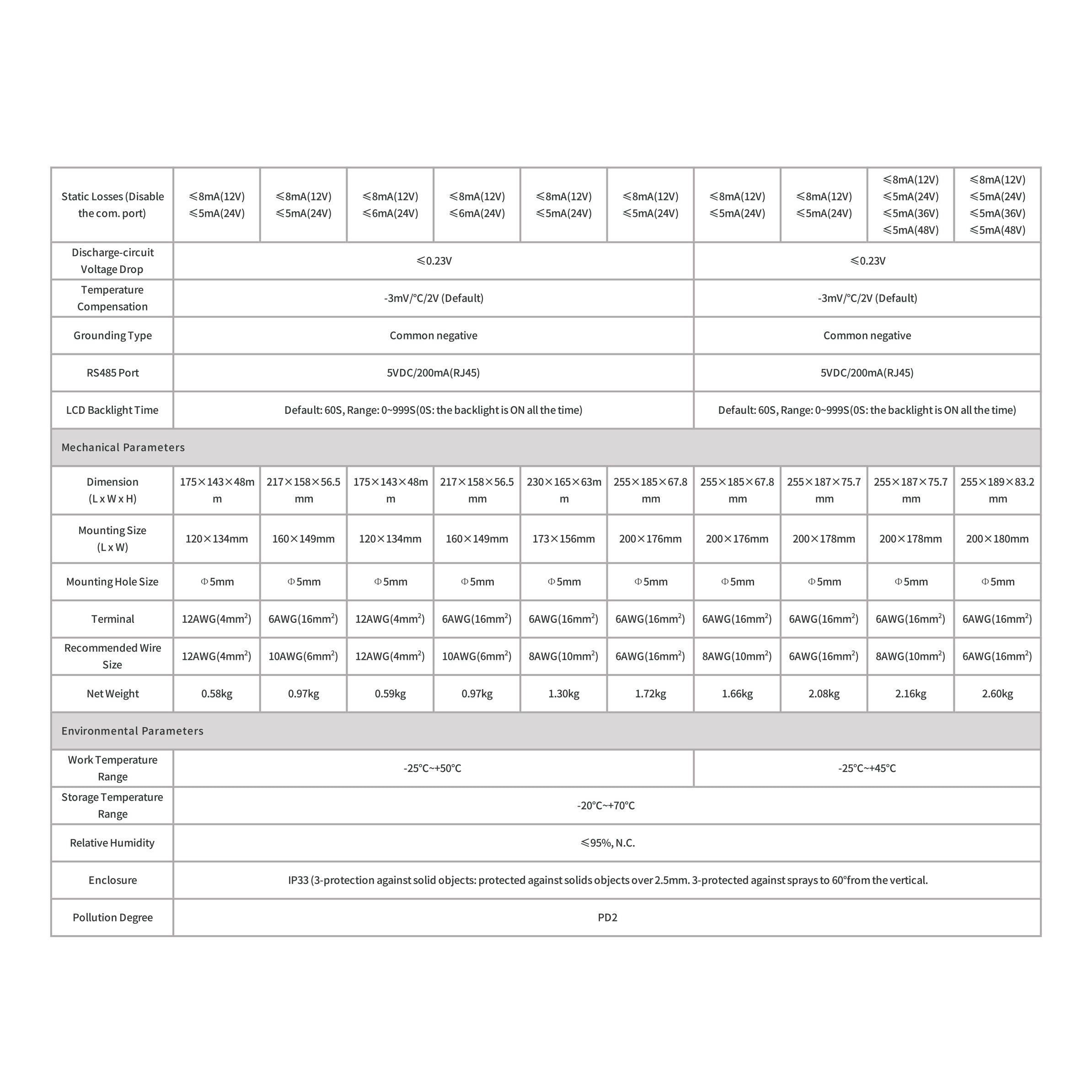

Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
