Description

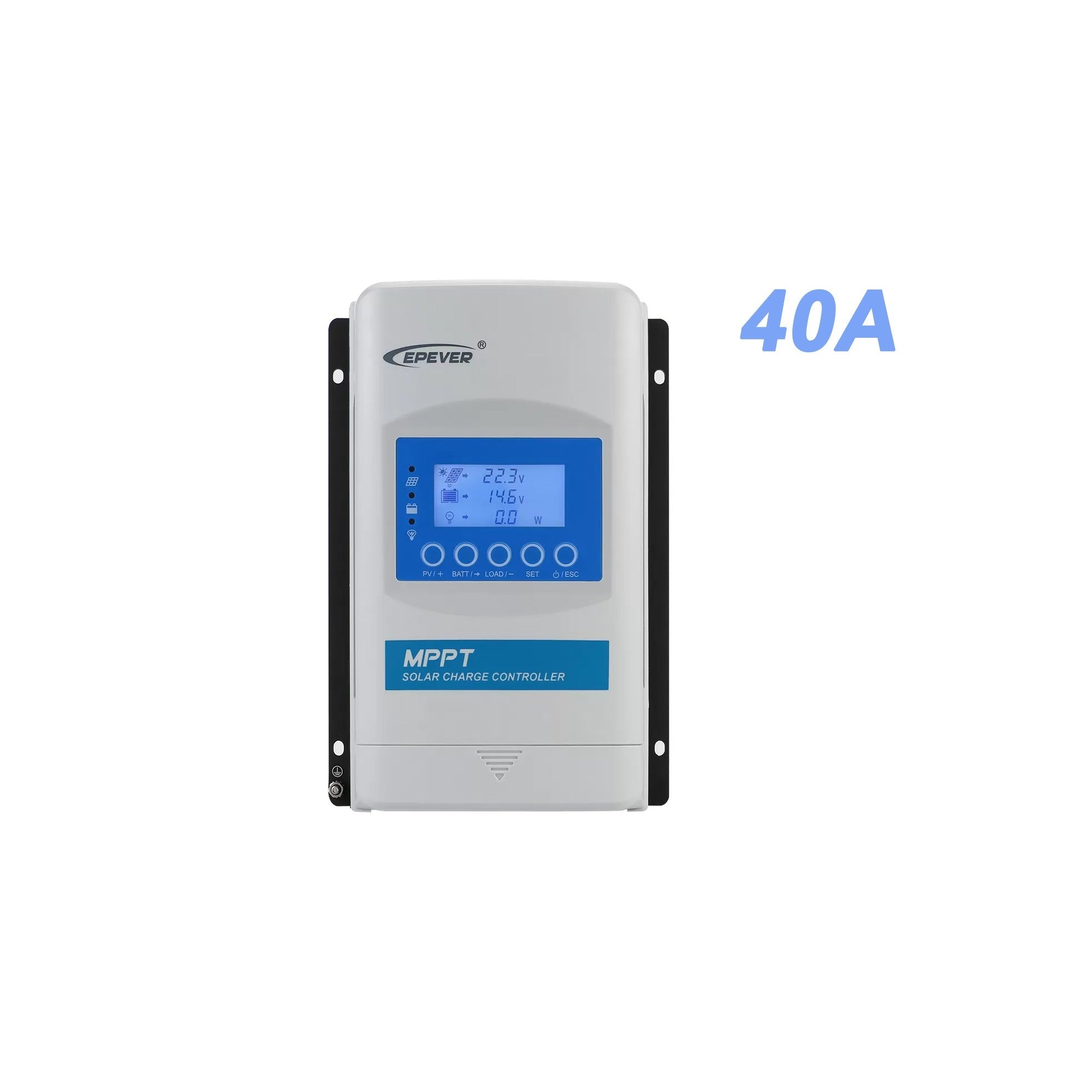

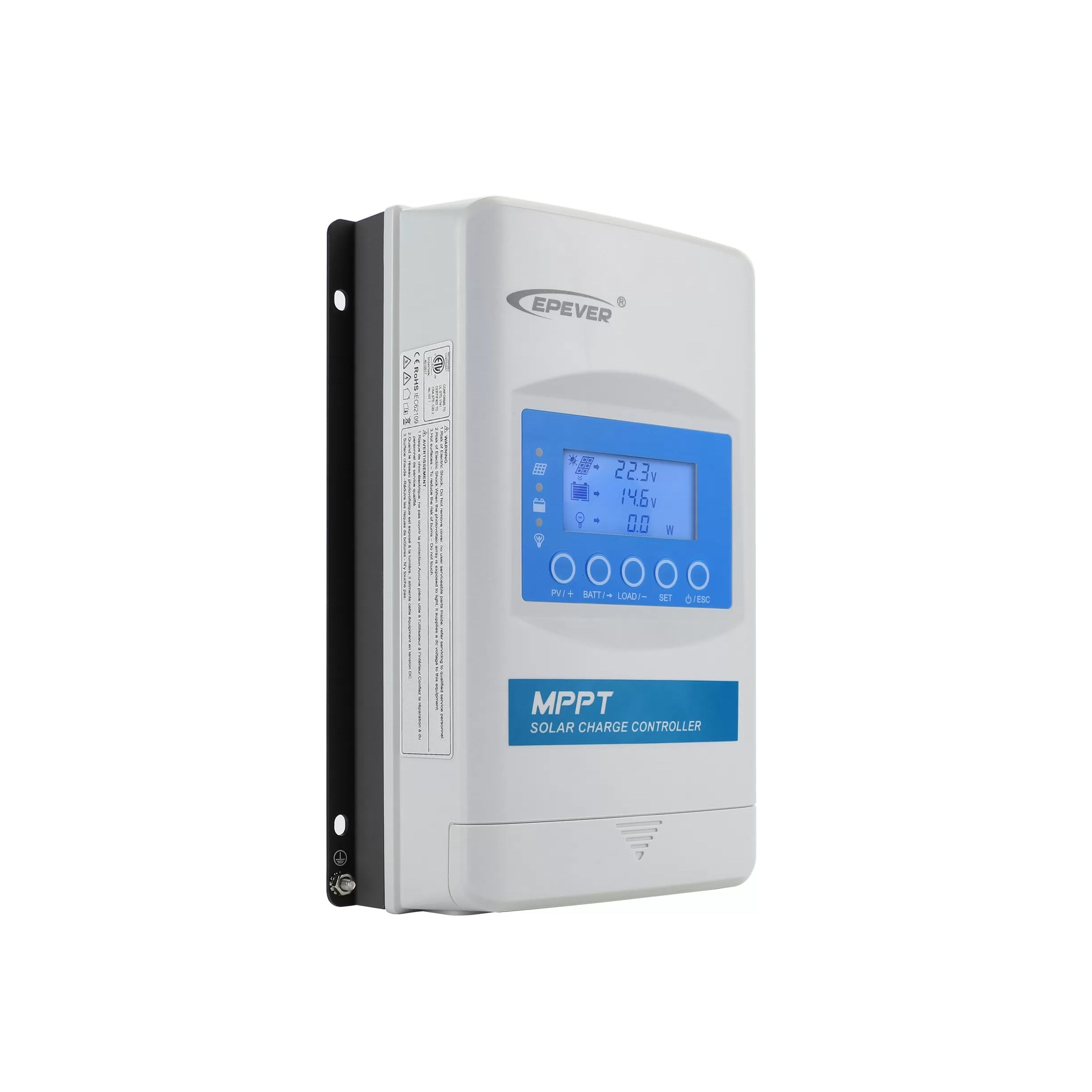

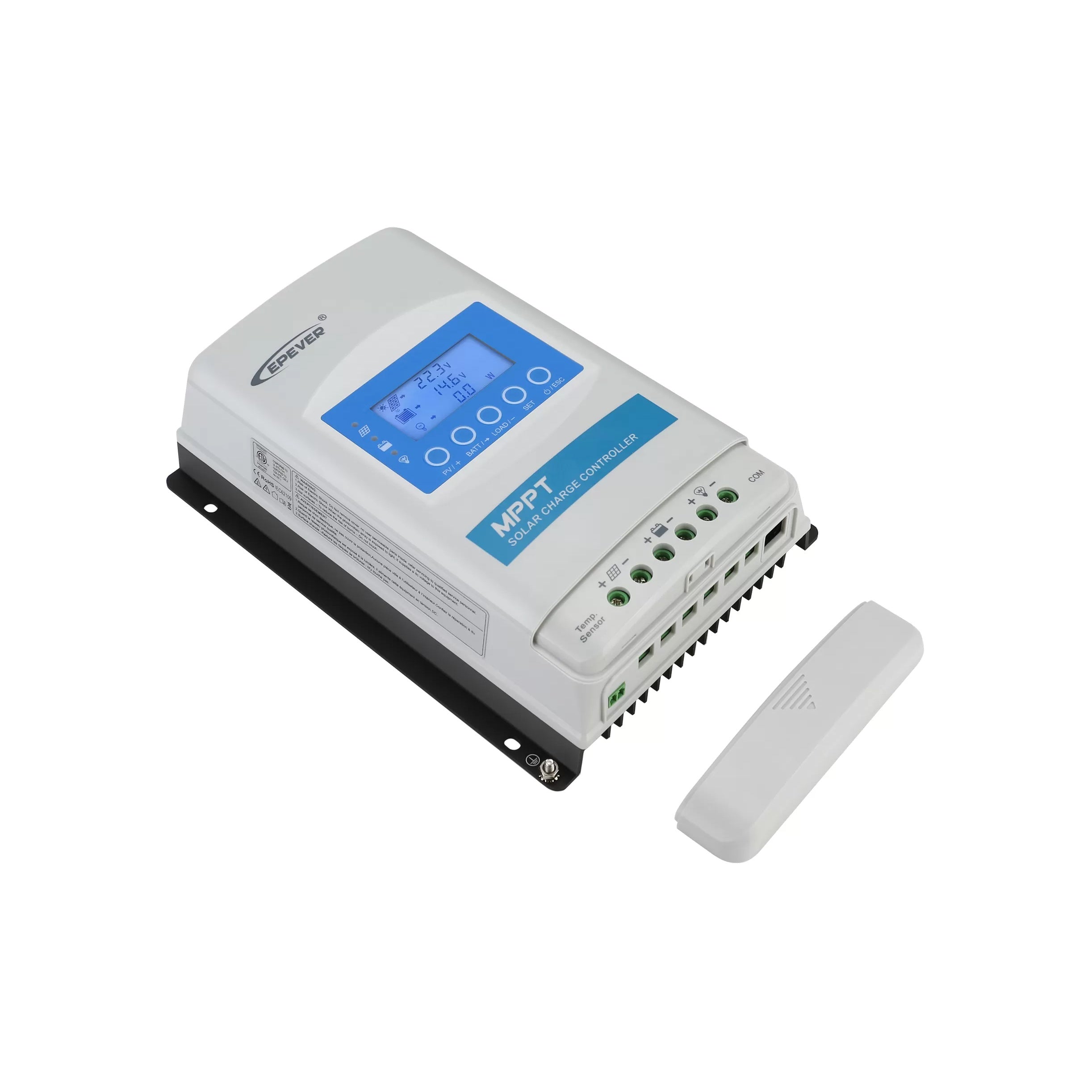

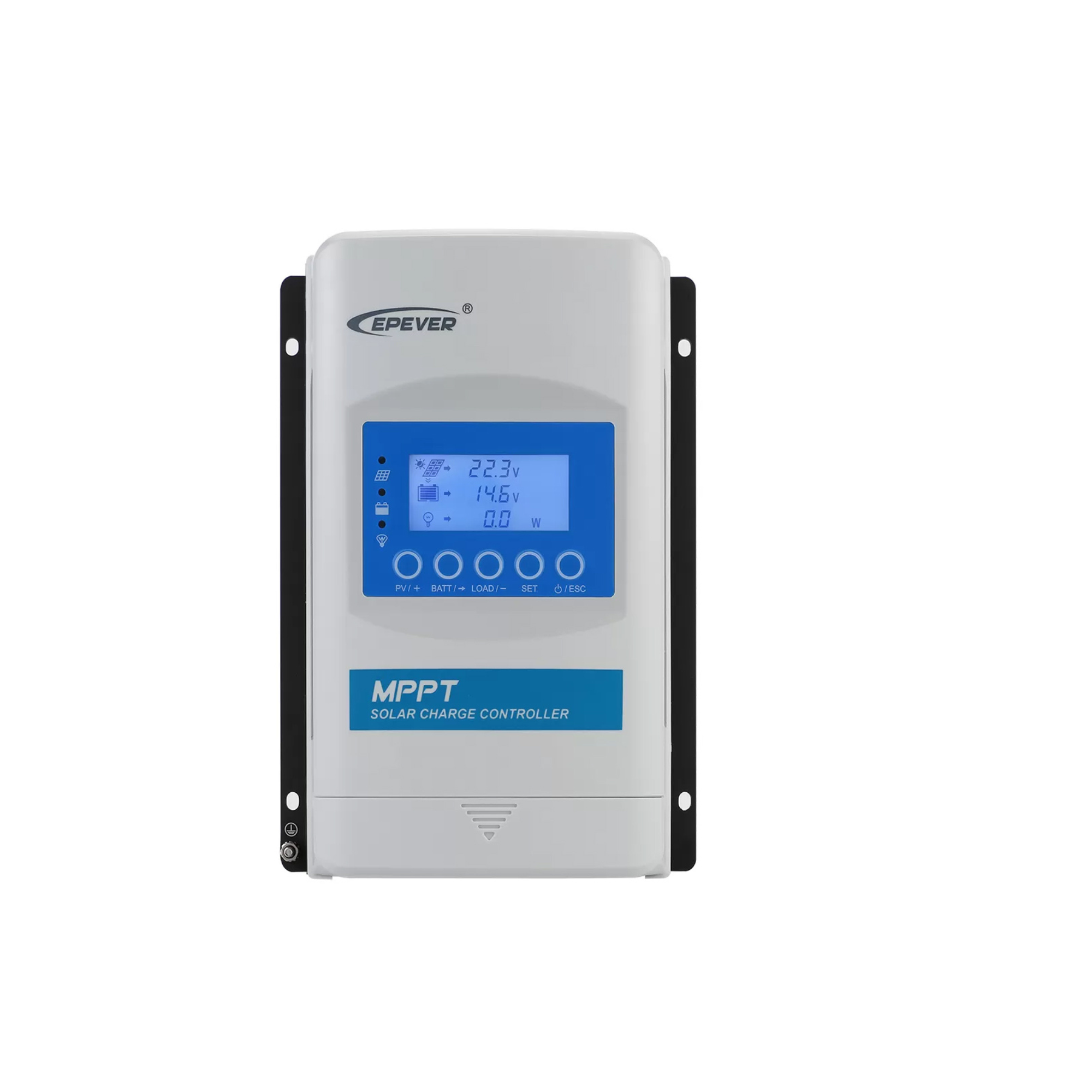

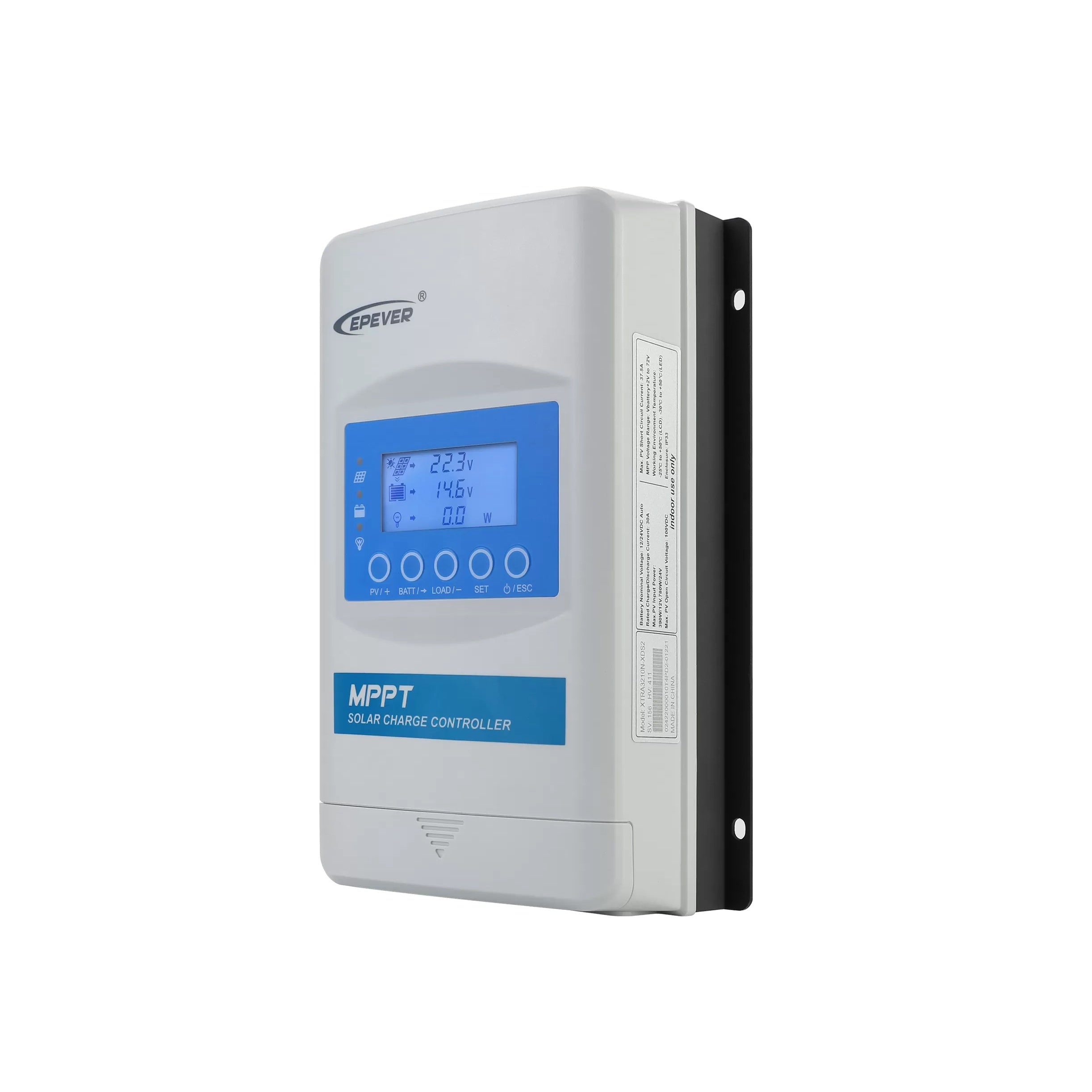

Introducing the EPEVER XTRA4415N-XDS2 40A MPPT Solar Charge Controller, a high-performance device designed for 12/24/36/48V systems, capable of handling up to 150V.

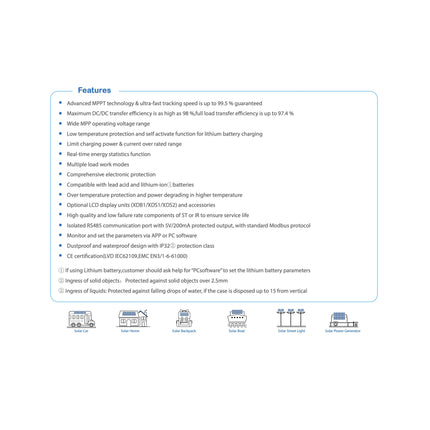

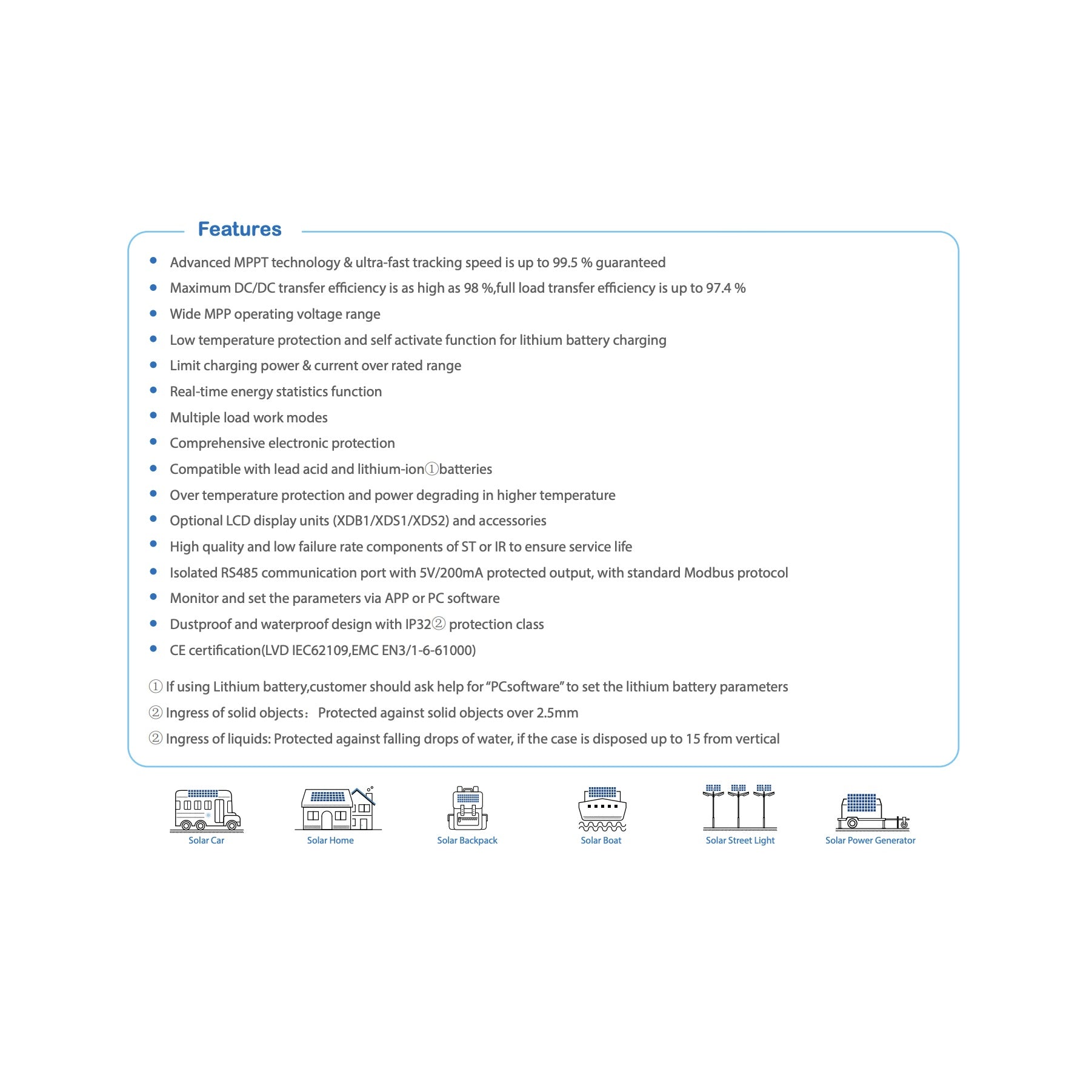

Key Features:
Utilizes advanced MPPT technology with up to 99.5% tracking efficiency.
Achieves DC/DC transfer efficiency up to 98%, with full load efficiency at 97.4%.
Offers a broad MPP operating voltage range.
Features low temperature protection and a lithium battery charging self-activation function.
Includes power and current limitation beyond rated specifications.
Equipped with real-time energy monitoring.
Supports multiple load operation modes.
Provides comprehensive electronic protection for safety.
Compatible with both lead acid and lithium-ion batteries.
Over temperature protection with power reduction in high heat.
Optional LCD display units (XDB1/XDS1/XDS2) for enhanced usability.
Built with high-quality, durable components from ST or IR.
Isolated RS485 with protected 5V/200mA output, using standard Modbus protocol.
Remote monitoring and settings adjustment via APP or PC software.
Dust and waterproof with an IP32 rating.
CE certified (LVD IEC62109, EMC EN3/1-6-61000).

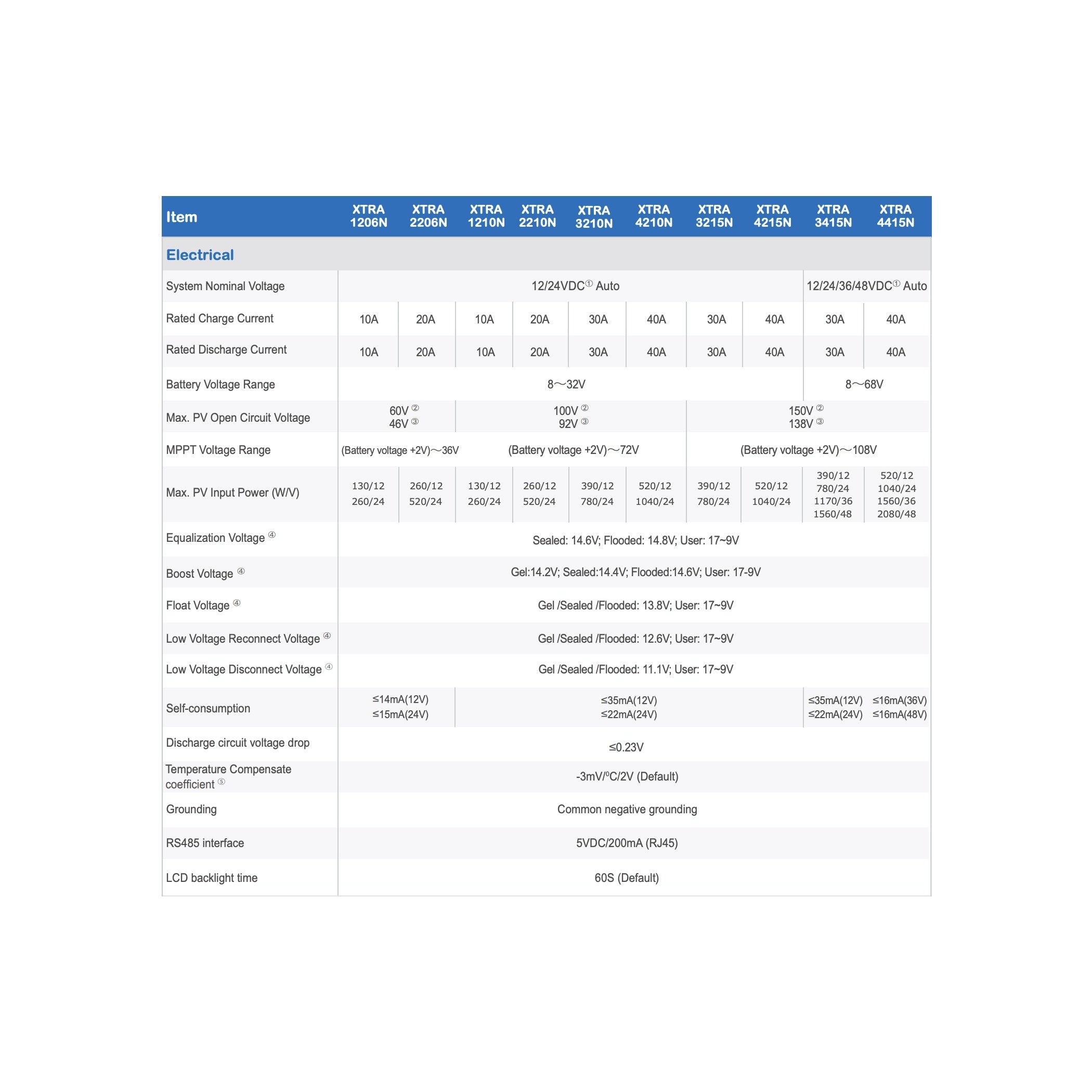

Specifications:
Nominal voltage: Auto 12/24/36/48VDC
Charge/discharge current: 40A
Battery voltage range: 8-68V
Max PV open circuit voltage: 150V
Max PV input power: 520W (12V), 1040W (24V), 1560W (36V), 2080W (48V)
Conversion efficiency: 98.5%; Load efficiency: 97.2%
Dimensions: 255x189x83.2mm; Weight: 2.47kg
