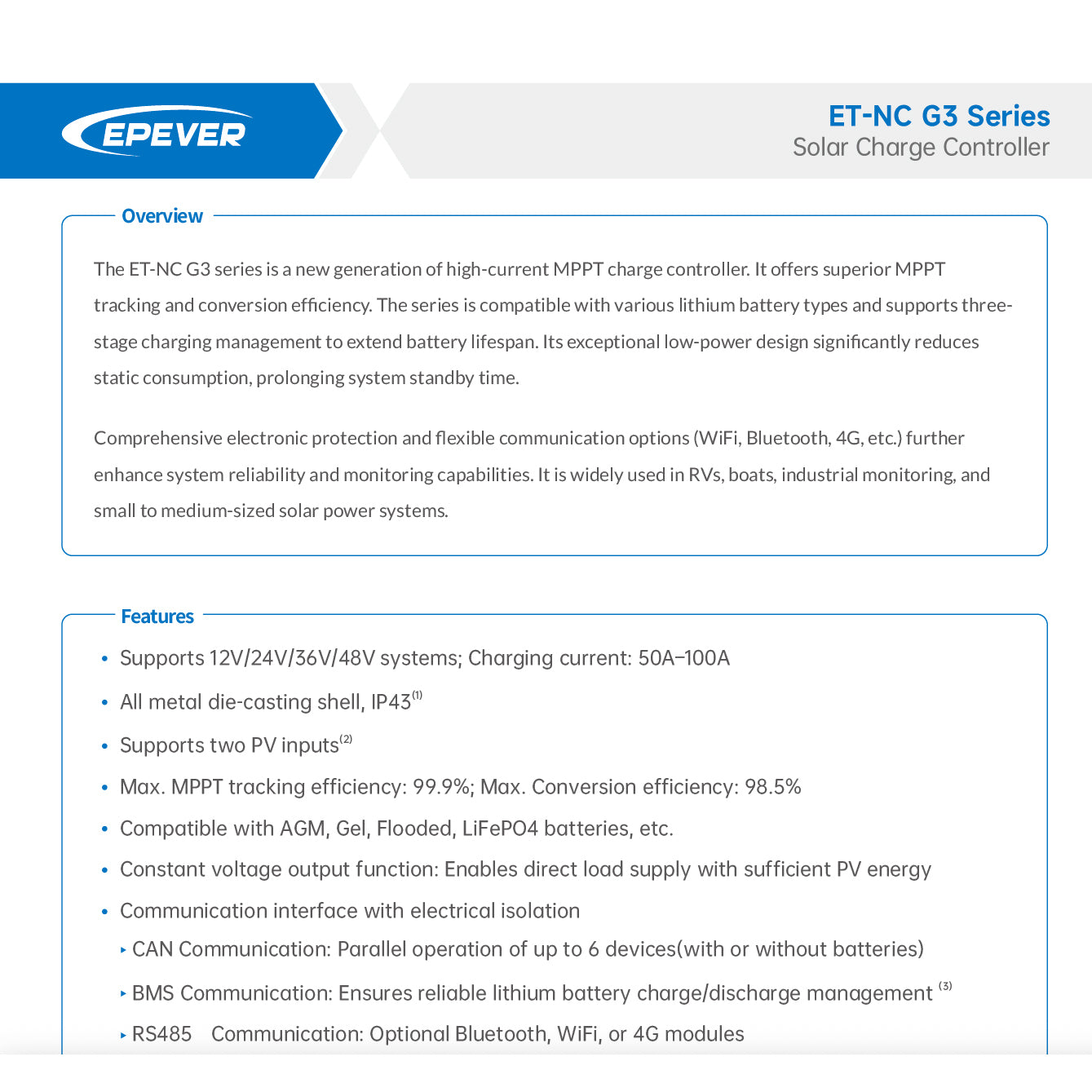

Description

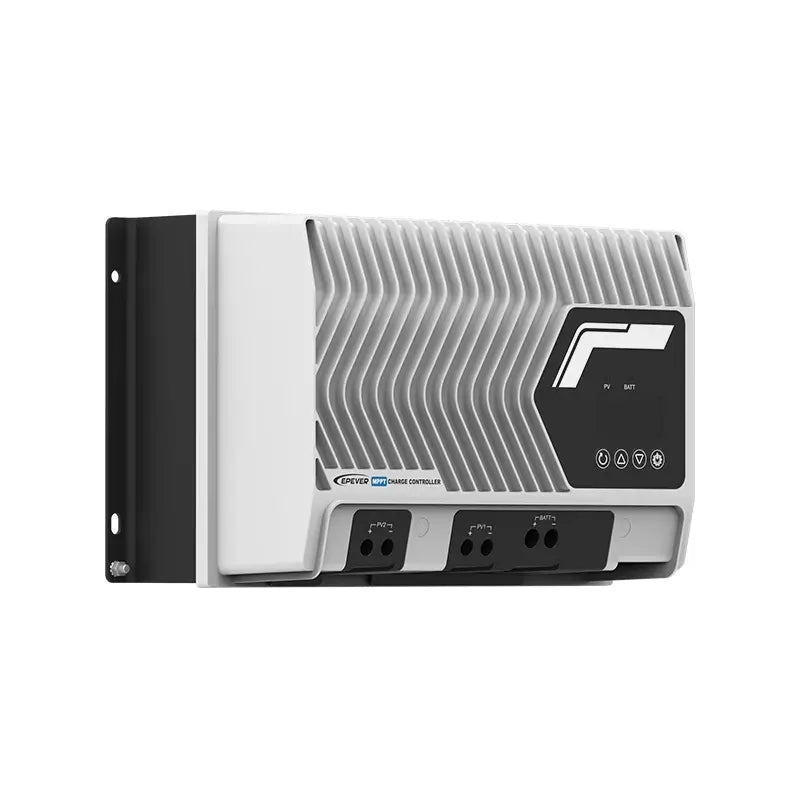

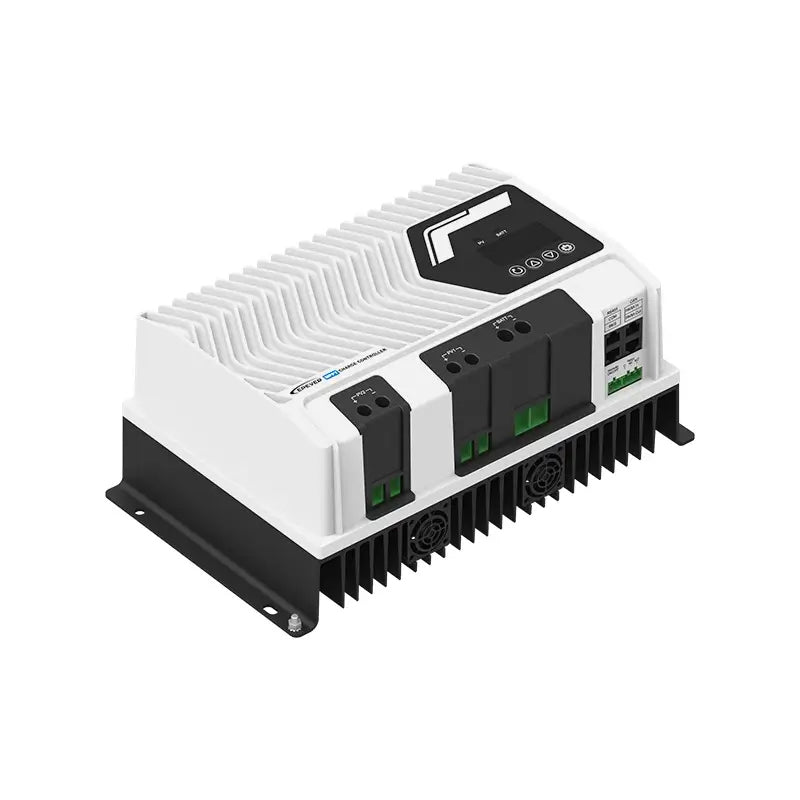

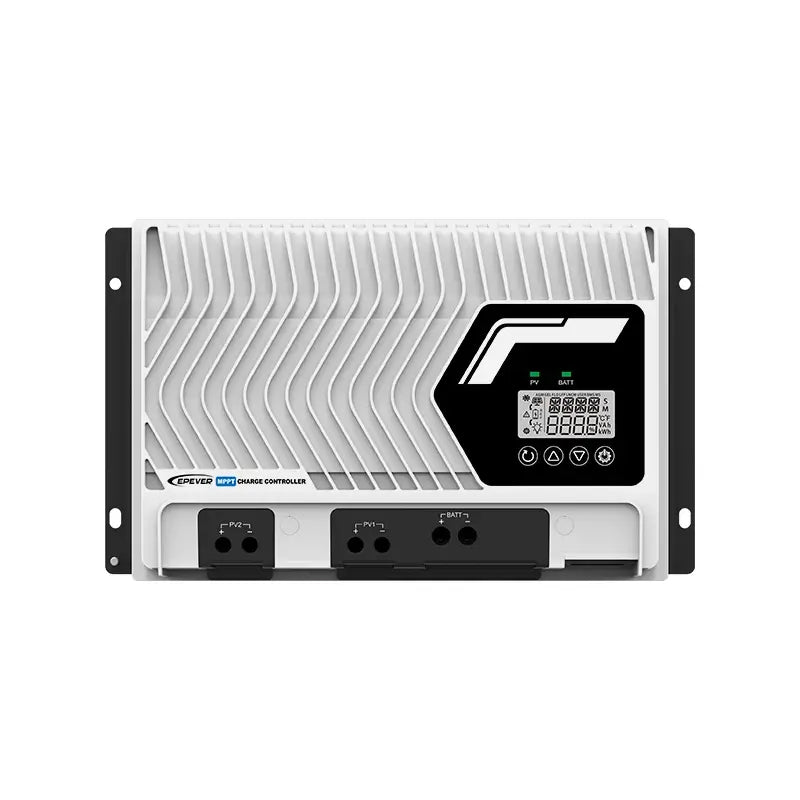

The ET-NC G3 series is a new generation of high-current MPPT charge controller. It offers superior MPPT
tracking and conversion efficiency. The series is compatible with various lithium battery types and supports three-stage
charging management to extend battery lifespan. Its exceptional low-power design significantly reduces
static consumption, prolonging system standby time.
Comprehensive electronic protection and flexible communication options (WiFi, Bluetooth, 4G, etc.) further
enhance system reliability and monitoring capabilities. It is widely used in RVs, boats, industrial monitoring, and
small to medium-sized solar power systems.

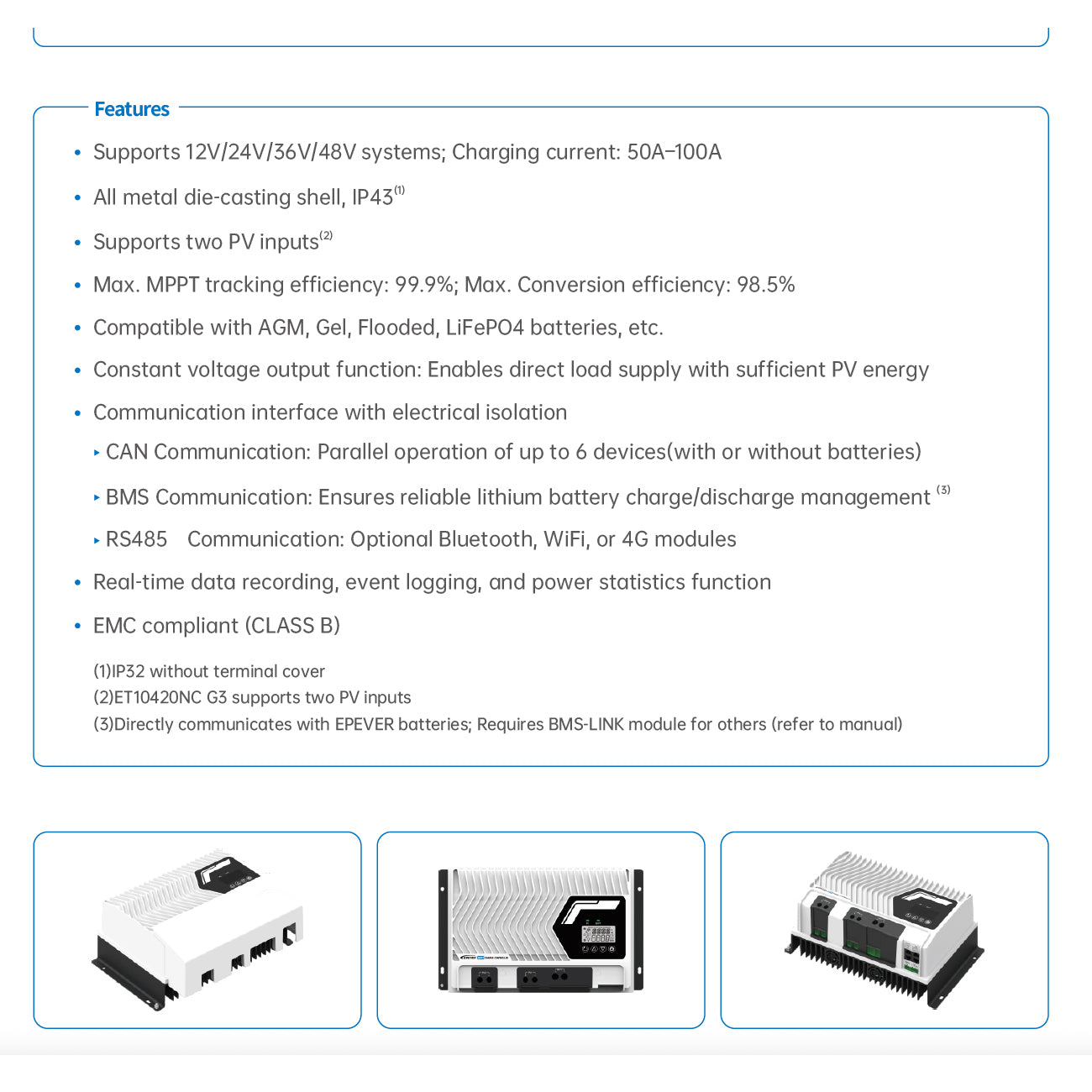

Features
Supports 12V/24V/36V/48V systems; Charging current: 50A
All metal die-casting shell

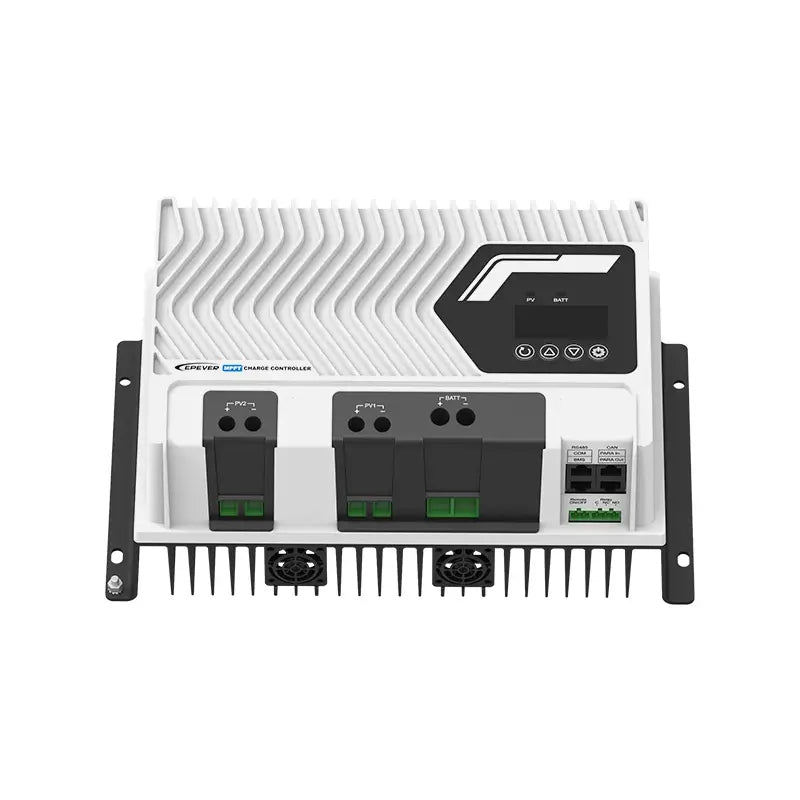

Supports two PV inputs
Max. MPPT tracking efficiency: 99.9%; Max. Conversion efficiency: 98.5%
Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
Constant voltage output function: Enables direct load supply with sufficient PV energy
Communication interface with electrical isolation
Real-time data recording, event logging, and power statistics function
EMC compliant (CLASS B)

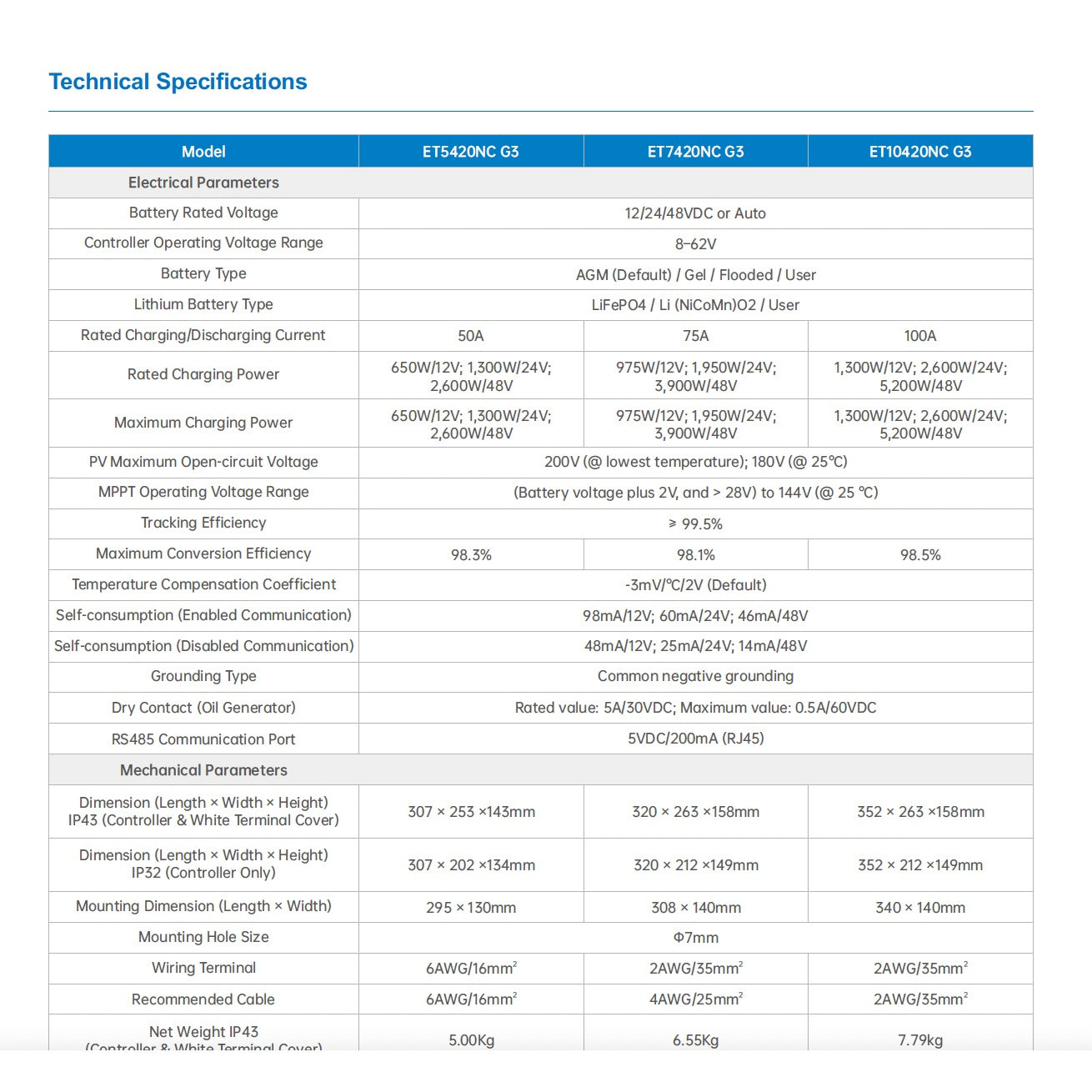

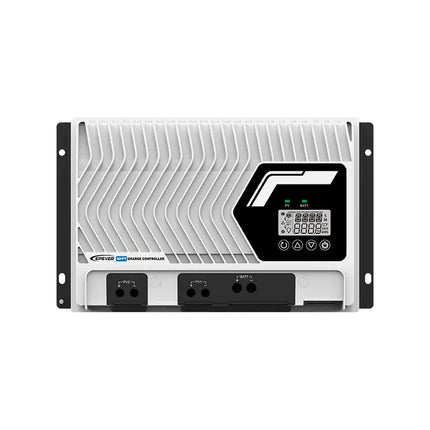

Model: ET5420NC G3
Battery Rated Voltage: 12/24/48VDC or Auto
Controller Operating Voltage Range: 8–62V
Battery Type: AGM (Default) / Gel / Flooded / User
Lithium Battery Type: LiFePO4 / Li (NiCoMn)O2 / User
Rated Charging/Discharging Current: 50A
Rated Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V
Maximum Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V
PV Maximum Open-circuit Voltage: 200V (@ lowest temperature); 180V (@ 25℃)
Tracking Efficiency: ≥ 99.5%
Maximum Conversion Efficiency: 98.3%

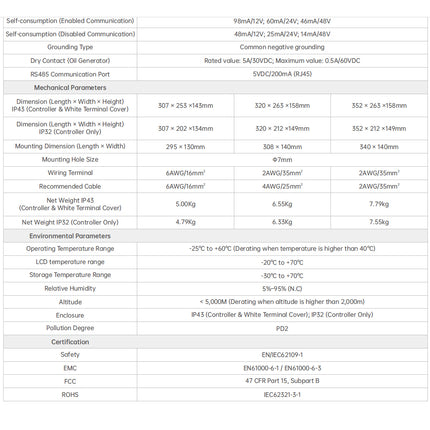

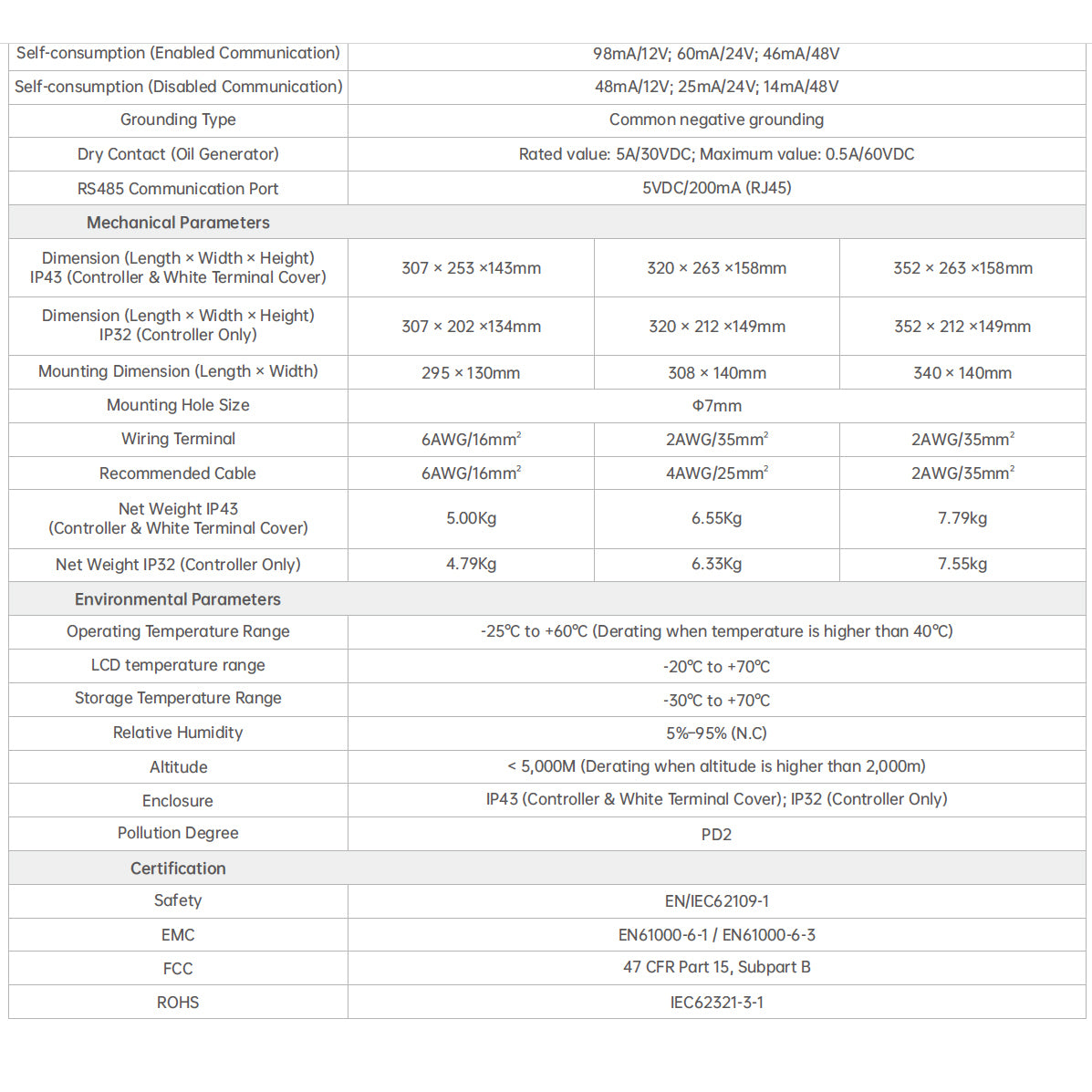

Dimension (Length × Width × Height)

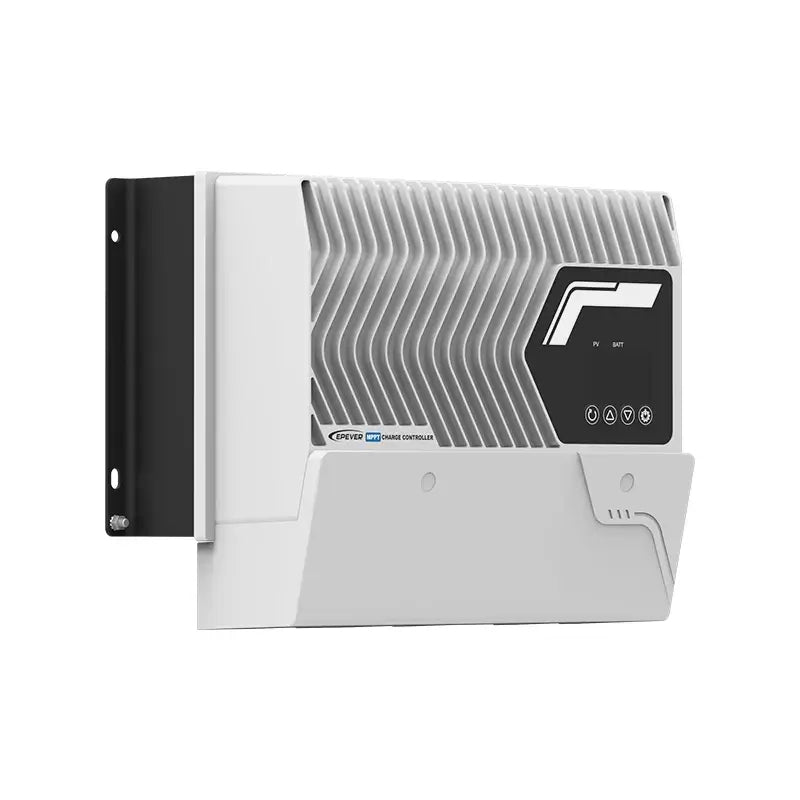

Controller & White Terminal Cover: 307 × 253 ×143mm
Controller Only: 307 × 202 ×134mm
Net Weight: 4.79kg
