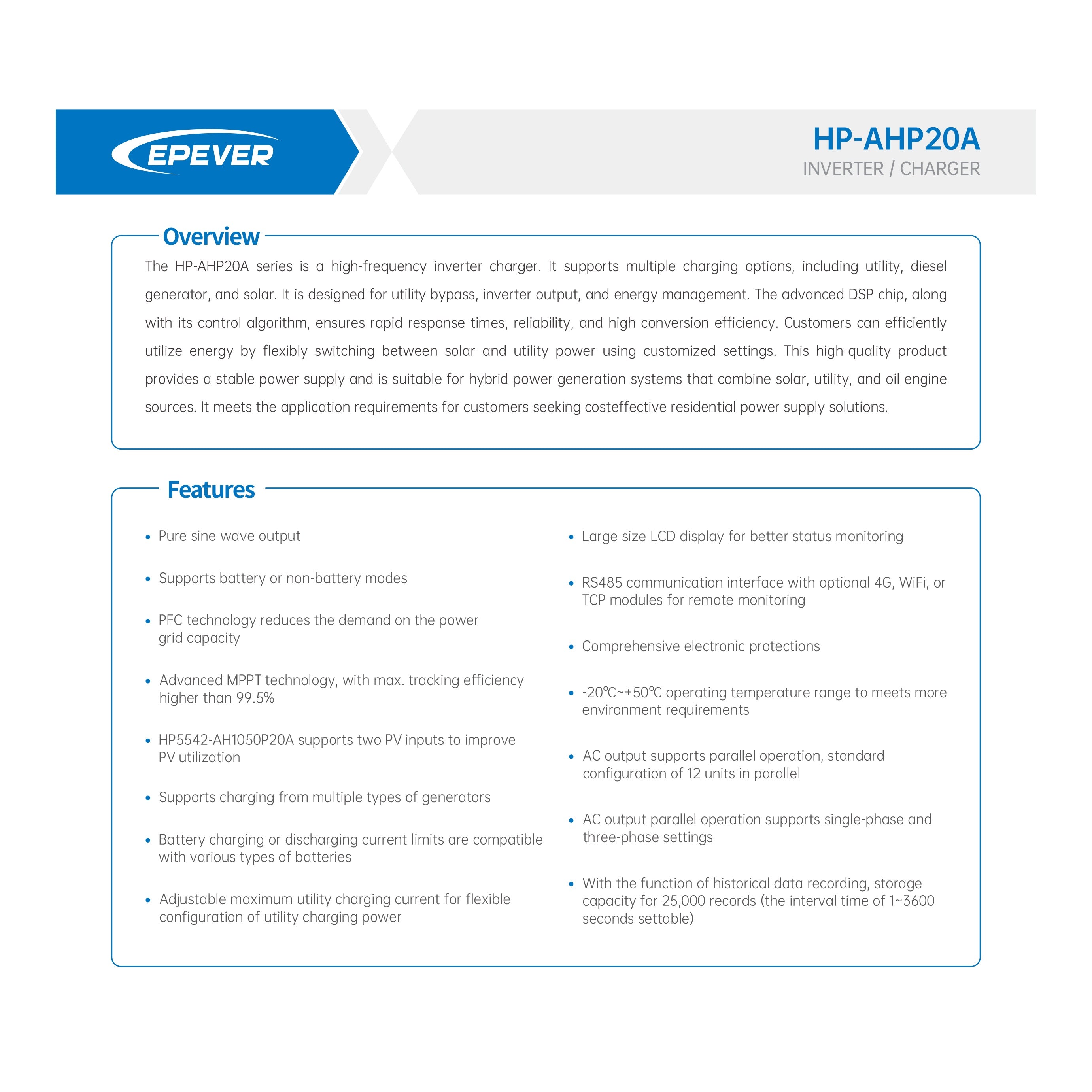

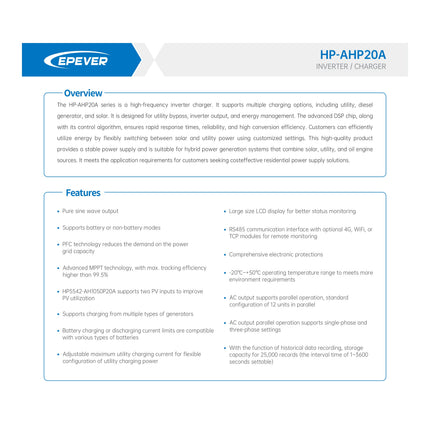

Description
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%

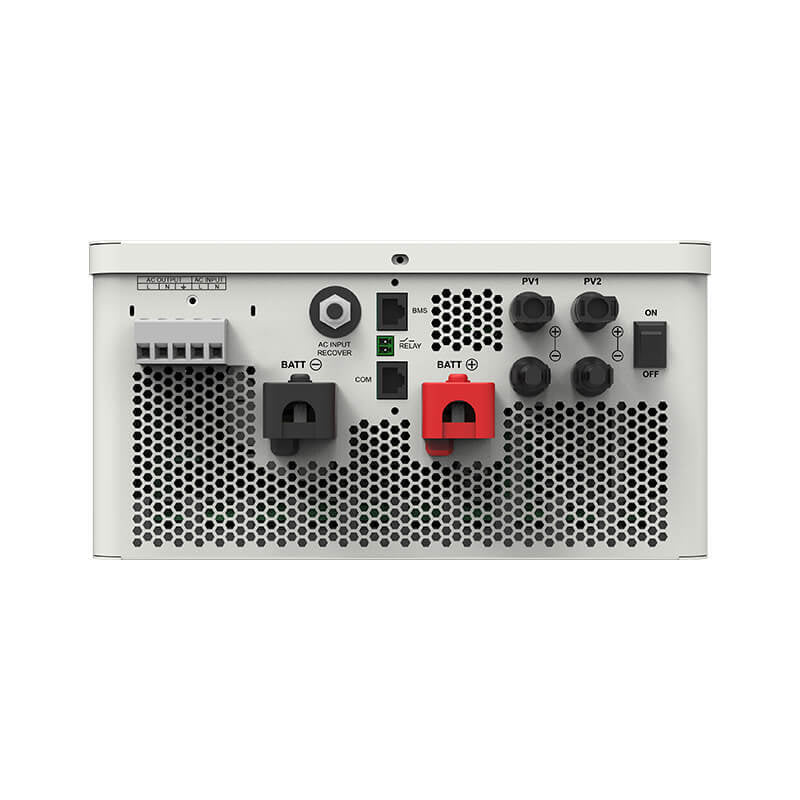

HP5542-AH1050P20A supports two PV inputs to improve PV utilization
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power

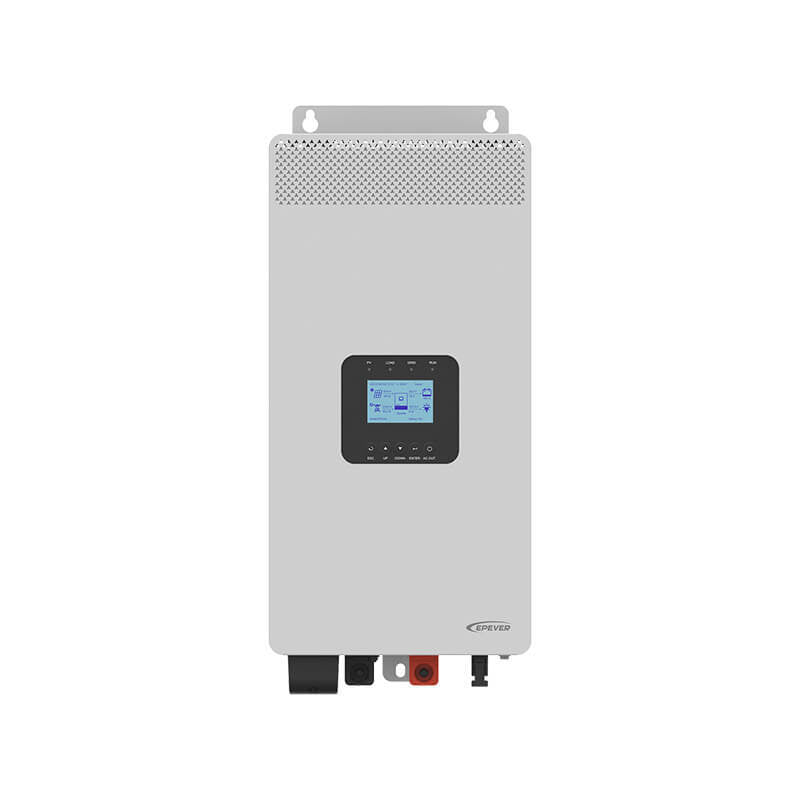

Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings

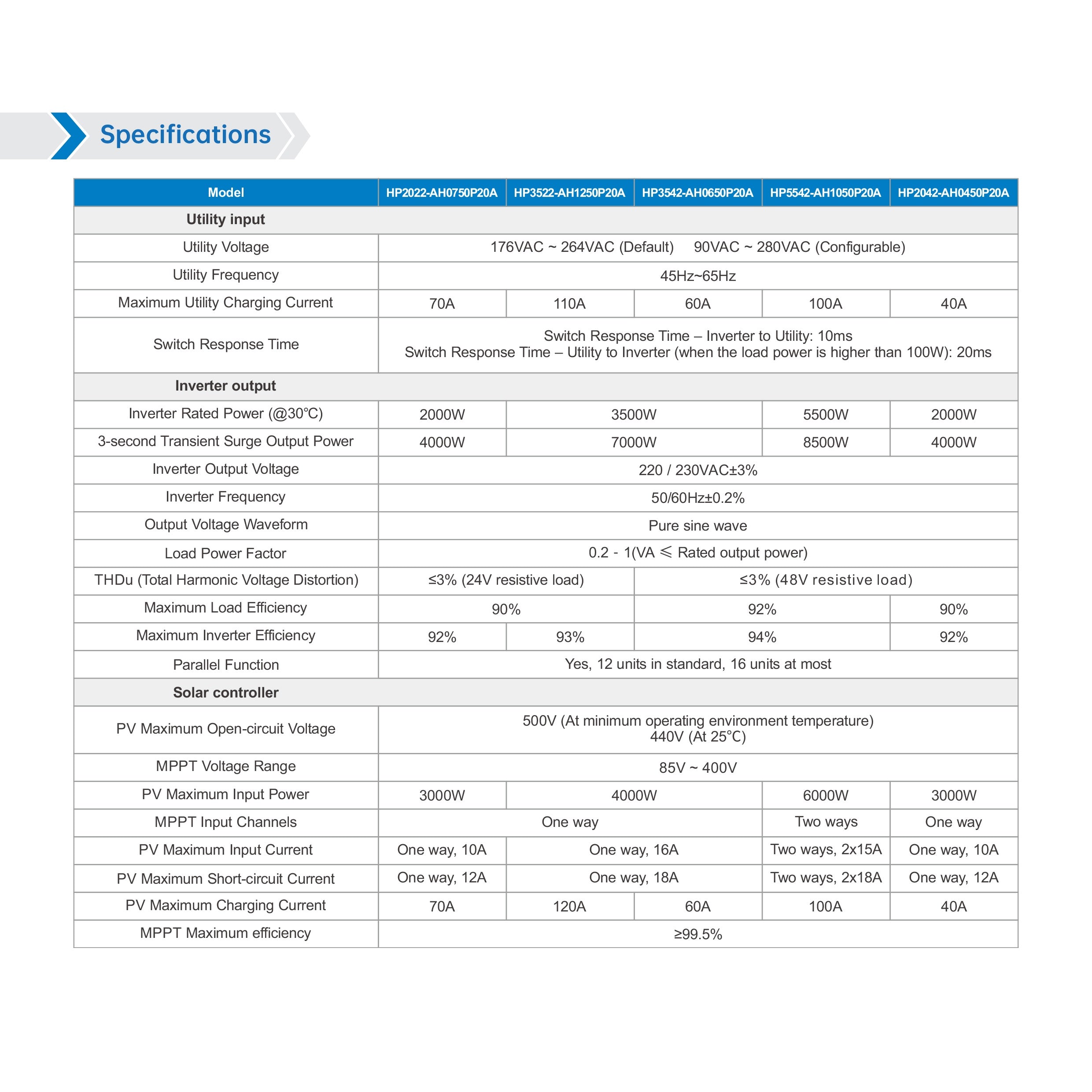

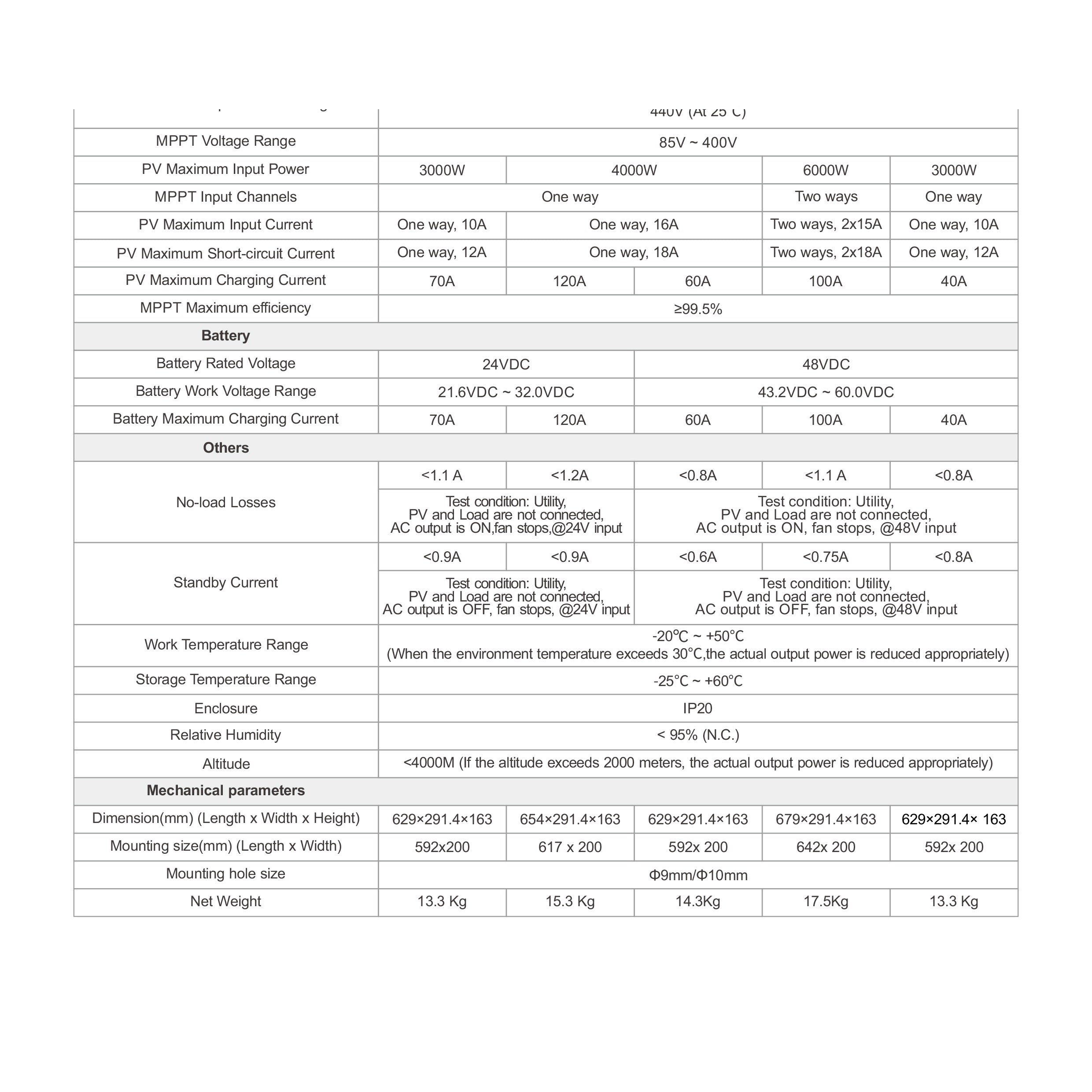

Model: HP5542-AH1050P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 100A
Inverter output
Inverter Rated Power: 5500W
3-second Transient Surge Output Power: 8500W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 679L × 291.4W × 163H
Net Weight: 17.5 kg
