Description

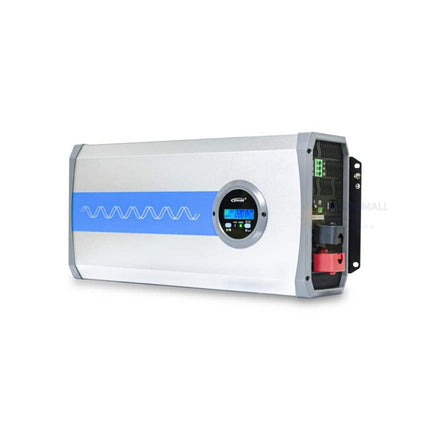

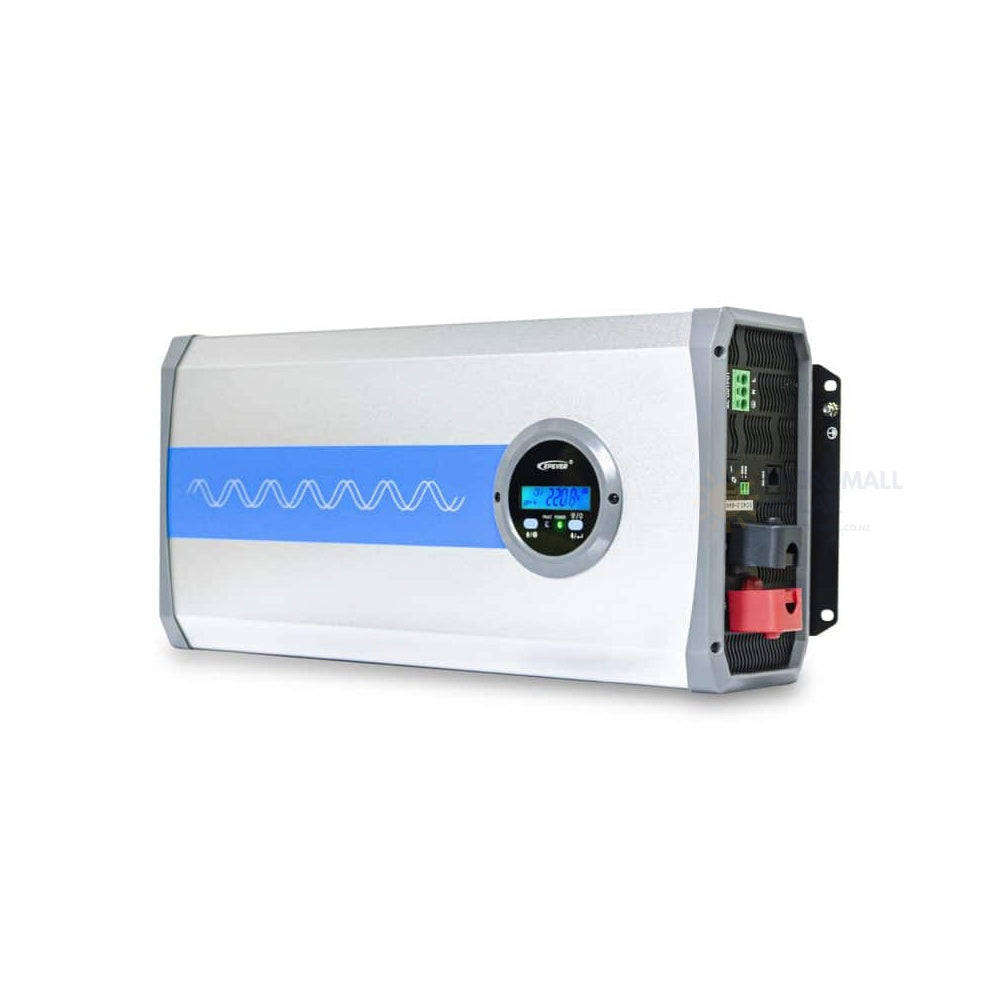

IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.
Product model: IP3000-42-Plus
Continuous Output Power: 3000W
Surge Power: 6000W @ 5S
Surge Current when Power On: < 65A
Output Voltage: 220VAC (±3%); 230VAC (-7% to +3%)
Output Frequency: 50/60Hz ±0.2%
Output Wave: Pure Sine Wave
Output Distortion THD: THD ≤ 3% (Resistive Load)
Load Power Factor: 0.2-1 (Load VA ≤ Continuous Output Power)
Rated Input Voltage: 48VDC
Input Voltage Range: 43.2~64.0VDC
Rated Output Efficiency: > 92.5%
Max. Output Efficiency: > 94.5% (30% Loads)
No-load Current: < 0.5A
USB Output: Not available
RS485 Communication Port: 5VDC / 200mA
Dimension (LxWxH): 491×231.5×123mm
Mounting Dimension: 465×145mm
Net Weight: 7kg
Operating Temperature Range: -20℃ to +60℃ (Refer to the derating curve)
Relative Humidity: < 95% (Non-condensing)
Enclosure: IP20
