Description
Comes with 2 year warranty

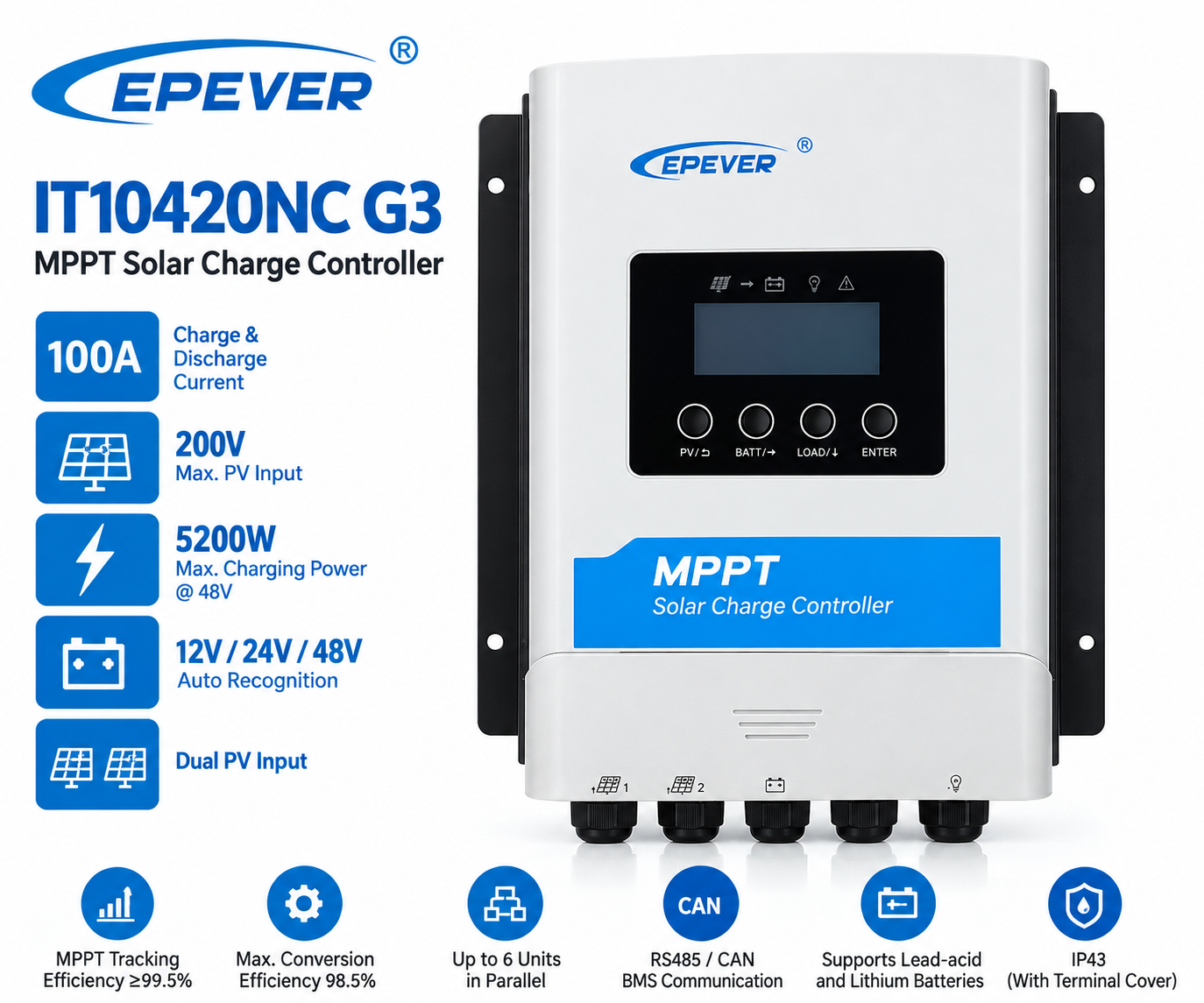

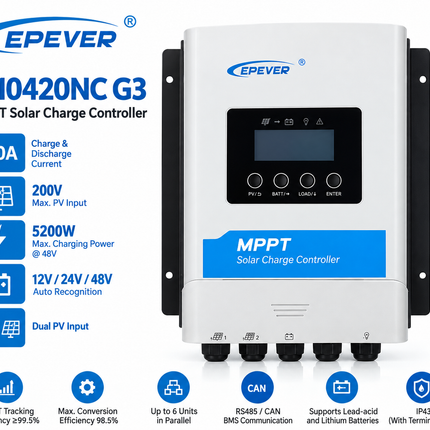

The EPEVER IT10420NC G3 is a high-current MPPT solar charge and discharge controller with 100A rated charge/discharge current, dual PV input and load output.
It supports lead-acid and lithium batteries, CAN parallel communication, BMS communication and RS485 communication. Up to 6 controllers can be connected in parallel.
Features
- MPPT tracking efficiency up to 99.9%
- Maximum conversion efficiency 98.5%
- 100A rated charge/discharge current
- Supports dual PV inputs
- Supports lead-acid and lithium batteries
- CAN parallel communication, up to 6 units
- BMS communication
- RS485 communication
- Optional Bluetooth, WiFi or 4G module
- IP32 controller only
Specifications
- Model: IT10420NC G3
- Battery Rated Voltage: 12V / 24V / 48VDC Auto
- Controller Operating Voltage: 8–62V
- Rated Charge / Discharge Current: 100A
- Rated Charging Power:
- 1300W @ 12V
- 2600W @ 24V
- 5200W @ 48V
- Maximum PV Open Circuit Voltage: 200V
- Maximum PV Open Circuit Voltage @ 25°C: 180V
- MPPT Voltage Range: (Battery Voltage + 2V, minimum 28V) – 144V @ 25°C
- Maximum Conversion Efficiency: 98.5%
- Battery Type: AGM / Gel / Flooded / User
- Lithium Battery Type: LiFePO4 / NMC / User
- Temperature Compensation: -3mV/°C/2V
- Operating Temperature: -25°C to +60°C
- Grounding: Common Negative
- RS485: 5VDC / 200mA, RJ45
Dimensions
- Controller only (IP32): 352 × 212 × 149mm
