Description

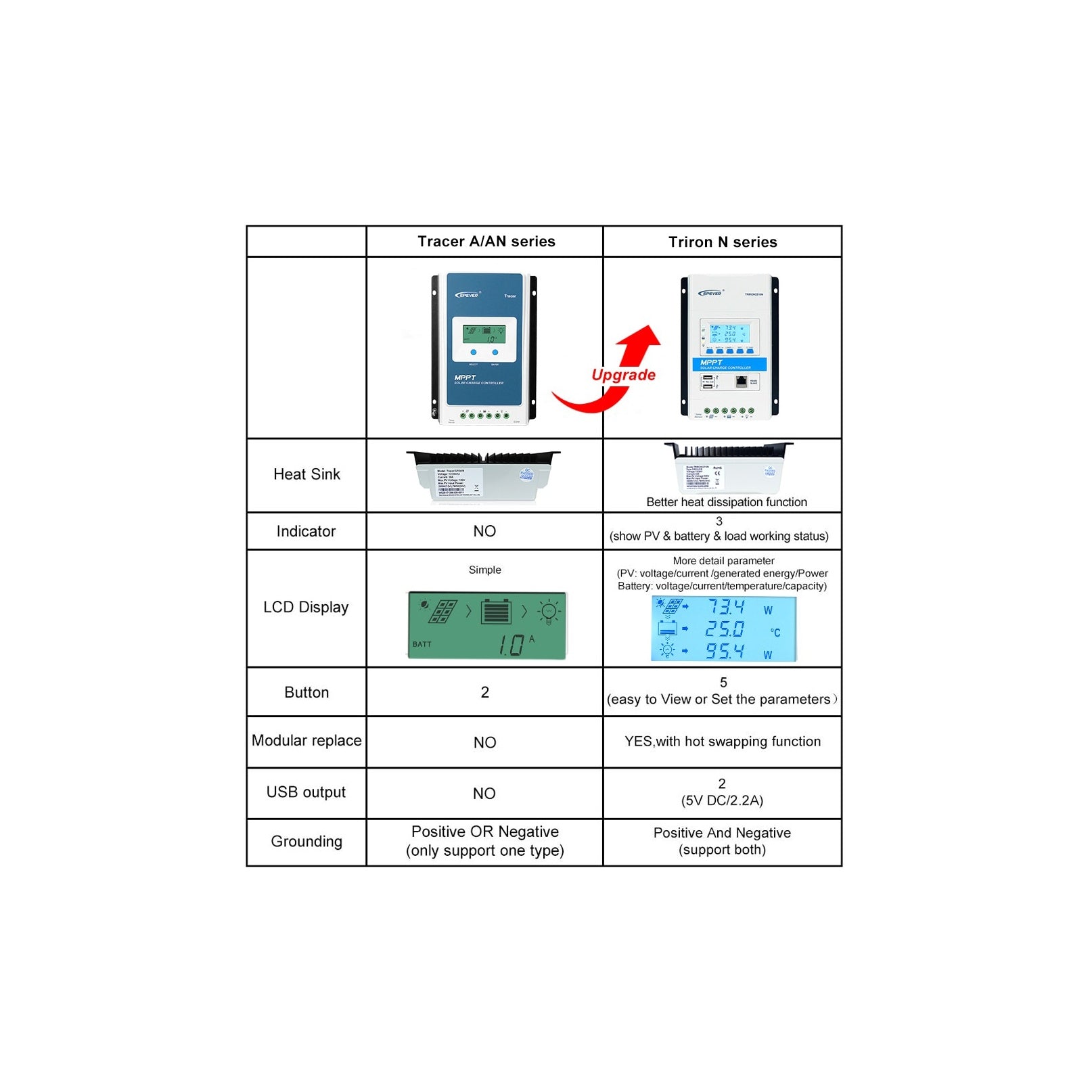

This is an updated series of Tracer A/AN Series controller, can be integrated with different display and interface modules to meet a variety of functional requirements. Can automatically identify and load the drivers of various modules.

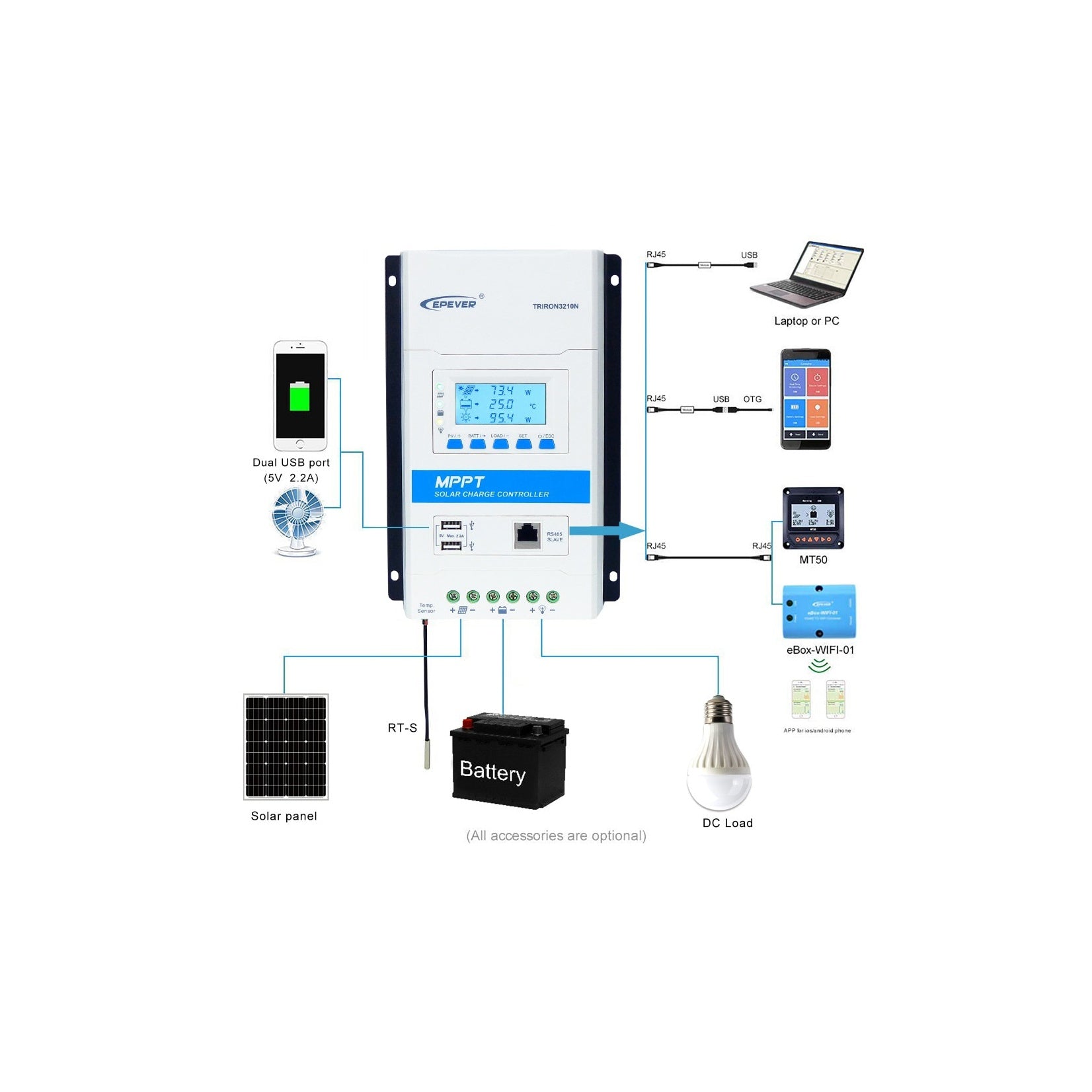

Negative groud designed of this 30a modual mppt controller can be widely used for different applications, e.g., communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc.
7 battery selection Sealed(AGM), Gel, Flooded, Lead-acid User, LiFePO4 Lithium, Li(NiCoMn)O2 Lithium, Lithium User(9~34V). Dual 5V DC USB output interface of this mppt controller can charge your electronic devices directly.
Real-Time energy statistic function, View/modify working parameters via APP or PC software via RS485 interface.(optional).

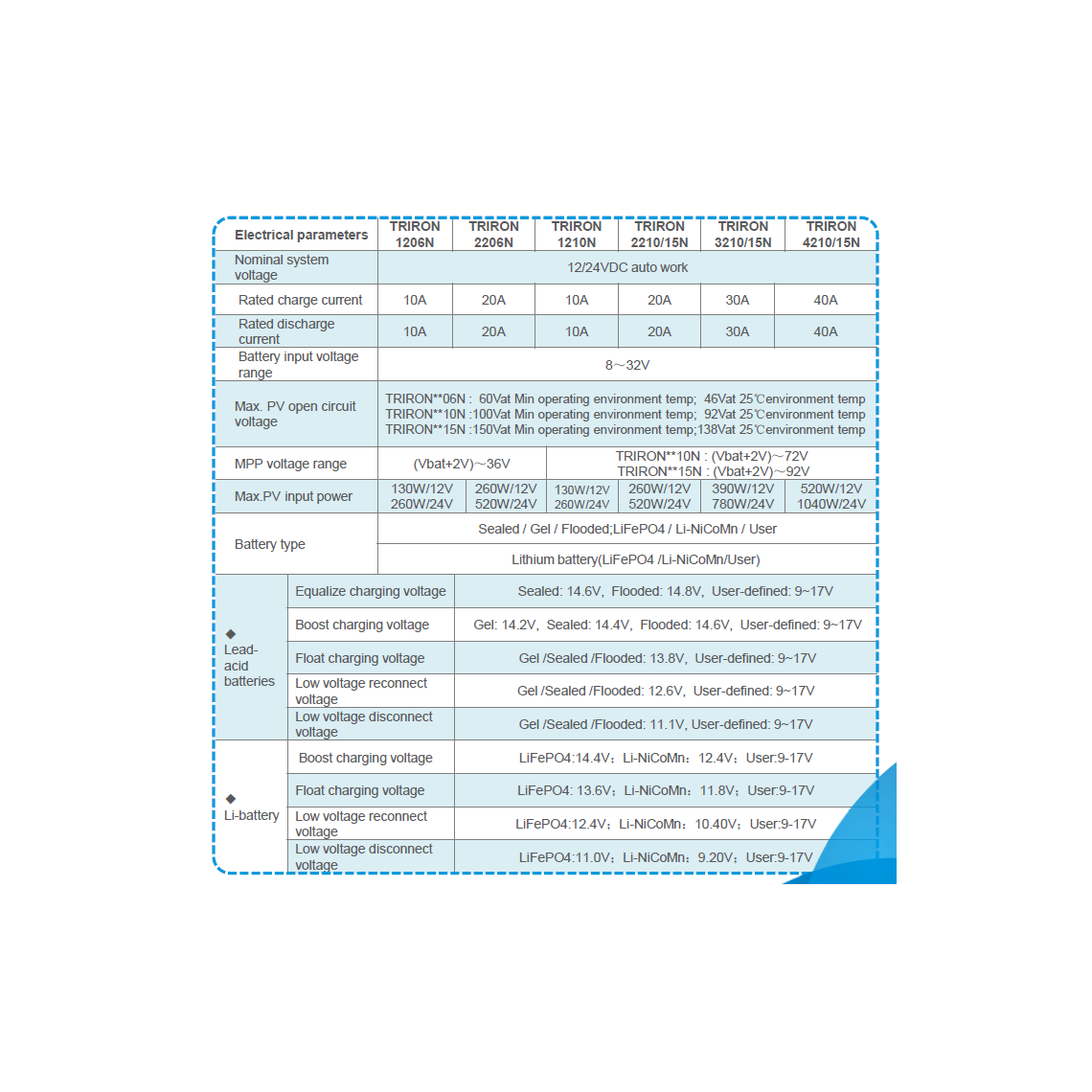

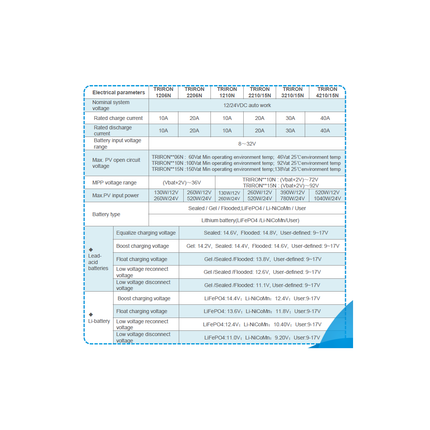

Specification

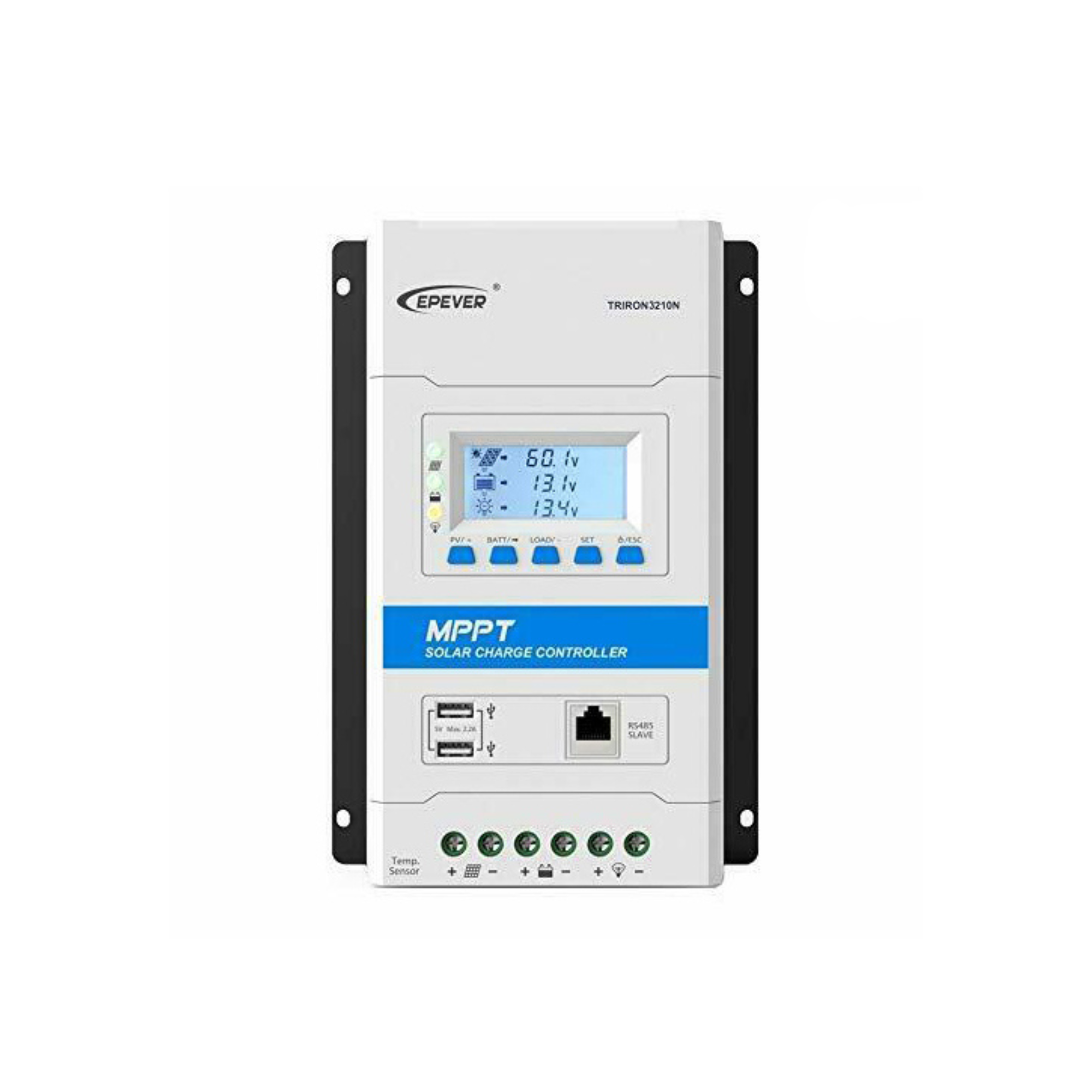

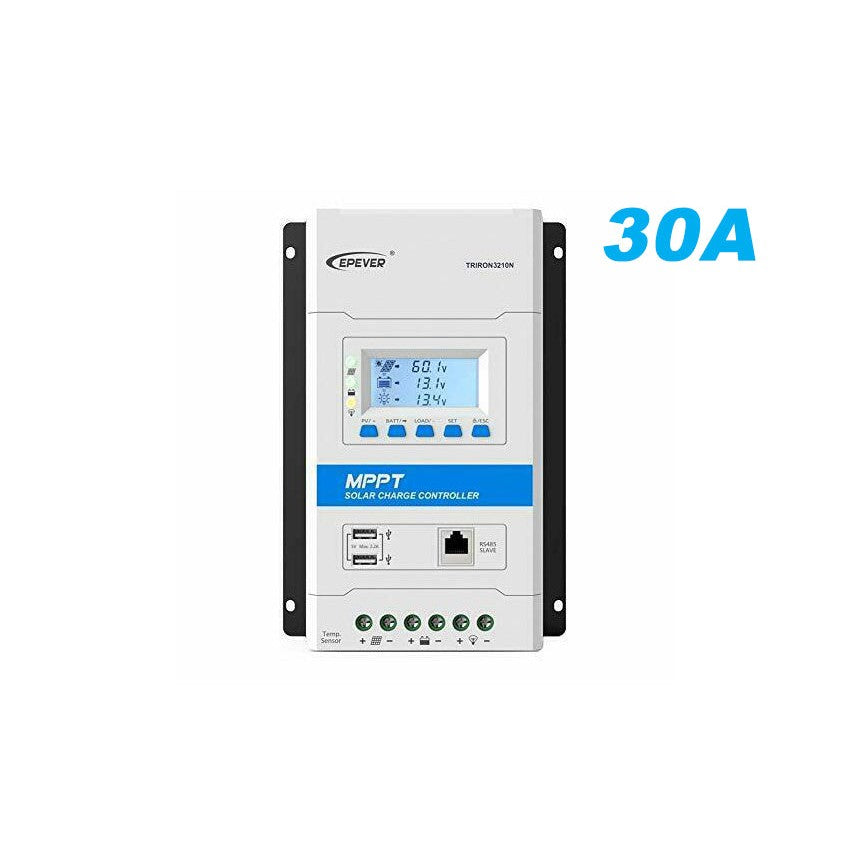

Model: TRIRON3210N
System voltage: 12/24VDC auto work
Rated charge current: 30A
Battery input voltage range:8-32V
Max. PV open circuit voltage:100Vat Min operating environment temp; 92Vat 25 environment temp
MPP voltage range: (Vbat+2V)72V
Max. PV Array Power: 390W/12V; 780W/24V
Working environment temperature:-25℃～+55℃（with LCD）/-30℃～+55℃（without LCD）
Lithium battery: LiFePO4（4S;8S）/Li-NiCoMn（3S; 6S）
Self-consumption: ≤14mA(12V)；≤15mA(24V)
Temp. compensation: -3mV/℃/2V
Grounding: Common Negative
Terminals/Wire Size: 8AWG(10mm²)
Indicators: PV & battery & load working status
Buttons: View or set the parameters

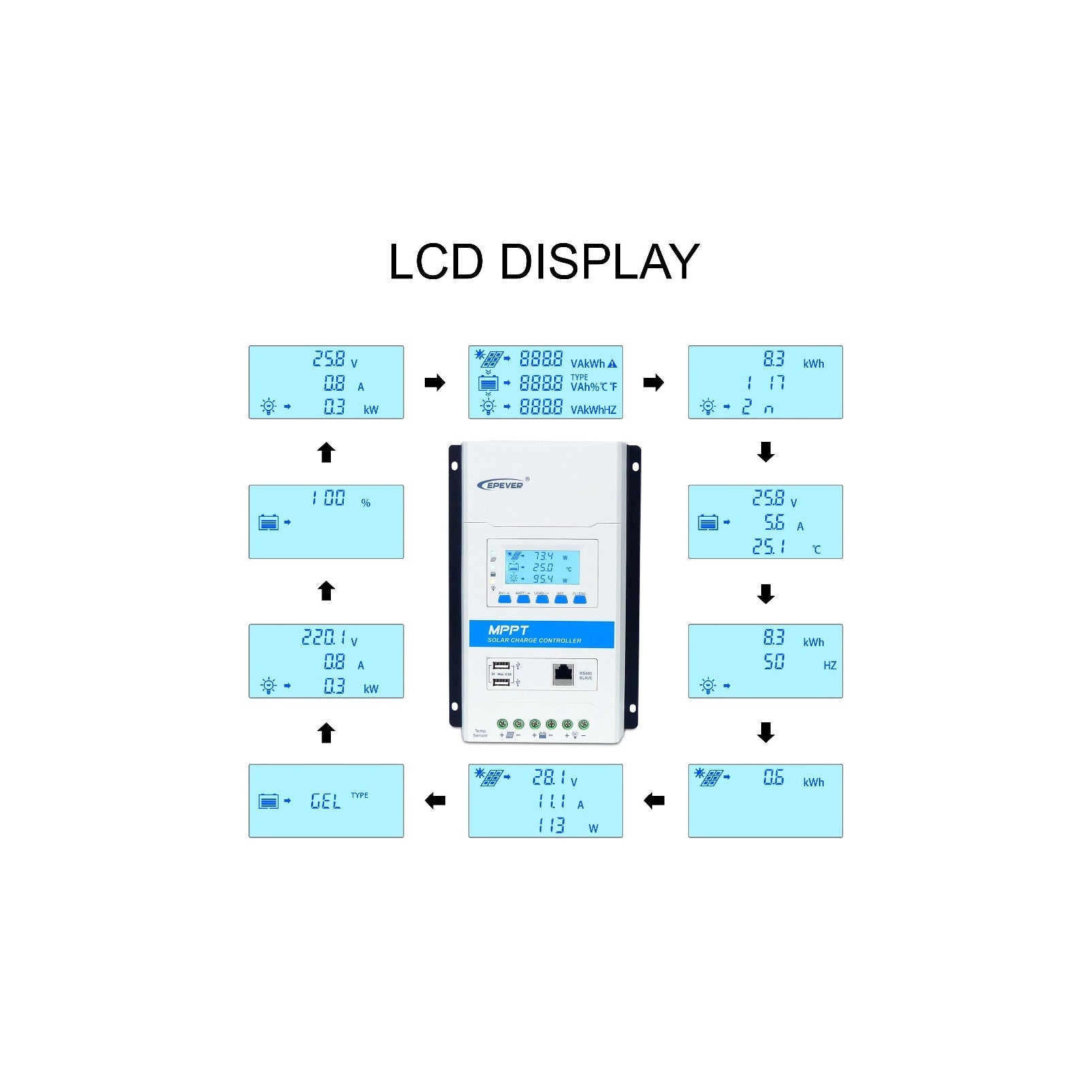

LCD: PV display voltage/current /generated energy/Power Battery display voltage/current/temperature/capacity
USB interface module: Dual USB 5V 2.2A USB output for electronic equipment, NOTE: USB interface is output when the load is ON.
PC software & mobile APP (For Andriod System) can remotely monitor the controller status through this port.
NOTE: PC software & mobile APP need RS485 cable or wifi box to connect your device (optional).
Package Including
1x EPEVER TRIRON3210N Controller
1x Temputer sensor

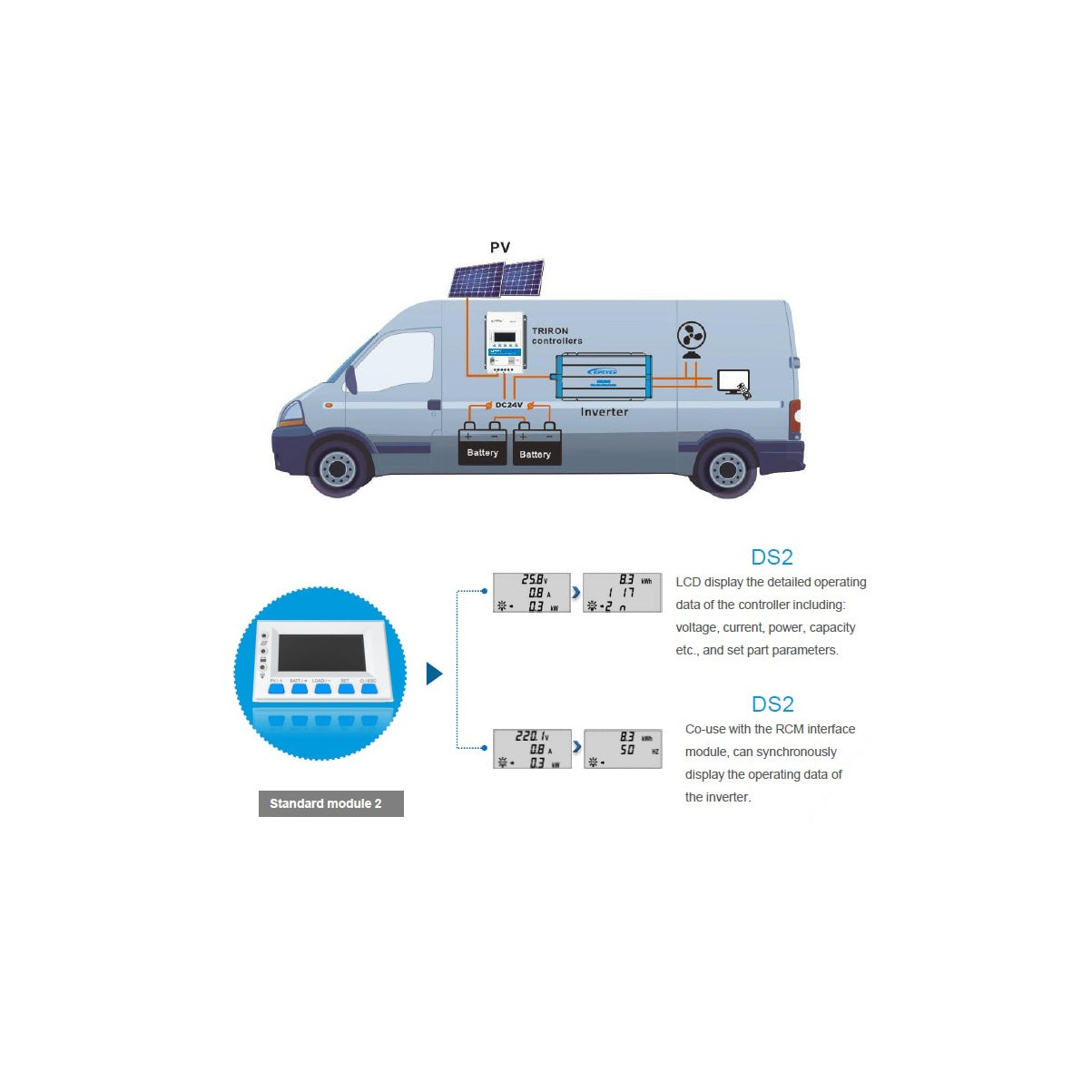

1x Display DS2 module
1x Interface UCS module
