Description
Introducing the brand-new EPEVER XTRA N Series Solar Charge Controller, a state-of-the-art product designed for optimal solar system performance and durability.
The XTRA N Series Controller boasts a digitally controlled self-adaptive three-stage charging mode, extending battery lifespan and enhancing system performance. With comprehensive electronic protection, it safeguards against overcharge, overdischarge, and PV & battery reverse polarity, making your solar system more reliable and durable. This versatile controller is ideal for various applications including RVs, household systems, and field monitoring.
Product Details:

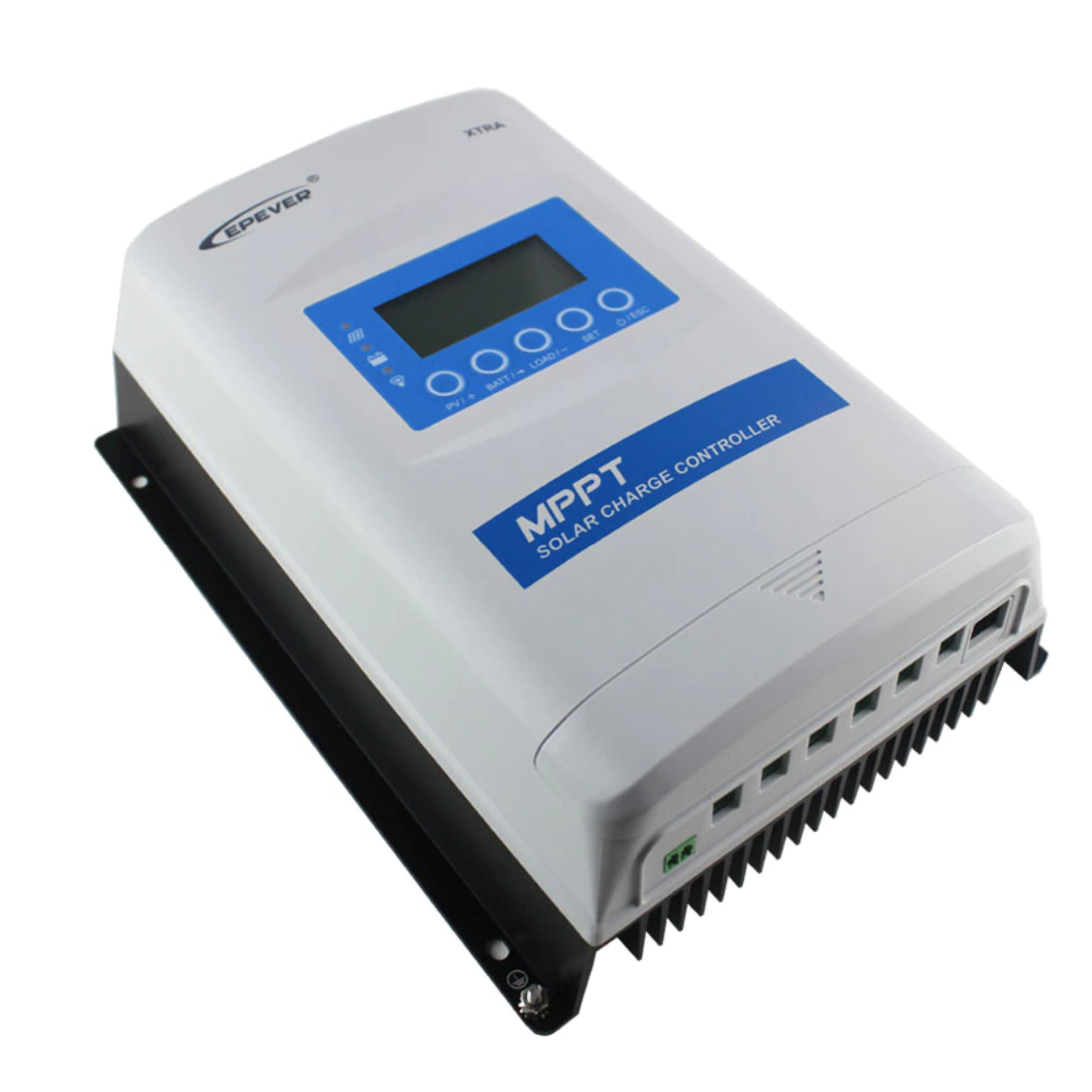

Model: Tracer 4210AN MPPT Charge Controller
12V / 24V DC Auto
Rated Charge Current: 40A
Max Input Power: 12V @ 520W | 24V @ 1040W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negative Ground Controller
Charging Power and Current Limitation Function
User Programmable for Battery Types, Load Control, etc.
Key Features:
CE Certified (LVD EN/IEC62109, EMC EN61000-6-1/3)
Operates efficiently across a wide range of temperatures, with 100% charging and discharging

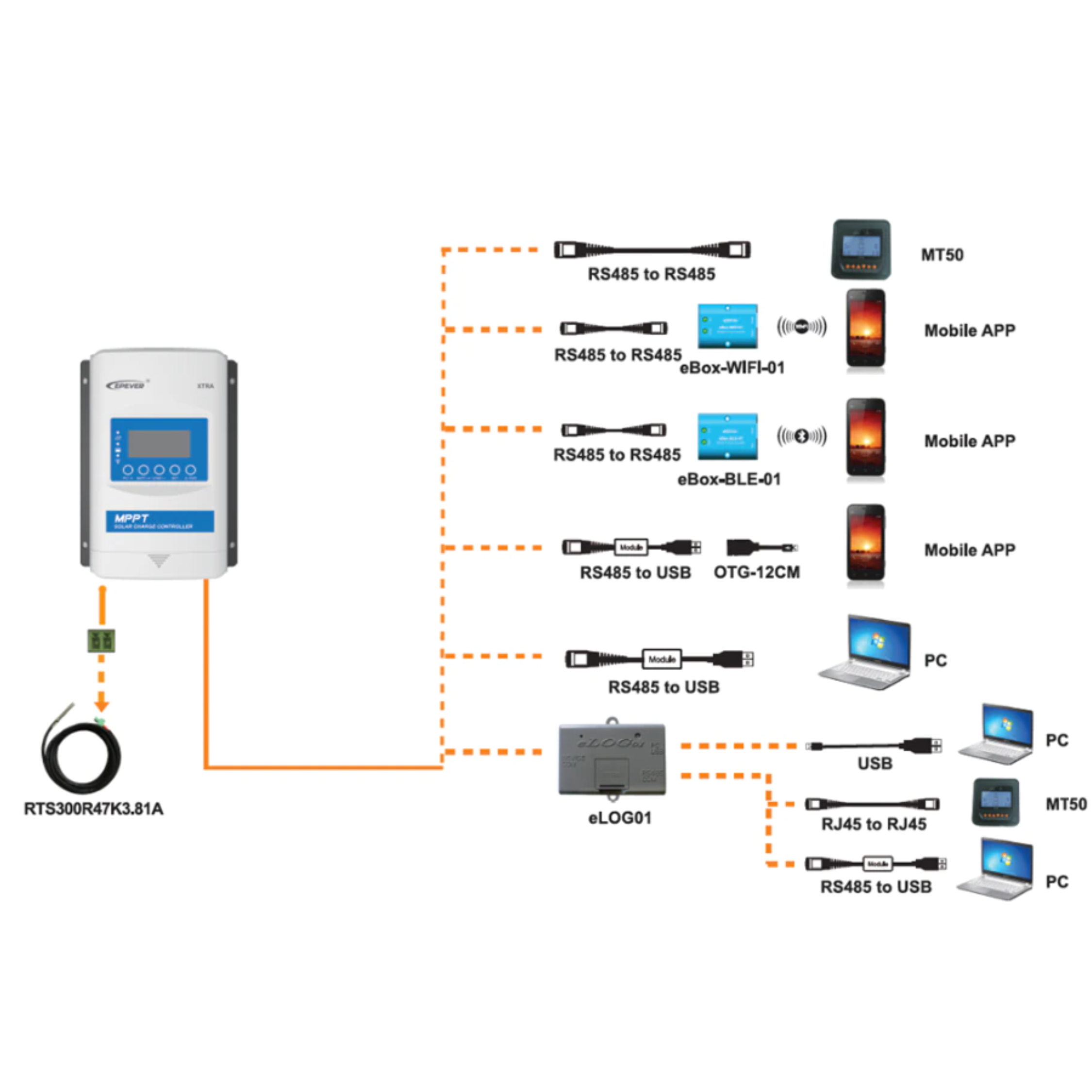

Optional LCD display units available: XDB1/XDS1/XDS2
Crafted with high-quality, low-failure-rate components from ST or IR to ensure longevity
Advanced MPPT technology with ultra-fast tracking speed, delivering up to 99.5% tracking efficiency
High transfer efficiency of 98.3% DC/DC, and full load efficiency of up to 97.3%
Weight: 2.3kg
Package Includes:
1 x Tracer 4210AN MPPT Charge Controller
Warranty:
Covered by a 12-month warranty for your peace of mind.
Invest in the EPEVER XTRA N Series Controller for a dependable and enduring solar system experience!
