Description
DESCRIPTION

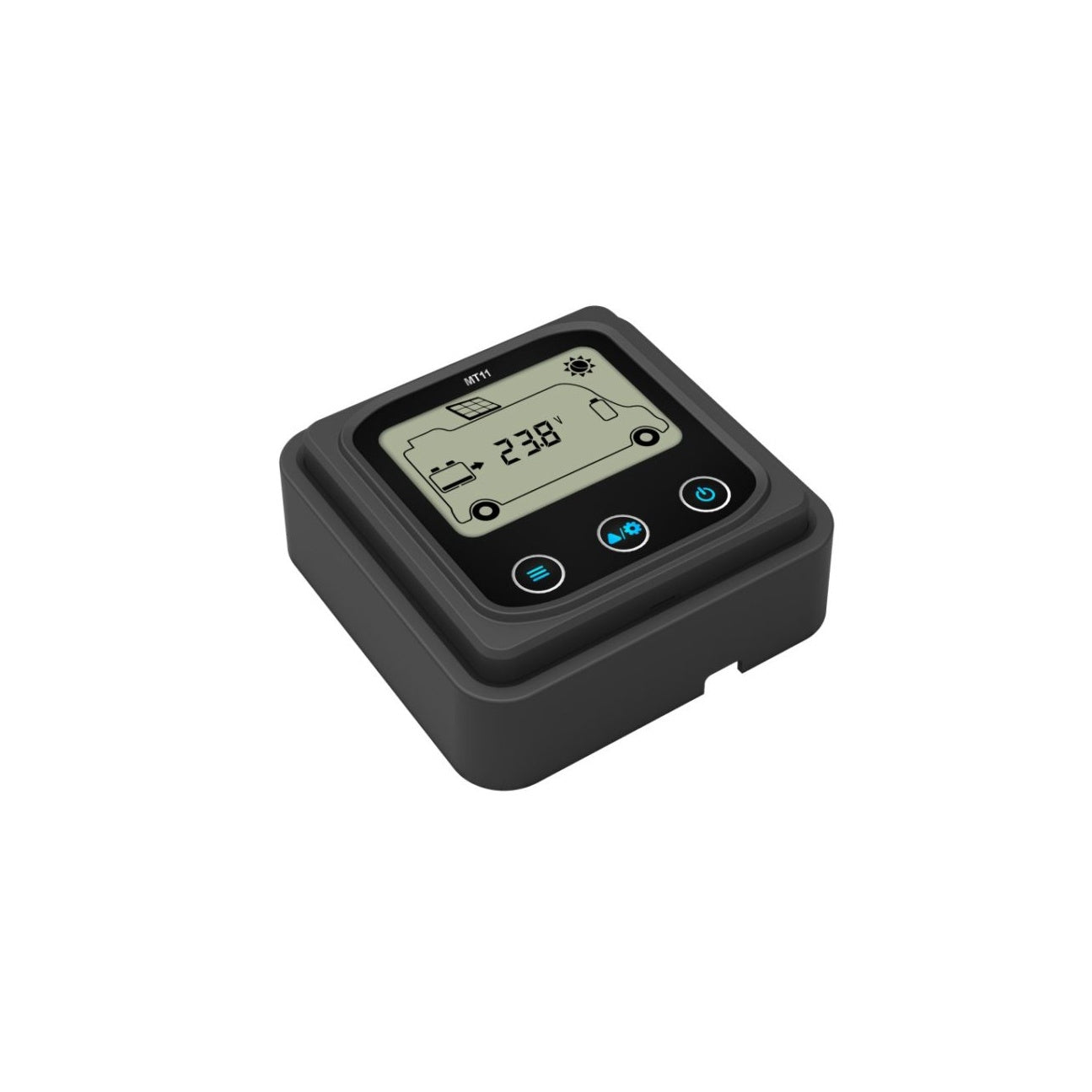

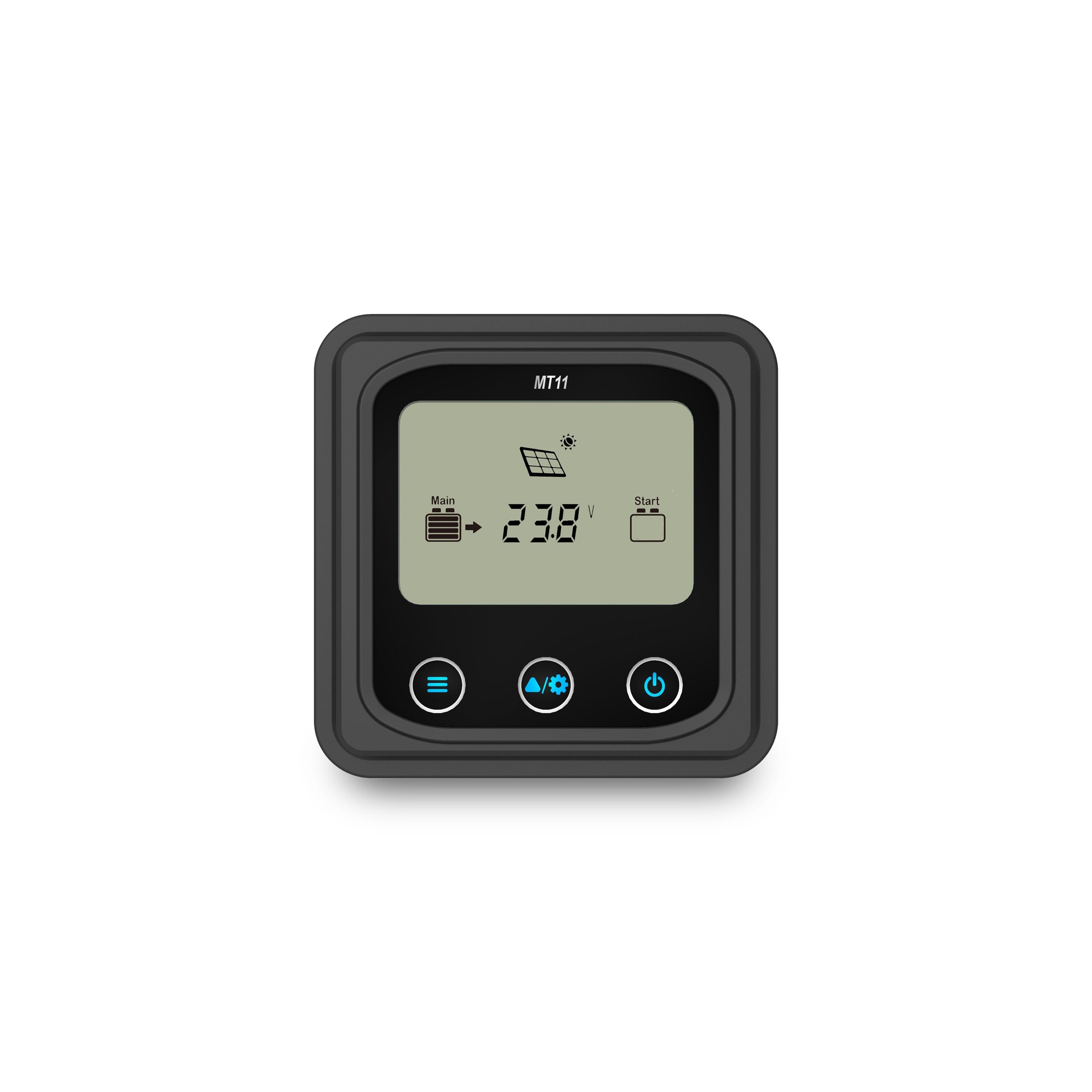

Epever’s MT11 remote meter is an accessory which is compatible with the DuoRacer series controller. The running data and working status of the controller can be monitored via the MT11 remote meter. The MT11 can browse the controller’s parameters, set the battery type and temperature unit and clean the generated energy. It is suitable for RV, Camper, Boat, and other small applications.
FEATURES
Automatically identify and display the type, model and relevant parameter data of controllers.
Real-time display the operational data and working status of the connected devices indigital, graphics and textural forms by a large-screen multifunction LCD
Three touch buttons are easy and quick to operate
No need for external power supply. Charge controller supply the power for MT11
It can browse the controller’s parameters, set the battery type and temperature unit, and clean the generated energy
Real-time display of failure information of the connected devices.
Longer communication distance based on RS485
TECHNICAL SPECIFICATIONS
Apply to model: DuoRacer series
Self-consumption(Power on): 13mA/5Vdc
Self-consumption(Power off): 4mA
Communication way: RS485
Communication port: 3.81-4P
RS485 cable:
CC-RS485-RS485-3.81-4P-150(1.5m)
CC-RS485-RS485-3.81-4P-500(5m)
CC-RS485-RS485-3.81-4P-1000(10m)
Dimension: 98.4×98.4mm
Base cover dimension: 114×114mm
Enclosure: IP20
Environment temperature: -20～ +70 degrees Centigrade
Storage temperature range: -20 ～ +70 degrees Centigrade
Weight: 0.11kg
