Description

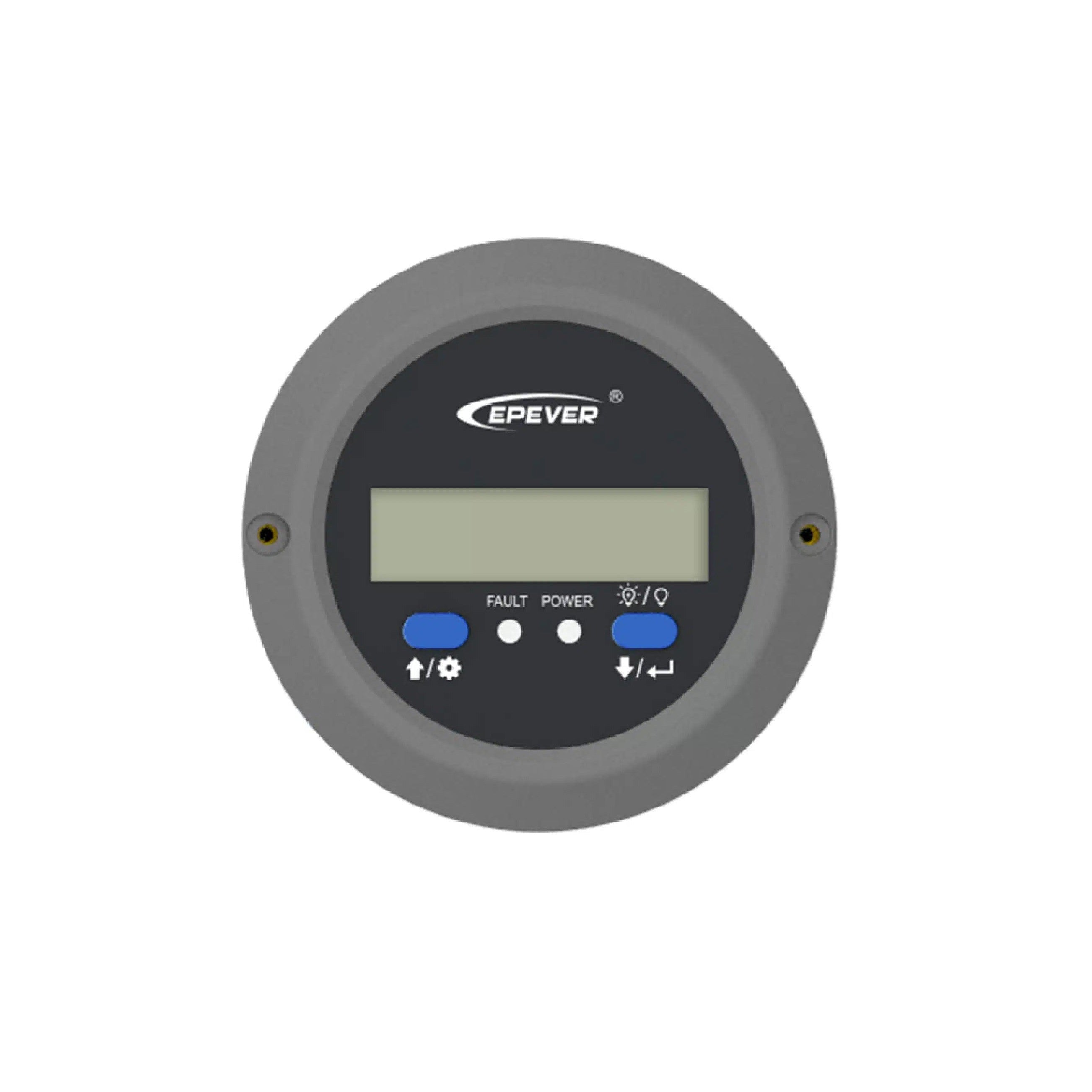

MT91 is a new generation of remote meter specially designed for
the EPEVER inverters. It displays the real-time parameter of the
inverter on one screen. Supporting parameter configuration by the
button operations, which makes the product suitable for different
requirements.
Features
Dual interface design, friendly connection with the EPEVER inverter and other optional modules
LCD screen, real-time dynamic display of system data
Visually error codes, timely notification of warnings and faults
Load ON/OFF button to control the load output directly
Simple installation and friendly operation interface
Technical Specifications
Model: MT91
Compatible products: NPower/TPower/IPower-Plus/IPower
Power supply: 5VDC
Power supply method: Inverter communication port
LCD visual angle: 12' clock
LCD backlight: Yes
Installation method: Surface mounting installation
Self-consumption:
14mA/5V(no backlight)
23mA/5V(backlight)
Working temperature: -20℃～+60℃
Storage temperature: -35℃～+70℃
Dimension: φ100mm X 19.4mm(Diameter X Height)
Mounting dimension: φ100mm X 50mm(Diameter X Height)
Mounting hole size: φ3.5mm
Net Weight: 65g
Compatible products: NPower/IPower-Plus/IPower
