Description
Comes with 5 year warranty

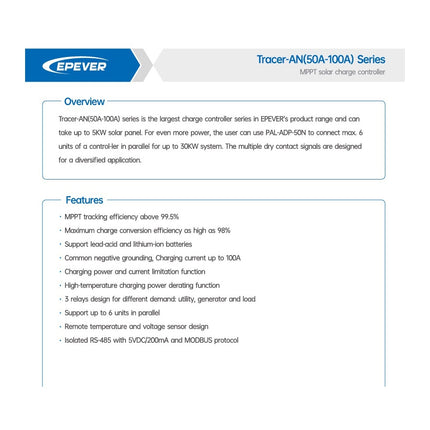

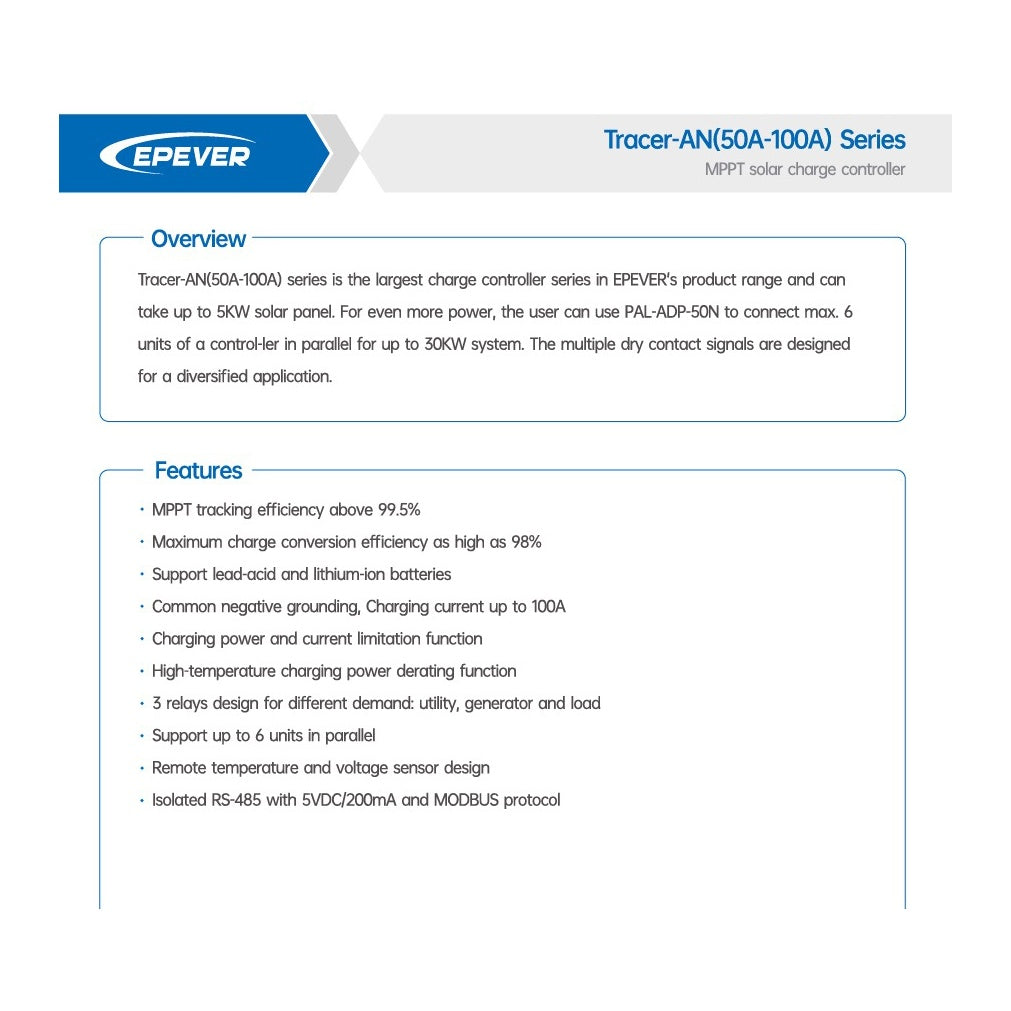

Tracer-AN Series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panels. For even more power, the user can use PAL-ADP-5ON to connect max. 6 units of a controller in parallel for up to 30kW system. The multiple dry contact signals are designed for a diversified application.
Features
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Common negative grounding, Charging current up to 100A
Charging power and current limitation function
High-temperature charging power derating function

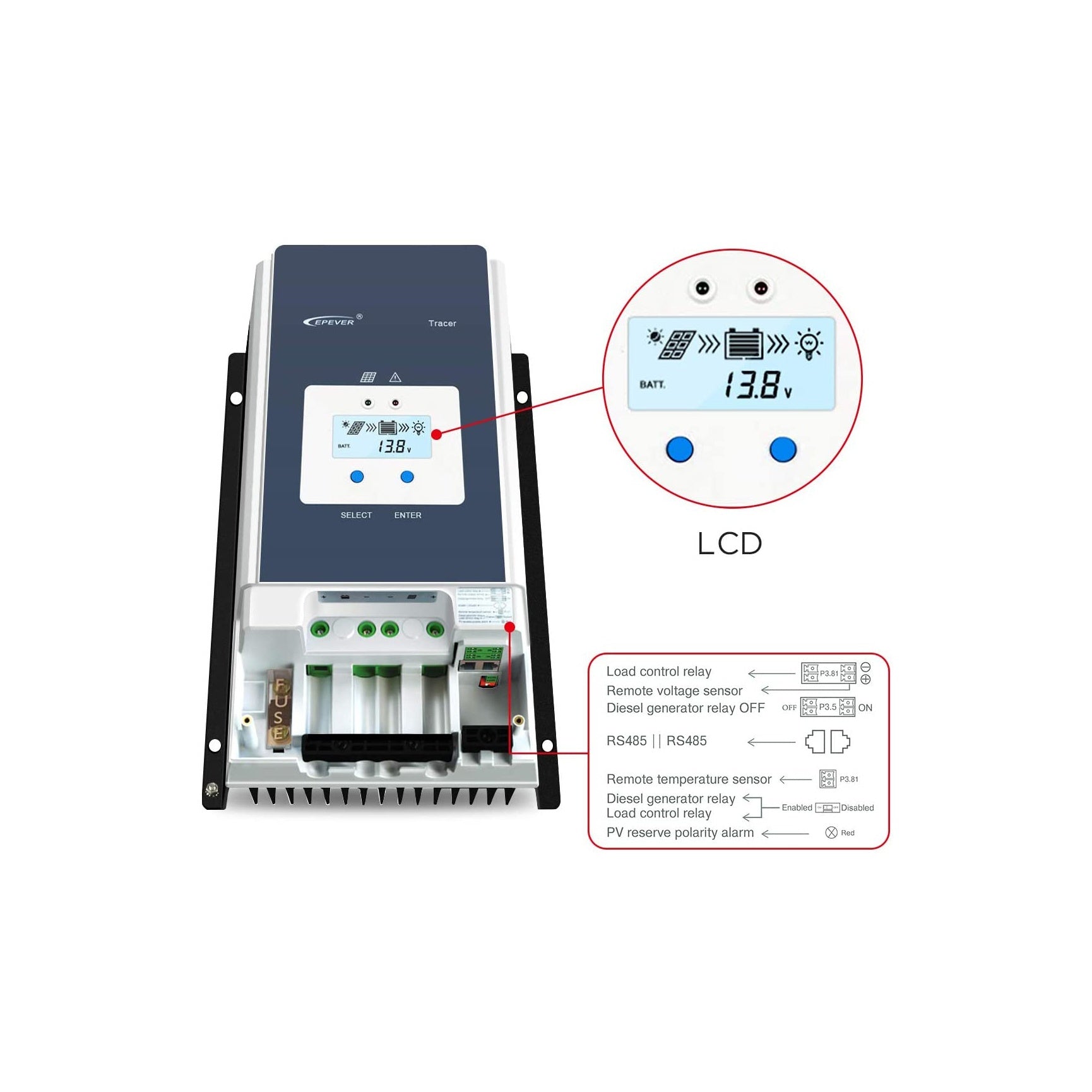

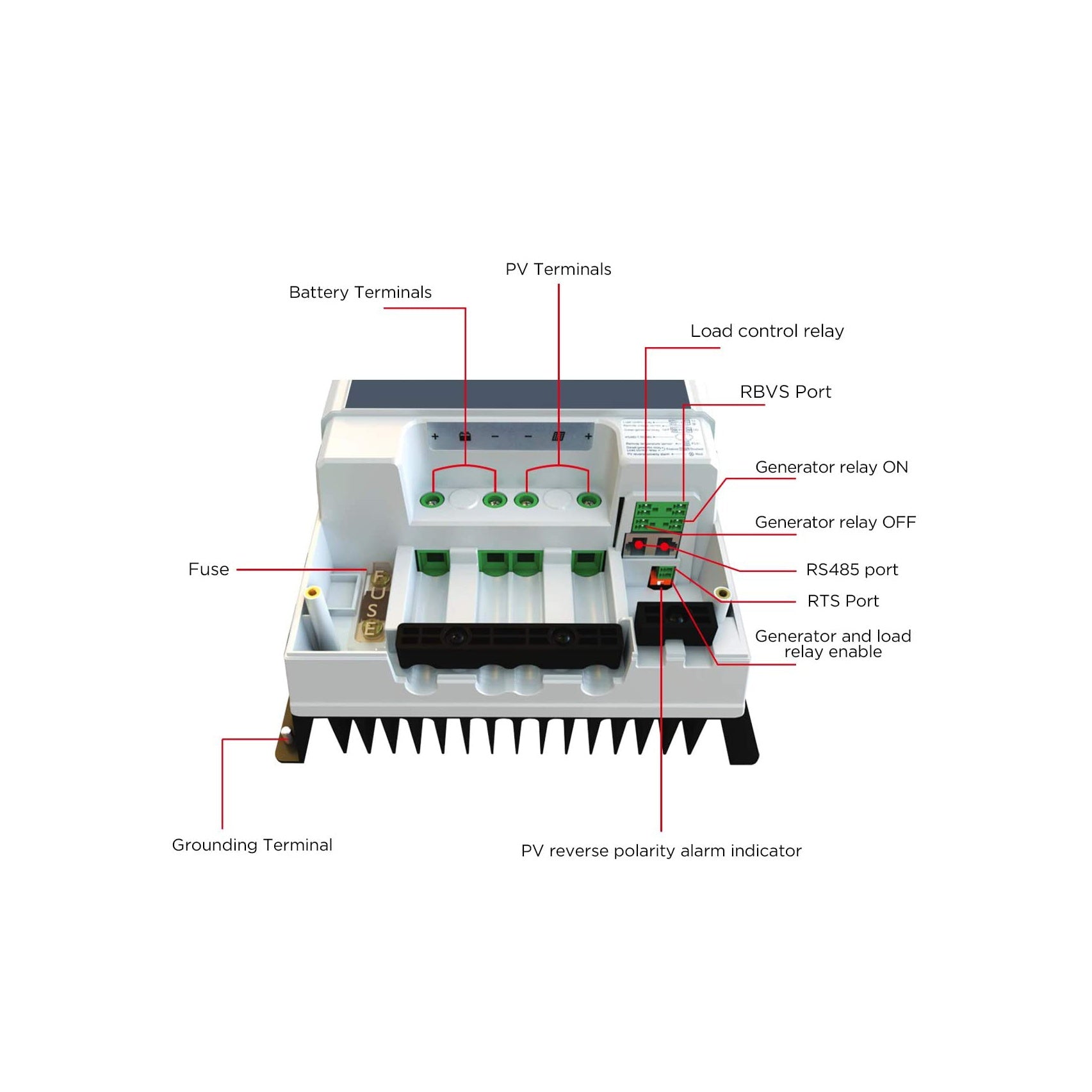

3 relays design for different demand: utility, generator and load
Support up to 6 units in parallel
Remote temperature and voltage sensor design
Isolated Rs-485 with 5VDC/200mA and MODBUS protocol

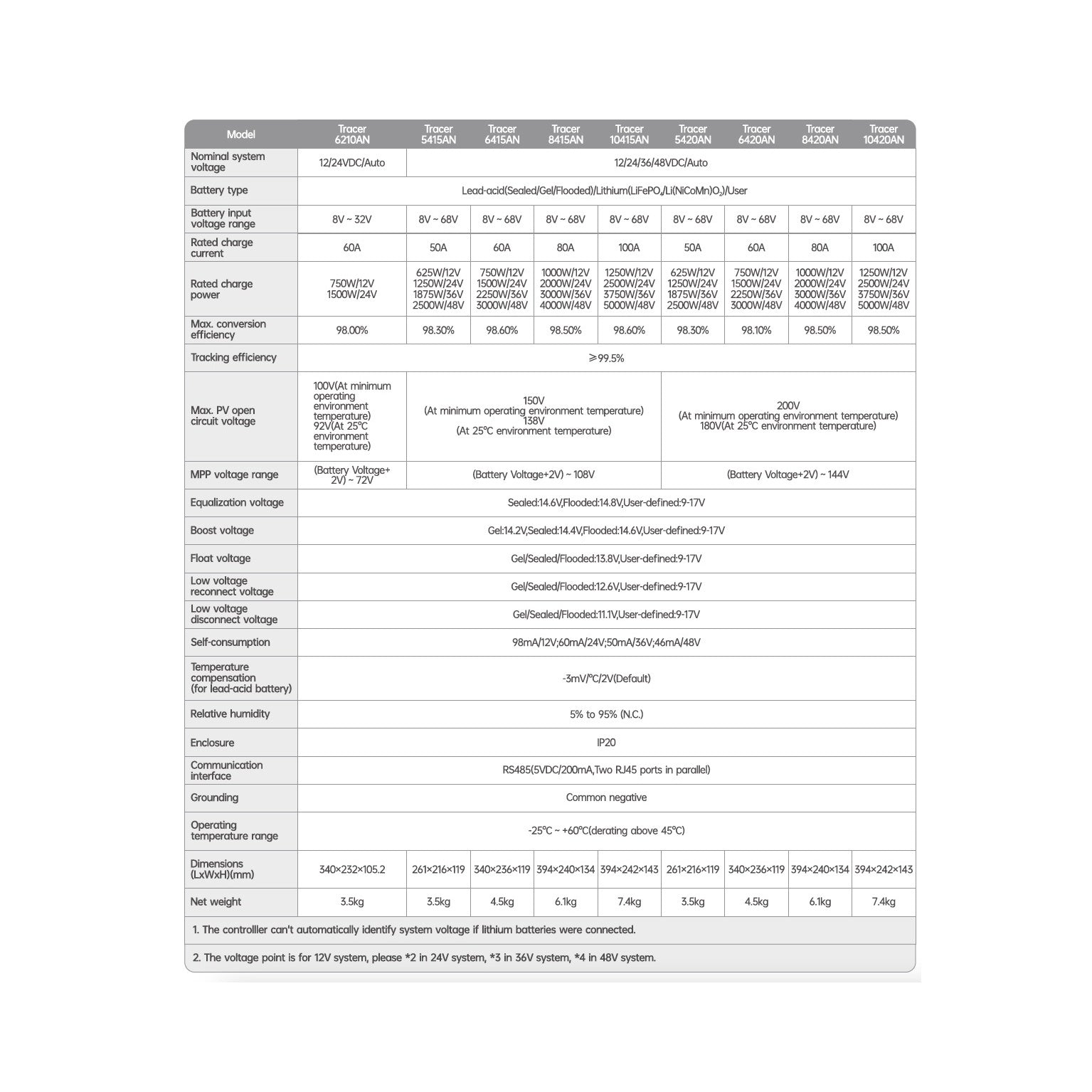

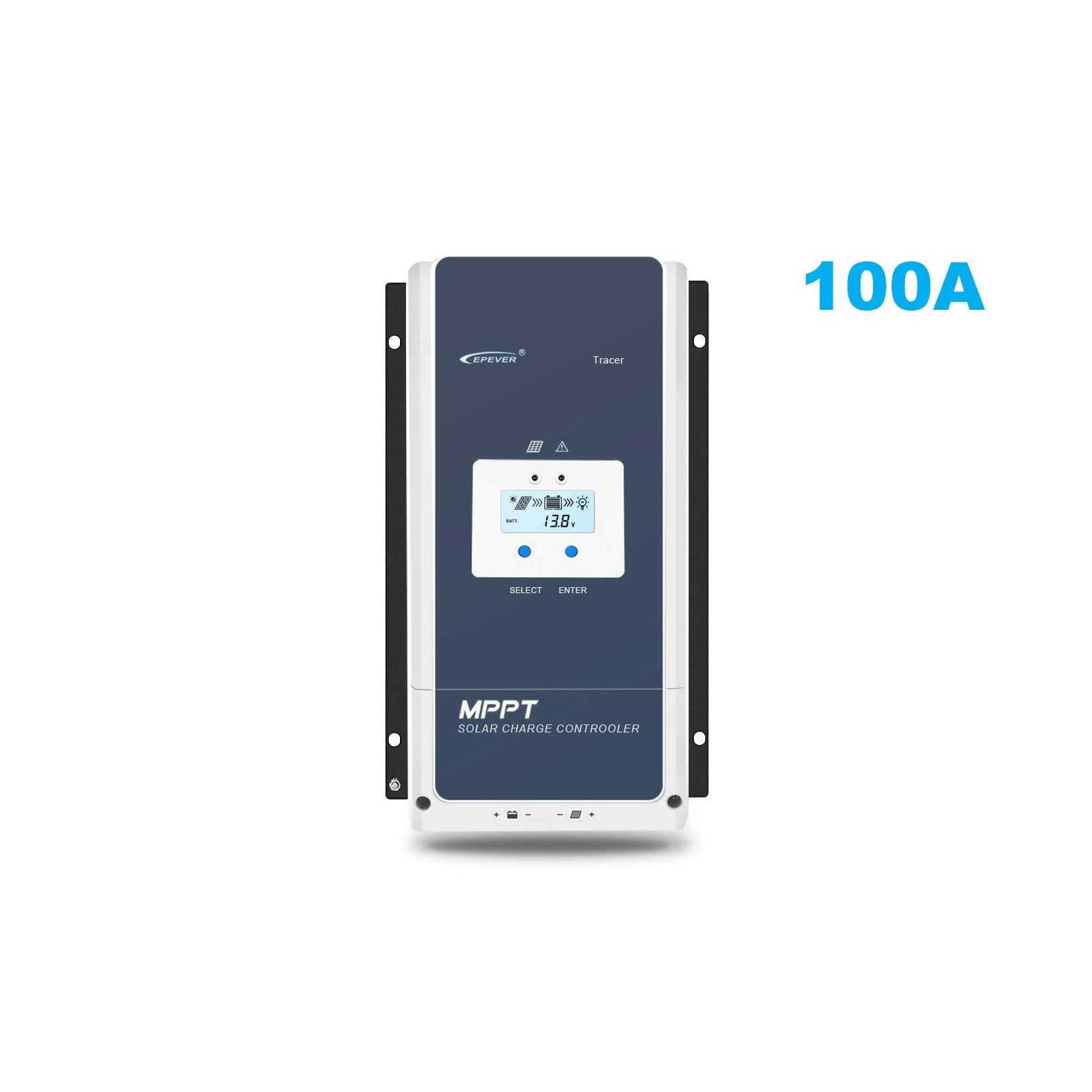

Model: Tracer10420AN
Nominal system voltage: 12/24/36/48VDC/Auto
Battery type: Lead-acid/Lithium/User
Battery input voltage range: 8V - 68V
Rated charge current: 100A
Rated charge power:
1250W/12V
2500W/24V
3750W/36V
5000W/48V
Max. conversion efficiency: 98.50%
Tracking efficiency: >=99.5%
Max. PV open circuit voltage: 200V
MPP voltage range: (Battery Voltage+2V) - 144V
Enclosure: IP20
Communication interface: RS485

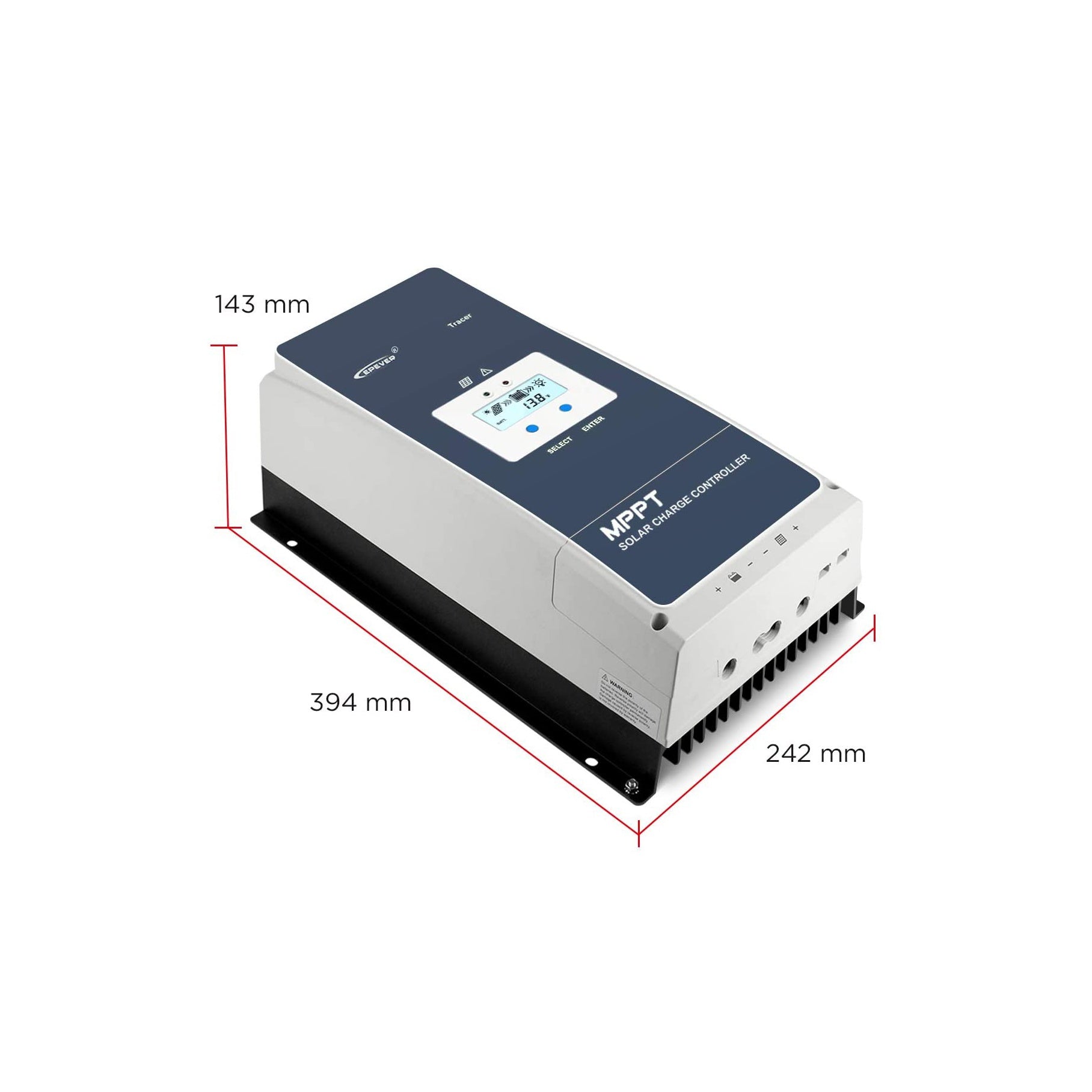

Dimensions(LxWxH)(mm): 394x242x143
Net weight: 7.4kg
