Description

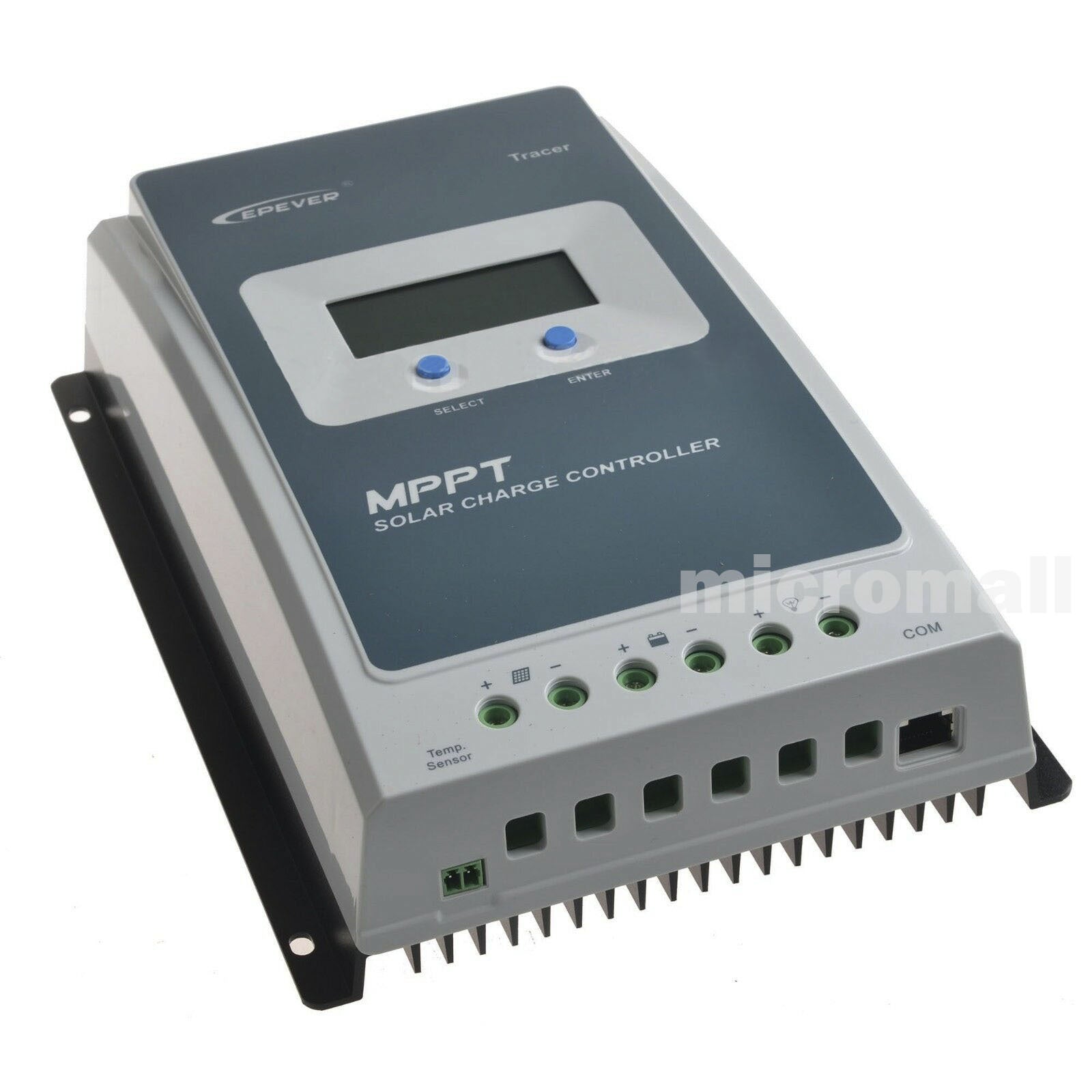

The Tracer-AN Solar Charge Controller boasts high-efficiency multiphase synchronous rectification technology (MSRT) and a sophisticated MPPT control algorithm. Its dual-core processor architecture and common negative design ensure rapid response, reliability, and adherence to high industrial standards.
Key Features:
High Conversion Efficiency: MSRT ensures optimal conversion efficiency at any charge power, enhancing your solar system's energy efficiency.
Advanced MPPT Algorithm: Minimizes power point loss rate and loss time, ensuring rapid tracking of the PV array's maximum power point (MPP) for maximized energy capture.
Stability & Safety: Charging power and current limitation functions, along with automatic power reduction, ensure stable operation with oversized PV modules and in high-temperature environments.
Ultra-fast Tracking: With a tracking efficiency of up to 99.5%, the advanced MPPT technology and rapid tracking speed allow the device to promptly adjust to optimal energy capture settings.
Charging Options: Supports four charging options—Sealed, Gel, Flooded, and User.
Load Control: Load relay control facilitates various load work modes.
Relay Design: Features auto-control for utility and generator relays.
Remote Sensing: Remote temperature and voltage sensors provide accurate battery data.
Communication: Isolated RS-485 interface (with 5VDC/200Ma protected output and MODBUS protocol) allows for device connectivity without power loss.
Monitoring: Easily monitor and adjust parameters via mobile app or PC software.
Specifications:
System Nominal Voltage: 12/24V DC Auto
Rated Charge Current: 10A
Rated Discharge Current: 10A
Max PV Open Circuit Voltage: 60V, 46V
MPPT Voltage Range: (Battery Voltage +2V)~36V
Max PV Input Power: 130W (12V), 260W (24V)
Self-consumption: ≤12mA
Discharge Circuit Voltage Drop: ≤0.23V
Grounding: Common Negative
RS485 Interface: 5V DC/100mA
Dimensions: 172 x 139 x 44 mm
Weight: 570g
