Description
*** 5 years warranty ***
*** Newest Model ***
Product Feature:
CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
Maximum DC/DC transfer efficiency is as high as 98.7%
Accurate recognition and tracking at the highest point of multiple-peaks MPP
Wider range of MPP operating voltage.
Automated over-current protection.
Supports 4 charging options: Sealed, Gel, Flooded and User.
Battery temperature compensation function
Real-time energy recording and statistical function
Automatic over-temperature power reduction function
Support up to 8 units in parallel to expand system

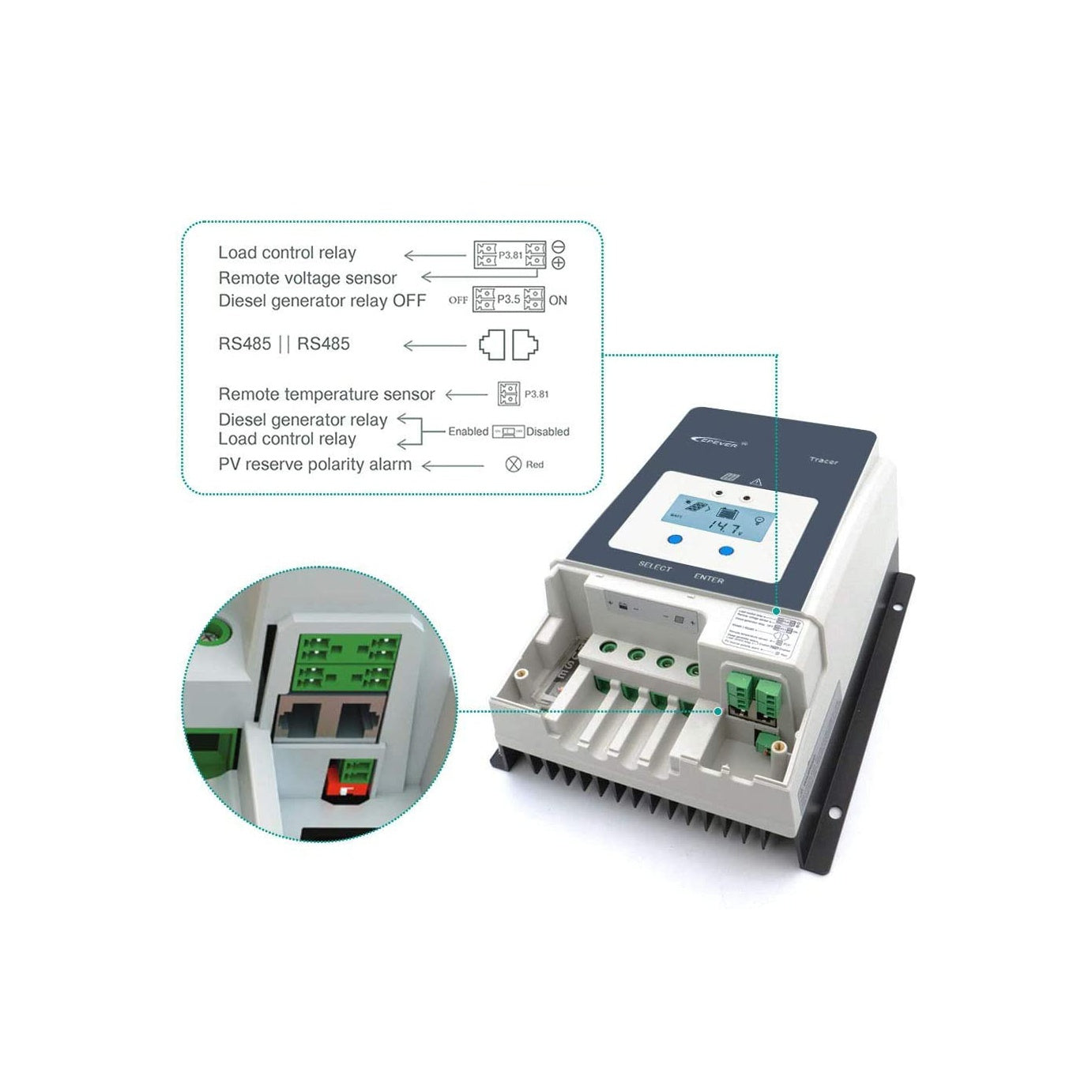

Load relay control external load switch signal to use diversified load work modes
The first and the second disconnection of load control, contain two relay’s contact.
Auto-control of utility and generator relay design

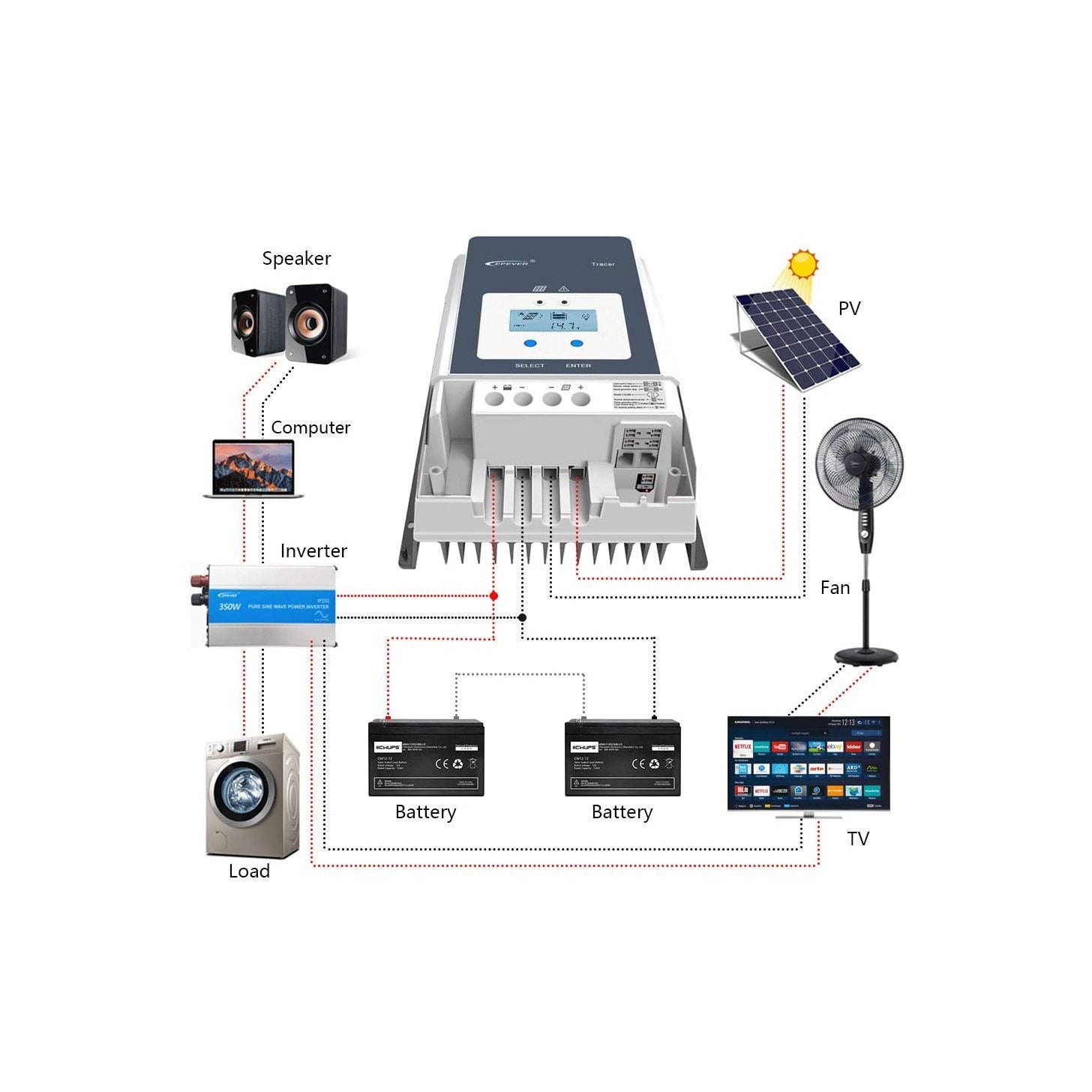

Utility or generator auto-control relays make it easy to use the hybrid power system
The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
Controller can be monitored or parameters set by using the phone App or PC software.

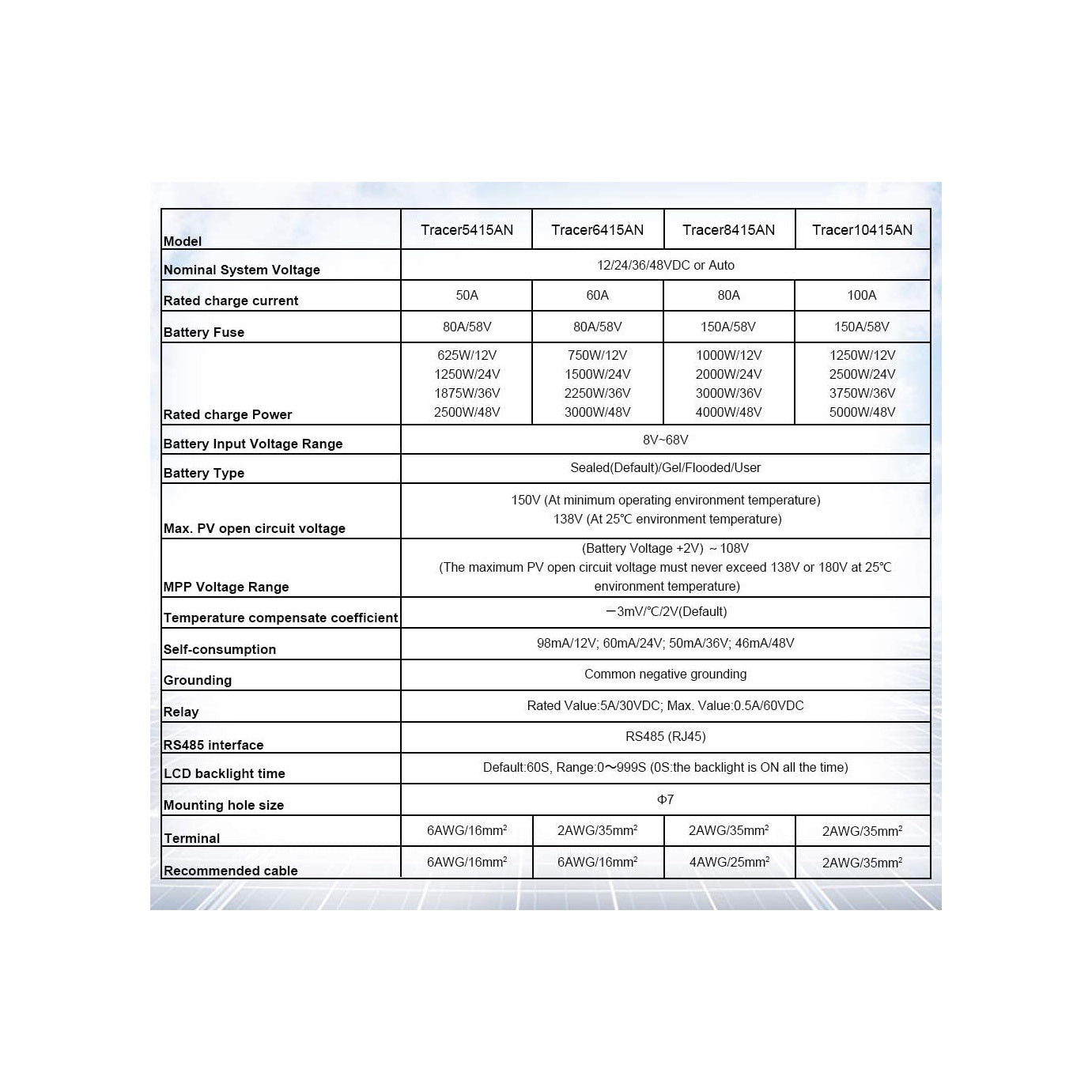

Specifications:
Nominal System Voltage: 12/24/36/48VDC or Auto
Battery Input Voltage: 8V ~ 68V
Battery Type: Sealed/ GEL / Flooded / User
Rated Charge Current: 50A
Battery Fuse: 80A/ 58V
Rated charge power: 625W/12V, 1250W/24V, 1875W/36V, 2500W/48V
Max.PV open circuit: 150V
Track efficiency: >99.5%
Conversion Efficiency :
