Description

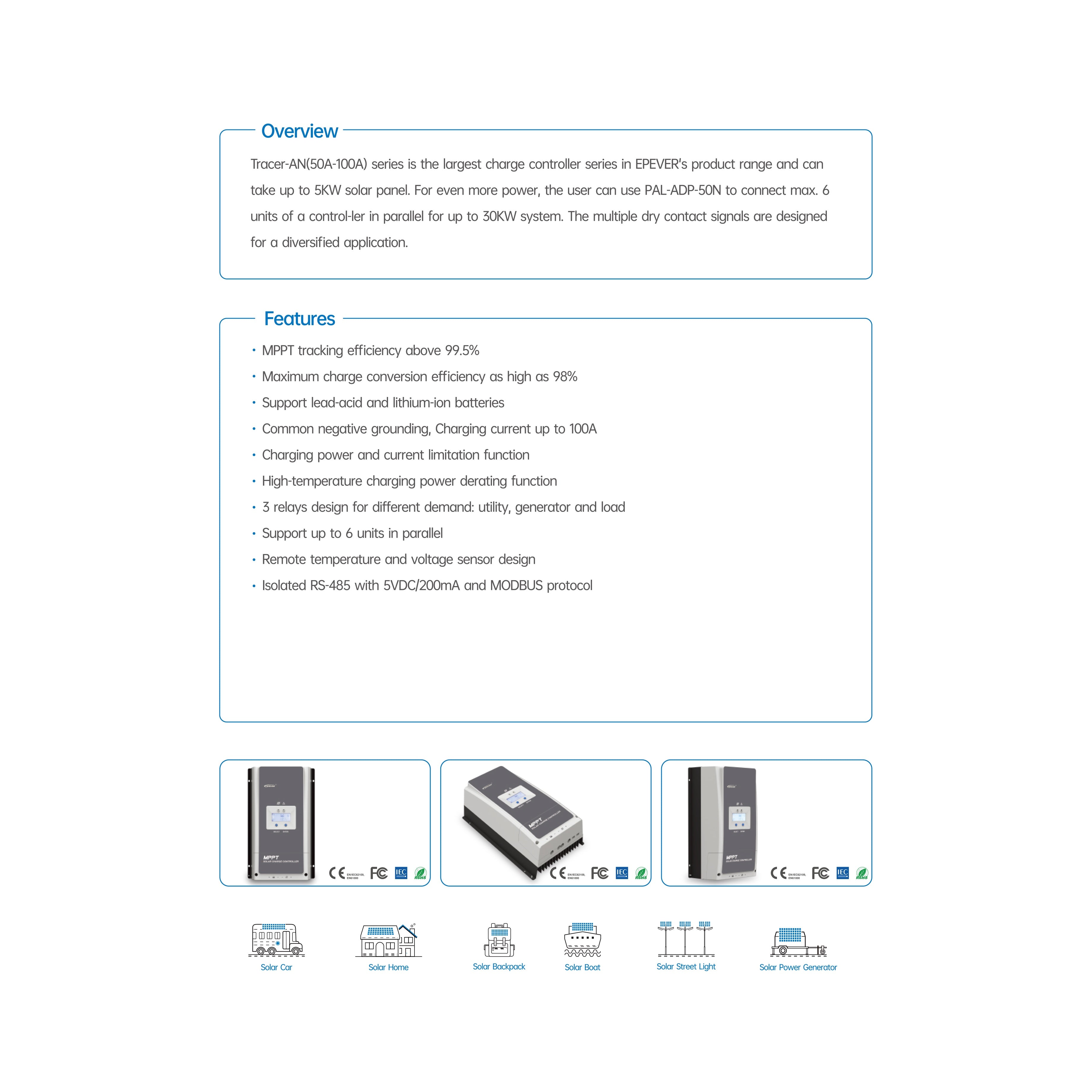

The Tracer-AN series is the largest and most powerful MPPT charge controller range from EPEVER, supporting up to 5kW of solar panels. For expanded capacity, the addition of the PAL-ADP-50N adapter allows for parallel connections of up to 6 controllers, enabling a scalable system of up to 30kW. Designed for a wide range of applications, the Tracer-AN series features multiple dry contact signals to meet diverse needs.
Key Features
High MPPT Efficiency: Tracks solar power with efficiency above 99.5%.
Maximum Conversion Efficiency: Achieves up to 98% charge conversion.
Battery Compatibility: Supports both lead-acid (Sealed/Gel/Flooded) and lithium-ion (LiFePO4/LiNiCoMnO₂) batteries.
Flexible Power Limits: Includes charging current and power limitation features for system flexibility.
Thermal Management: High-temperature derating function ensures safe charging in hot environments.
Versatile Relay Design: Three relays for utility, generator, and load management.
Scalable Setup: Parallel up to 6 units for larger systems.
Remote Monitoring: Supports remote temperature and voltage sensors for optimal system monitoring.

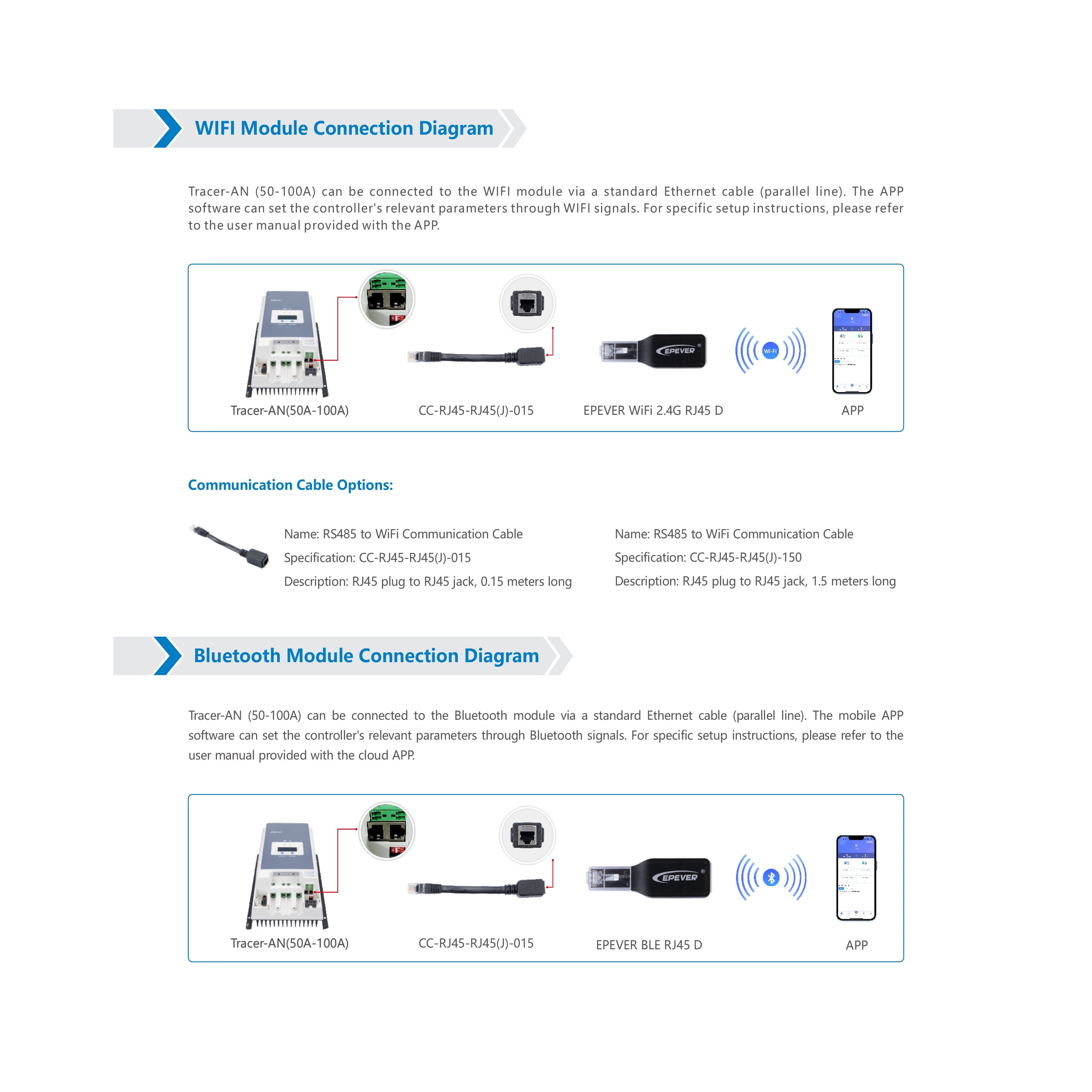

Reliable Communication: Features isolated RS-485 with 5VDC/200mA and MODBUS protocol for robust communication.

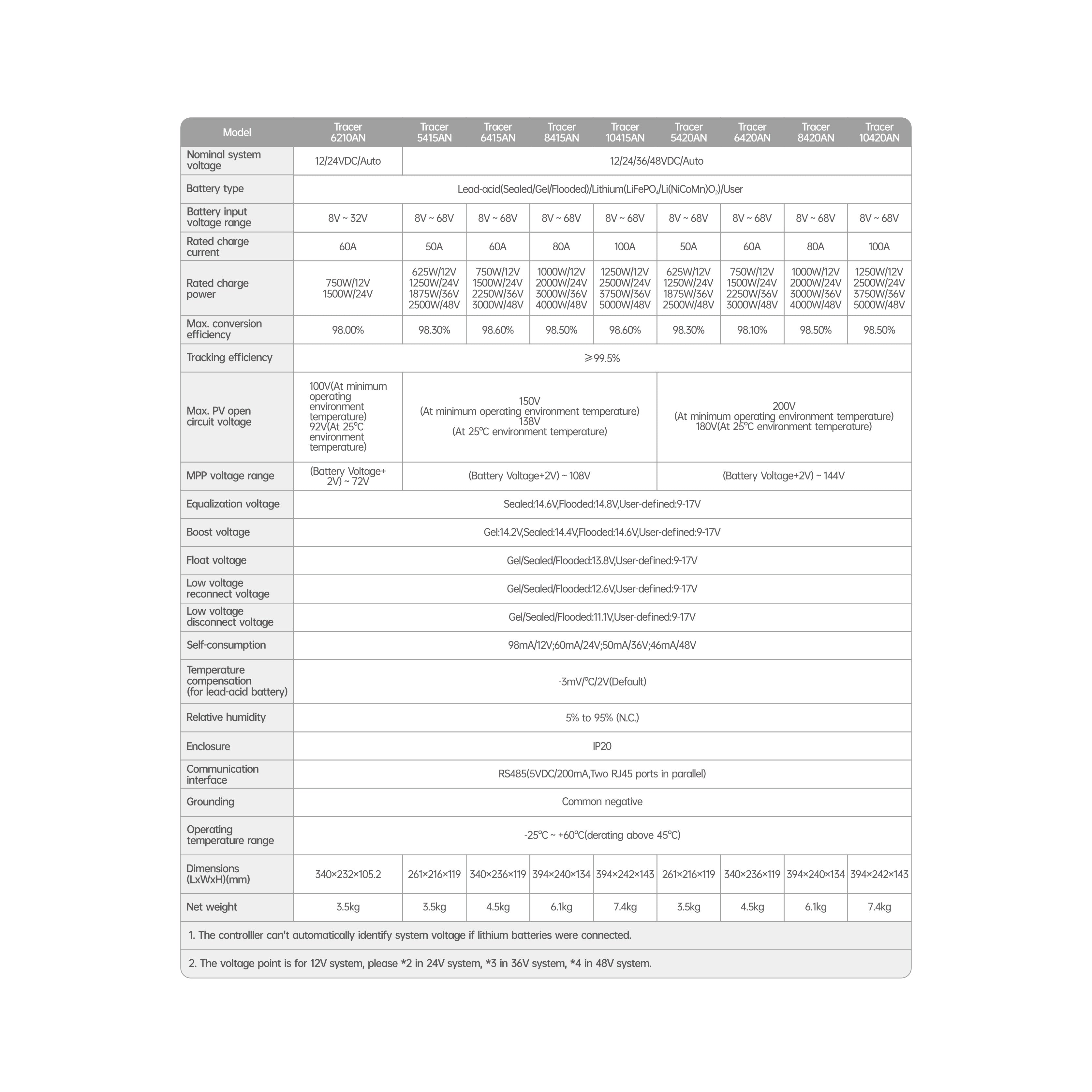

Technical Specifications
Nominal System Voltage: 12/24/36/48VDC (Auto detection)
Battery Type: Lead-acid (Sealed/Gel/Flooded) / Lithium (LiFePO4/LiNiCoMnO₂)
Battery Voltage Range: 8V - 68V
Rated Charge Current: 50A
Charge Power Output:
625W at 12V
1250W at 24V
1875W at 36V
2500W at 48V
Max Conversion Efficiency: 98.30%
Tracking Efficiency: ≥99.5%
Dimensions (L×W×H): 261 × 216 × 119 mm
Net Weight: 3.5 kg
Communication: RS485 (RJ45 Ports)
Enclosure Rating: IP20
