Description
Comes with 2 years warranty
Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:
12V/24V/36V/48VDC Auto
High quality & low failure rate components of ST and Infineon to ensure the product’s life
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
Auto control system to limit the charging power & current go over the rated value
Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function

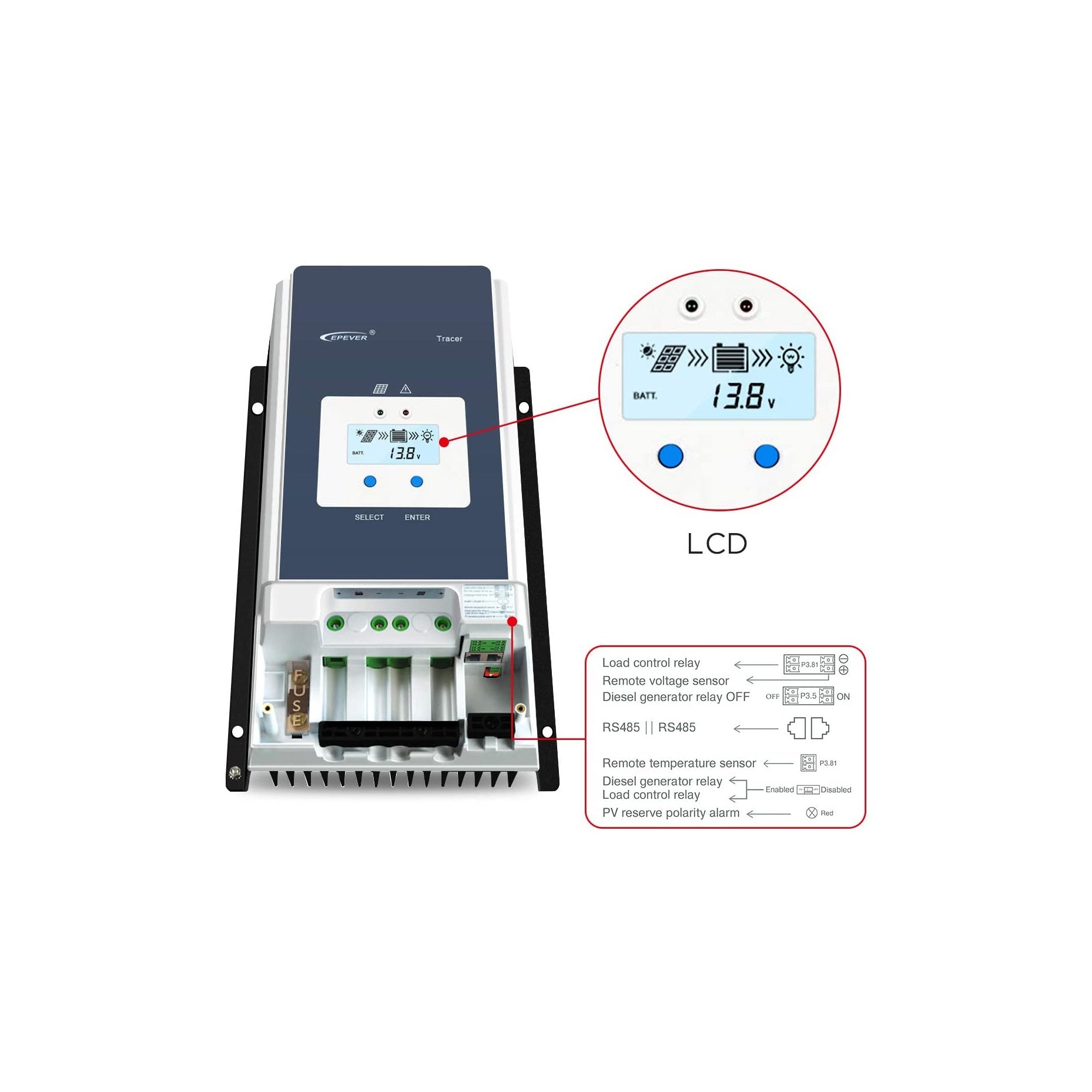

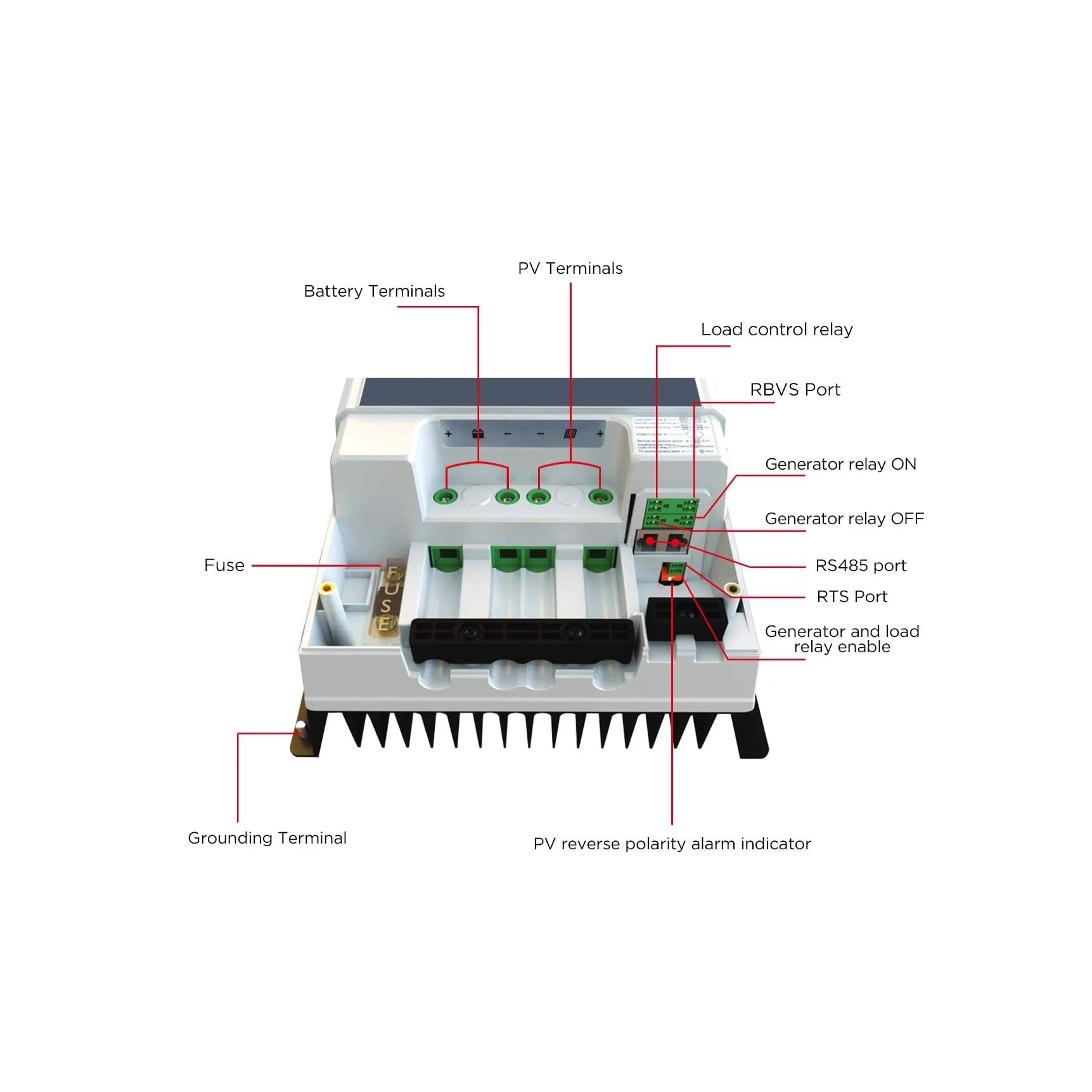

Load relay control external load switch signal to realize diversified load work modes
All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.

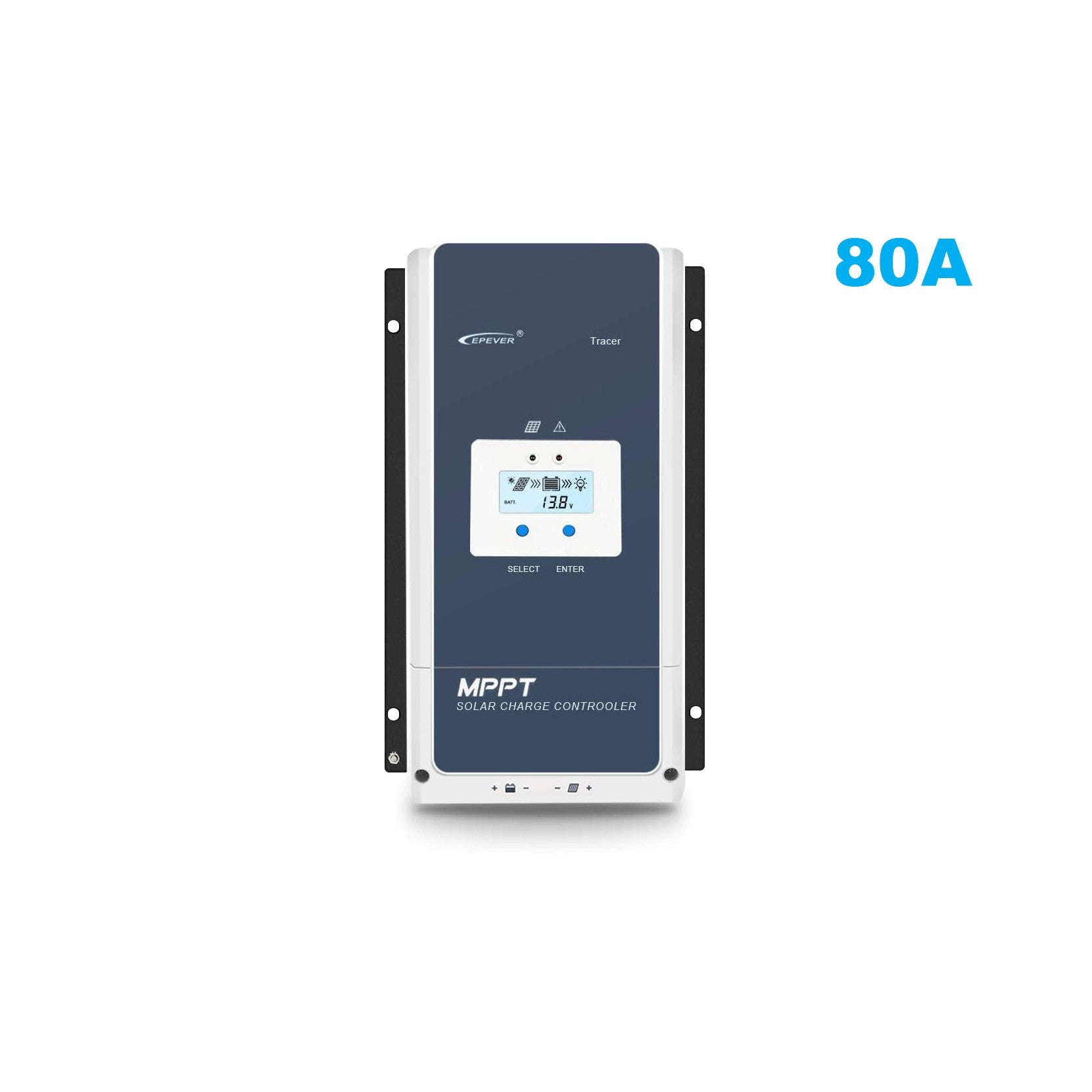

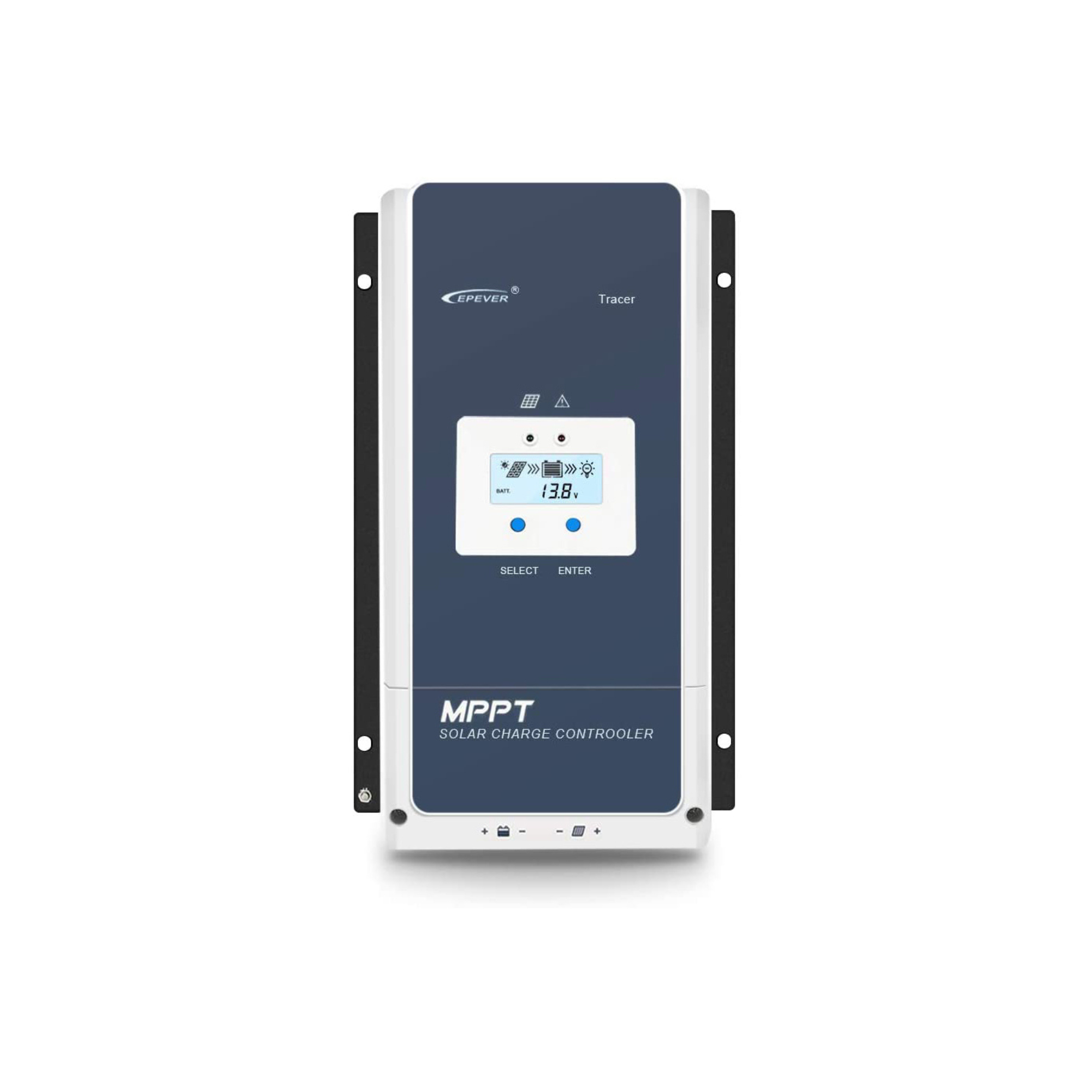

MODEL: TRACER 8420AN
12VDC / 24VDC /36VDC/48VDC Auto select
Rated Battery Current 80A
Max. Solar Input Voltage 150VDC
Max. PV input power:12V/ 1000W , 24V /2000W, 36V/3000W, 48V/4000W

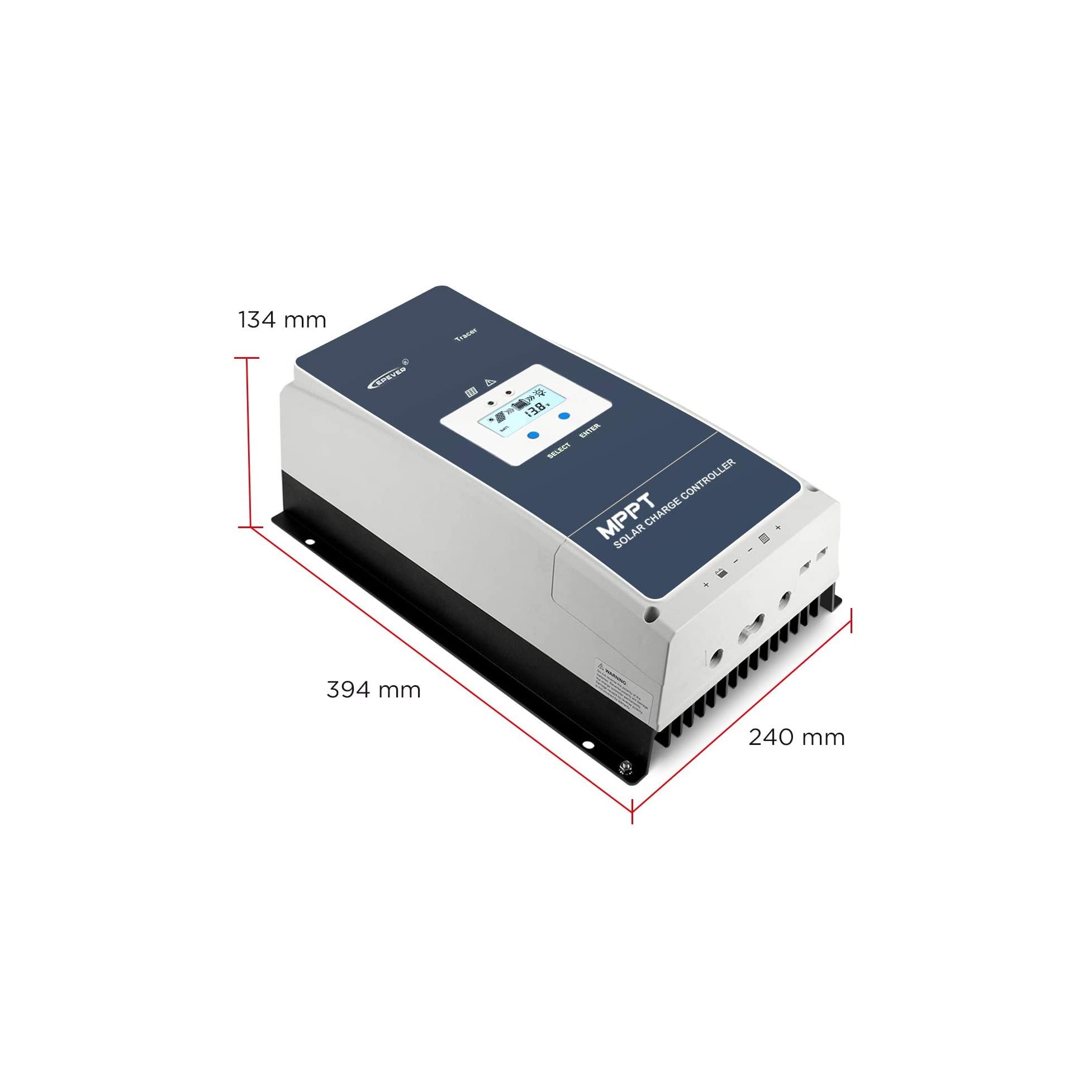

Dimension 394x 240 x 134 / mm
Weight 6.1kg
