Description
5 YEARS WARRANTY
Compatible with Lithium Batteries!

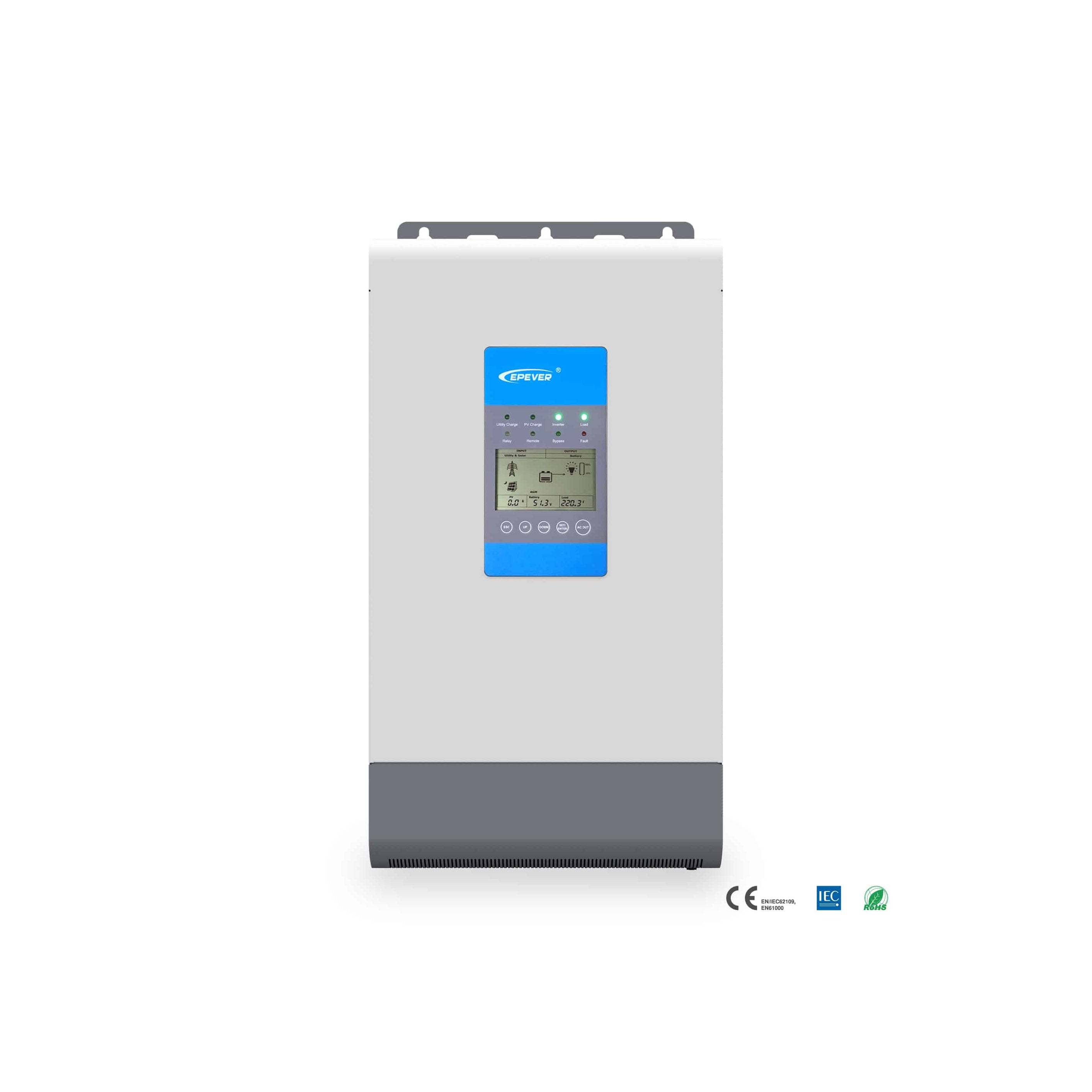

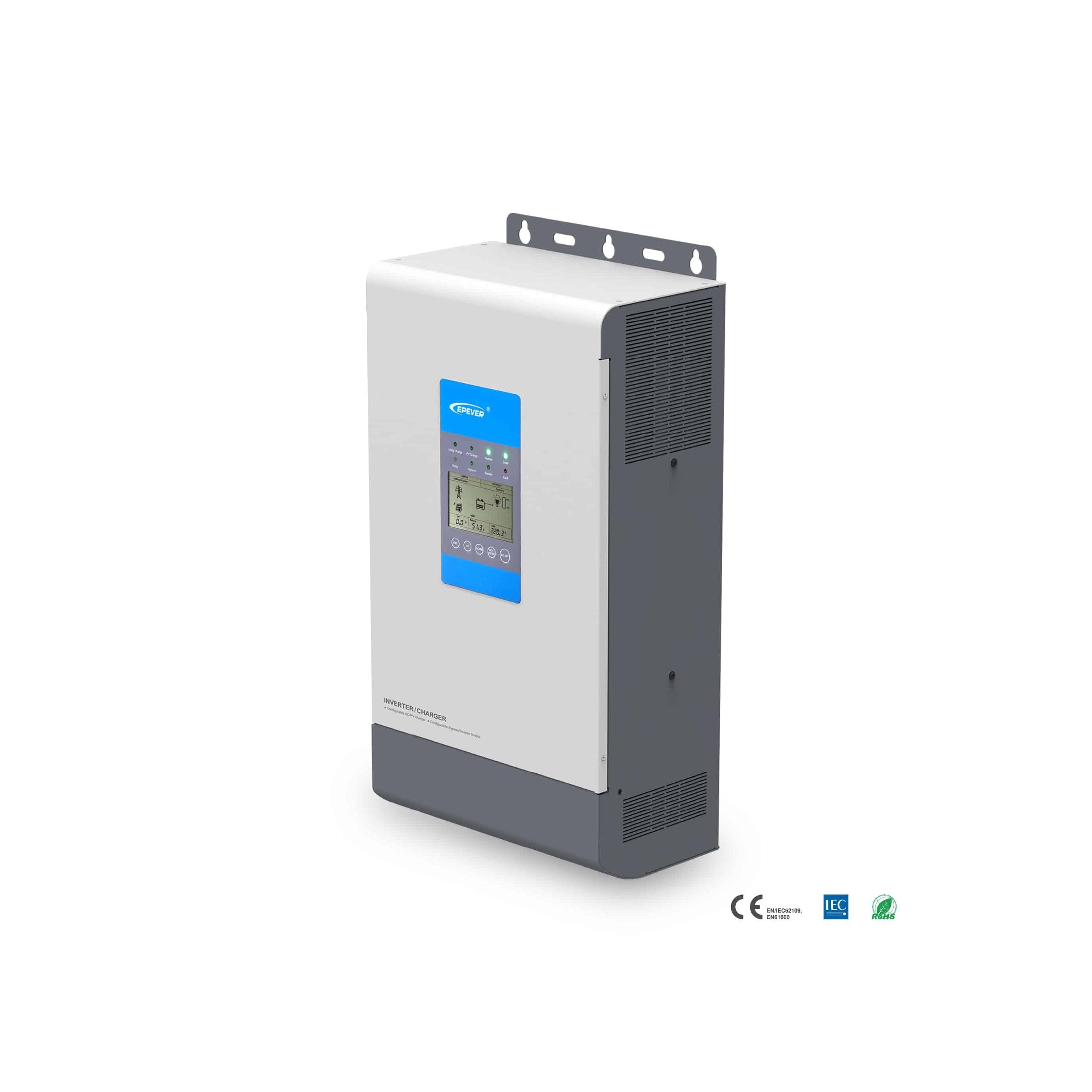

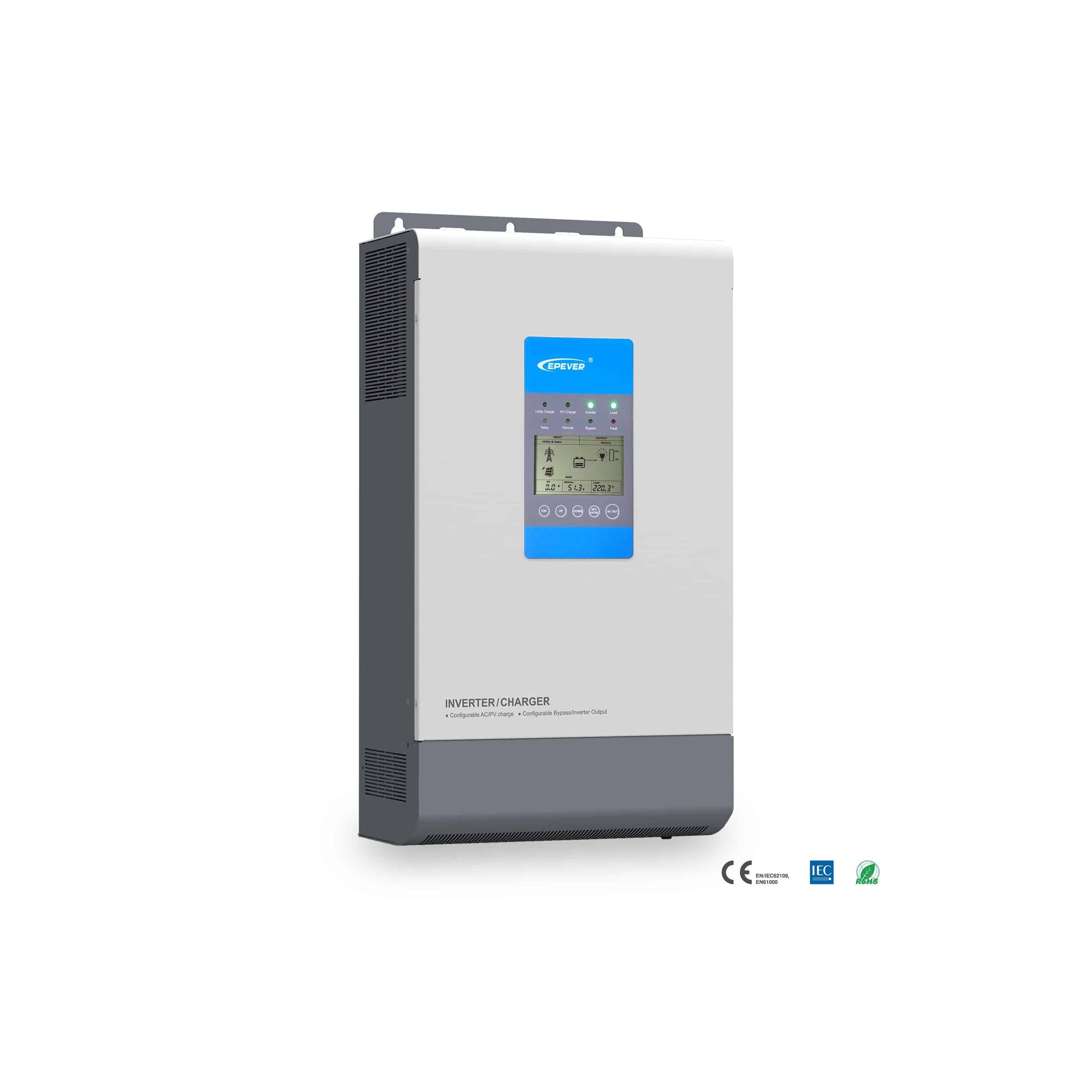

UPower series is an inverter/charger with power from 1KVA to 5KVA, which combines MPPT solar charge controller, pure sine wave inverter, and AC/DC charger in one unit. The inverter and AC/DC charger can work simultaneously,
makes UPower perfectly suits residential applications, schools, cottages and the area where the electricity is not stable
or the applications that need uninterruptible power.
Features
A new type of all-digital intelligent energy storage and management Inverter/charger
MPPT technology, Max. tracking efficiency 99.5%, Max. DC-DC conversion efficiency 98.5%
Advanced all-digital control technology for AC-DC charging modules
SPWM technology, with high efficiency up to 95%
With the function of Utility & Solar charging ratio selection, and total charging current setting
Four charging mode and two output mode
Rich set of options
RS485 isolated communication interface with standard Modbus protocol
Extensive electronic protections
Variety of accessories can be selected according to user’s requirements

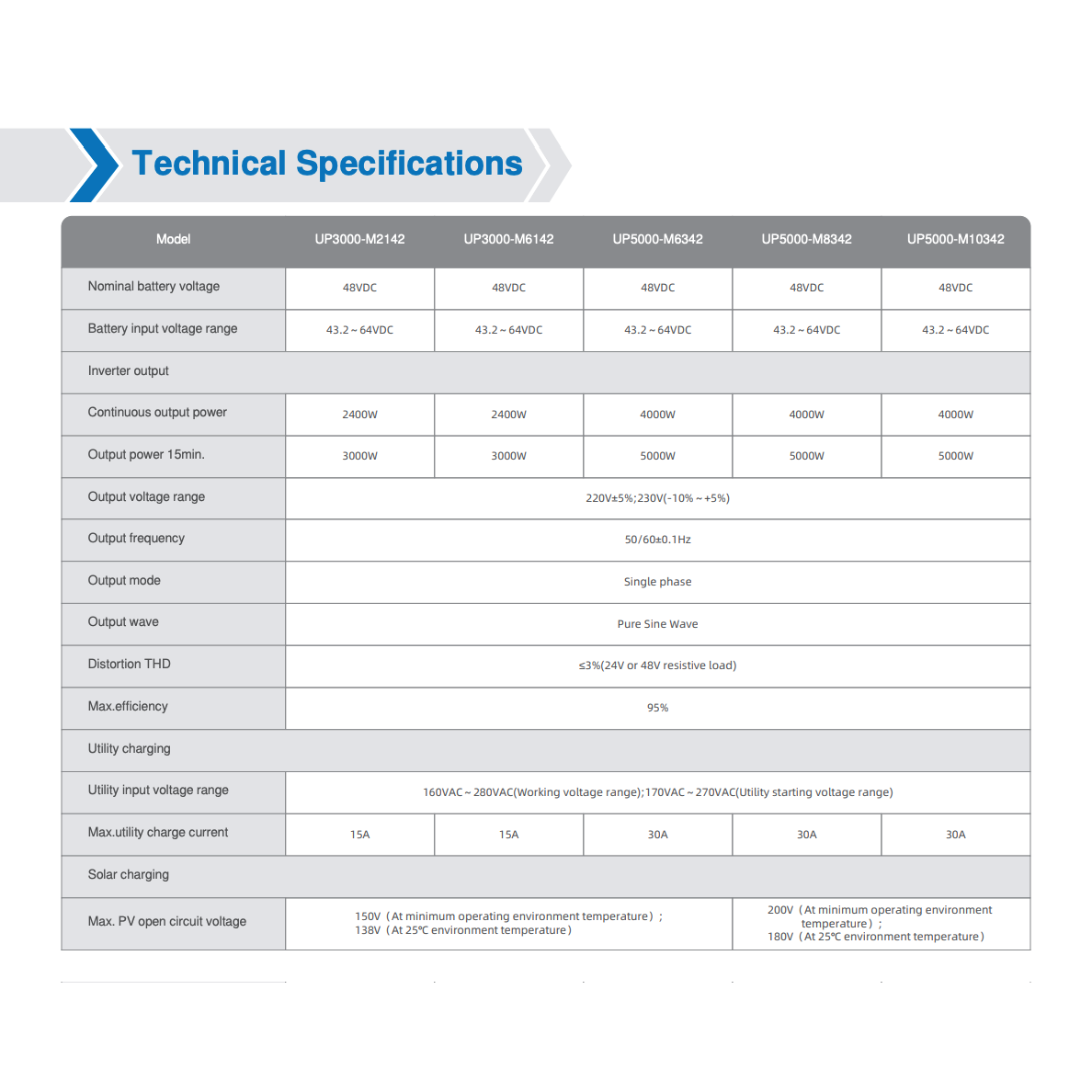

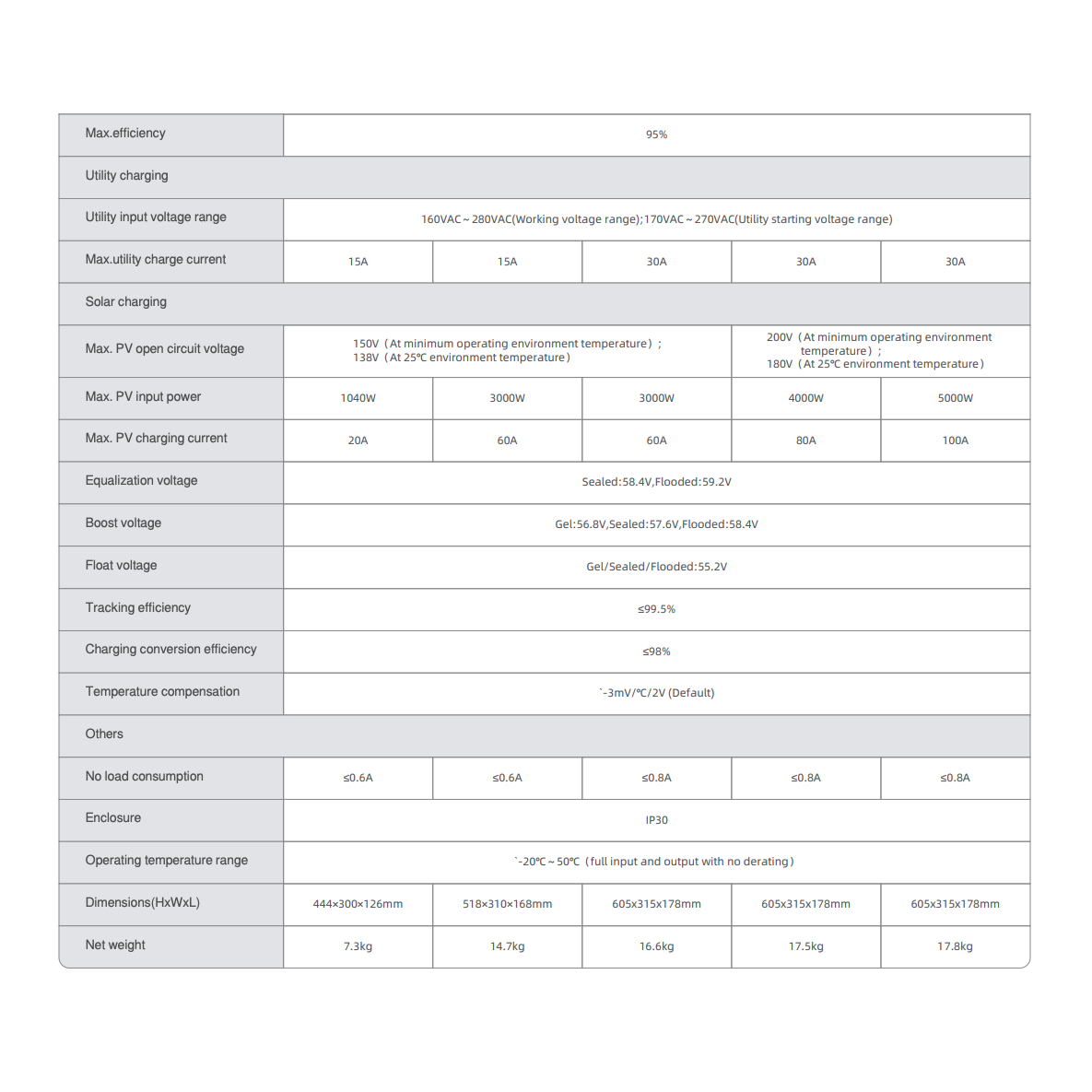

Specifications
Model: UP5000-M10342
Nominal battery voltage: 48VDC
Battery input voltage range: 43.2～64VDC
Inverter output
Continuous output power: 4000W
Output power 15min: 5000W
Output voltage range: 220V ± 5%; 230V(-10% ～ +5%)
Output frequency: 50/60 ± 0.1Hz
Output wave: Pure Sine Wave
Max.efficiency: 95%
Solar charging
Max. PV open circuit voltage:
200V (At minimum operating environment temperature)
180V (At 25°C environment temperature)
Max. PV input power: 5000W
Max. PV charging current: 100A
Dimensions(HxWxL) : 605x315x178mm
Net weight: 17.8kg
