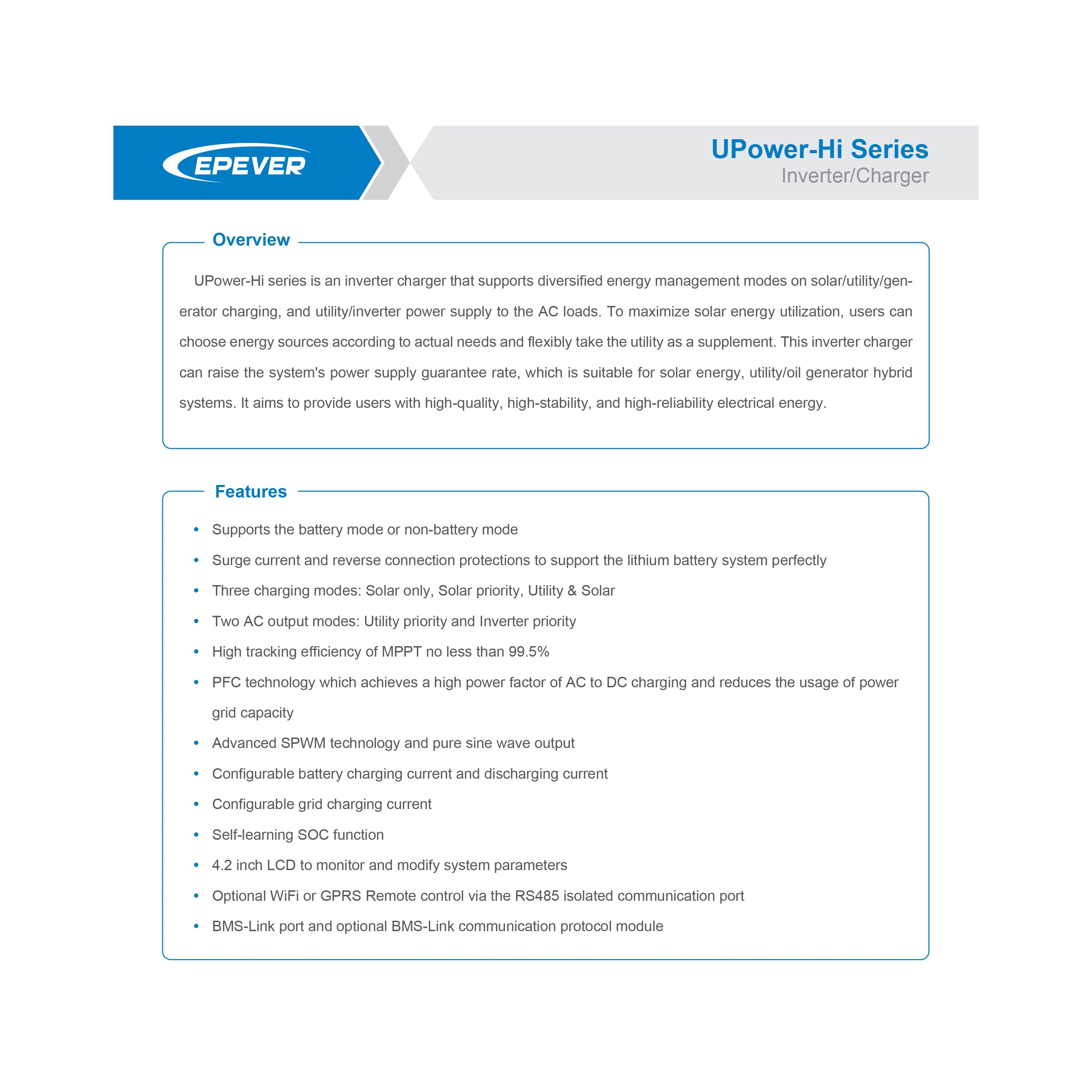

Description
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Supports the battery mode or non-battery mode
Surge current and reverse connection protections to support the lithium battery system perfectly
Three charging modes: Solar only, Solar priority, Utility & Solar
Two AC output modes: Utility priority and Inverter priority
High tracking efficiency of MPPT no less than 99.5%
PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of power
grid capacity
Advanced SPWM technology and pure sine wave output
Configurable battery charging current and discharging current
Configurable grid charging current
Self-learning SOC function
4.2 inch LCD to monitor and modify system parameters
Optional WiFi or GPRS Remote control via the RS485 isolated communication port
BMS-Link port and optional BMS-Link communication protocol module

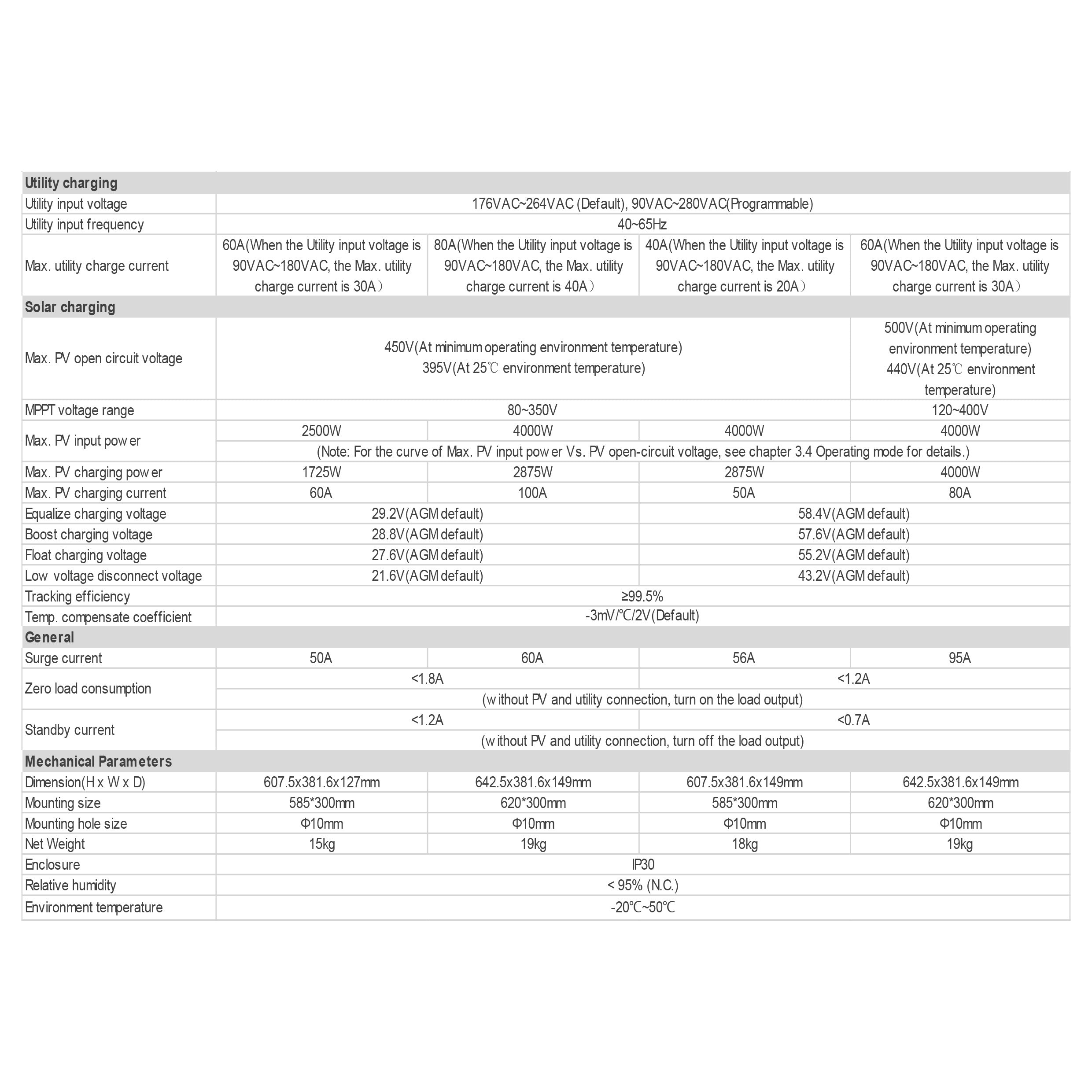

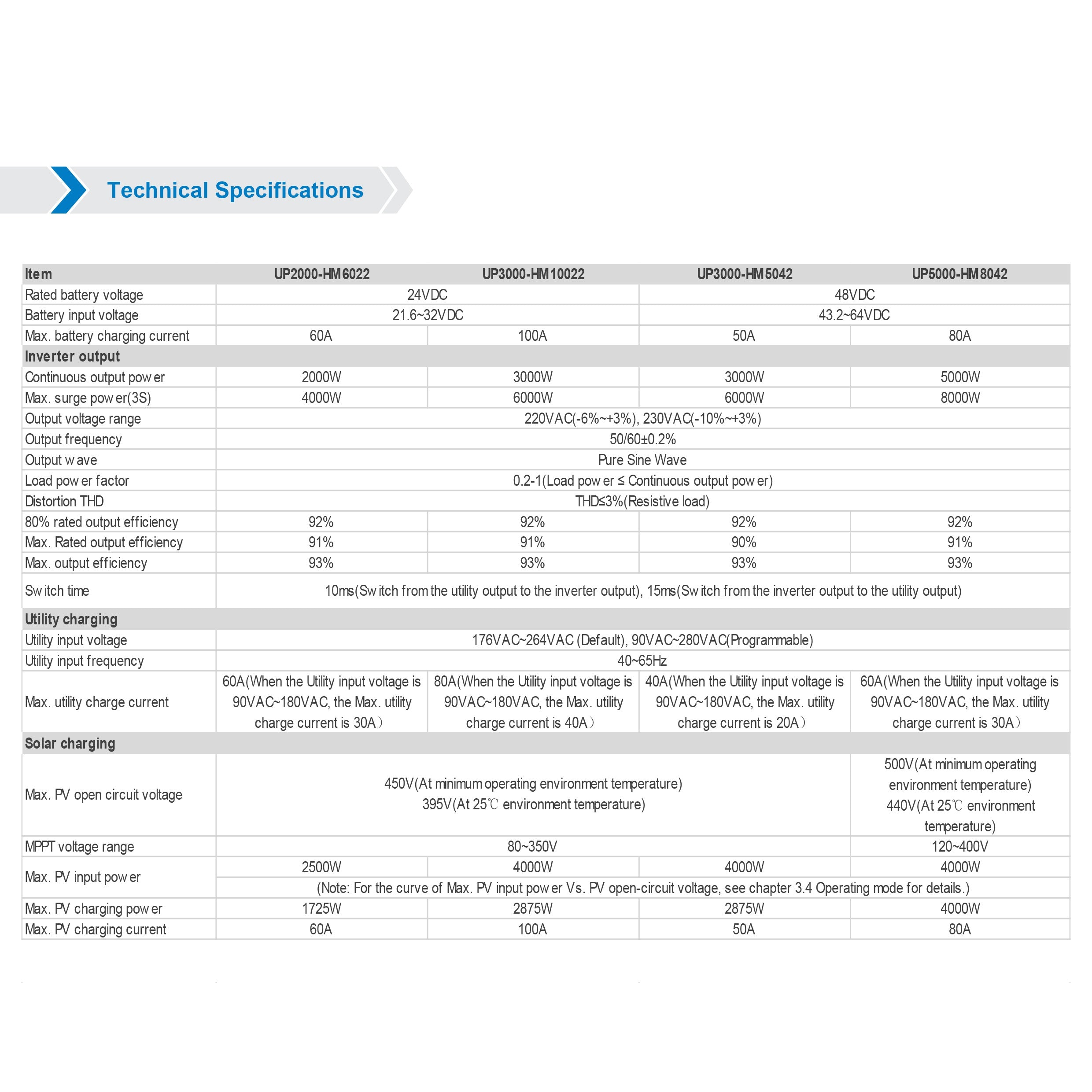

Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
