Description

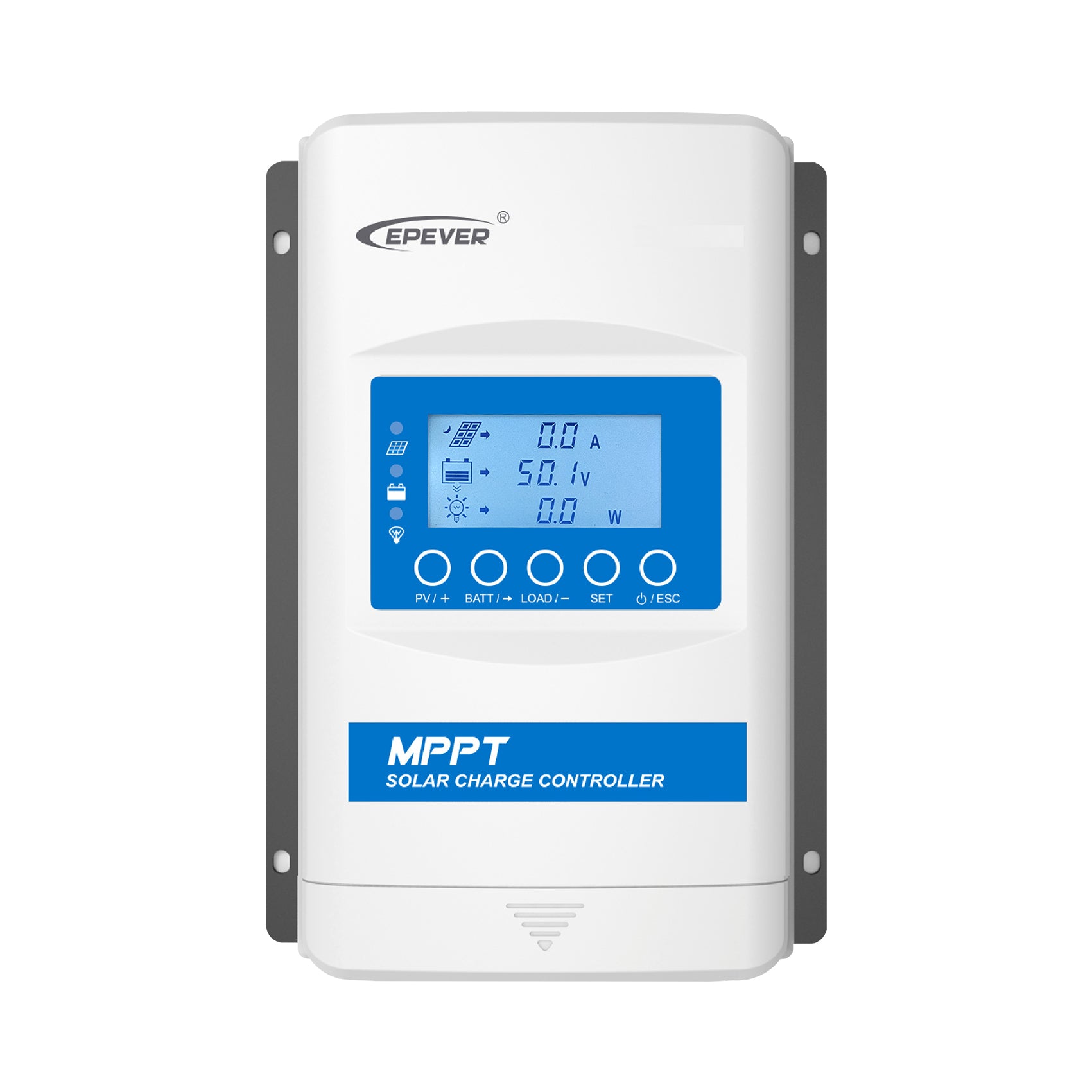

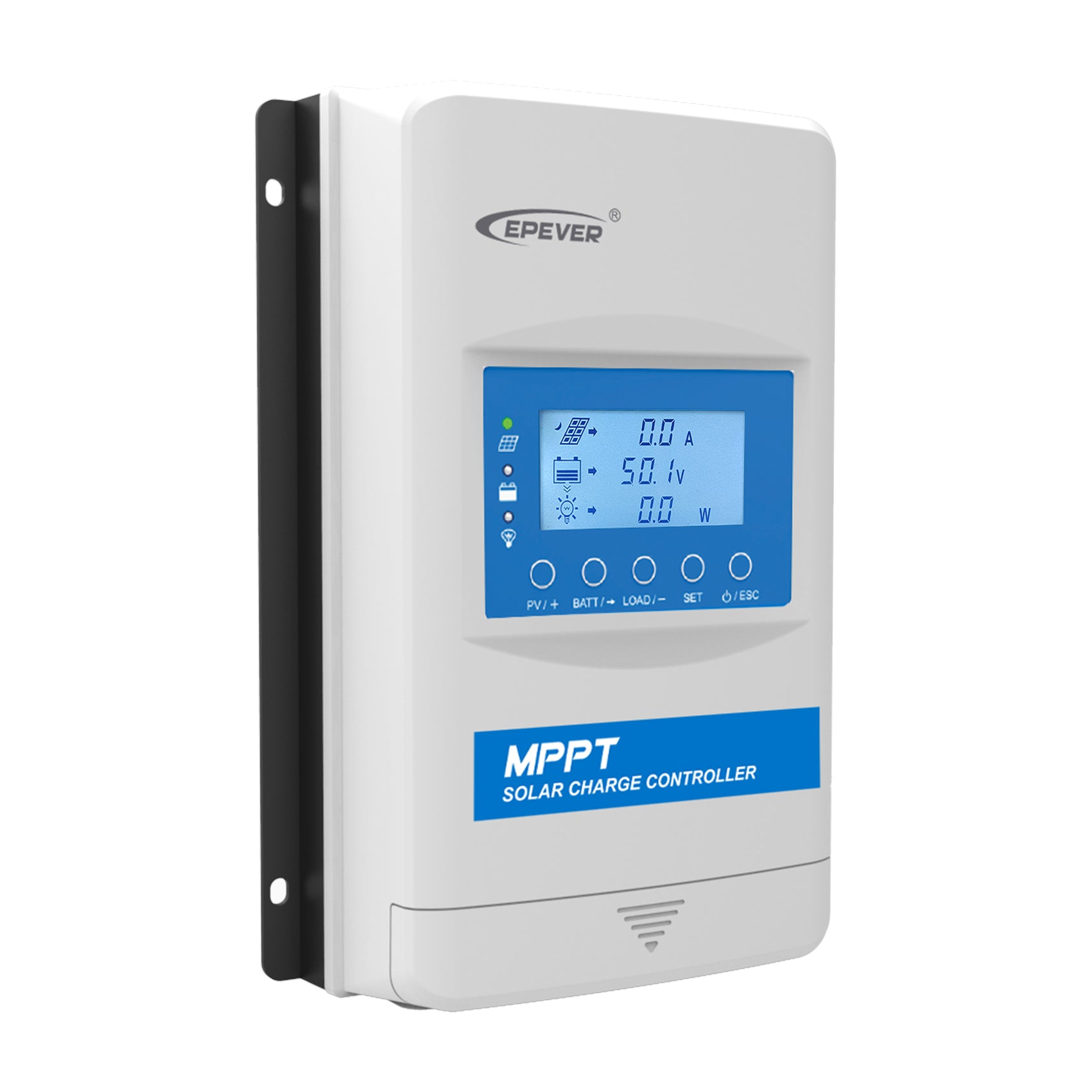

Introducing the Epever Solar Charge Controller - XTRA2206N (20A):
Brand new Epever solar charge controller
XTRA N series controller featuring self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection for overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability in your solar system
Suitable for various applications including RV, household systems, field monitoring, and more
Comes with a 12-month warranty

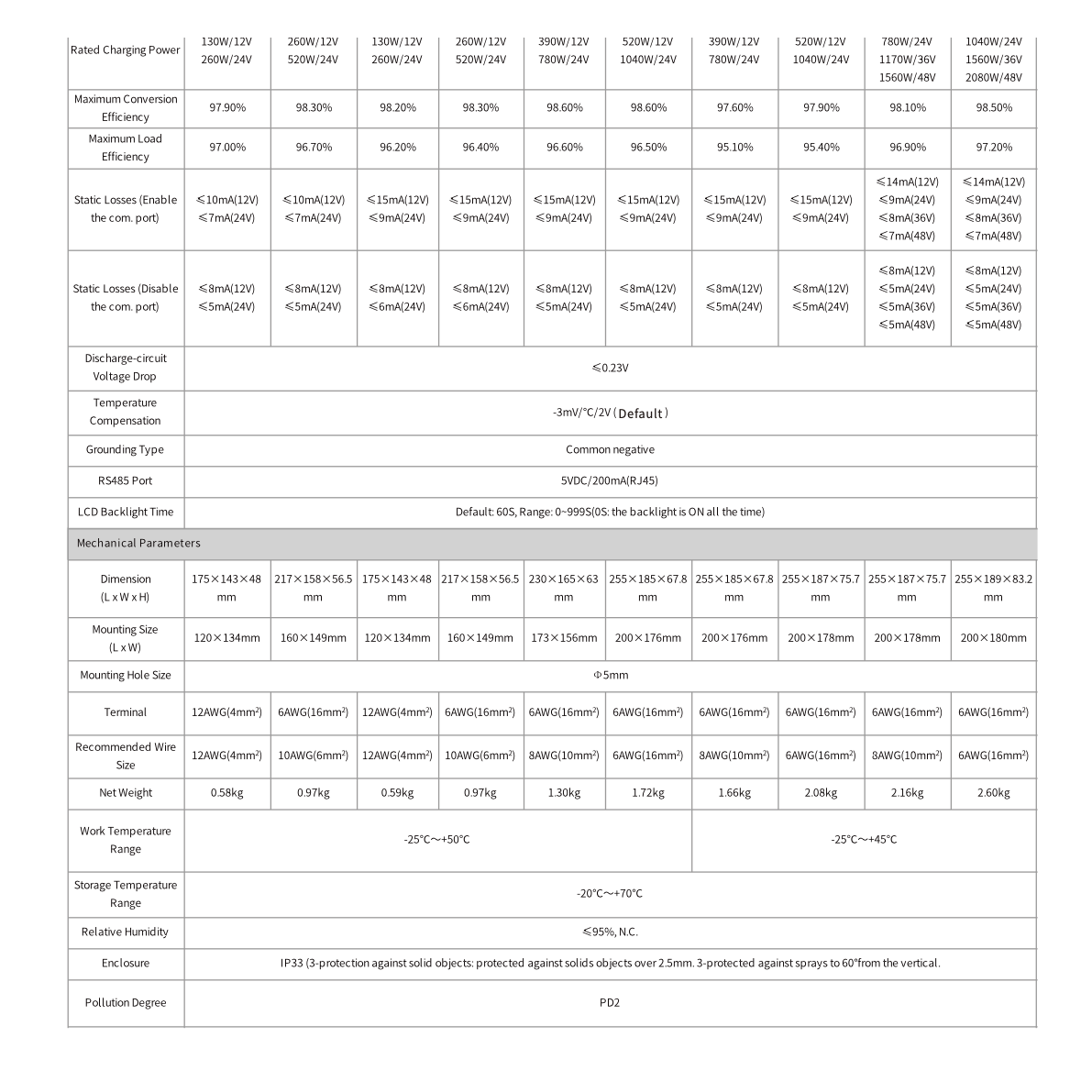

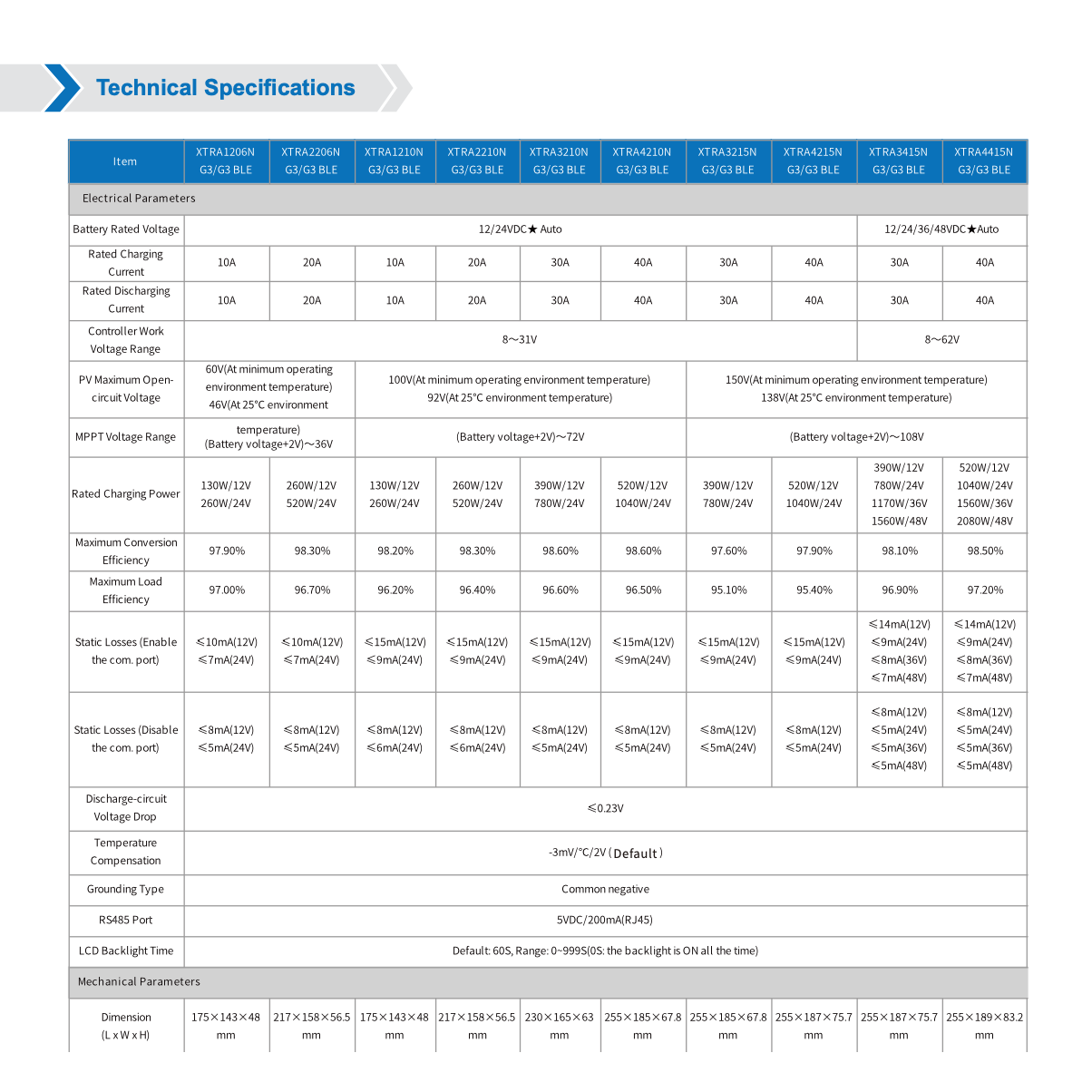

Specifications:
Model: XTRA2206N G3
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8~32V
PV Maximum Open-circuit Voltage:
60V(At minimum operating environment temperature)
46V(At 25℃ environment temperature)
MPPT Voltage Range: (Battery voltage+2V)~36V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
RS485 Port: 5VDC/200mA(RJ45)
Dimension (L x W x H): 217×158×56.5mm
Mounting Size (L x W): 160×149mm
Net Weight: 0.97kg
Upgrade your solar system with the Epever XTRA2206N Solar Charge Controller for efficient and reliable power management.
