Description

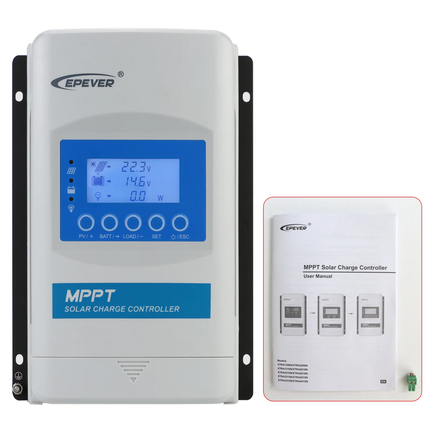

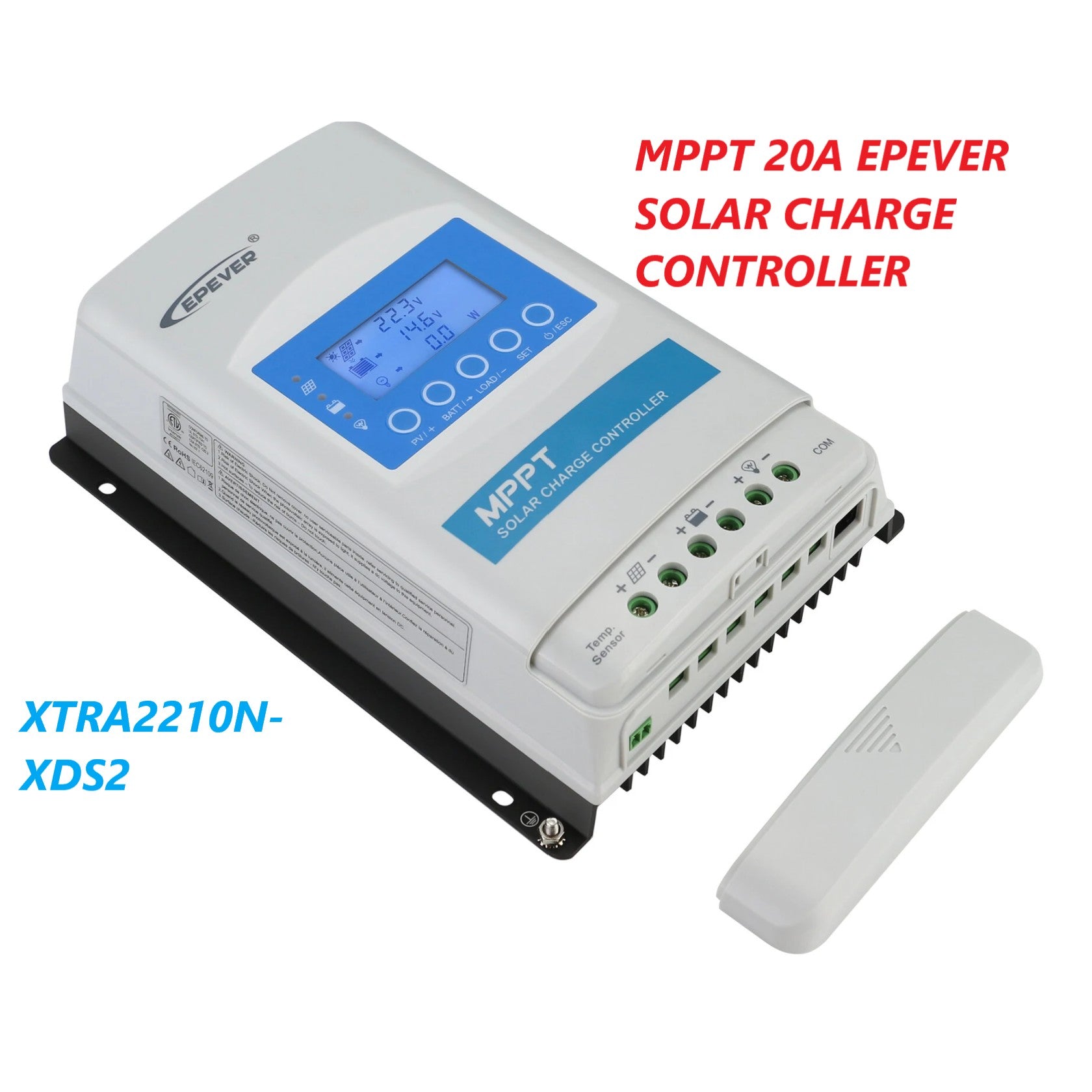

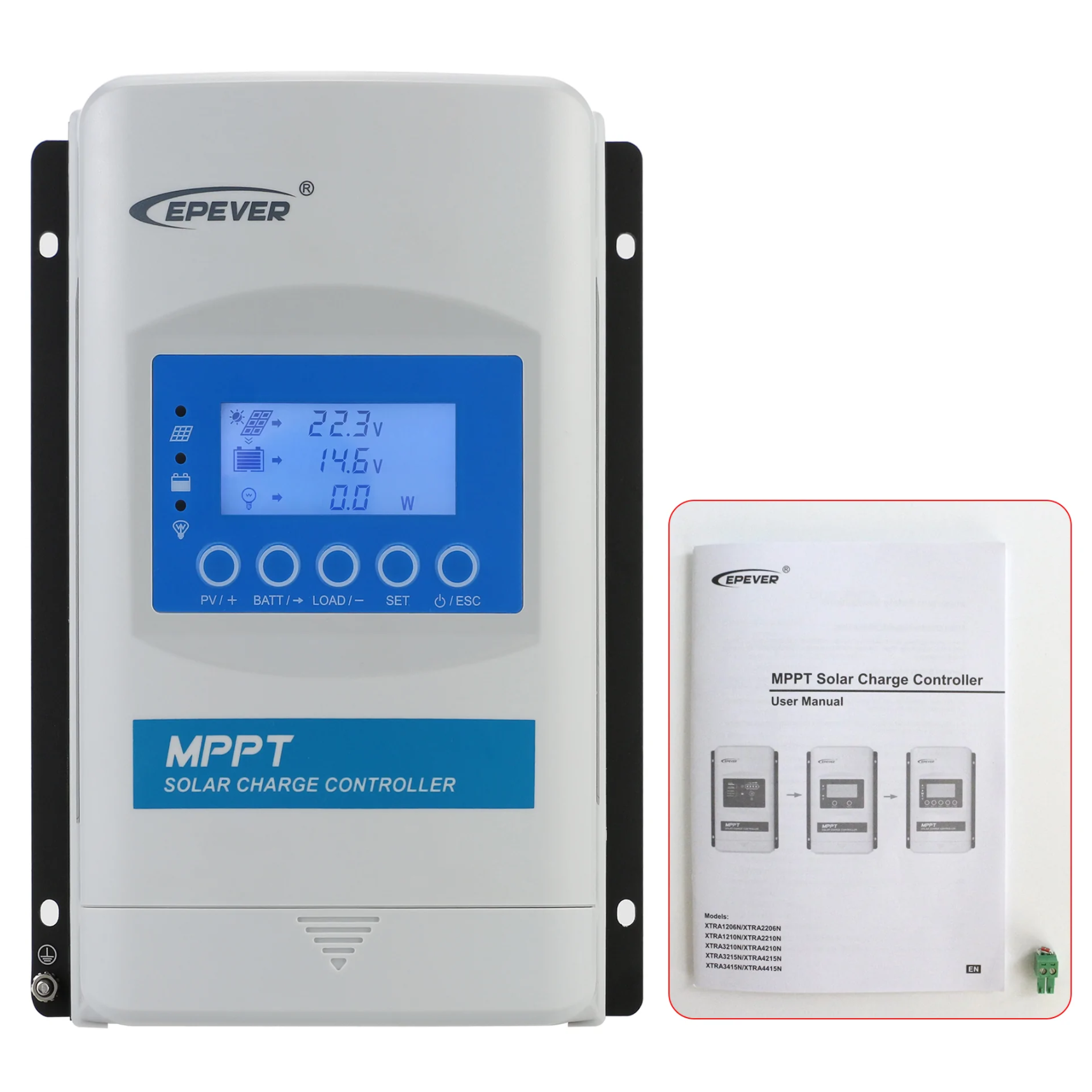

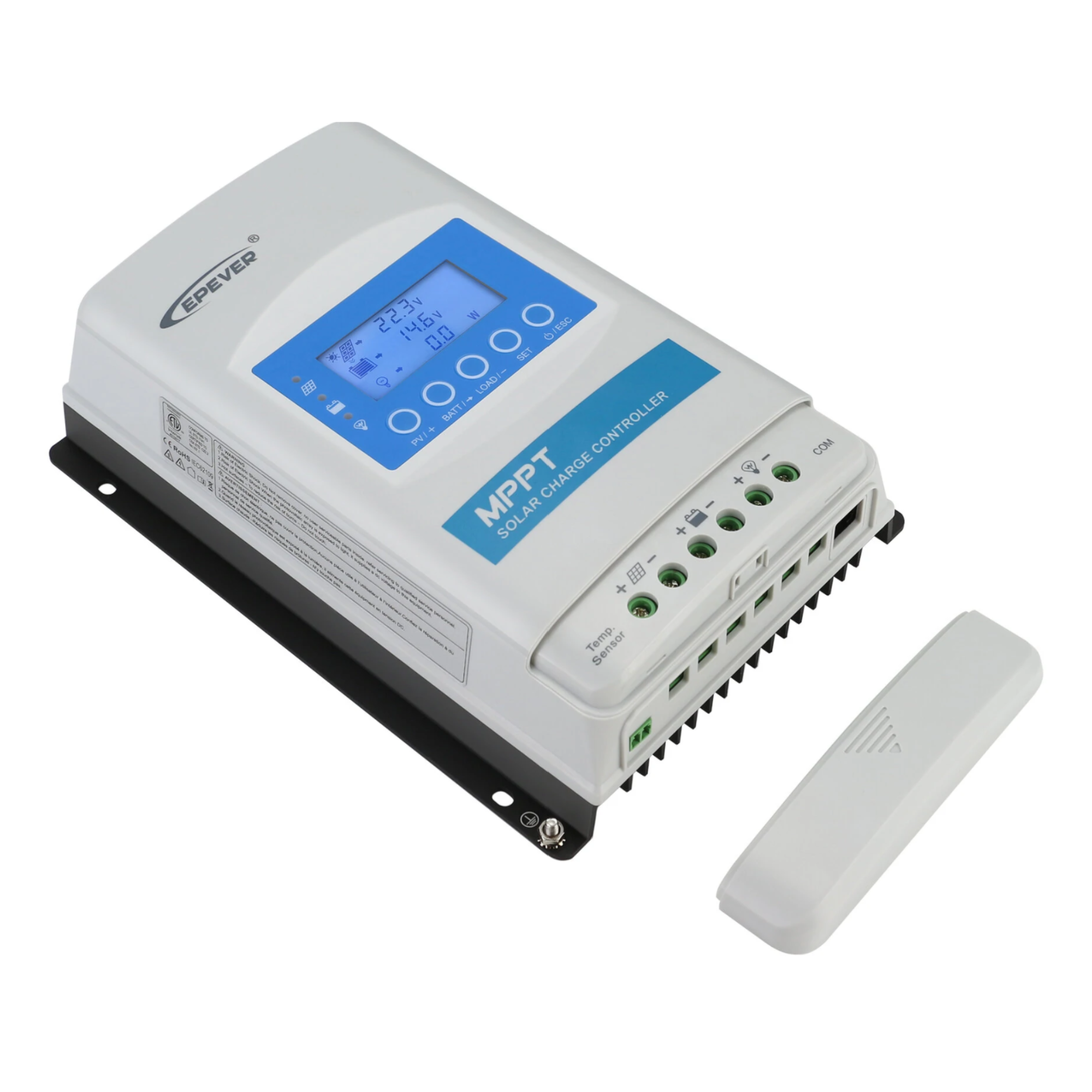

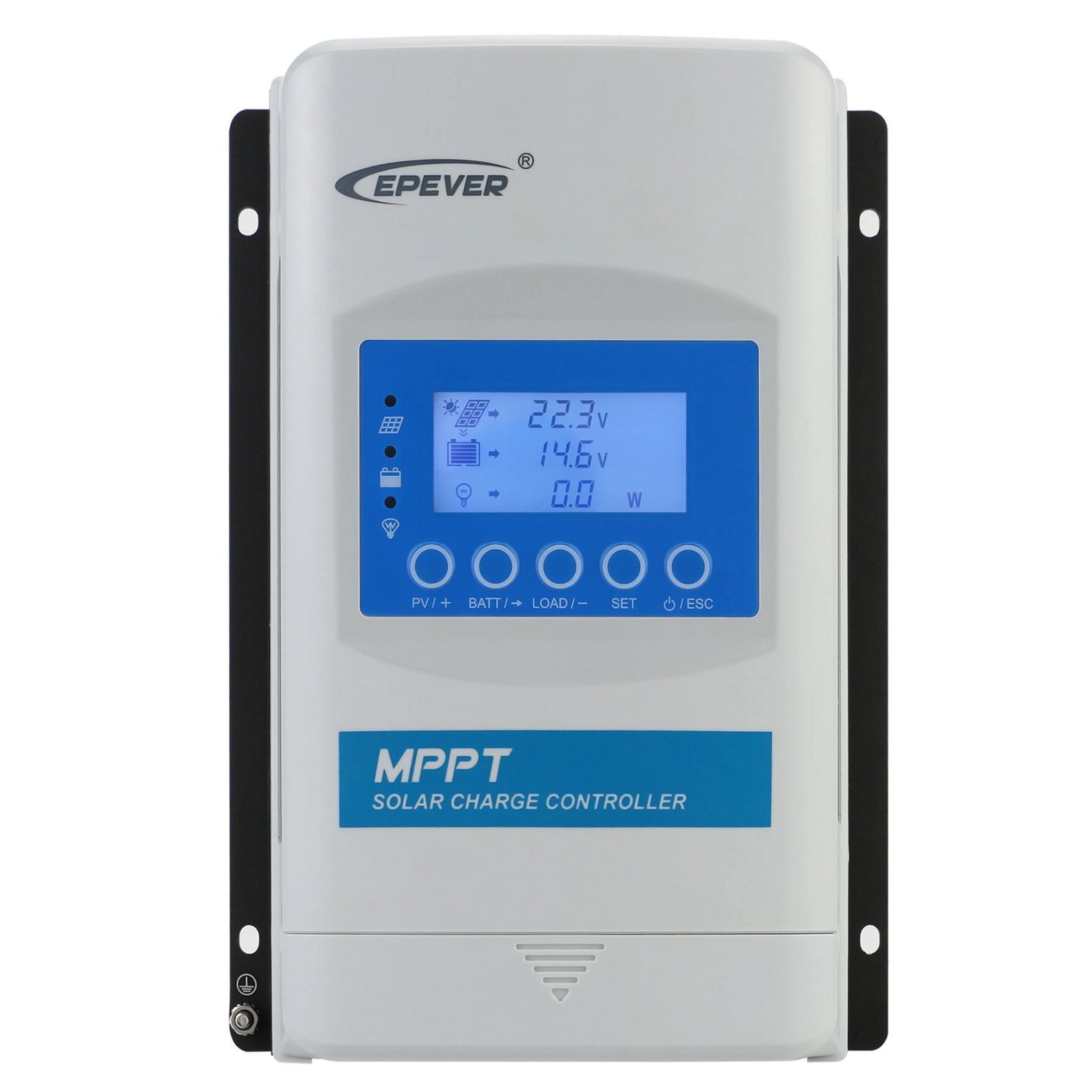

Introducing the XTRA N Series Solar Charge Controller:
Brand new epever solar charge controller
Self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection against overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability
Suitable for various applications such as RVs, household systems, field monitoring, and more
12 months warranty included
Specifications (Tracer 2210AN MPPT Charge Controller):
Voltage: 12V / 24V DC (Auto)
Max Input Power: 12V @ 260W | 24V @ 520W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C temperature)
Battery Types: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negatived Ground Controller
Charging Power and Current Limitation Function
User programmable for battery types, load control, etc.
Key Features:
CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
100% charging and discharging in working environment temperature range
Optional LCD display units available (XDB1/XDS1/XDS2)
High-quality components ensure reliability with low failure rate (ST or IR)
Advanced MPPT technology with ultra-fast tracking speed (efficiency up to 99.5%)
Maximum DC/DC transfer efficiency as high as 98.3%, full load efficiency up to 97.3%
Accurate recognition and tracking of multi-peaks maximum power point
Lightweight design (0.96kg) and compact dimensions (21715856.5mm)
Included in the package:
1 x Tracer 2210AN MPPT Charge Controller
Upgrade your solar charging system with the XTRA N Series Solar Charge Controller for enhanced performance and reliability.
