Description

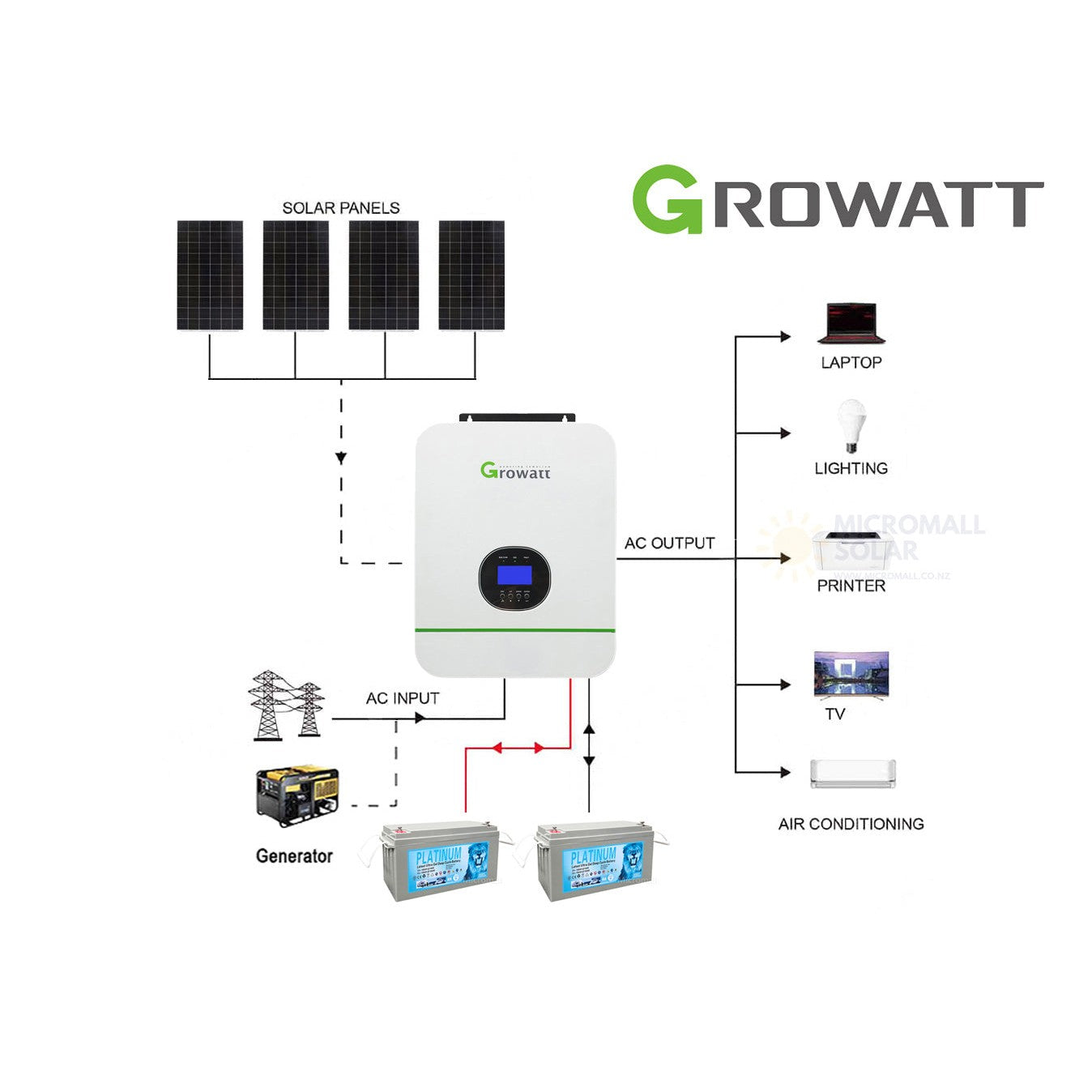

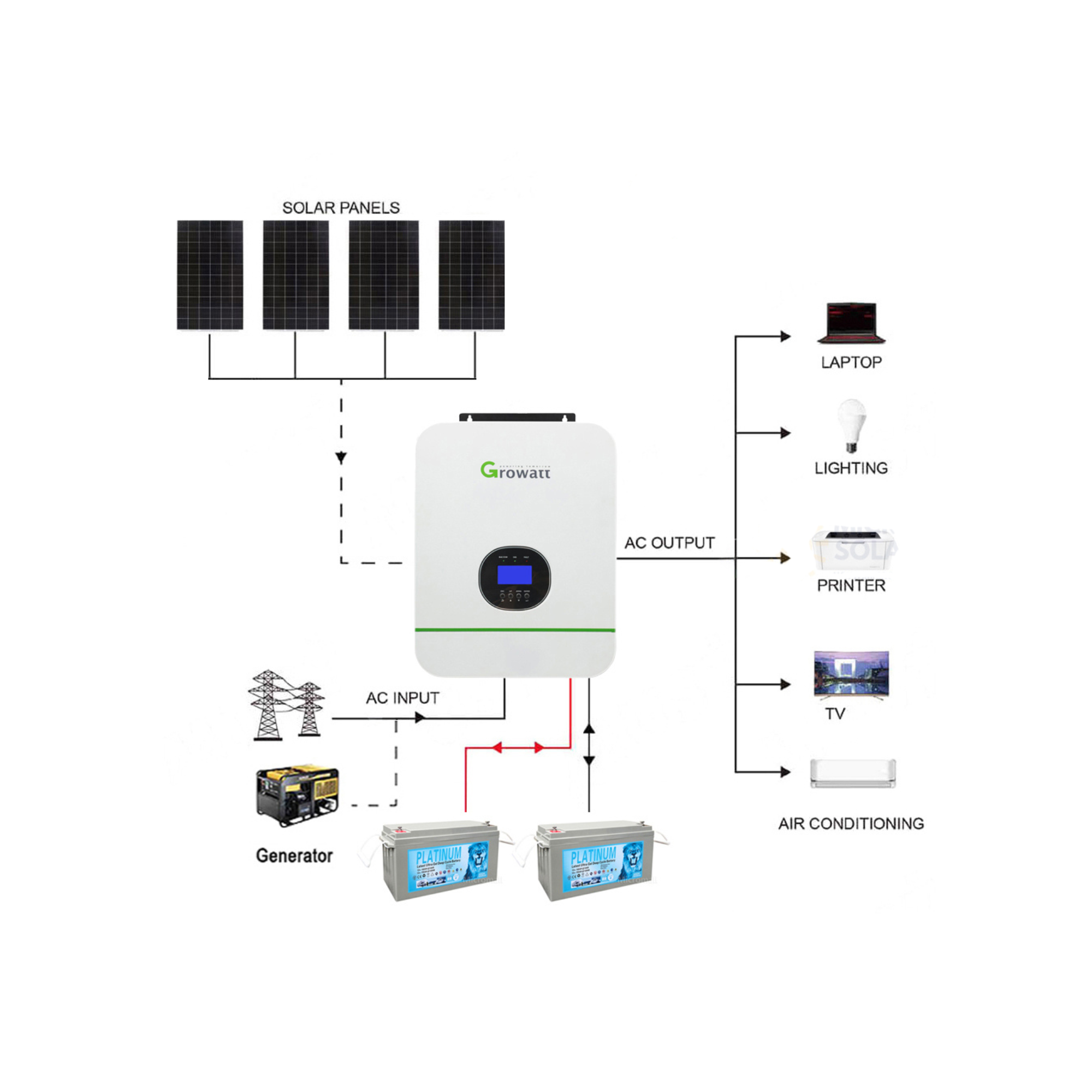

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes:

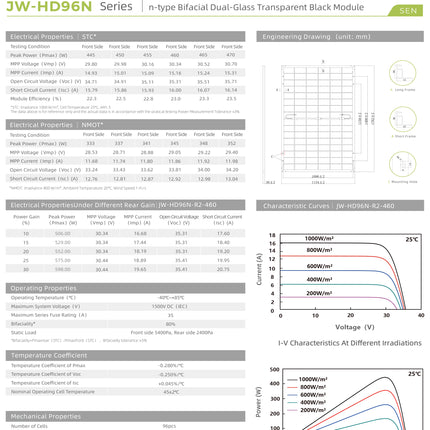

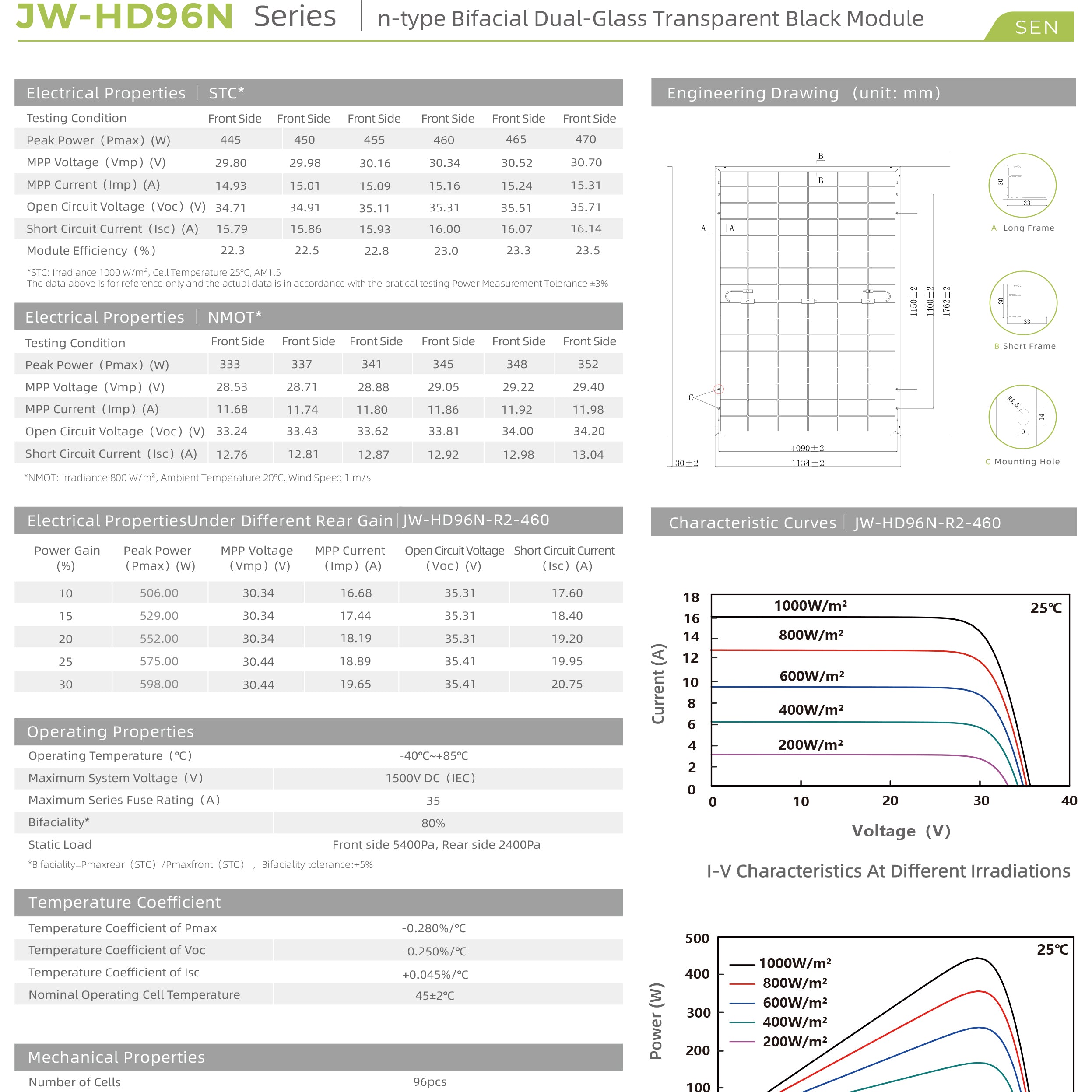

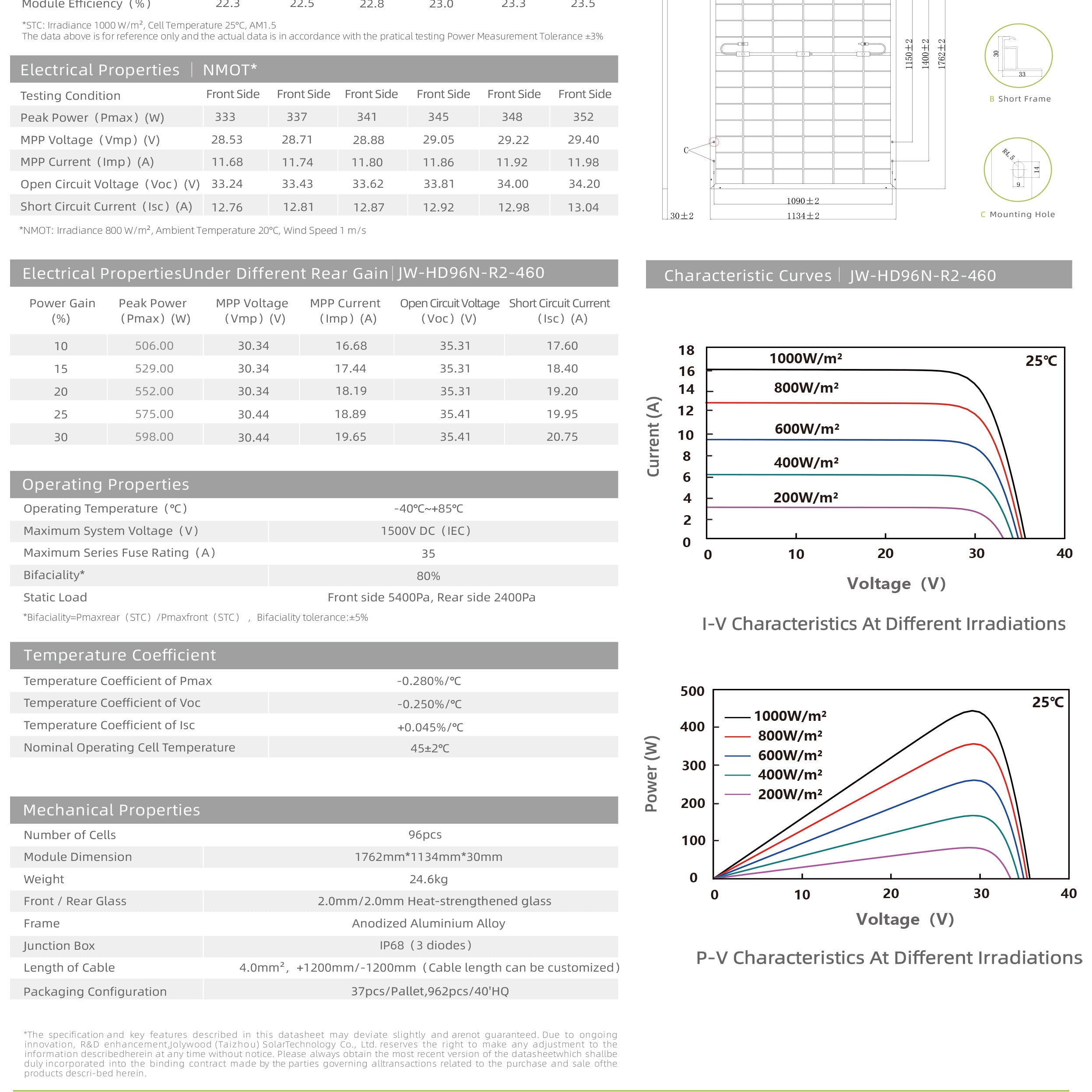

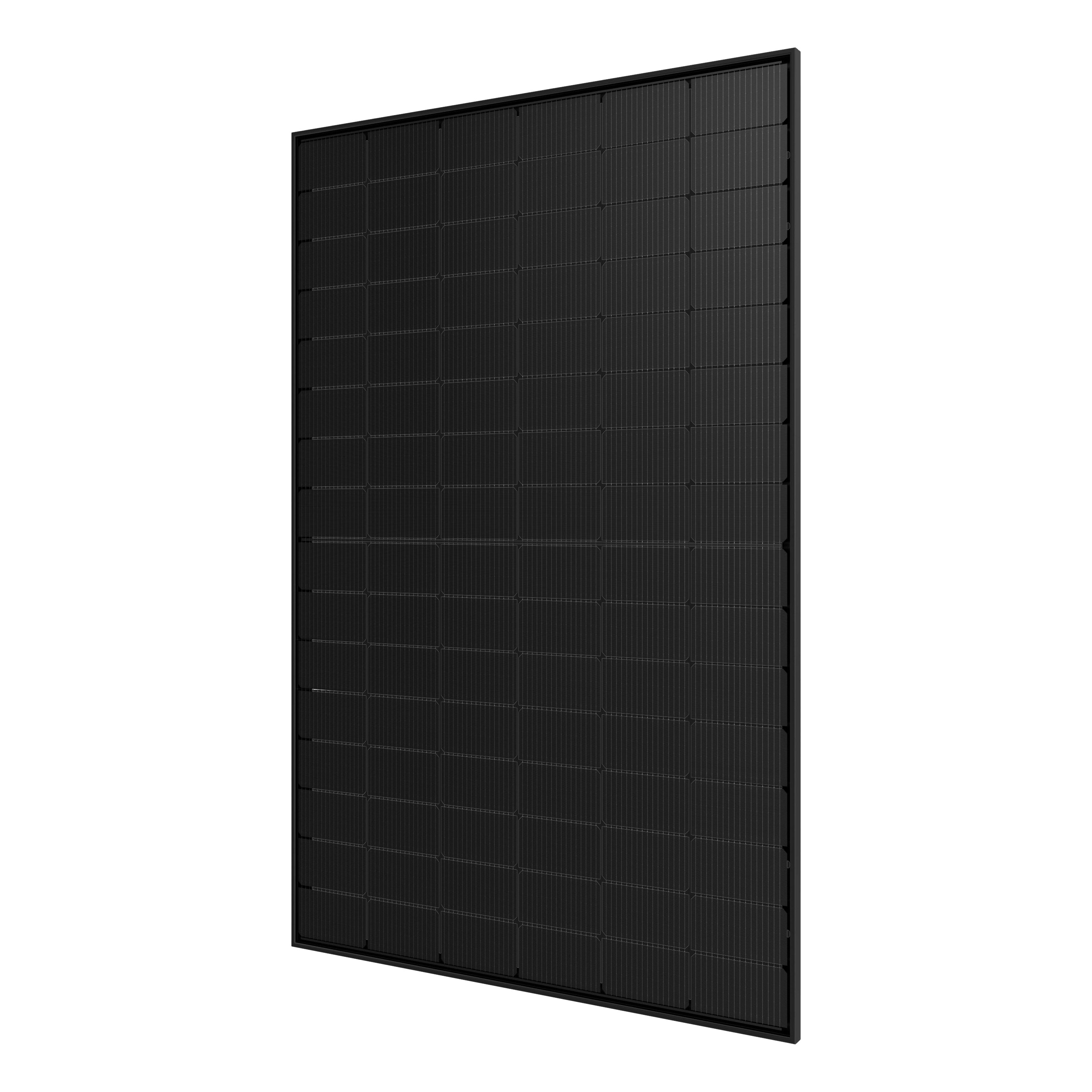

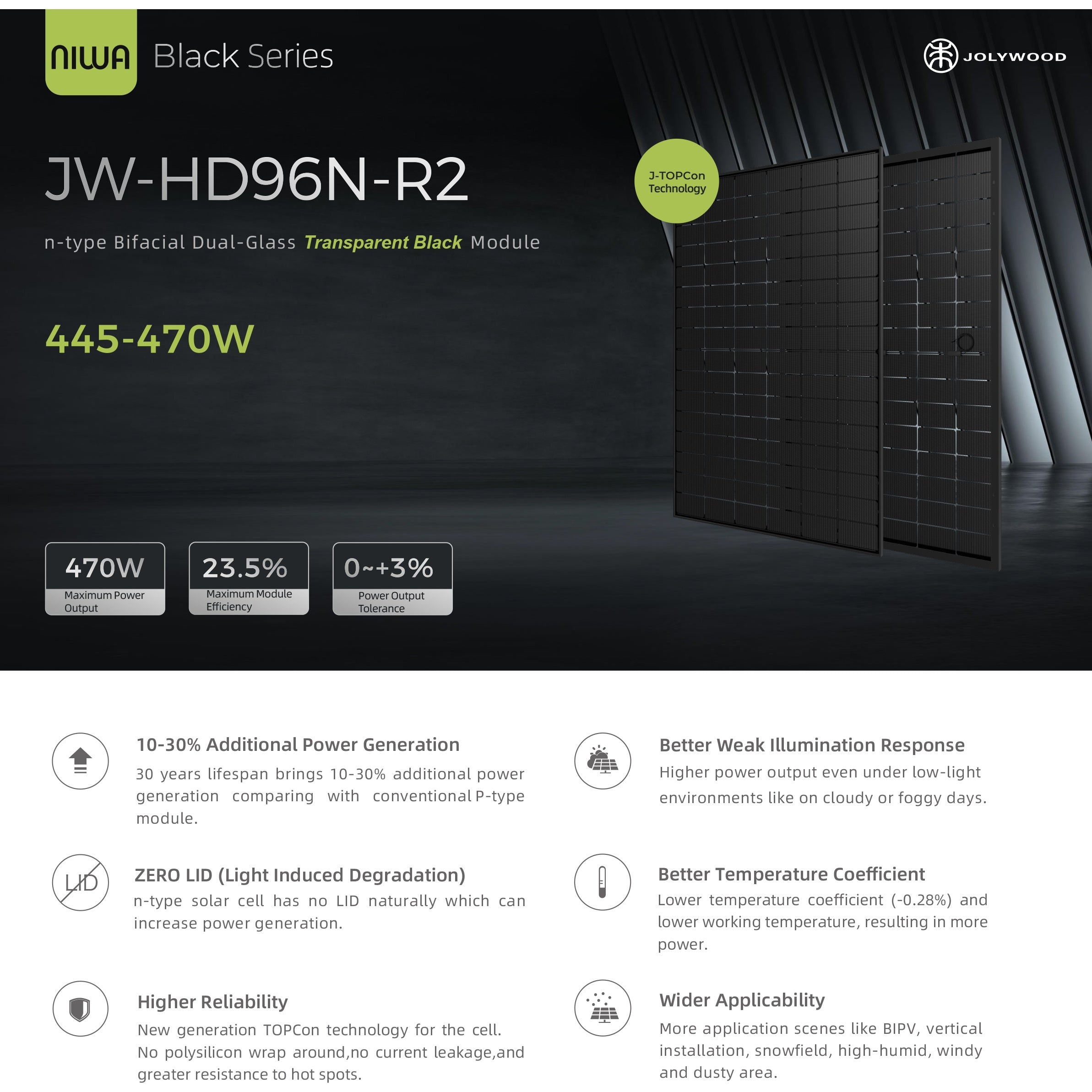

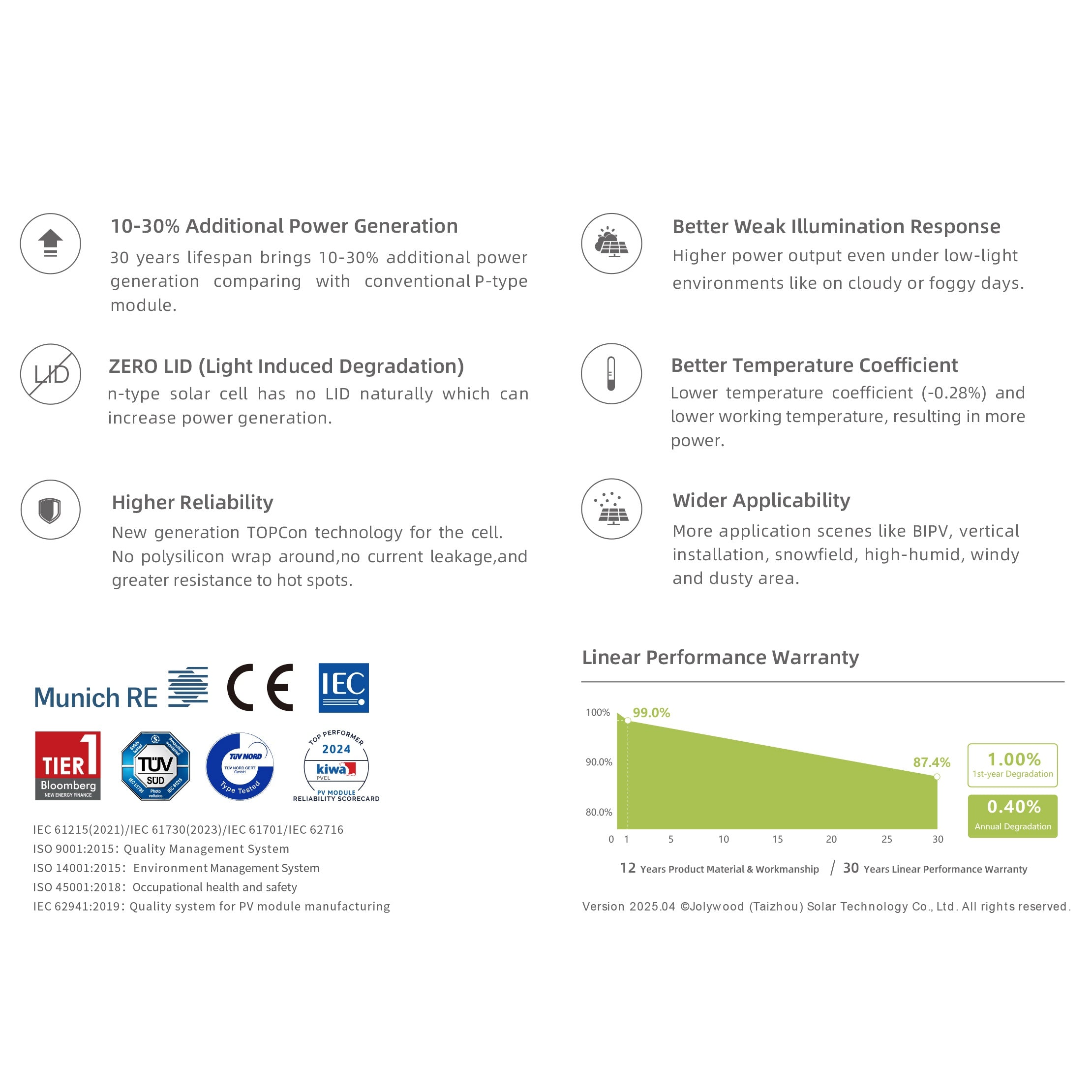

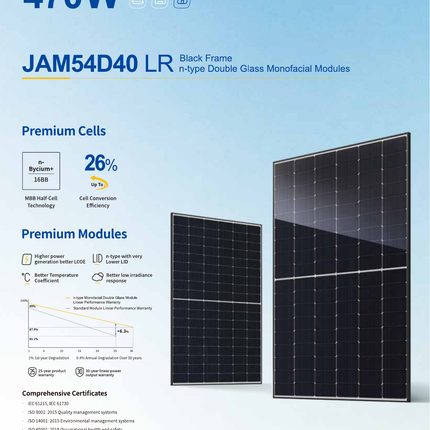

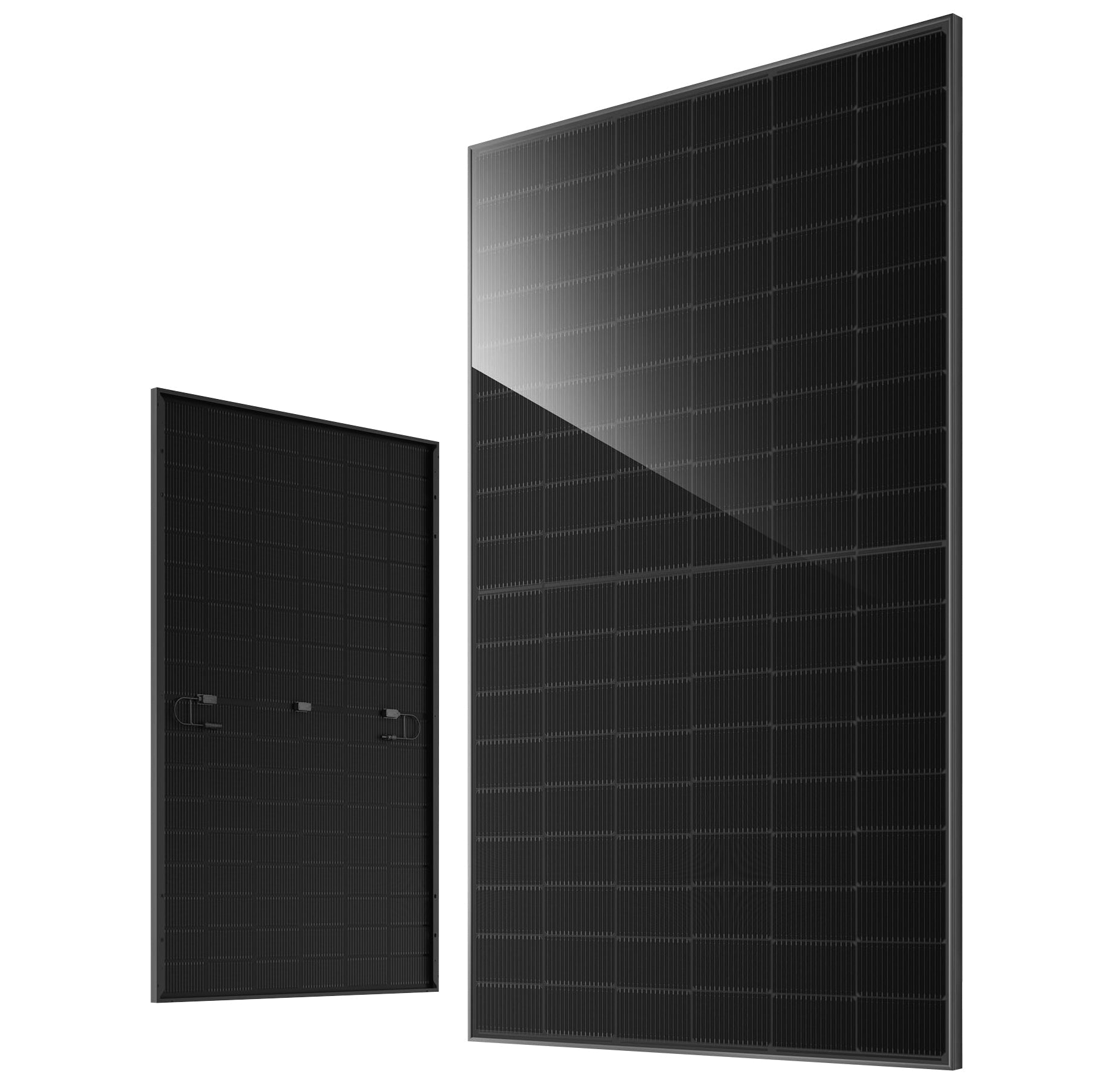

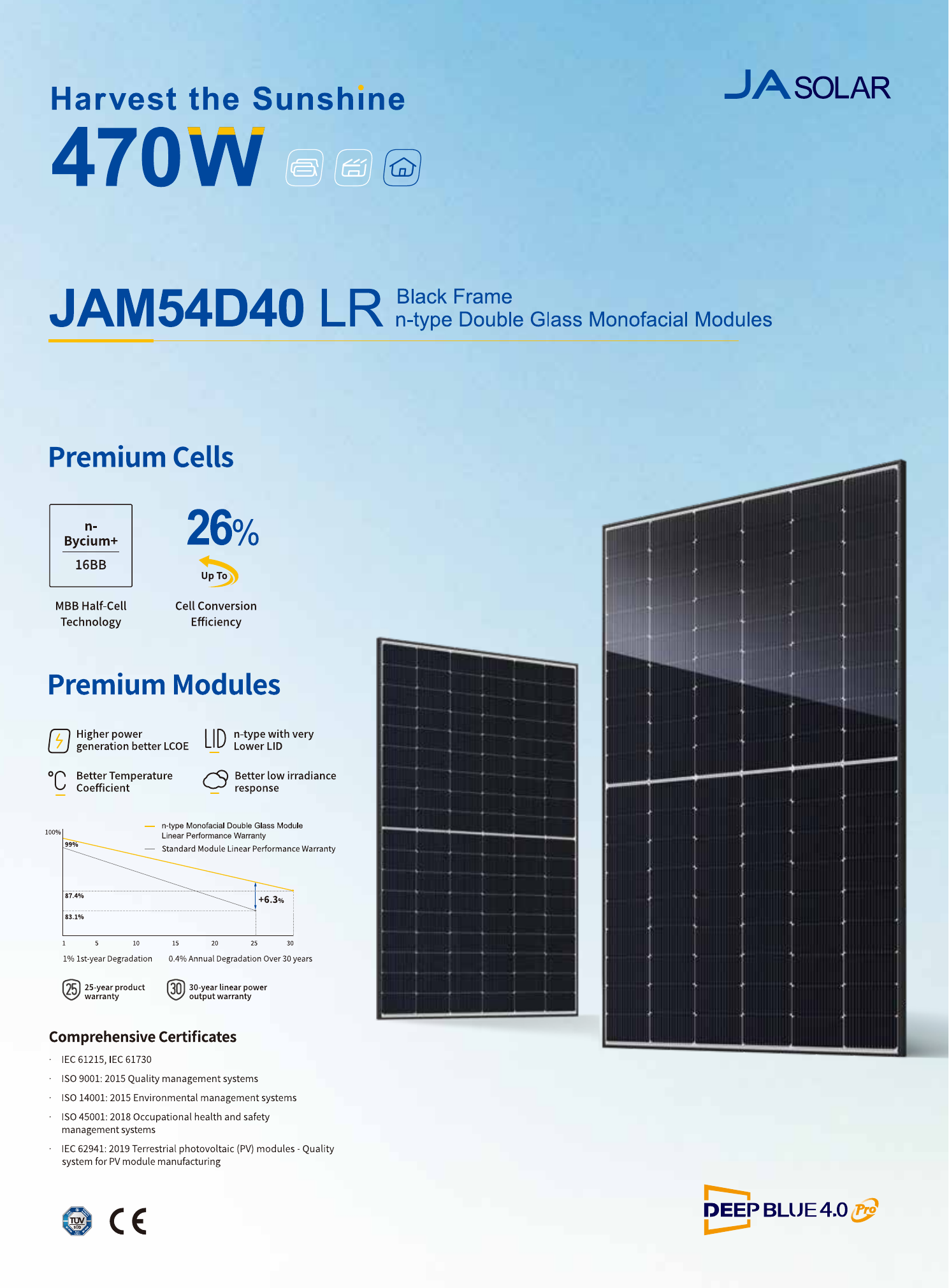

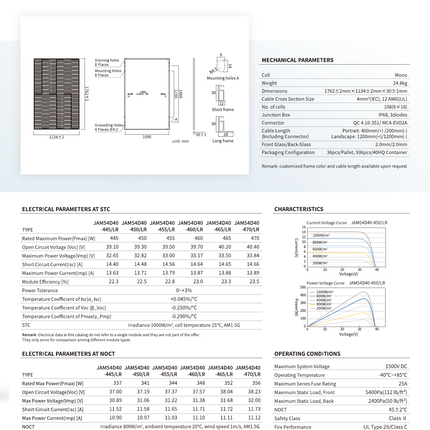

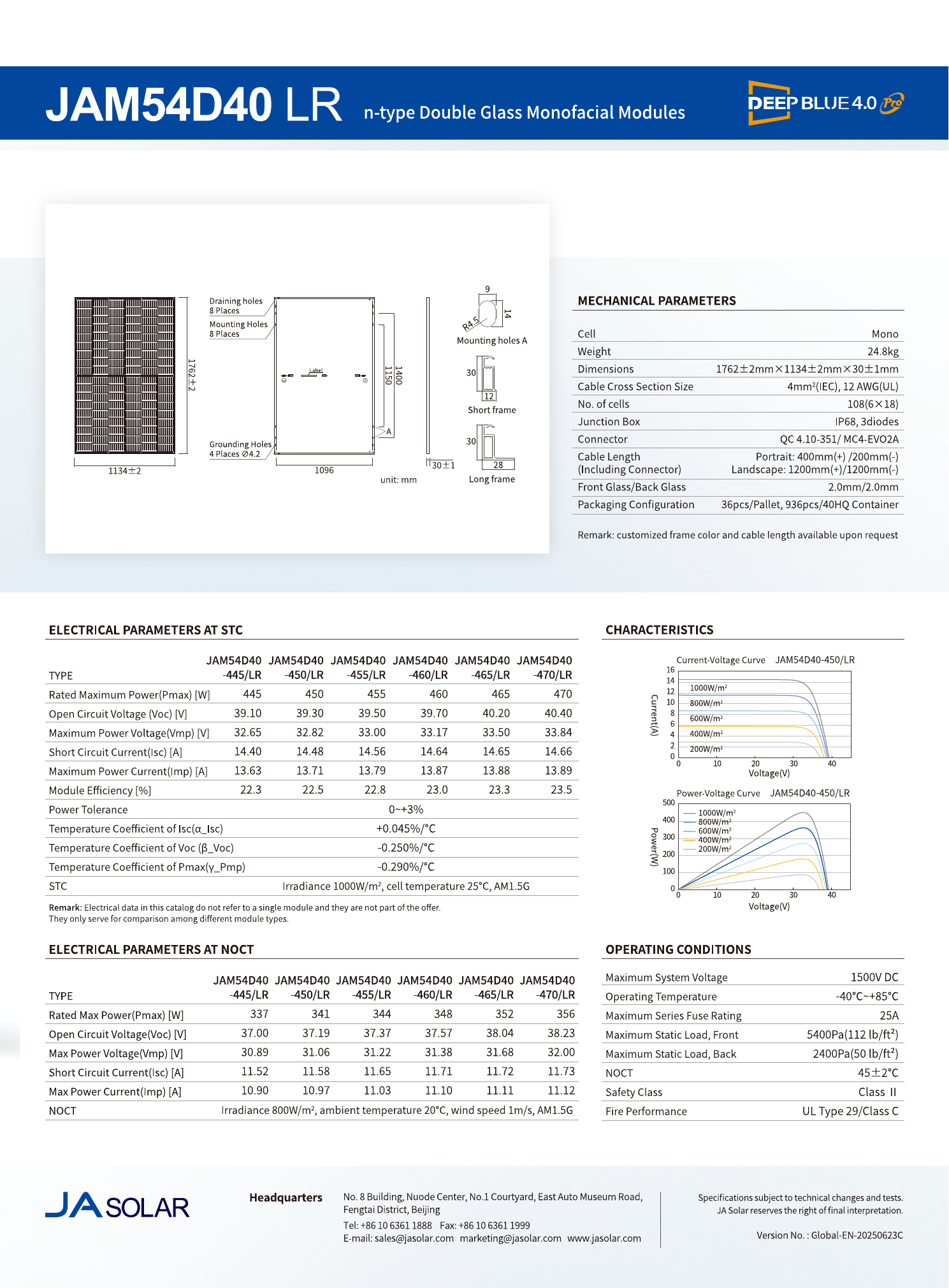

4 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

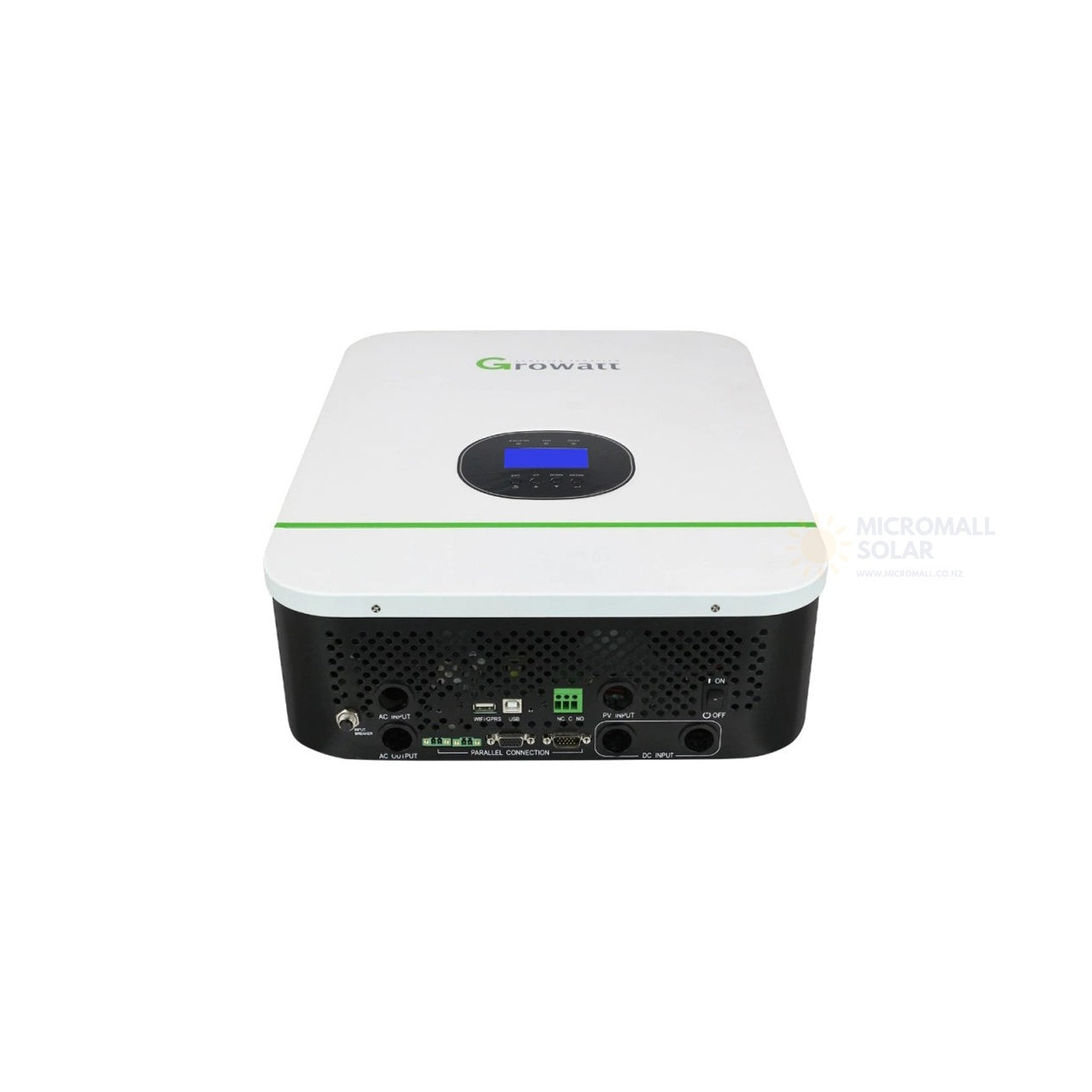

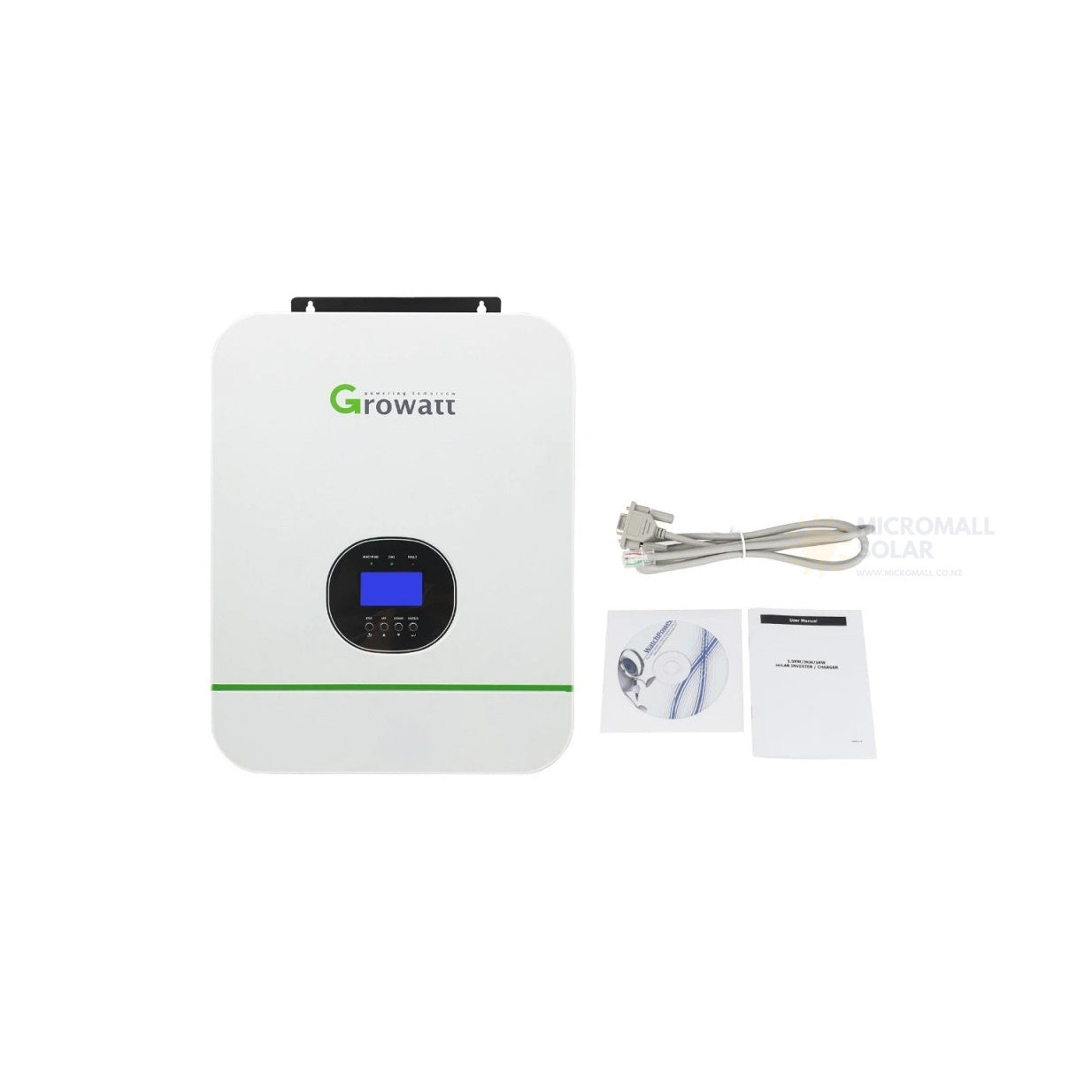

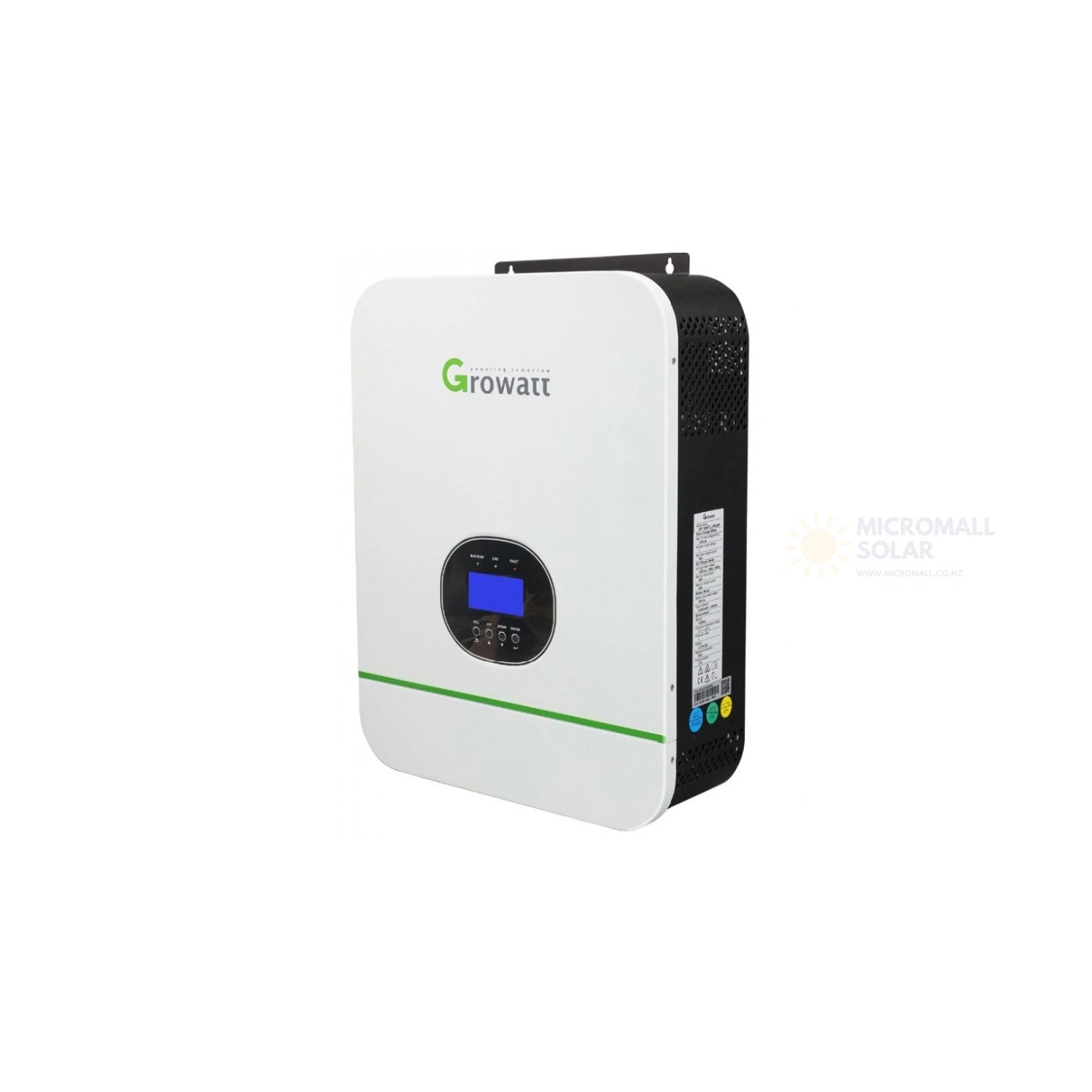

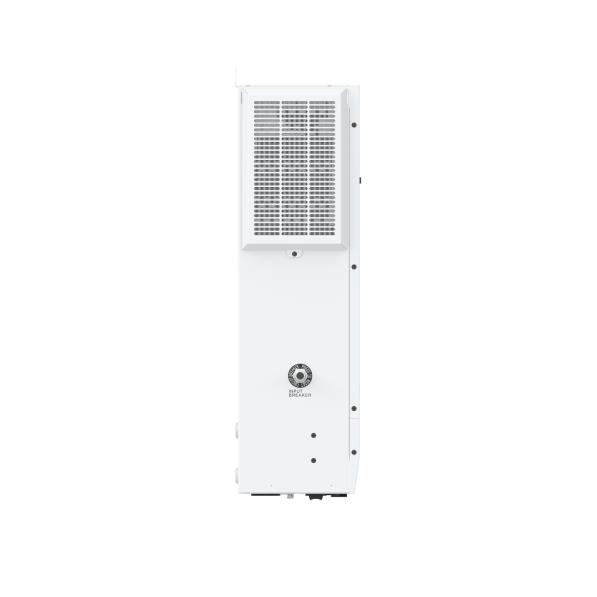

1 x Growatt SPF 3000TL HVM-24 Hybrid Charger Inverter 3kW 24V (2 Years Warranty)

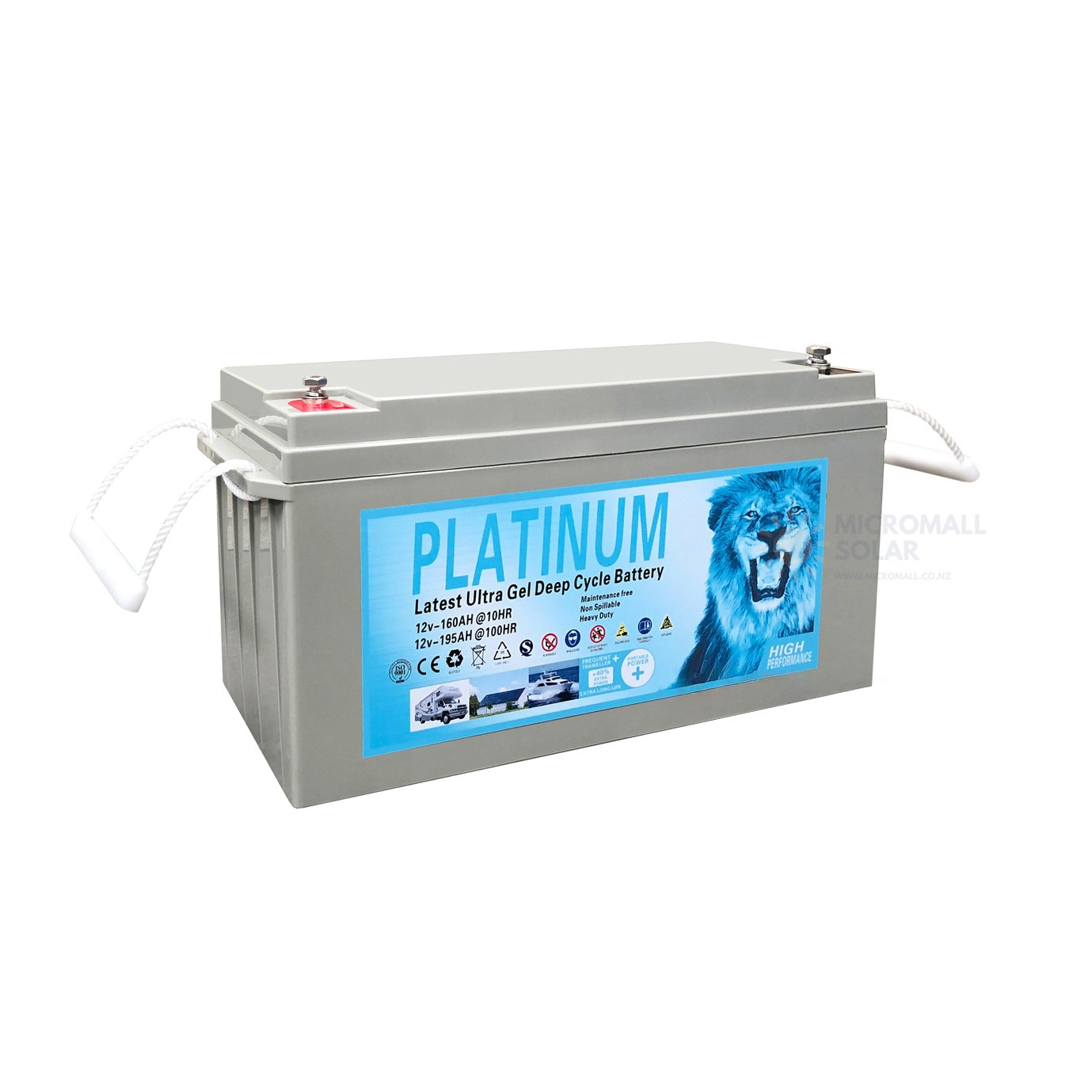

2 x 12V 195Ah Gel Deep Cycle Batteries (2 Years Warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 3-in-1 MC4 Connectors
1 x 24V Battery Equalizer

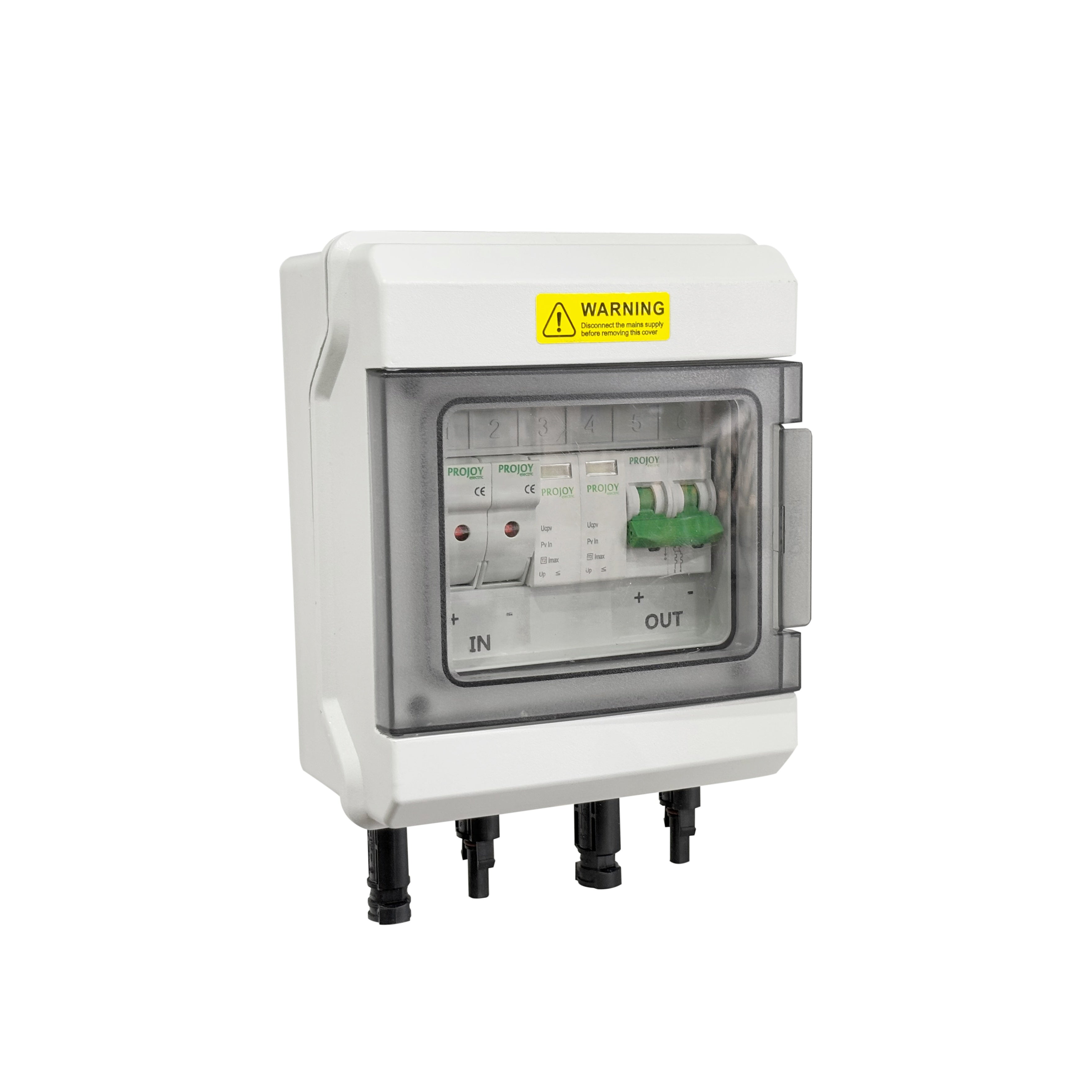

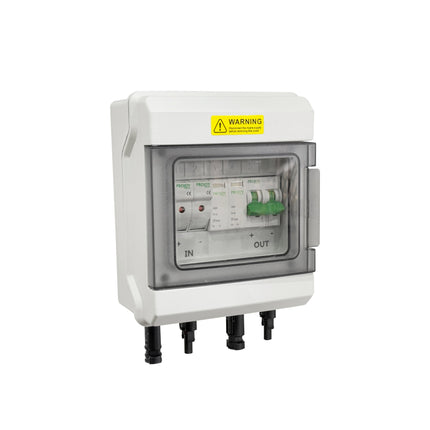

1 x PV Circuit Breaker
1 x Surge Protector

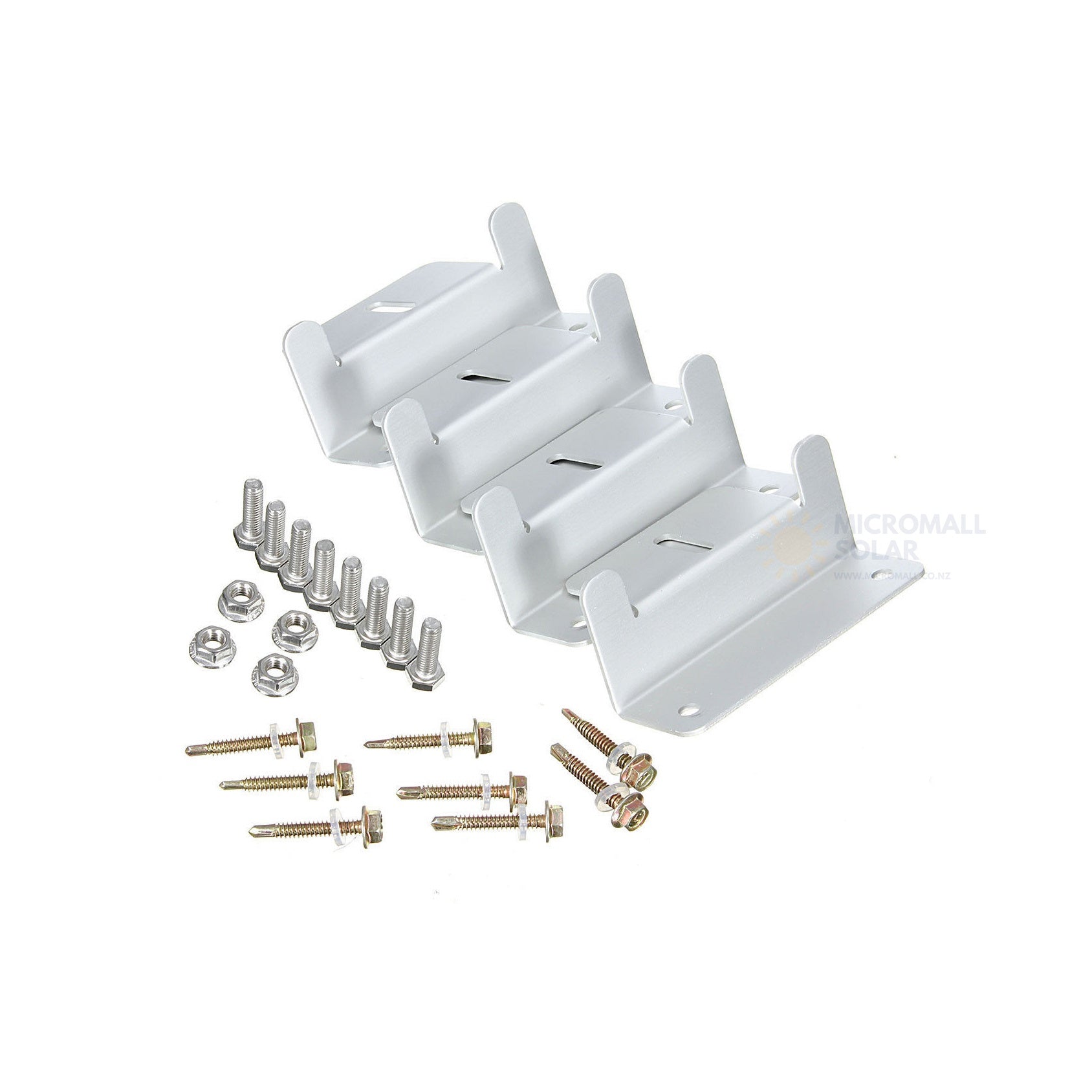

4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
The Growatt SPF 3000TL HVM-24 is an off-grid inverter. It is suitable for a maximum circuit voltage of 102VDC. The inverter can be used with batteries. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where, for example, charging from the grid can be preferred over charging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.

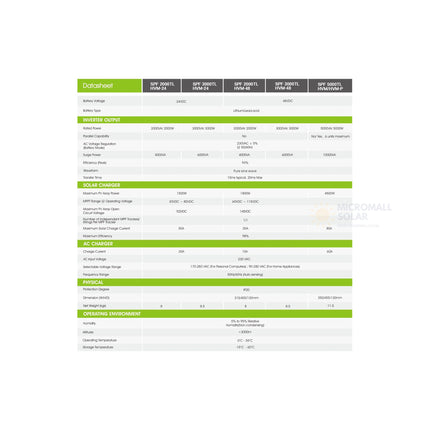

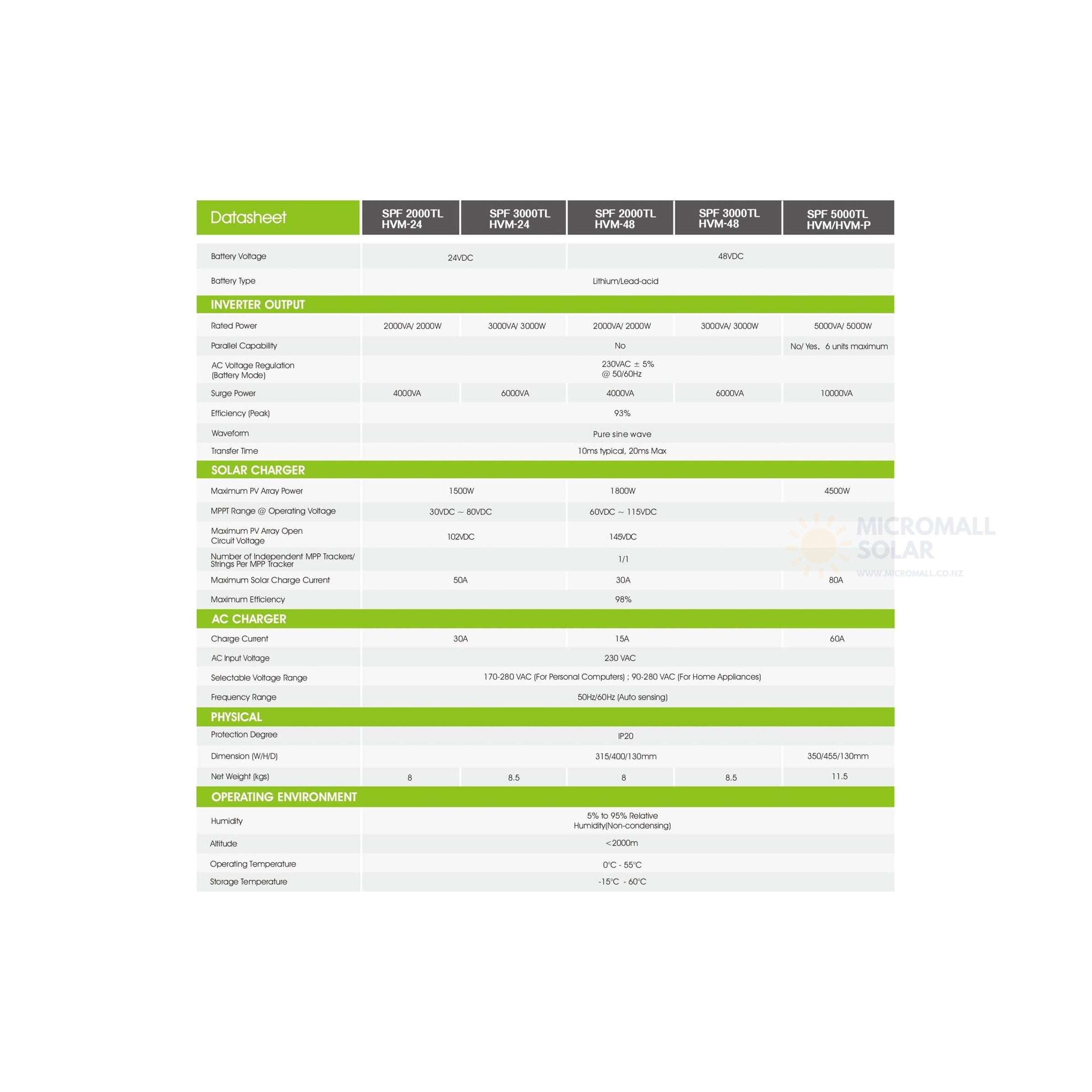

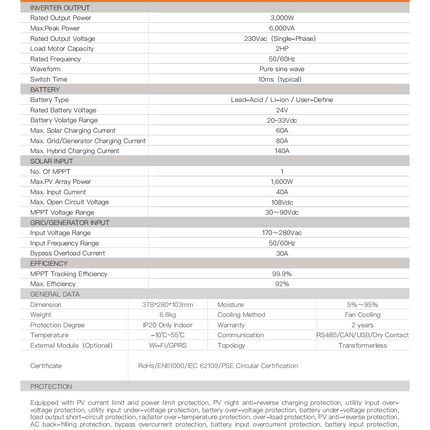

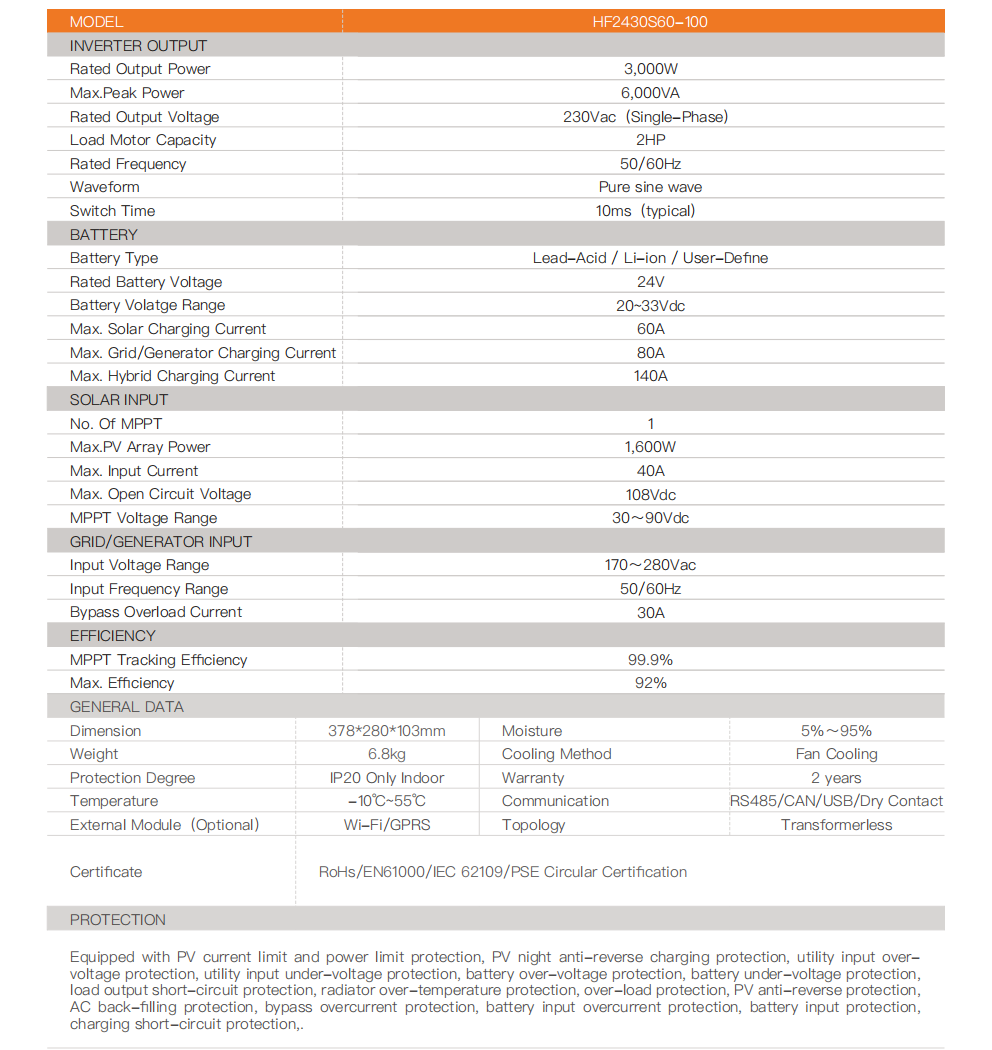

Technical Data:
Battery type: GEL, AGM, Flooded, Lithium and user-programmable
Nominal battery voltage: 24 VDC
Inverter continuous output power: 3000W
Max. surge power: 6000VA
Output voltage range: 230VAC (-5% ~ +5%)
Output wave: Pure Sine Wave
Max. PV open circuit voltage: 102V
Max. PV input power: 1500W
Max. PV charging current: 50A
Max. Utility charge current: 30A
Dimensions: 400mm x 315mm x 130mm
Net weight: 8.5kg
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
