Description

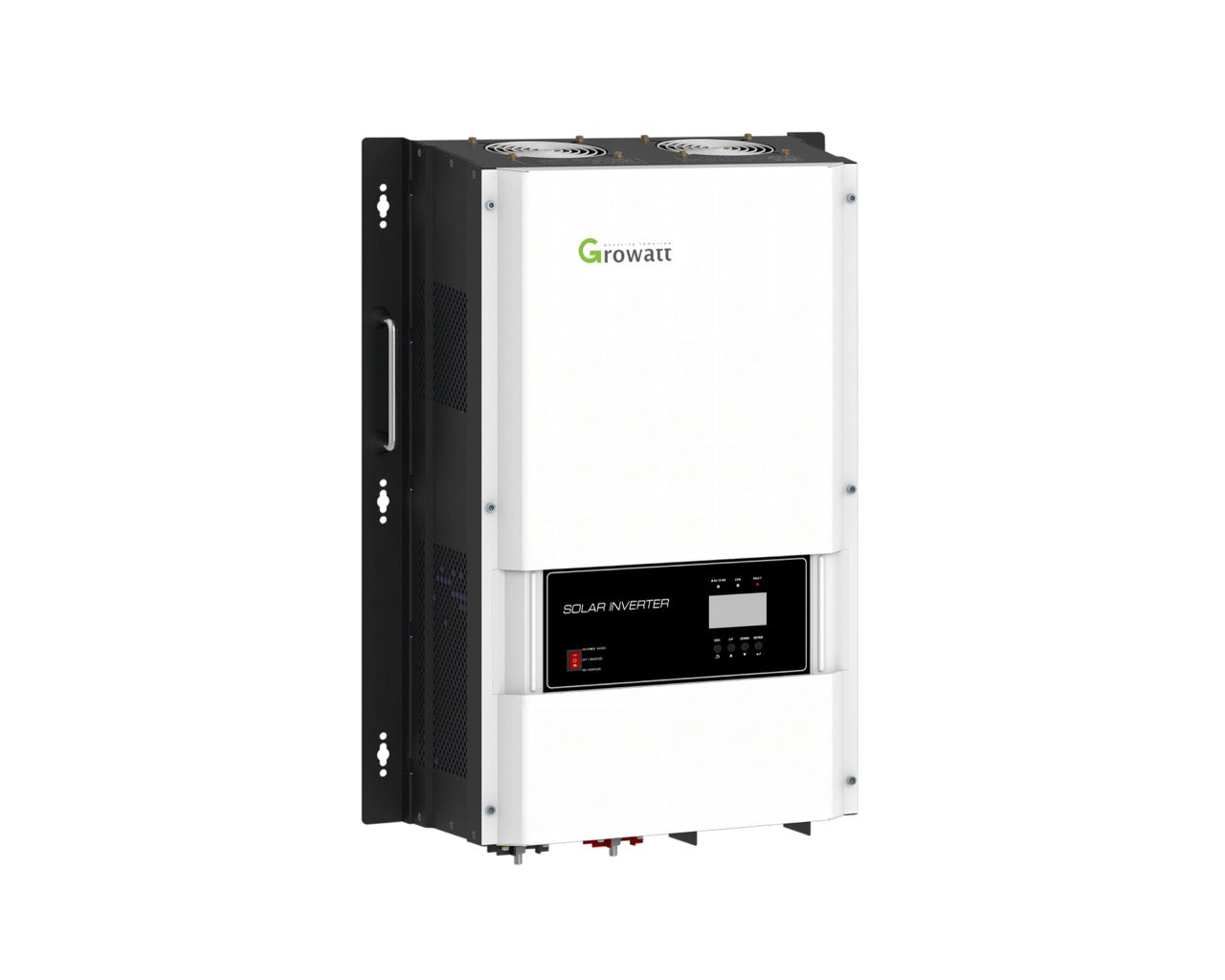

Introducing the Growatt SPF 10KT HVM Off-Grid Storage Inverter - New Arrival!
Key Features:
Dual MPPT solar charge controller
Remote monitoring via WIFI/GPRS
Industrial frequency design
Smart function and parameter settings through LCD buttons
Warranty and Support:
Enjoy peace of mind with a 2-year warranty
Local company support services available

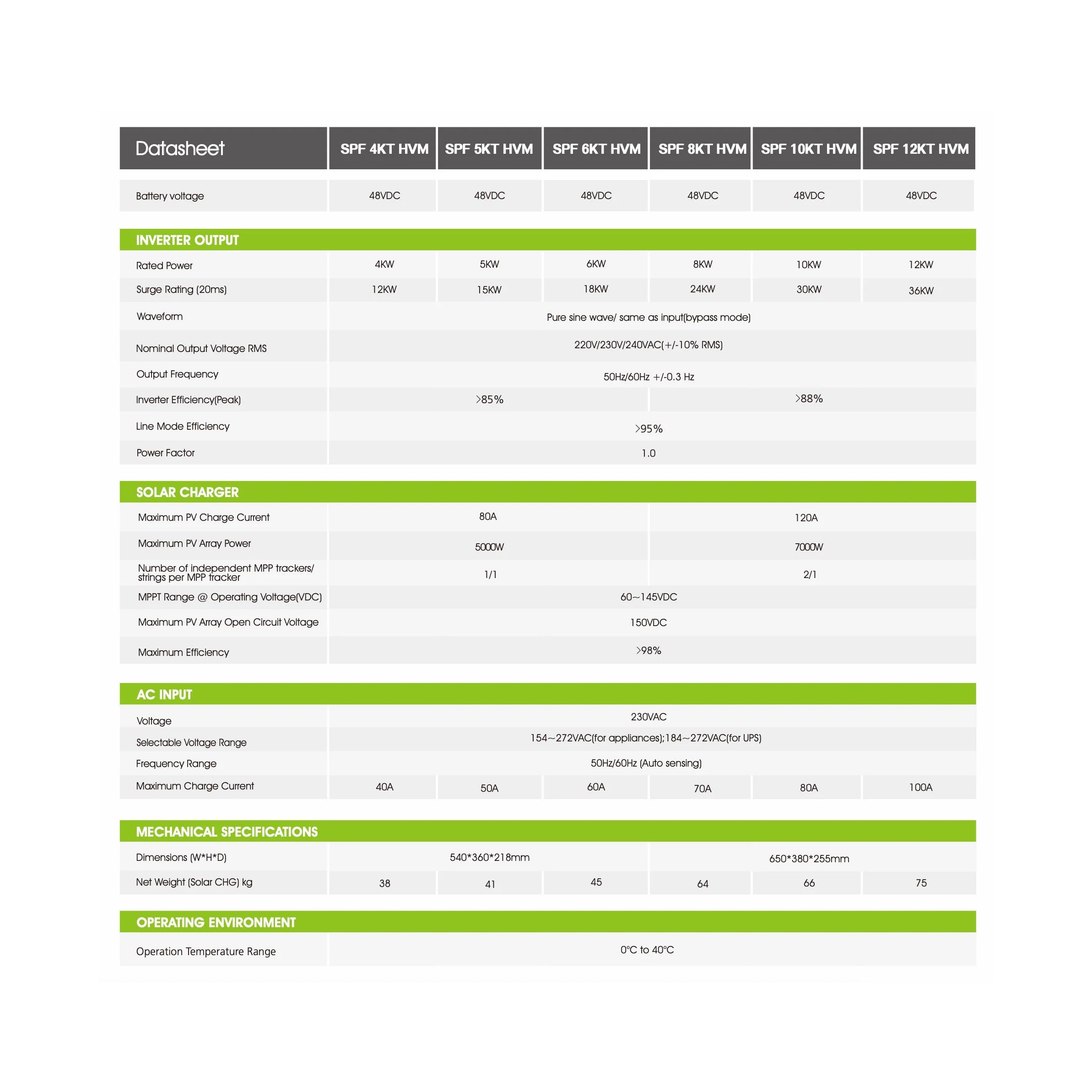

Specifications for SPF 10KT HVM:
Battery Parameters:
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
Inverter Output:
Rated Power: 10KW
Surge Rating: 30KW
Waveform: Pure Sine Wave
Output Voltage: 220/230/240VAC
Output Frequency: 50/60HZ
Inverter Efficiency: >88%
Line Mode Efficiency: >95%
Power Factor: 1.0
Transfer Time: 10ms typical, 20ms max
Solar Charger:
Maximum PV Charge Current: 120A
Maximum PV Array Power: 7000W
Number of Independent MPPT Tracker/Strings per MPPT Tracker: 2/1
MPPT Range: 60-145VDC
Maximum PV Array Open Circuit Voltage: 150VDC
Maximum Efficiency: >98%
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 154-272VAC (for appliances), 184-272VAC (for UPS)
Frequency Range: 50/60HZ
Maximum Charge Current: 80A
Mechanical Specifications:
Protection Degree: IP20
Dimensions (W/H/D): 380/650/255mm
Net Weight: 66KG
Operating Environment:
Operating Temperature Range: 0-45 degrees Celsius
Experience the reliability and advanced features of the Growatt SPF 12KT HVM Off-Grid Storage Inverter, with the added benefit of a 2-year warranty and local company support service.
