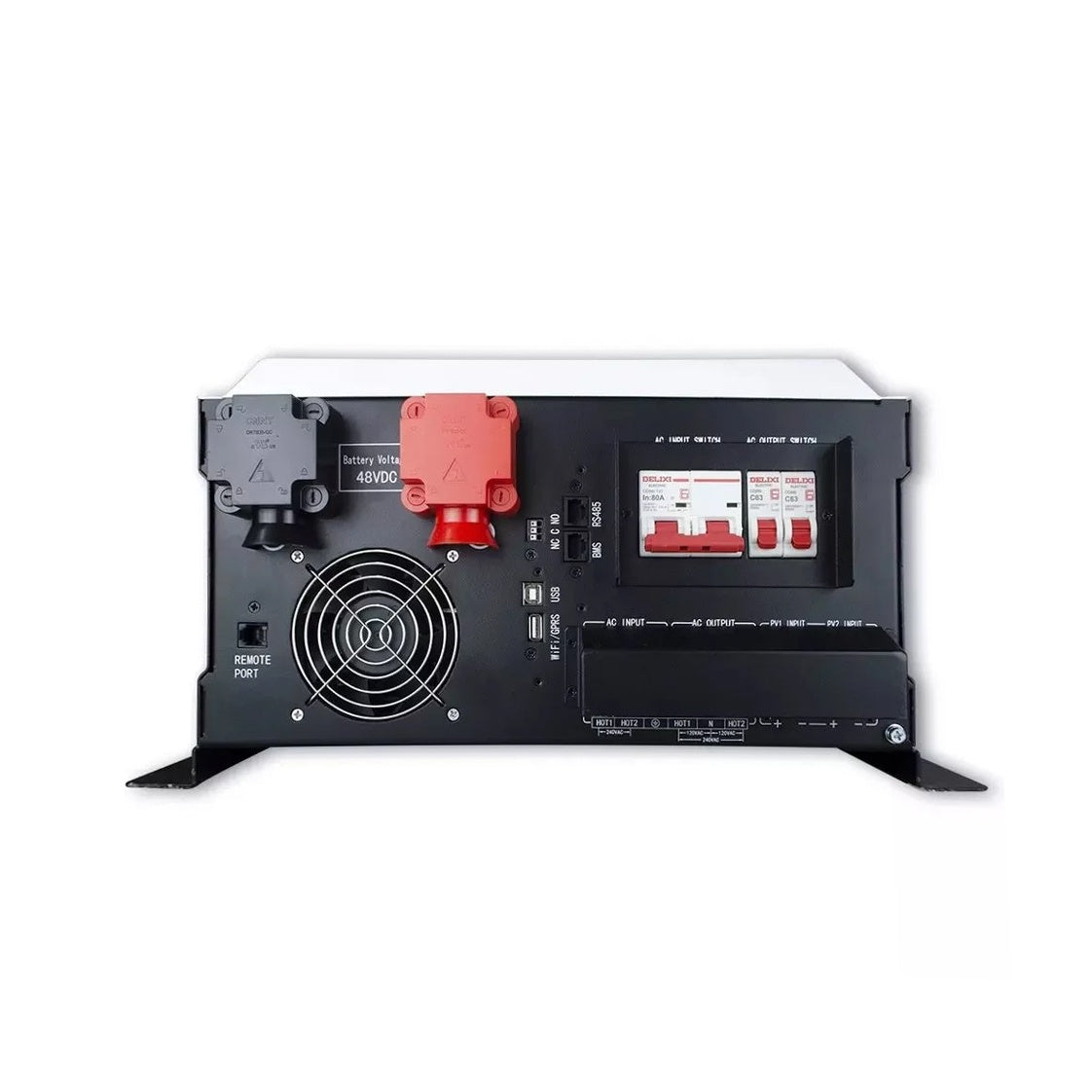

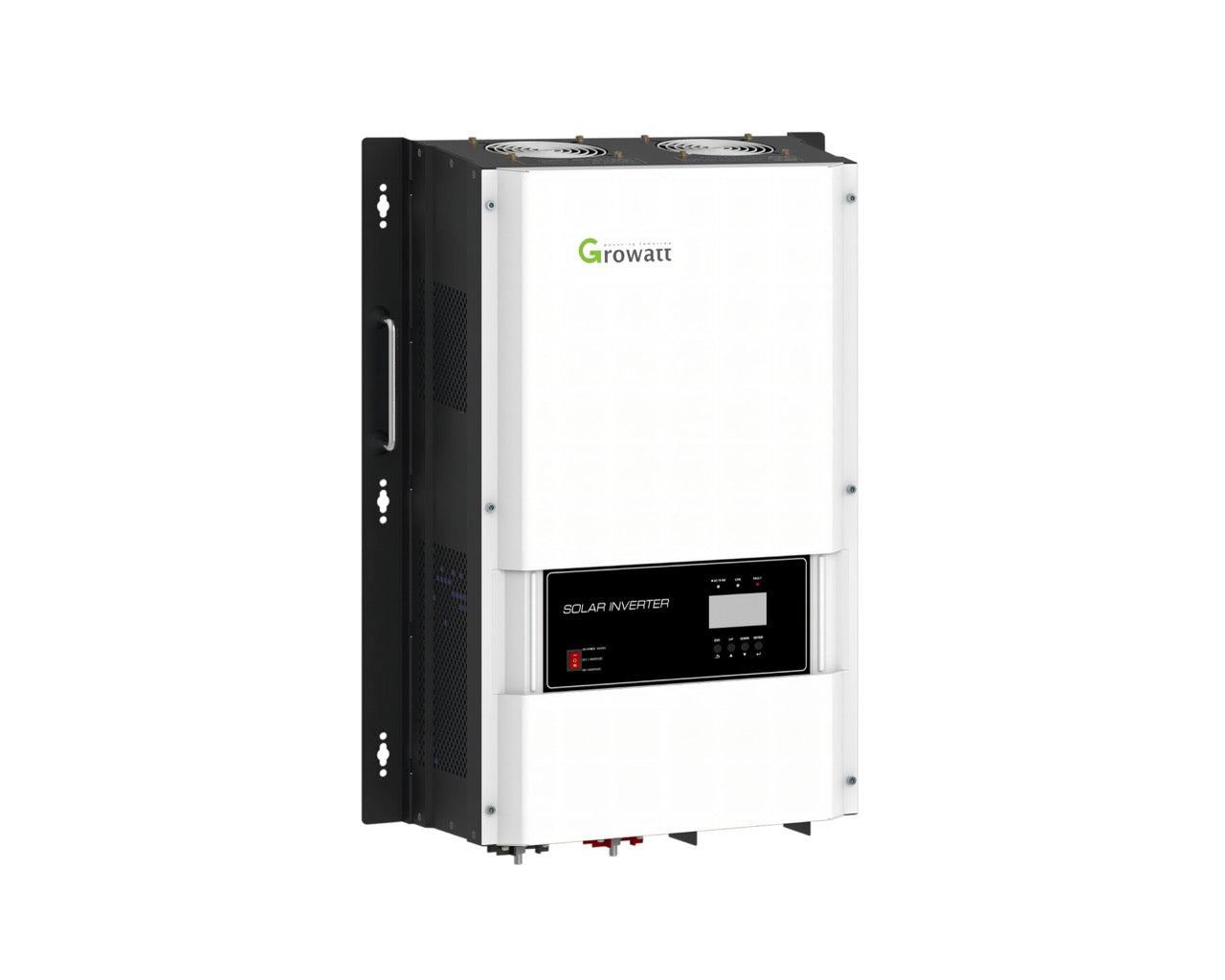

Introducing the Growatt Off-Grid Solar Inverter 6kW SPF6KT HVM - Now Available!
Key Features:
Dual MPPT solar charge controller for optimized performance.
Convenient WIFI/GPRS remote monitoring capability.
Designed for industrial frequency applications.
Smart functionality with parameter settings via the LCD button.
Warranty and Support:
Comes with a 2-year warranty.
Enjoy local company support services for added peace of mind.

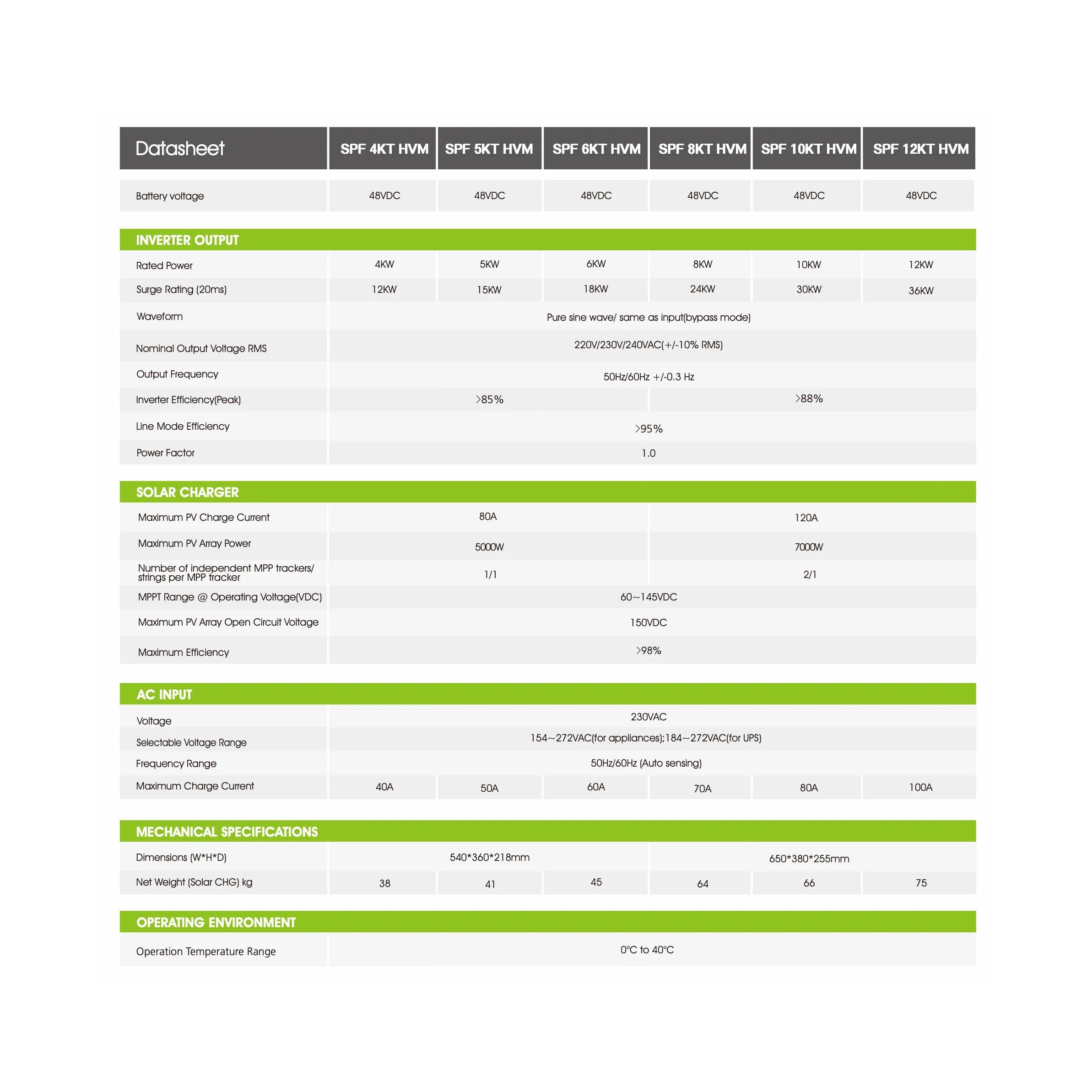

SPF6KT HVM Parameters:
Battery Specifications:
Battery Voltage: 48VDC
Compatible Battery Types: Lithium/Lead-acid
Inverter Output:
Rated Power: 6KW
Surge Rating: 18KW
Waveform: Pure sine wave
Output Voltage: 220/230/240VAC
Output Frequency: 50/60HZ
Inverter Efficiency: >88%
Line Mode Efficiency: >95%
Power Factor: 1.0
Transfer Time: 10ms typical, 20ms max
Solar Charger:
Maximum PV Charge Current: 80A
Maximum PV Array Power: 5000W
Number of Independent MPPT Tracker/Strings per MPPT Tracker: 2/1
MPPT Range: 60-145VDC
Maximum PV Array Open Circuit Voltage: >98%
Maximum Efficiency: >98%
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 154-272VAC (for appliances), 184-272VAC (for UPS)
Frequency Range: 50/60HZ
Maximum Charge Current: 60A
Mechanical Specifications:
Protection Degree: IP20
Dimensions (W/H/D): 360/540/218mm
Net Weight (kg): 52KG
Operating Environment:
Operating Temperature Range: 0-45 degrees Celsius
Experience reliable and efficient off-grid solar power with the Growatt SPF6KT HVM inverter. With its advanced features, robust build, and 2-year warranty, it's the ideal choice for your off-grid solar energy needs.
