Description

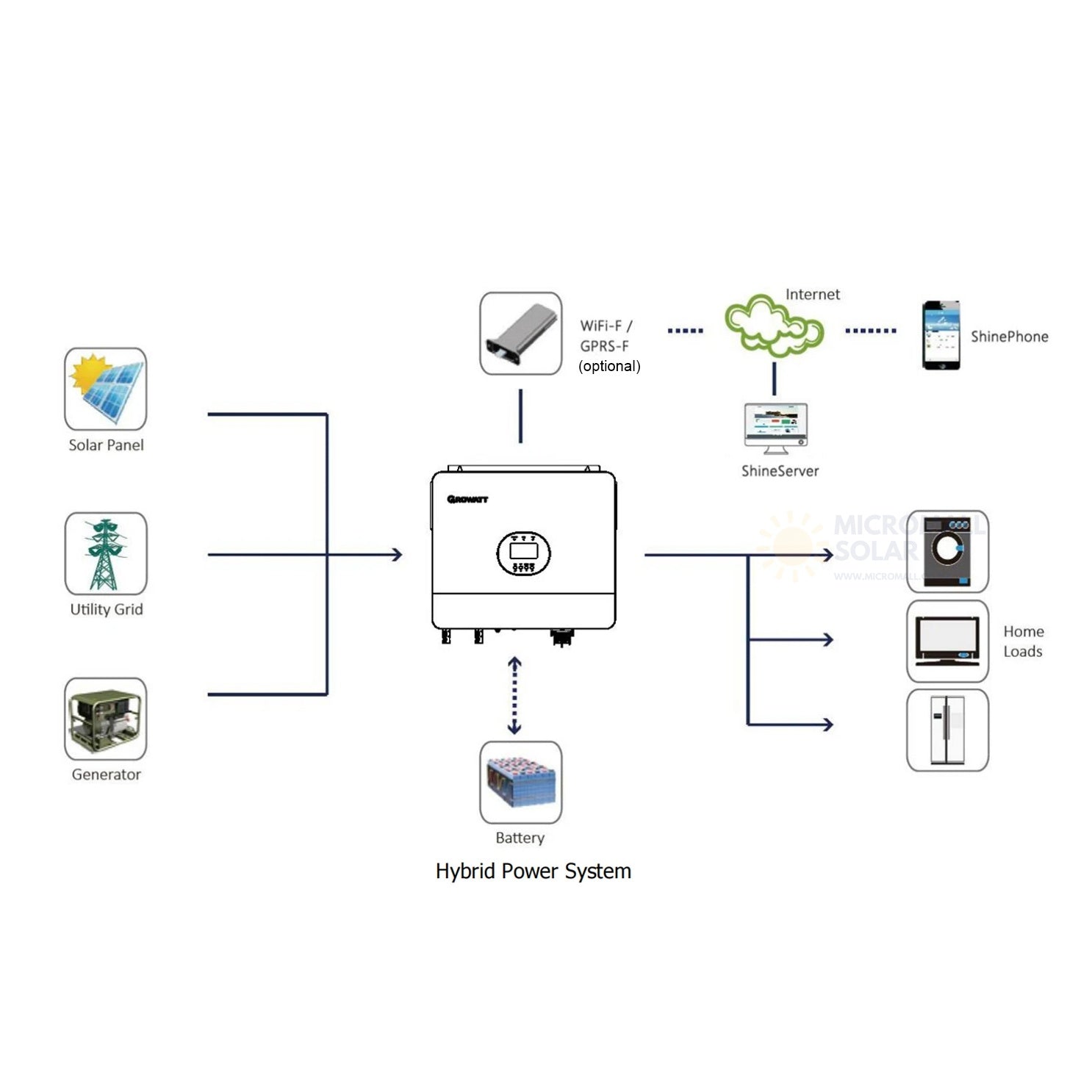

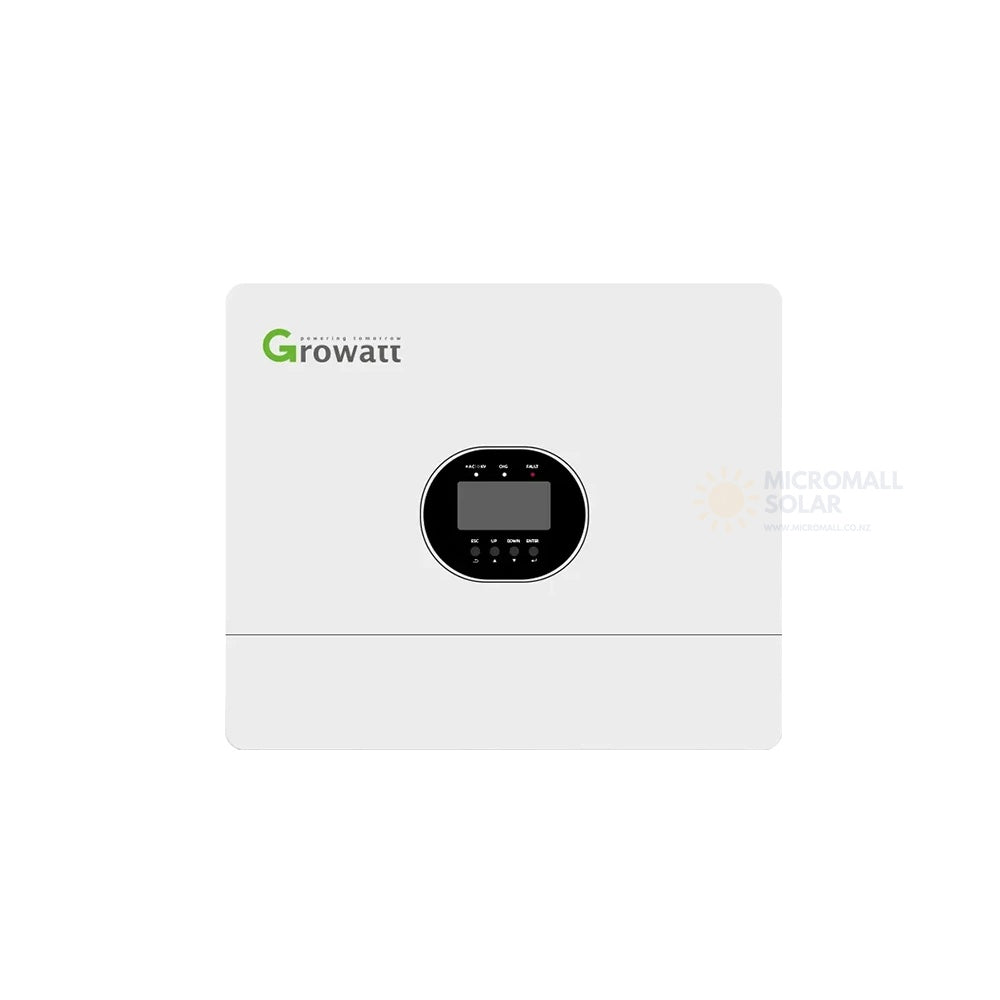

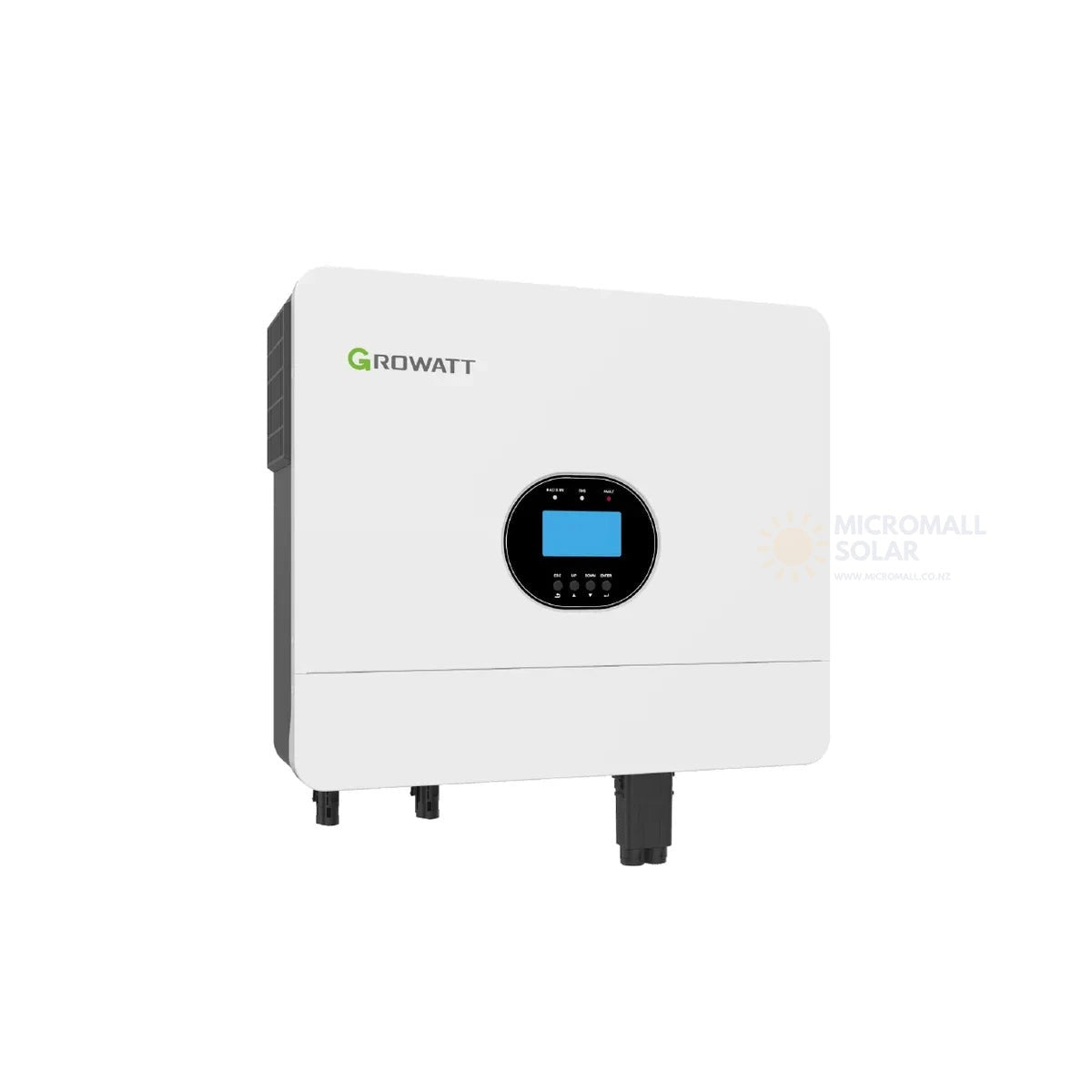

The Growatt SPF 6000 ES Plus is a 6kW solar off-grid hybrid inverter that can operate with or without batteries. It's a versatile solution that combines an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function in a single unit. This makes it ideal for backup power and self-consumption in off-grid applications.
Key Features:
High Yields
8000W solar input for increased power
2x peak power ability
Output power factor up to 1.0
Scalable & Flexible
Two AC inputs for grid and generator with an integrated transfer switch
Up to 6 units can be paralleled for capacity extension
Quick and easy plug-and-play PV terminal connection
Smart & Reliable
Support for WiFi and GPRS remote monitoring
Timing charging and output control
Built-in dust-proof kit for harsh environments

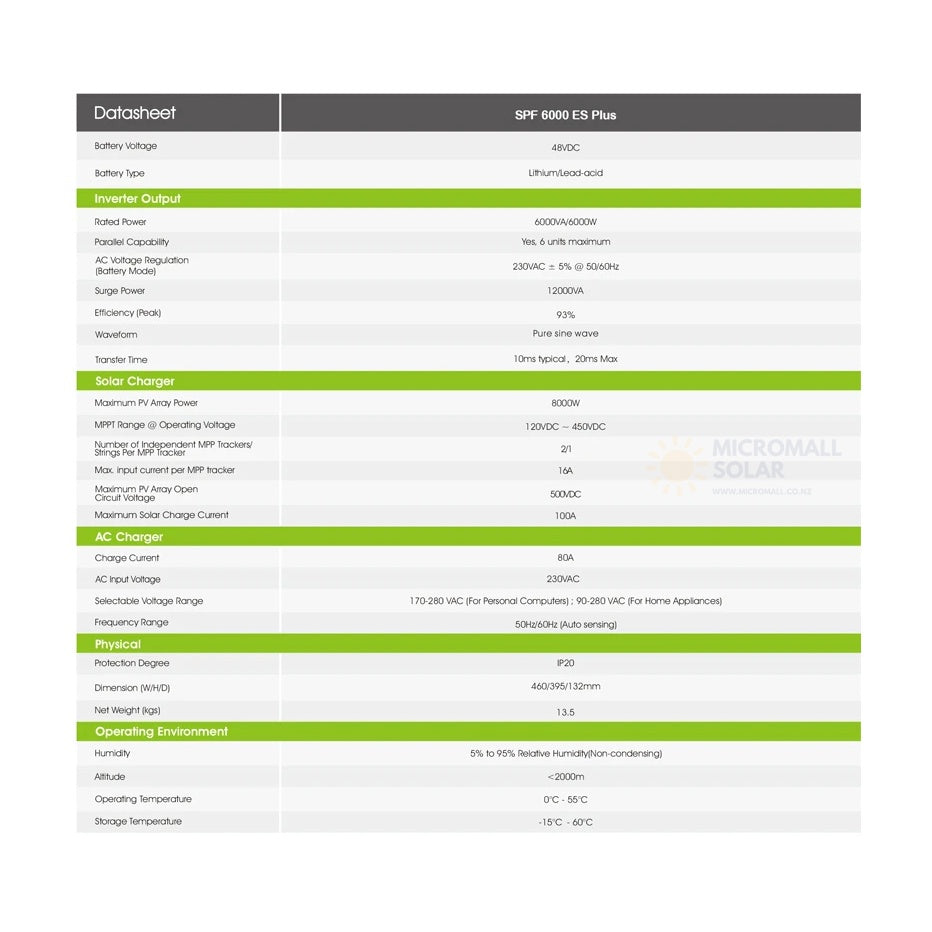

Specifications:
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-Acid
Inverter Output:
Rated Power: 6000VA/6000W
AC Voltage Regulation: 230VAC + 5% @ 50/60Hz
Parallel Capability: Yes, up to 6 units maximum
Surge Power: 12000VA
Efficiency (Peak): 93%
Waveform: Pure Sine Wave
Transfer Time: 10ms typical, 20ms Max
Solar Charger:
Maximum PV Array Power: 8000W
MPPT Range @ Operating Voltage: 120VDC ~ 450VDC
Maximum PV Array Open Circuit Voltage: 500VDC
Maximum Solar Charge Current: 100A
Maximum Efficiency: 98%
AC Charger:
Charge Current: 80A
AC Input Voltage: 230VAC
Selectable Voltage Range: 90 - 280VAC (For Home Appliances)
Frequency Range: 50/60Hz (Auto Sensing)
Physical:
Protection Degree: IP20
Dimension (W/H/D): 460/395/132mm
Net Weight: 13.5kg
Operating Environment:
Humidity: 5% to 95% Relative Humidity (Non-Condensing)
Altitude:
