Description

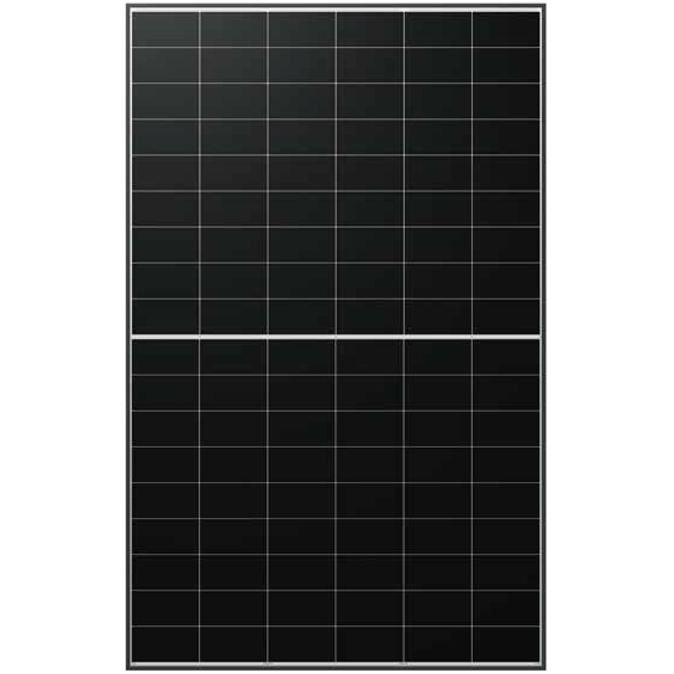

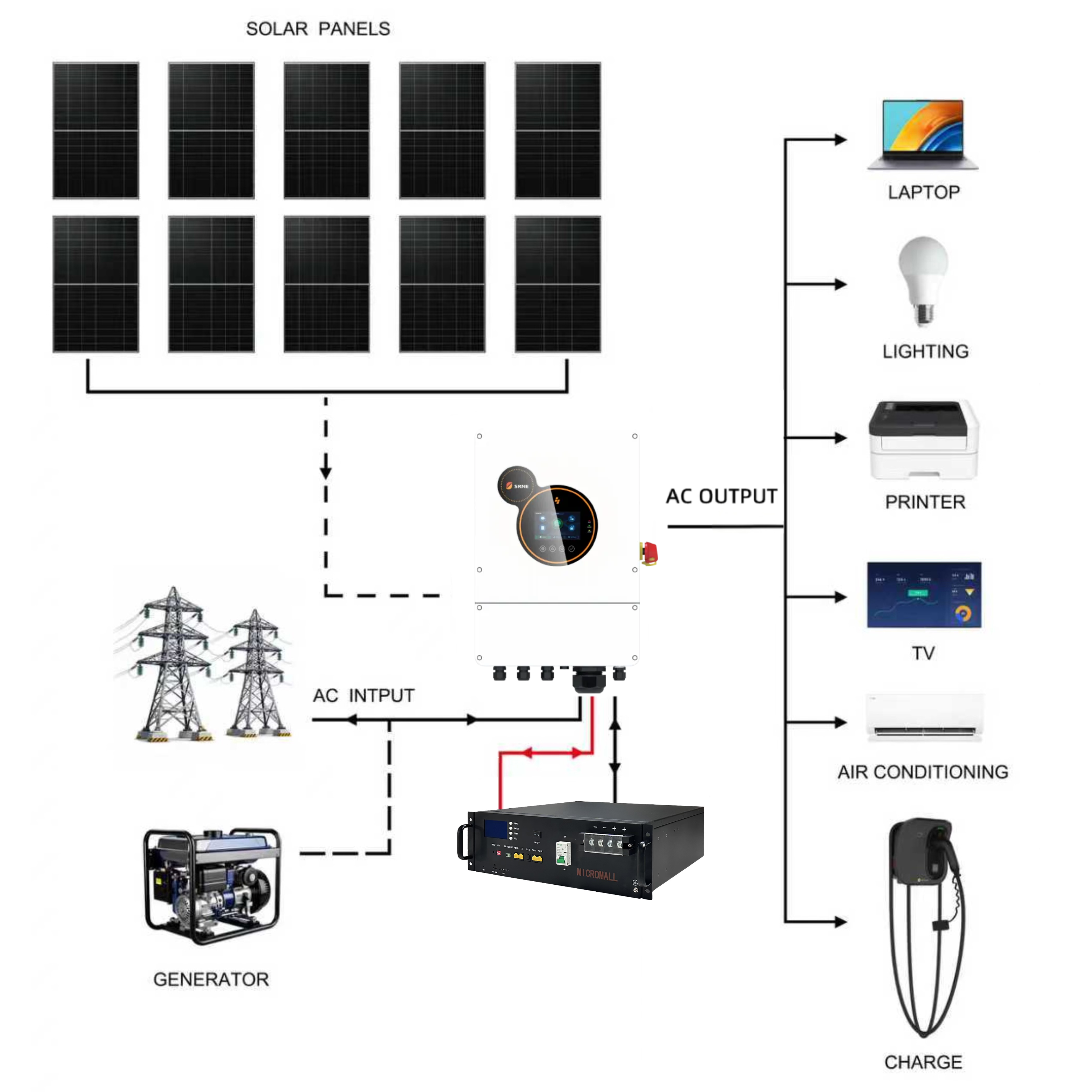

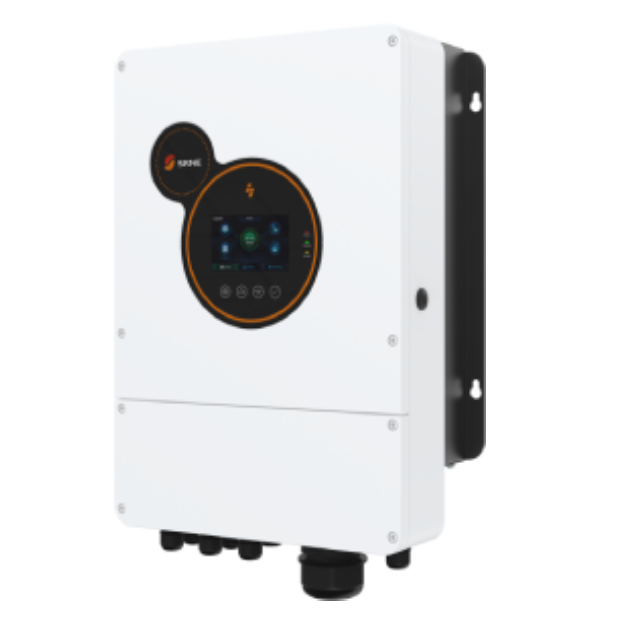

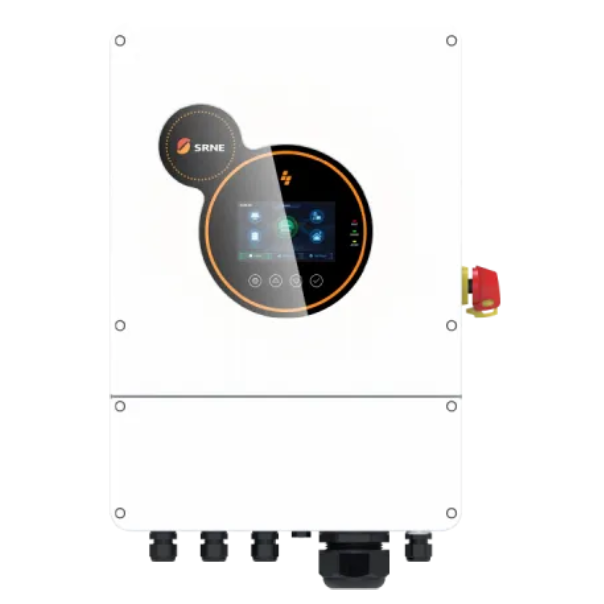

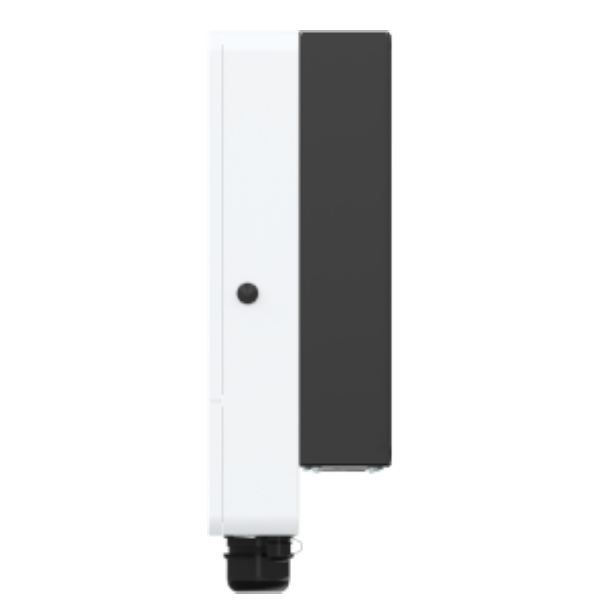

SRNE 5kW Single Phase Hybrid Inverter HESP4850S100-H Solar Inverter with 10 Panels
- Model: Single Phase Low Voltage Hybrid Inverter HESP4850S100-H
Product Features:
Compatible with 48V storage batteries
2 efficient, independent MPPT ports
Separate generator port
Support AC-coupling
Support time-slot function for peak-valley
IP65 waterproof protection degree

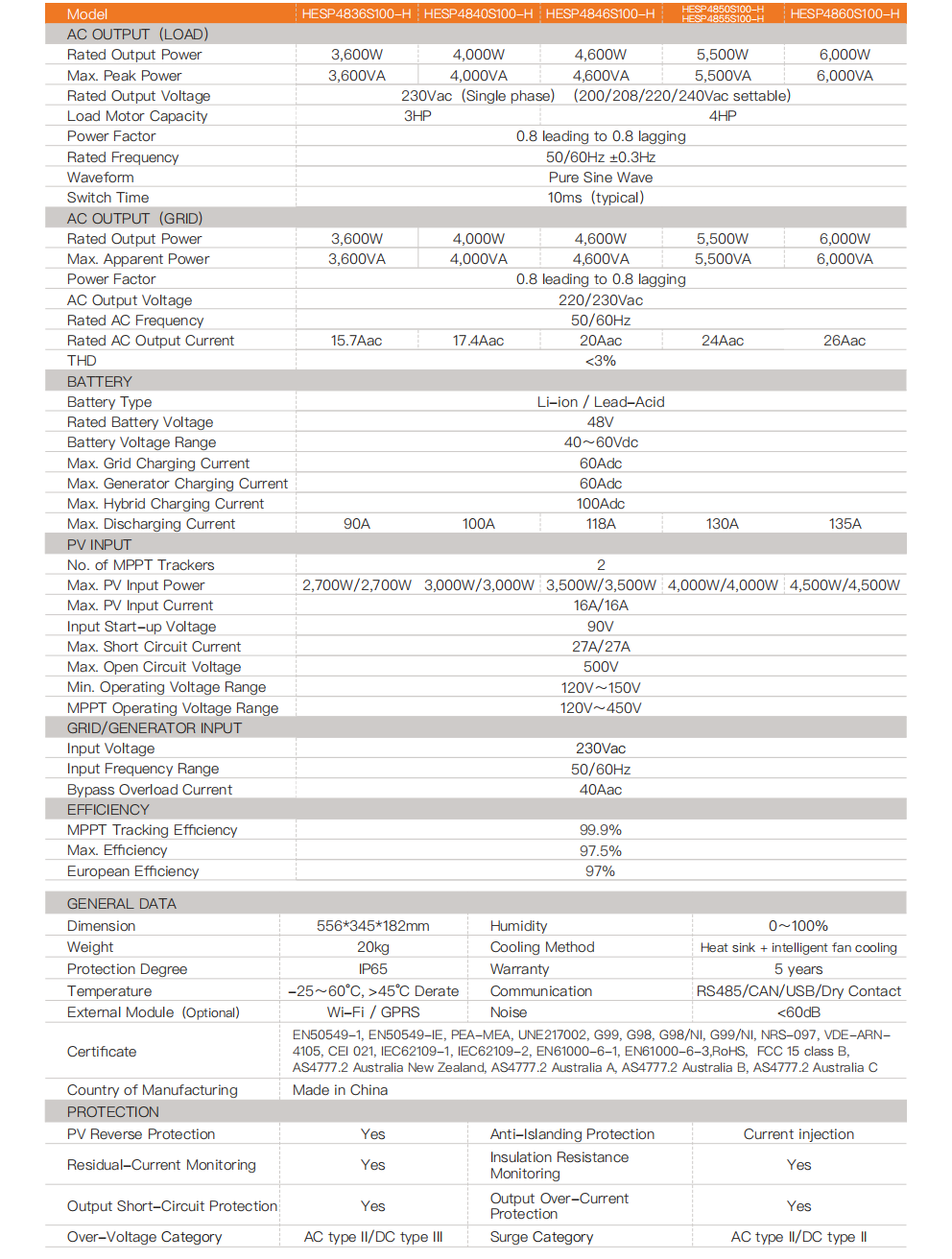

Specifications
- Rated Output Power: 5000W
- Max. Peak Power: 5500VA
- Rated Output Voltage: 230Vac(Single phase)(200/208/220/240Vac settable)
- Load Motor Capacity: 4HP
- Power Factor: 0.8 leading to 0.8 lagging
- Waveform: Pure Sine Wave
- Switch Time: 10ms(typical)
- Dimensions(W/H/D): 556*345*182mm
- Weight: 20kg
- Temperature: -25~60°C, >45°C Derate
- Ingress protection: IP65
Noise:
