Description

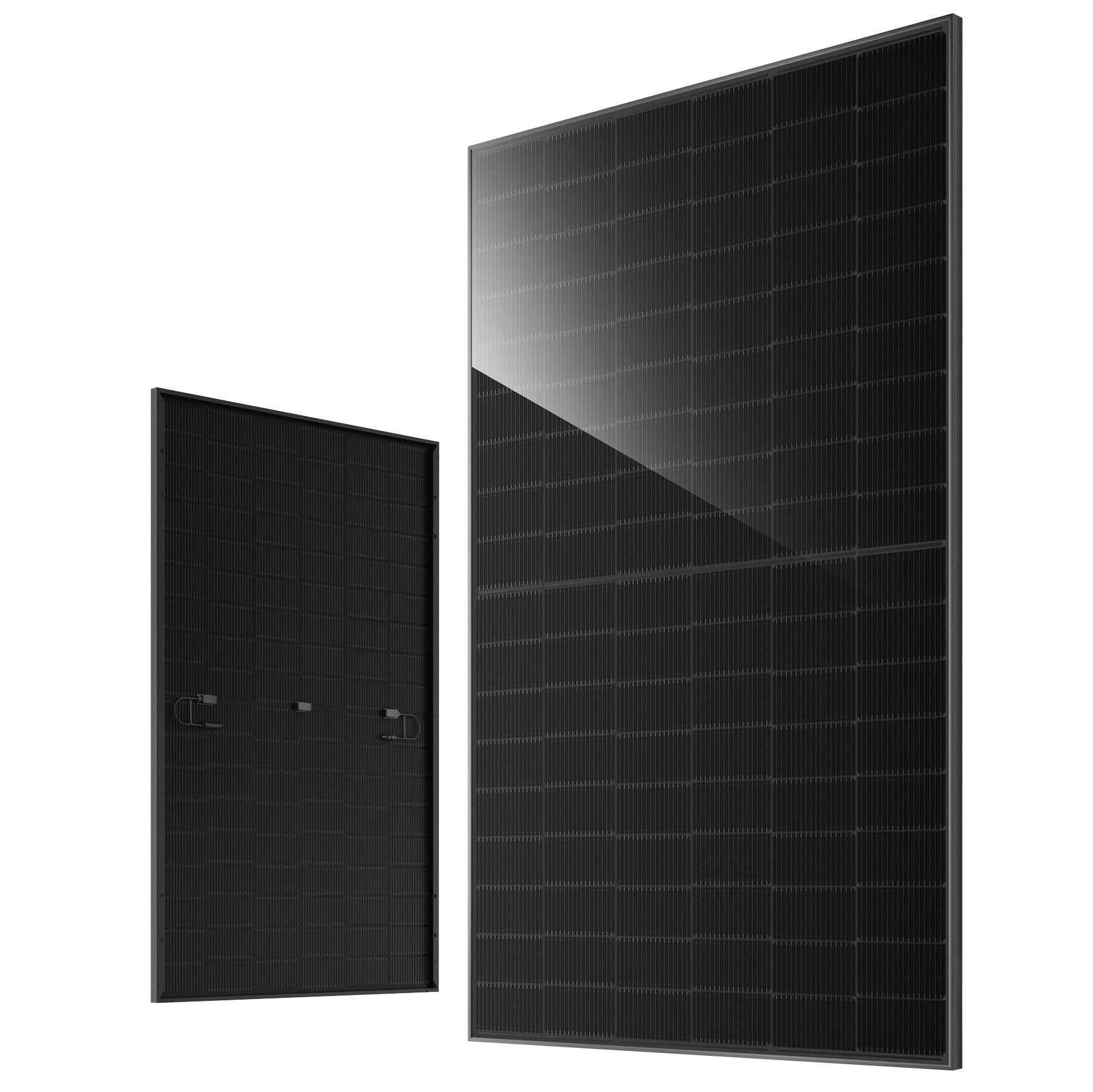

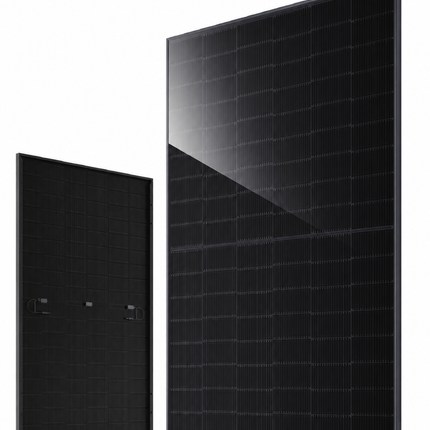

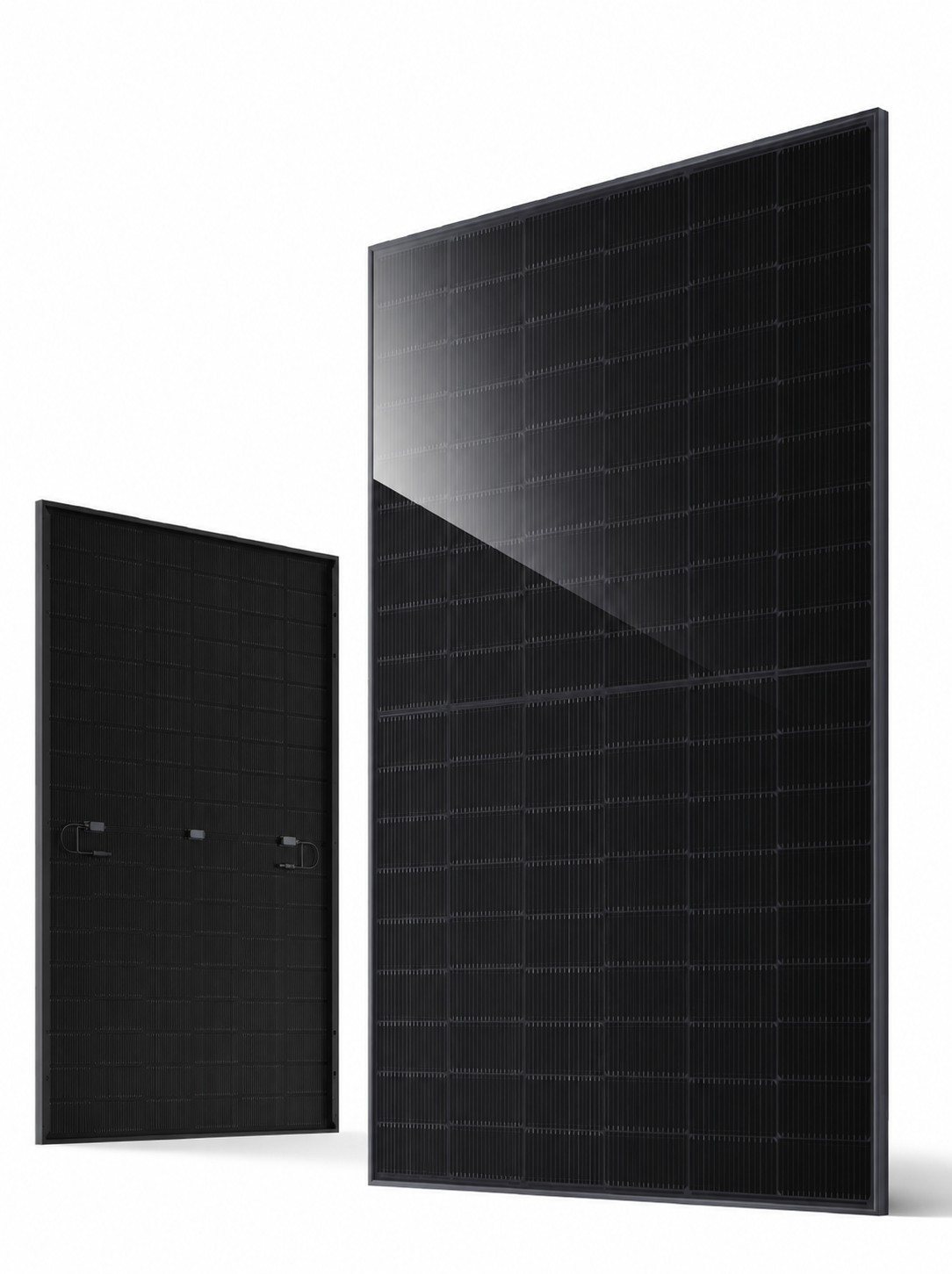

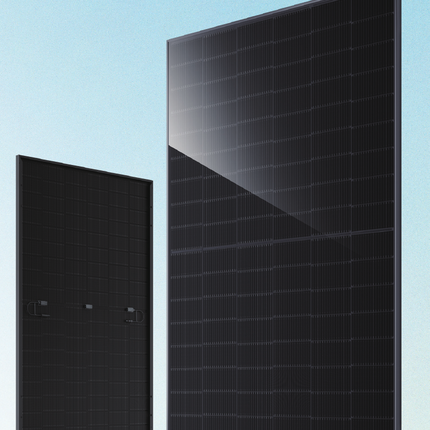

The JA Solar JAM54D41-460/LB is a 460W full-black, n-type double-glass bifacial solar module from the DeepBlue 4.0 Pro series. It combines high-efficiency n-Bycium+ cells, 16BB MBB half-cell technology and a compact residential-friendly format for strong long-term rooftop energy yield.
Key Features
-
460W rated power and 23.0% module efficiency for high power density in residential and commercial rooftop systems.
-
n-type bifacial double-glass construction supports rear-side energy gain where installation conditions allow.
-
16BB MBB half-cell technology with improved current collection and dependable module performance.
-
Low degradation design: 1% first-year degradation followed by 0.4% annual degradation over 30 years.
-
Strong environmental performance with good low-irradiance response and a -0.290%/°C Pmax temperature coefficient.
-
Robust mechanical design: rated for up to 5400Pa front static load and 2400Pa rear static load.
-
25-year product warranty and 30-year linear power output warranty, subject to JA Solar warranty terms.
Specifications
-
Model / SKU: JAM54D41-460/LB
-
Series: JA Solar DeepBlue 4.0 Pro
-

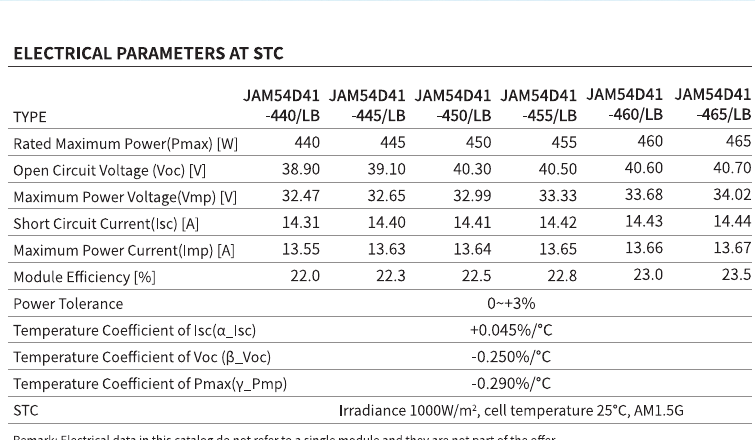

Rated Maximum Power (Pmax): 460W
-
Module Efficiency: 23.0%
-
Open Circuit Voltage (Voc): 40.60V
-
Maximum Power Voltage (Vmp): 33.68V
-
Short Circuit Current (Isc): 14.43A
-
Maximum Power Current (Imp): 13.66A
-
Power Tolerance: 0 to +3%
-
Cell: Monocrystalline n-type, 108 cells (6 × 18), 16BB MBB half-cell technology
-
Module Construction: Full-black bifacial double glass
-

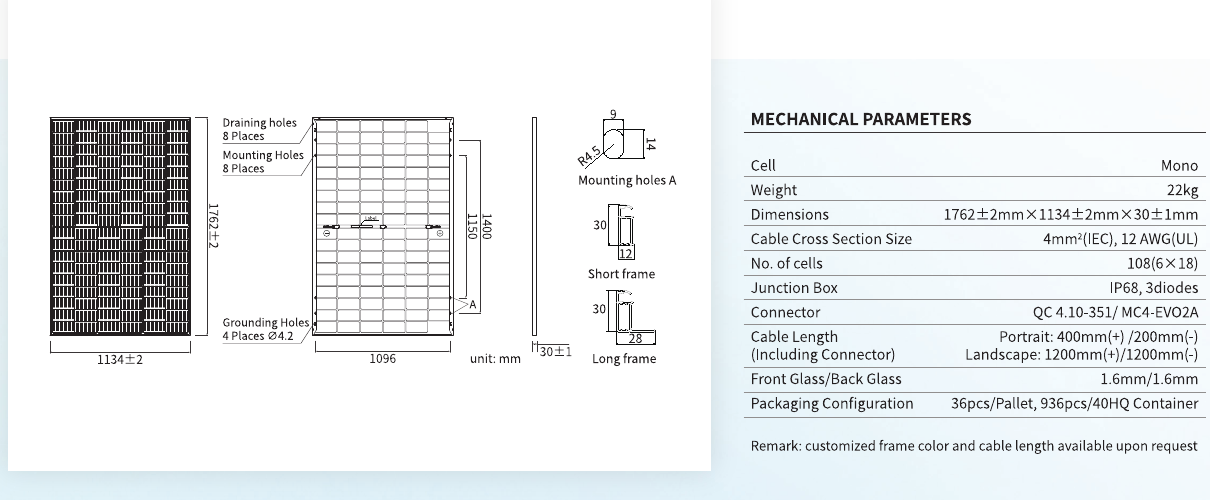

Dimensions: 1762 ± 2 × 1134 ± 2 × 30 ± 1mm
-
Weight: 22kg
-
Front / Rear Glass: 1.6mm / 1.6mm
-
Junction Box: IP68, 3 diodes
-
Connector: QC 4.10-351 / MC4-EVO2A
-
Cable Cross Section: 4mm² (IEC), 12 AWG (UL)
-
Cable Length: Portrait 400mm (+) / 200mm (-); landscape 1200mm (+) / 1200mm (-)
-

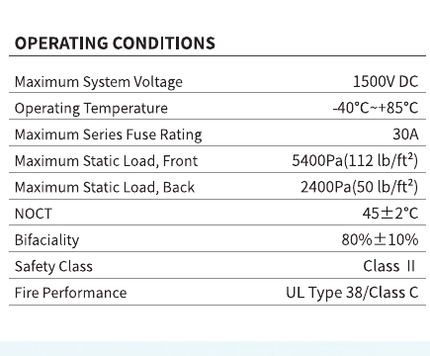

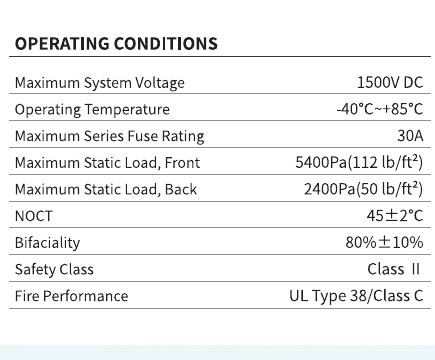

Maximum System Voltage: 1500V DC
-
Maximum Series Fuse Rating: 30A
-
Operating Temperature: -40°C to +85°C
-
NOCT: 45 ± 2°C
-
Bifaciality: 80% ± 10%
-
Temperature Coefficients: Isc +0.045%/°C; Voc -0.250%/°C; Pmax -0.290%/°C
-
Maximum Static Load: 5400Pa front / 2400Pa rear
-
Safety / Fire Performance: Class II / UL Type 38, Class C
-
Packaging: 36 modules per pallet; 936 modules per 40HQ container
