Description

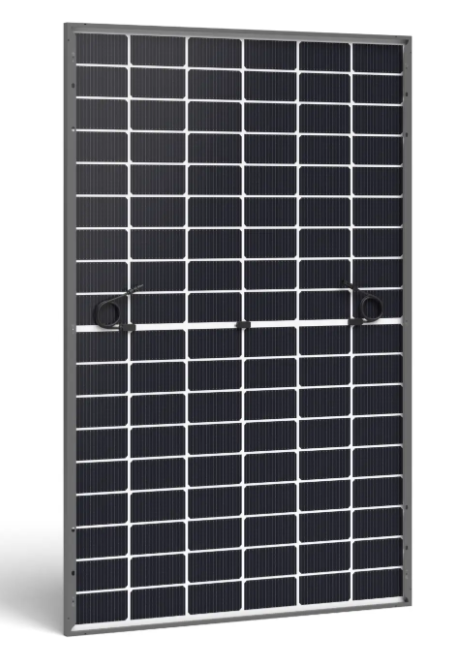

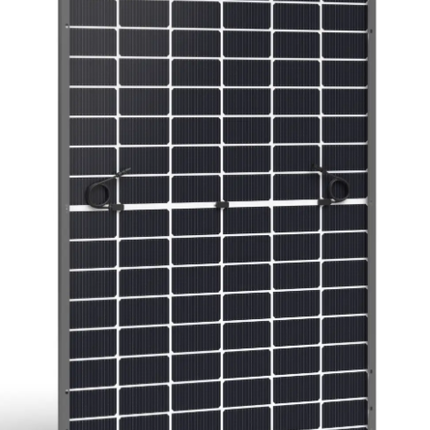

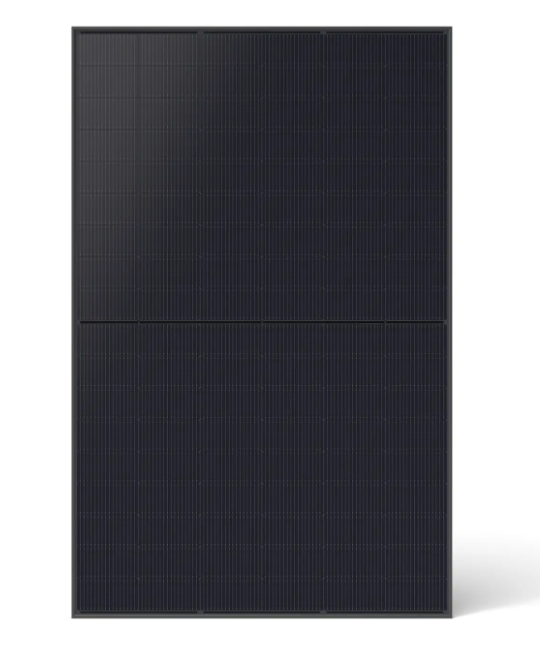

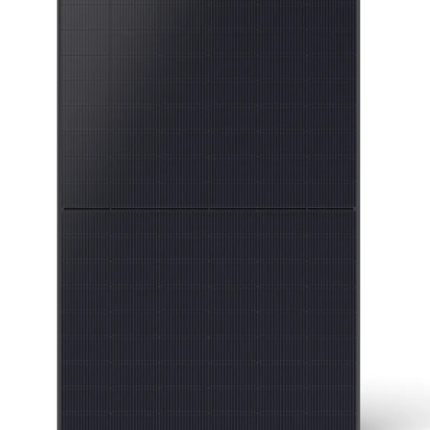

The JA Solar DeepBlue 4.0 Pro JAM54D41-455/LB is a 455W full-black, n-type double-glass bifacial module for residential and commercial rooftop systems. Its Bycium+ cells, 16BB MBB half-cell design and durable glass-glass construction support strong energy yield and long-term reliability.
Key Features
- 455W rated maximum power
- N-type Bycium+ cell technology
- 16BB MBB half-cell technology
- Double-glass bifacial module
- 22.8% module efficiency
- Cell conversion efficiency up to 26%
- Higher power generation for improved LCOE
- Very low LID performance
- Improved temperature coefficient
- Better low-irradiance response
- 80% ±10% bifaciality
- 25-year product warranty
- 30-year linear power output warranty

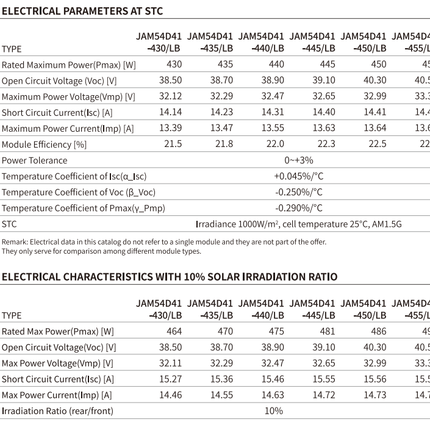

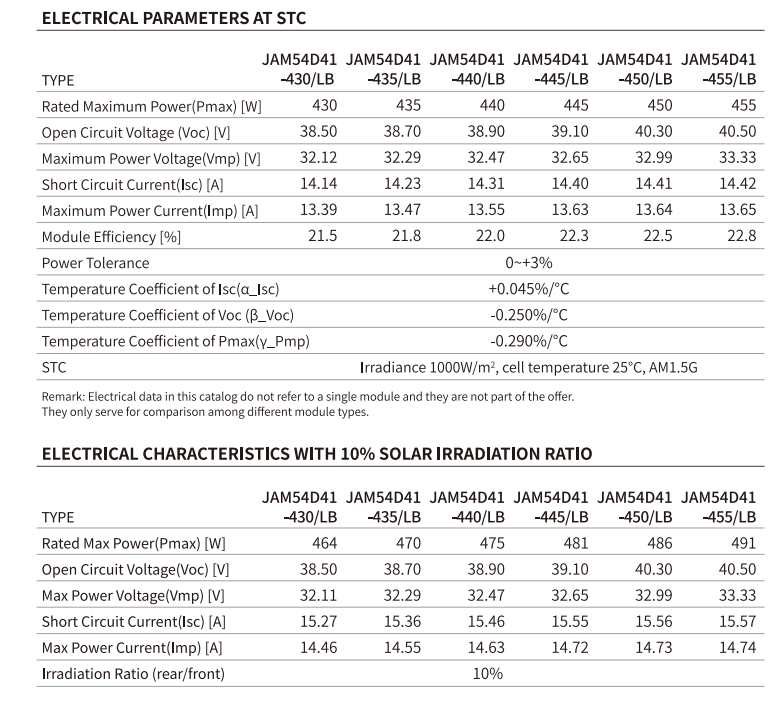

Specifications
- Model: JAM54D41-455/LB
- Rated Maximum Power (Pmax): 455W
- Module Efficiency: 22.8%
- Open Circuit Voltage (Voc): 40.50V
- Maximum Power Voltage (Vmp): 33.33V
- Short Circuit Current (Isc): 14.42A
- Maximum Power Current (Imp): 13.65A
- Power Tolerance: 0 to +3%
- Cell: Mono
- Number of Cells: 108 (6 × 18)
- Dimensions: 1762 ±2 × 1134 ±2 × 30 ±1 mm
- Weight: 22 kg
- Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
- Junction Box: IP68, 3 diodes
- Connector: QC 4.10-351 / MC4-EVO2A
- Cable Length, Portrait: 300 mm (+) / 400 mm (-)
- Cable Length, Landscape: 1200 mm (+) / 1200 mm (-)
- Front Glass / Back Glass: 1.6 mm / 1.6 mm
- Maximum System Voltage: 1500V DC
- Operating Temperature: -40°C to +85°C
- Maximum Series Fuse Rating: 30A
- Maximum Static Load, Front: 5400Pa
- Maximum Static Load, Back: 2400Pa
- NOCT: 45 ±2°C
- Bifaciality: 80% ±10%
- Safety Class: Class II
- Fire Performance: UL Type 38 / Class C
- Packaging: 36 pcs/pallet, 936 pcs/40HQ container
