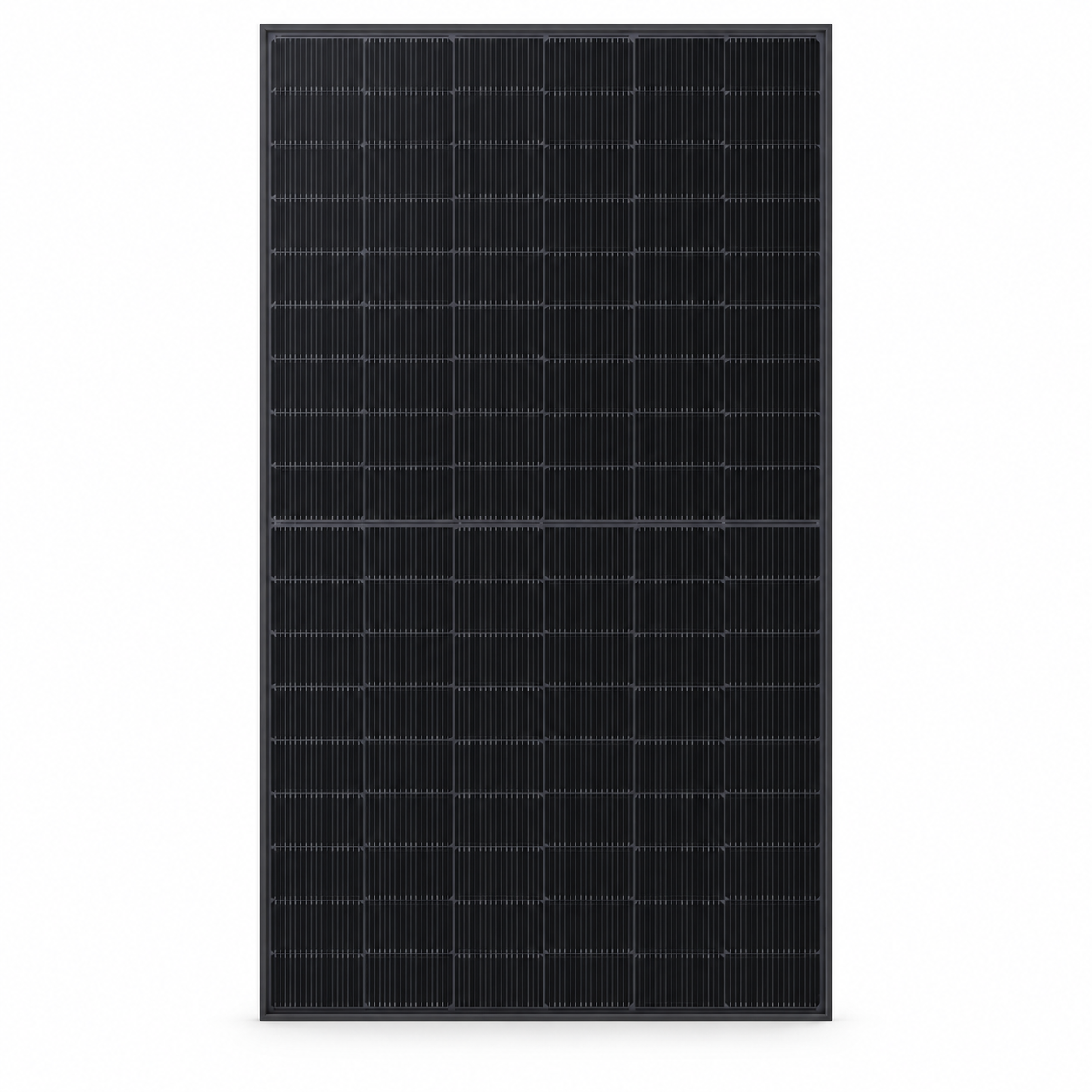

JA Solar JAM54D41-455/LR 455W N-Type Monofacial Double-Glass Solar Panel – Deep Blue 4.0 Pro

Description

Key Features

  • 455W rated maximum power
  • N-type Bycium+ cell technology
  • 16BB MBB half-cell technology
  • Double-glass monofacial module
  • High-density module design
  • Module efficiency of 22.8%
  • 0 to +3% positive power tolerance
  • 25-year product warranty
  • 30-year linear power output warranty
  • 1% first-year degradation
  • 0.4% annual degradation over 30 years

Specifications

  • Model: JAM54D41-455/LR
  • Rated Maximum Power (Pmax): 455W
  • Module Efficiency: 22.8%
  • Open Circuit Voltage (Voc): 40.50V
  • Maximum Power Voltage (Vmp): 33.33V
  • Short Circuit Current (Isc): 14.42A
  • Maximum Power Current (Imp): 13.65A
  • Power Tolerance: 0 to +3%
  • Cell: Mono
  • Number of Cells: 108 (6 × 18)
  • Dimensions: 1762 ±2 × 1134 ±2 × 30 ±1 mm
  • Weight: 21.5 kg
  • Front Glass: 1.6 mm anti-reflection coated glass
  • Back Glass: 1.6 mm heat-strengthened glass
  • Frame: Anodized aluminium alloy
  • Junction Box: IP68, 3 diodes
  • Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
  • Cable Length, Portrait: 400 mm (+) / 200 mm (-)
  • Cable Length, Landscape: 1200 mm (+) / 1200 mm (-)
  • Maximum System Voltage: 1500V DC
  • Maximum Series Fuse Rating: 25A
  • Operating Temperature: -40°C to +70°C
  • Maximum Static Load, Front: 5400Pa
  • Maximum Static Load, Back: 2400Pa
  • NOCT: 45 ±2°C
  • Safety Class: Class II
  • Fire Performance: UL Type 38 / Class C
  • Packaging: 36 pcs/pallet, 936 pcs/40HQ container

Datasheet

Download JAM54D41-455/LR 455W Datasheet (PDF)

JA Solar JAM54D41-455/LR 455W N-Type Monofacial Double-Glass Solar Panel – Deep Blue 4.0 Pro

Product form

SKU: JAM54D41-455/LR

$149.00

Or 4 payments of $37.25 fortnightly with Afterpay
    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support
    • Price Match Available – Talk to Us

    Description

    Key Features

    • 455W rated maximum power
    • N-type Bycium+ cell technology
    • 16BB MBB half-cell technology
    • Double-glass monofacial module
    • High-density module design
    • Module efficiency of 22.8%
    • 0 to +3% positive power tolerance
    • 25-year product warranty
    • 30-year linear power output warranty
    • 1% first-year degradation
    • 0.4% annual degradation over 30 years

    Specifications

    • Model: JAM54D41-455/LR
    • Rated Maximum Power (Pmax): 455W
    • Module Efficiency: 22.8%
    • Open Circuit Voltage (Voc): 40.50V
    • Maximum Power Voltage (Vmp): 33.33V
    • Short Circuit Current (Isc): 14.42A
    • Maximum Power Current (Imp): 13.65A
    • Power Tolerance: 0 to +3%
    • Cell: Mono
    • Number of Cells: 108 (6 × 18)
    • Dimensions: 1762 ±2 × 1134 ±2 × 30 ±1 mm
    • Weight: 21.5 kg
    • Front Glass: 1.6 mm anti-reflection coated glass
    • Back Glass: 1.6 mm heat-strengthened glass
    • Frame: Anodized aluminium alloy
    • Junction Box: IP68, 3 diodes
    • Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
    • Cable Length, Portrait: 400 mm (+) / 200 mm (-)
    • Cable Length, Landscape: 1200 mm (+) / 1200 mm (-)
    • Maximum System Voltage: 1500V DC
    • Maximum Series Fuse Rating: 25A
    • Operating Temperature: -40°C to +70°C
    • Maximum Static Load, Front: 5400Pa
    • Maximum Static Load, Back: 2400Pa
    • NOCT: 45 ±2°C
    • Safety Class: Class II
    • Fire Performance: UL Type 38 / Class C
    • Packaging: 36 pcs/pallet, 936 pcs/40HQ container

    Datasheet

    Download JAM54D41-455/LR 455W Datasheet (PDF)
