Description

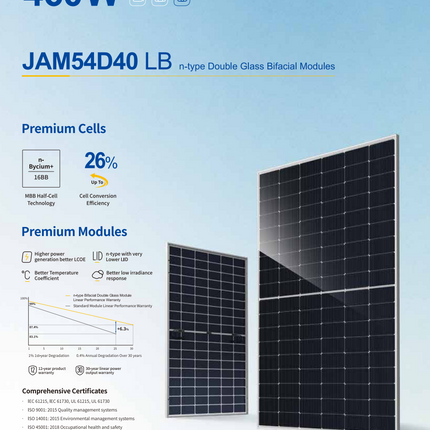

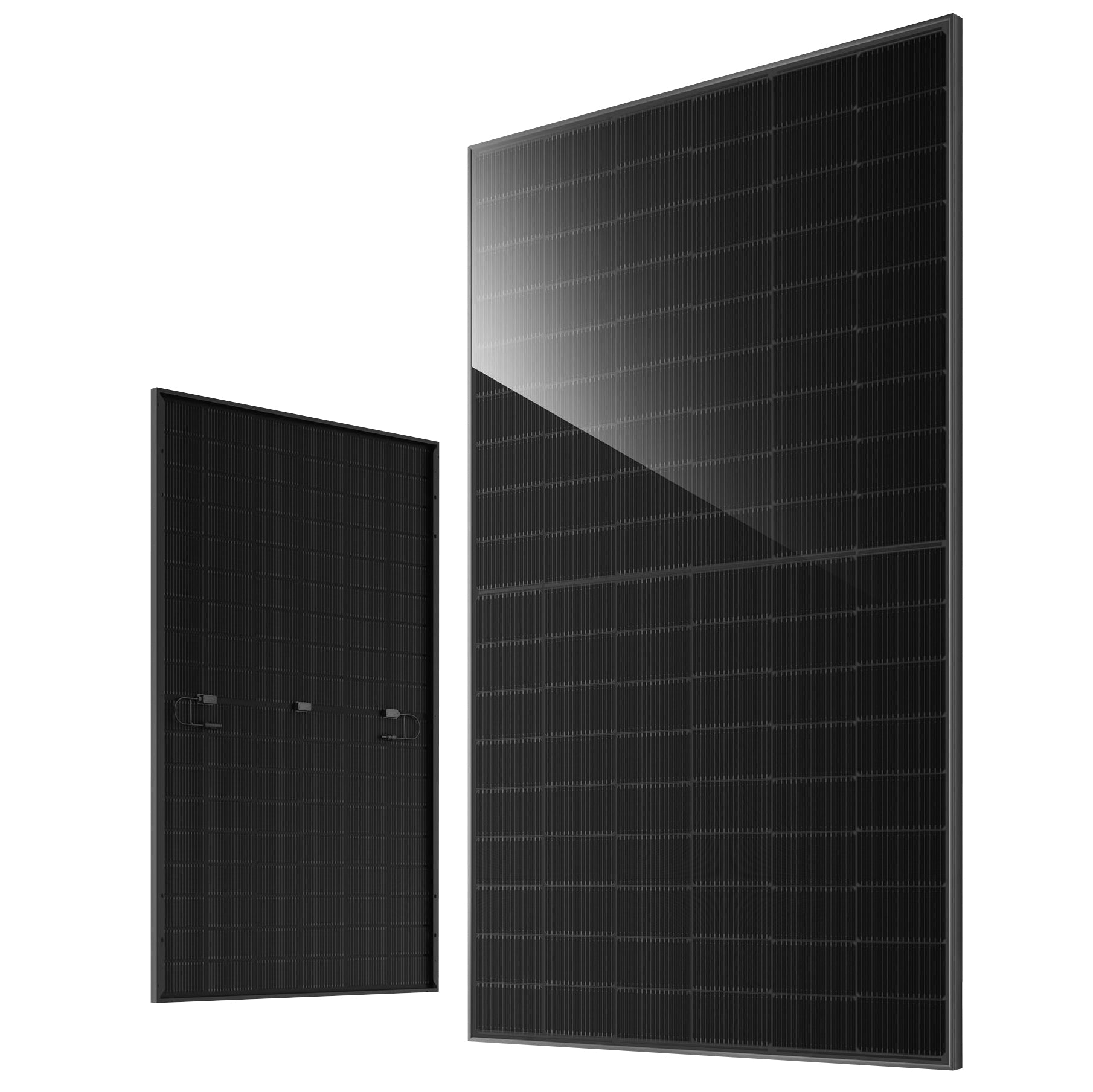

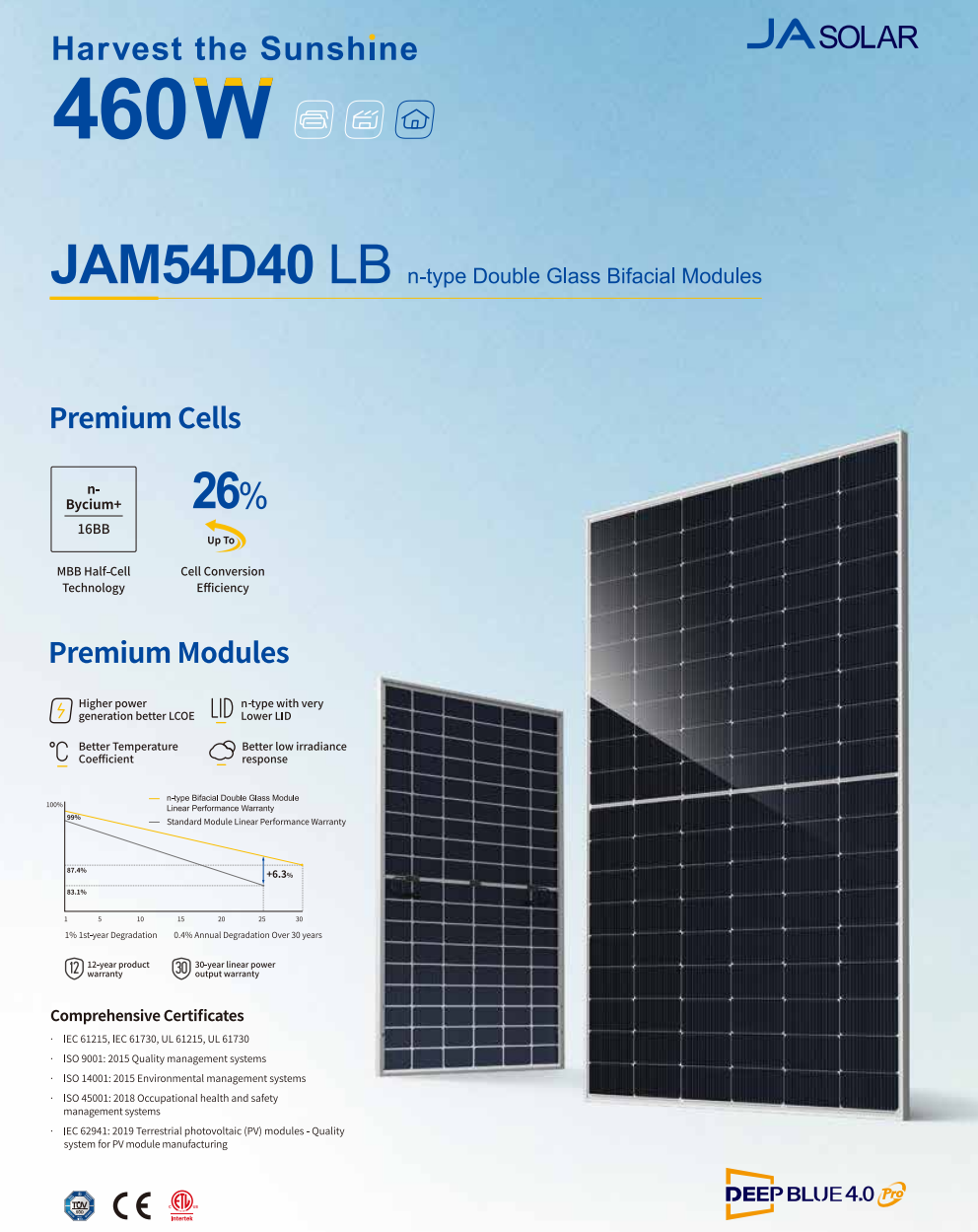

Upgrade your solar system with the JAM54D40 450W Full Black solar panel, designed for maximum efficiency, reliability, and modern aesthetics. Perfect for residential rooftops and commercial projects, this panel combines advanced cell technology with a sleek full-black finish.
N-type modules have excellent power generation capabilities, with an average power output about 3.9% higher than P-type modules.
Features
BYCUIM and cell
Lower Temp. I Infulence
High-density Encapsulation Technology
Higher Bifacial Benefits
Higher Power & Efficiency
Better Low-light Performance
Lower Degradation
Excellent Reliability

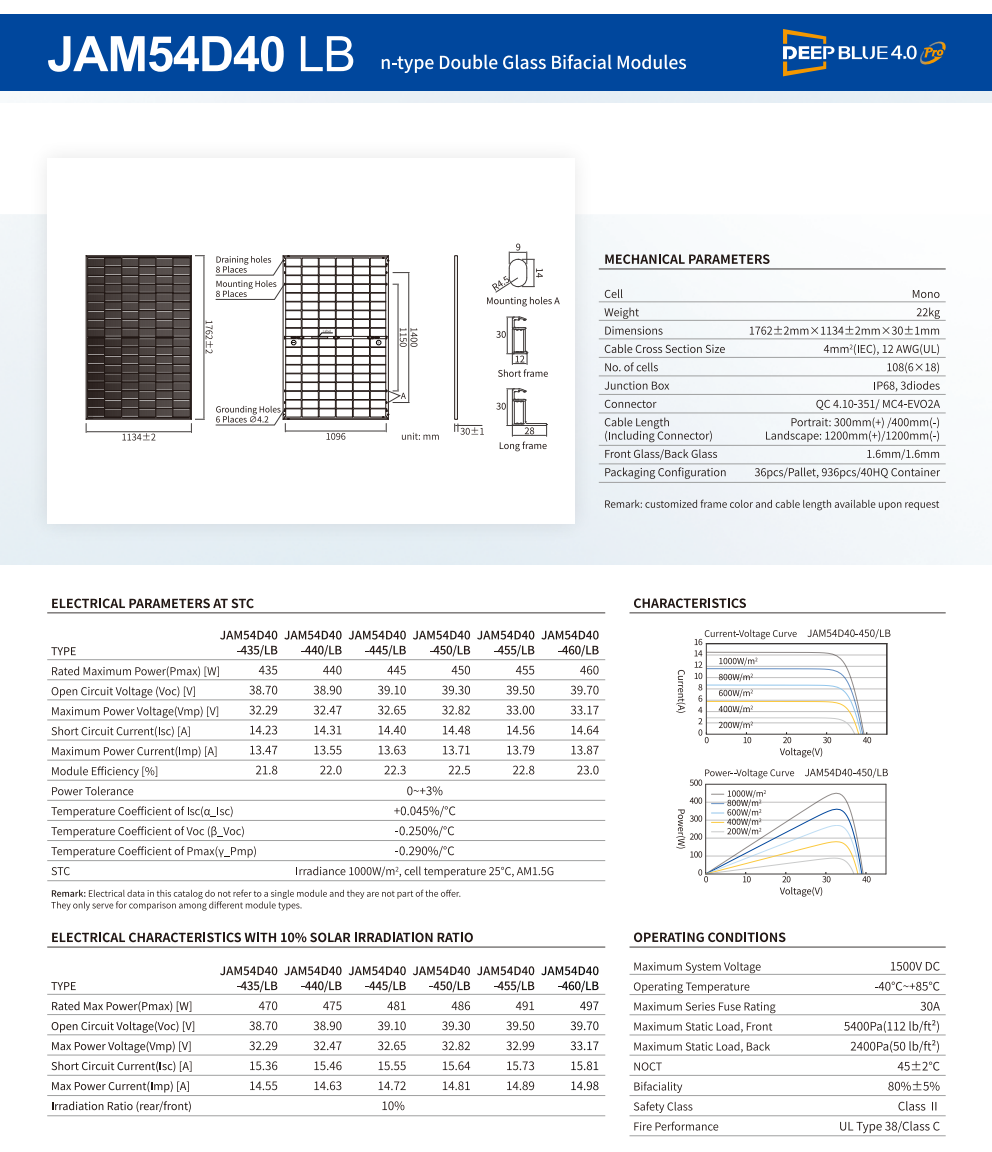

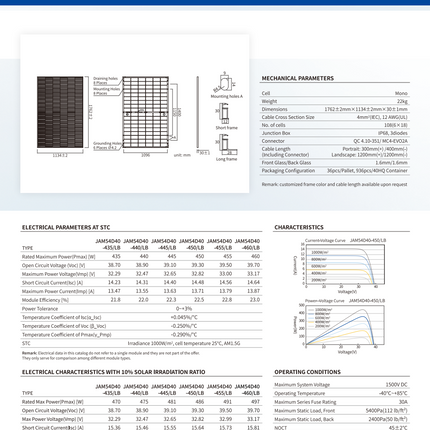

- Electrical Parameters AT STC:
- Model: JAM54D40-450/LB
- Rated Maximum Power(Pmax): 450W
- Open Circuit Voltage(Voc): 39.3V
- Maximum Power Voltage(Vmp): 32.82V
- Short Circuit Current(Isc): 14.48A
- Maximum Power Current(Imp): 13.71A
- Module Efficiency: 22.5%
- Power Tolerance: 0 - +3%
Temperature Coefficient of Isc(a_Isc): +0.045%/℃
Temperature Coefficient of Voc(β_Voc): -0.250%/℃
Temperature Coefficient of Pmax(y_Pmp): -0.290%/℃
- STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
- Mechanical Parameters:
- Cell: Mono
- Weight: 22kg
- Dimensions: 1762±2mm x 1134±2mm x 30±1mm
- Cable Cross Section Size: 4mm²(IEC), 12 AWG(UL)
- Junction Box: IP68,3diodes
- Connector: QC 4.10-351/MC4-EVO2A
- Cable Length(Including Connector): Portrait:300mm(+)/400mm(-) Landscape:1200mm(+)/1200mm(-)
- Front Glass/Back Glass: 1.6mm/1.6mm
- Packaging Configuration: 36pcs/Pallet, 720pcs/40HQ Container
- Warranty: 12-year product warranty, 30-year linear power output warranty
Whether for home solar systems or commercial installations, the JAM54D40 450W Full Black solar panel is a smart investment that reduces electricity bills, supports sustainability, and delivers long-lasting performance.
