Description

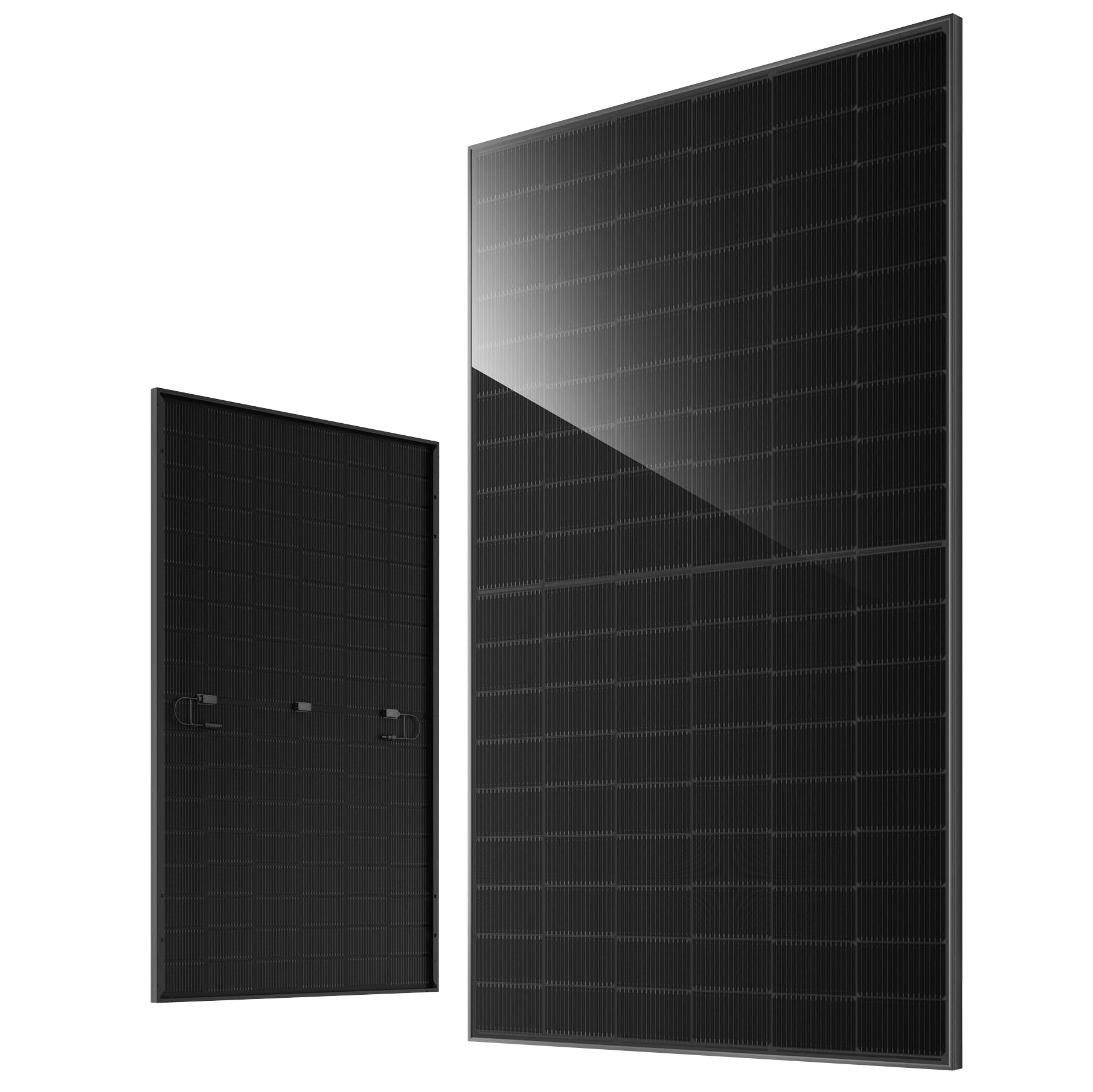

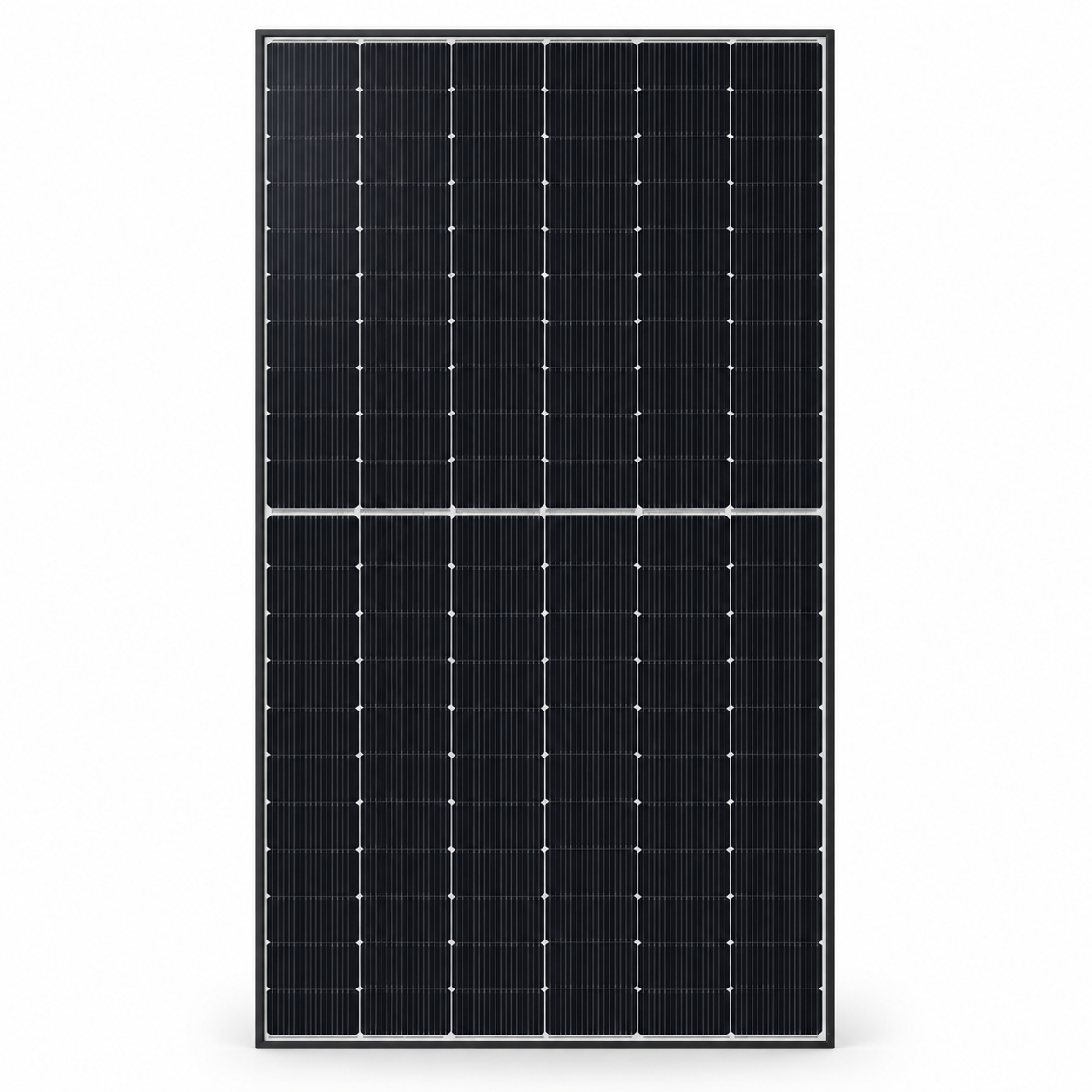

The JA Solar JAM54D40-460/LR is a 460W N-type monocrystalline solar panel with double-glass construction and a black frame. It is designed for high efficiency, strong mechanical durability, and stable long-term output.
Key Features
- 460W rated maximum power
- N-type monocrystalline half-cell technology
- Double-glass module construction
- Monofacial design
- Black frame
- High module efficiency of 23.0%
- Low degradation and strong long-term performance
- MC4-EVO2A connector
- Suitable for residential and commercial solar installations
Electrical Specifications
- Model: JAM54D40-460/LR
- Maximum Power (Pmax): 460W
- Open Circuit Voltage (Voc): 39.70V
- Maximum Power Voltage (Vmp): 33.17V
- Short Circuit Current (Isc): 14.64A
- Maximum Power Current (Imp): 13.87A
- Module Efficiency: 23.0%
- Power Tolerance: 0 to +3%
- Maximum System Voltage: 1500V DC
- Maximum Series Fuse Rating: 25A
Temperature Ratings
- Temperature Coefficient of Isc: +0.045%/°C
- Temperature Coefficient of Voc: -0.250%/°C
- Temperature Coefficient of Pmax: -0.290%/°C
- NOCT: 45 ± 2°C
- Operating Temperature: -40°C to +85°C
Mechanical Specifications
- Cell Type: Mono N-type
- Cell Arrangement: 108 half-cells (6 × 18)
- Dimensions: 1762 × 1134 × 30 mm
- Weight: 24.8 kg
- Front / Back Glass: 2.0 mm / 2.0 mm
- Junction Box: IP68, 3 diodes
- Cable: 4 mm² IEC / 12 AWG UL
- Connector: MC4-EVO2A
- Packaging: 36 pcs per pallet, 936 pcs per 40HQ container
Load Ratings
- Maximum Static Load, Front: 5400 Pa
- Maximum Static Load, Rear: 2400 Pa
- Safety Class: Class II
- Fire Rating: Class C
Warranty
JA Solar linear power output warranty and product warranty apply according to JA Solar regional warranty terms and the applicable installation/system configuration.

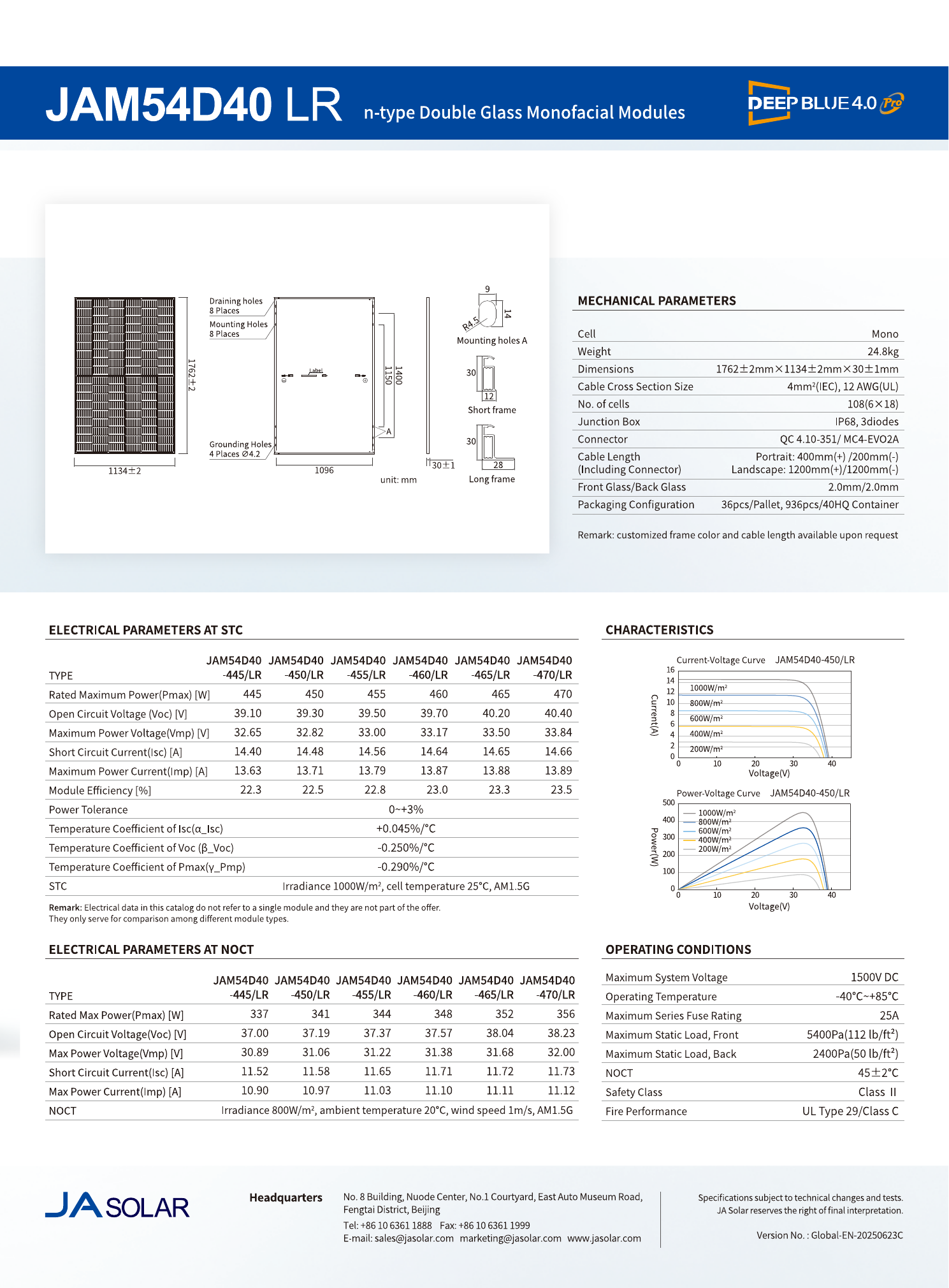

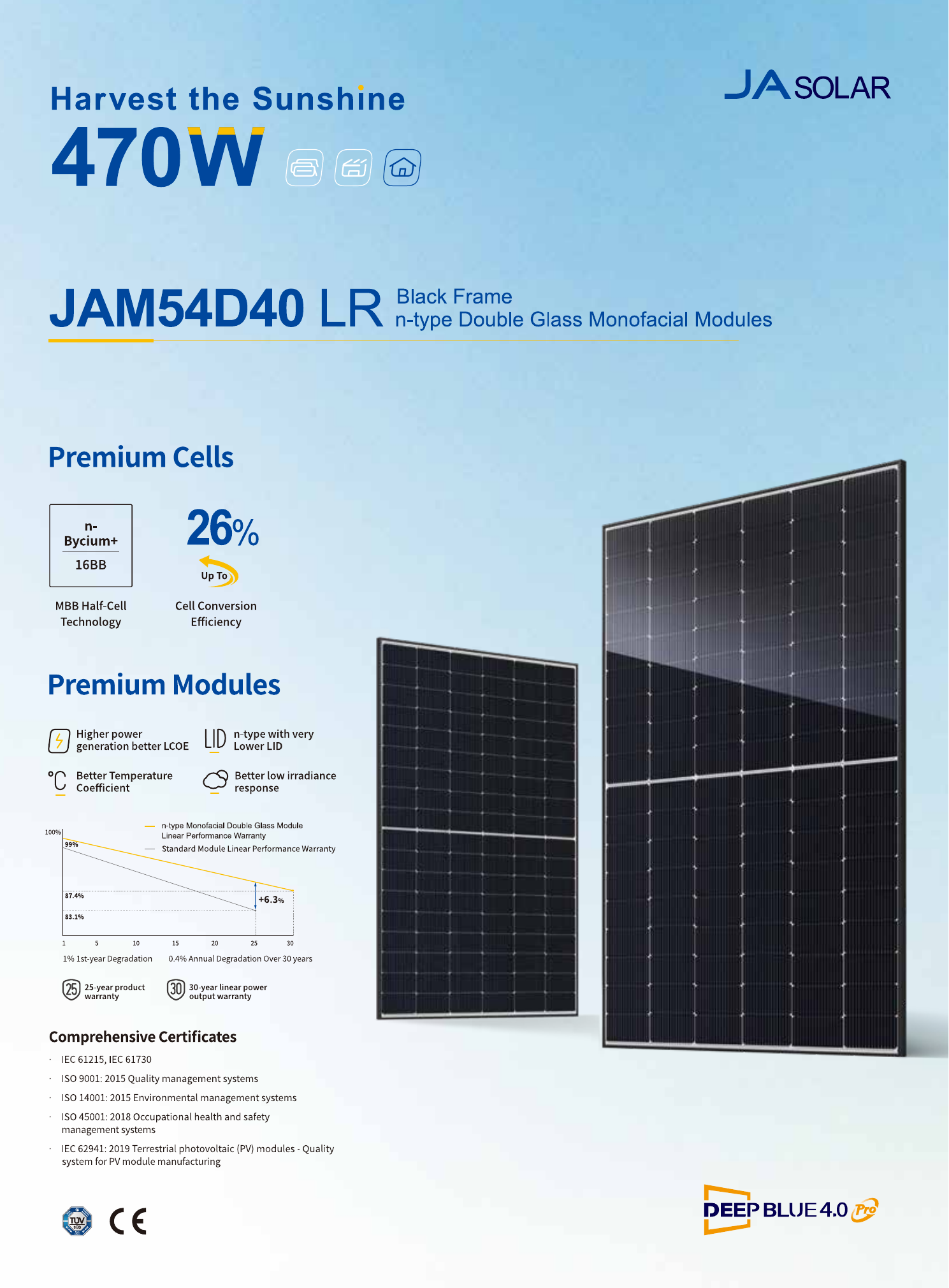

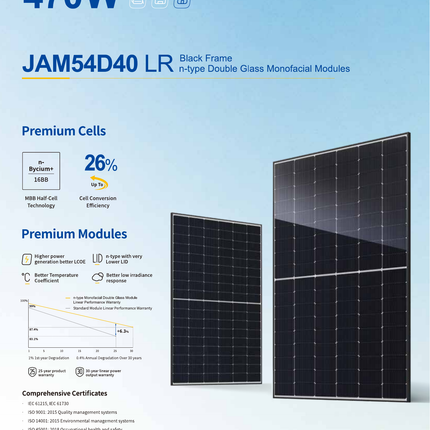

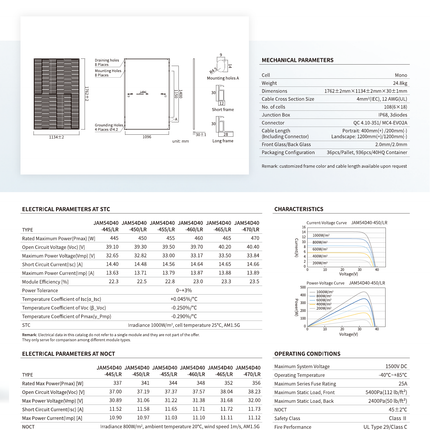

Download datasheet (PDF)
