Description

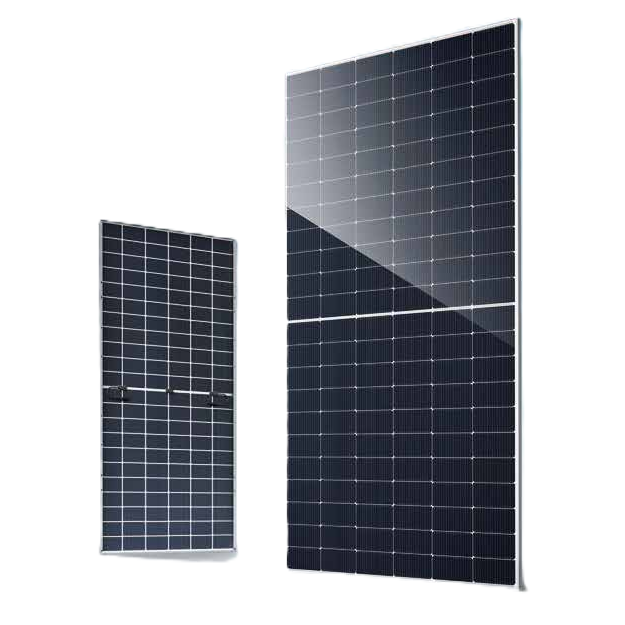

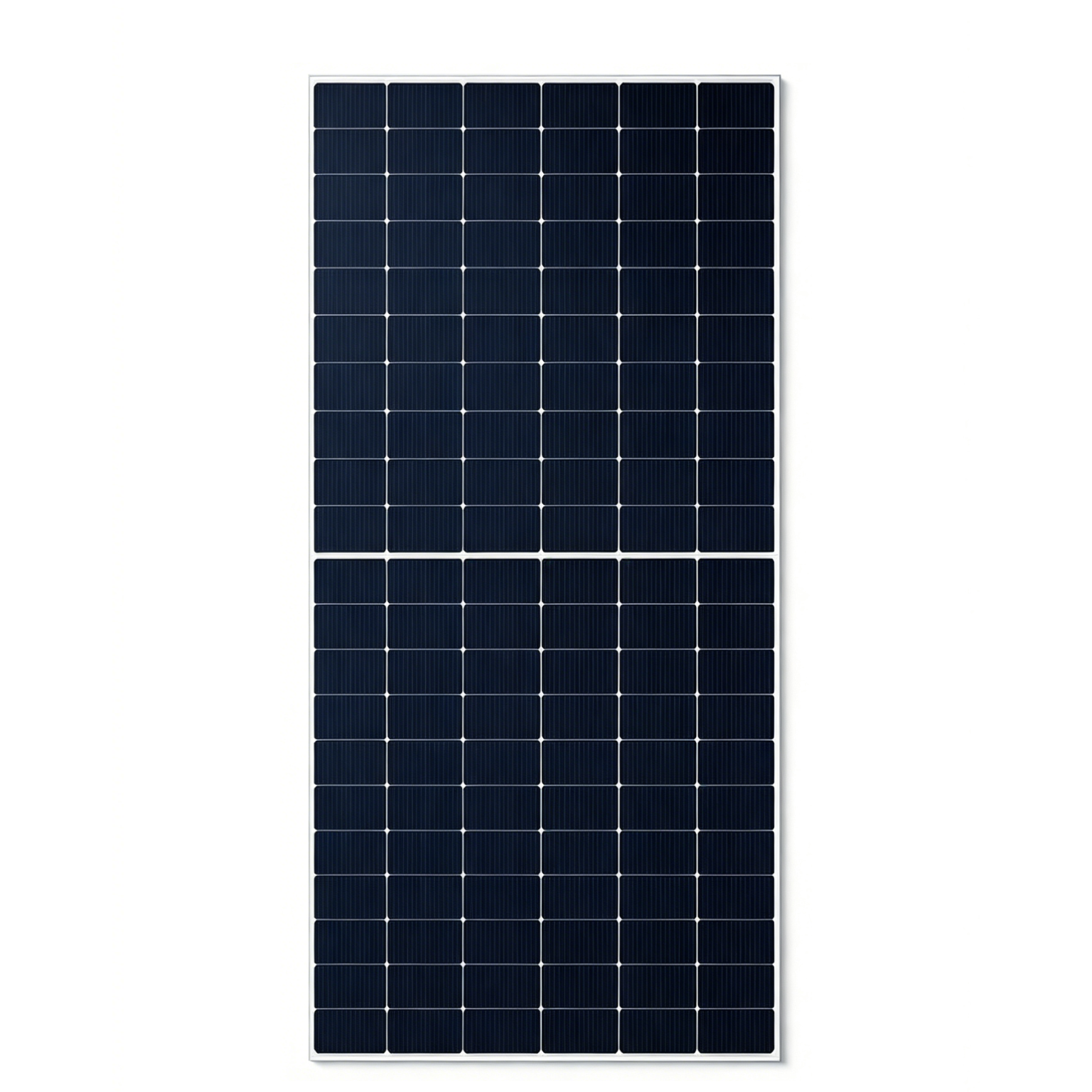

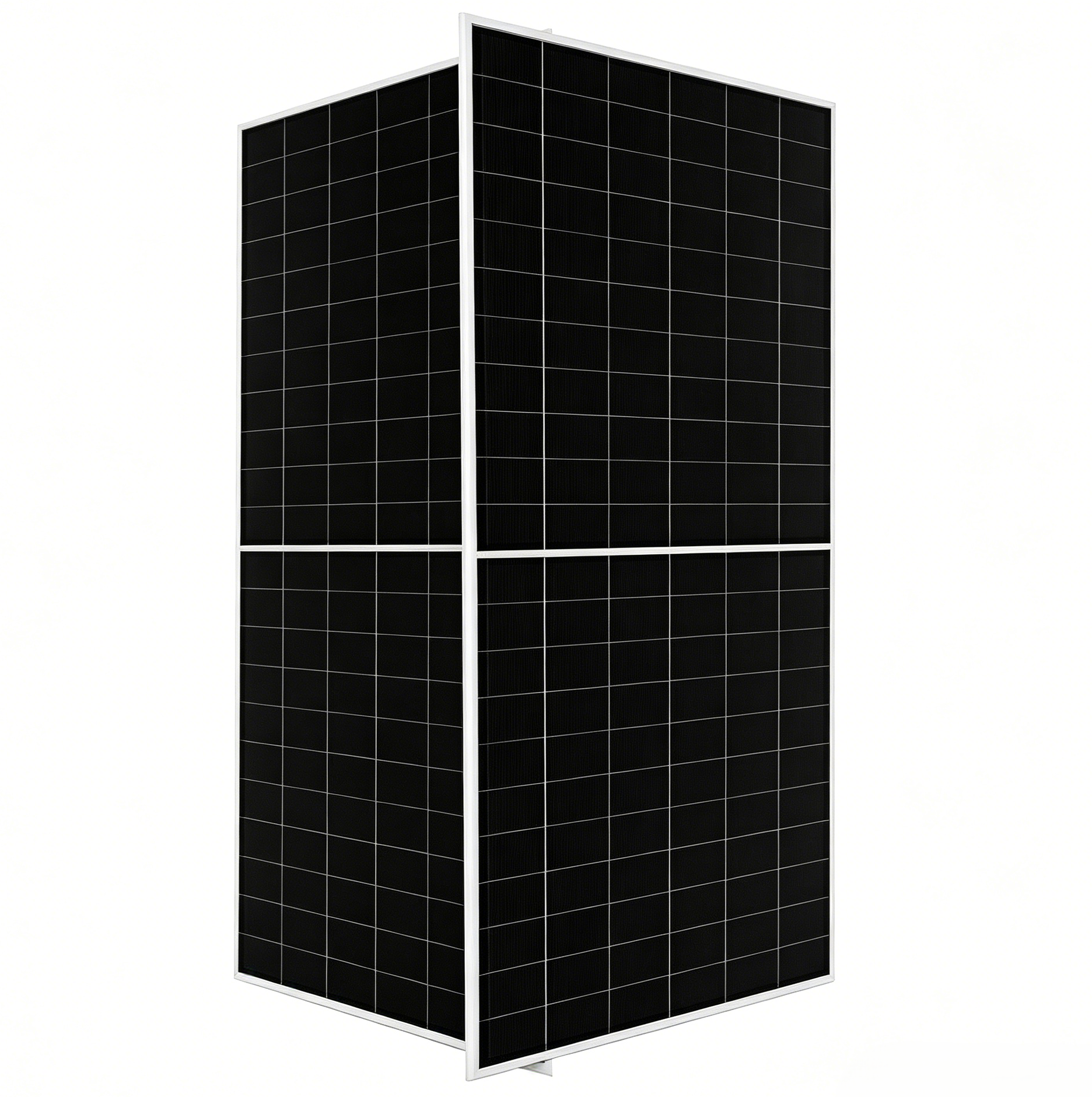

JA Solar 590W Solar Panel Bifacial Double Glass N-Type Mono Half-Cell JAM66D42
N-type modules have excellent power generation capabilities, with an average power output about 3.9% higher than P-type modules.
Features
BYCUIM and cell
Lower Temp. I Infulence
High-density Encapsulation Technology
Higher Bifacial Benefits
Higher Power & Efficiency
Better Low-light Performance
Lower Degradation
Excellent Reliability

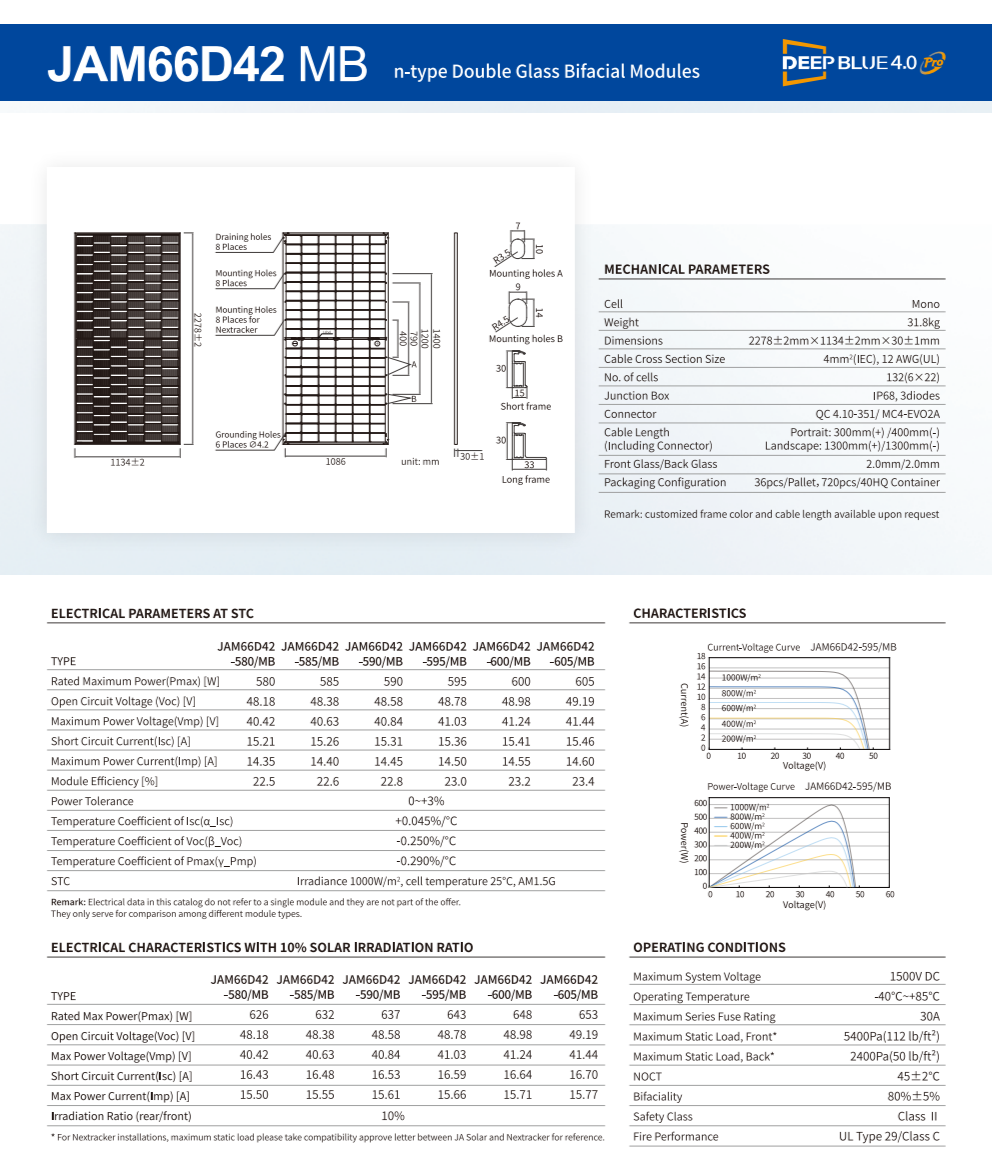

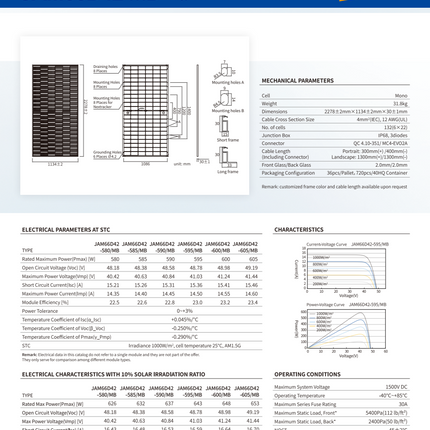

- Electrical Parameters AT STC:
- Model: JAM66D42-590/MB
- Rated Maximum Power(Pmax): 590W
- Open Circuit Voltage(Voc): 48.58V
- Maximum Power Voltage(Vmp):40.84V
- Short Circuit Current(Isc): 15.31A
- Maximum Power Current(Imp): 14.45A
- Module Efficiency: 22.8%
- Power Tolerance: 0 - +3%
Temperature Coefficient of Isc(a_Isc): +0.045%/℃
Temperature Coefficient of Voc(β_Voc): -0.250%/℃
Temperature Coefficient of Pmax(y_Pmp): -0.290%/℃
- STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
- Mechanical Parameters:
- Cell: Mono
- Weight: 31.8kg
- Dimensions: 2278±2mm x 1134±2mm x 30±1mm
- Cable Cross Section Size: 4mm²(IEC), 12 AWG(UL)
- Junction Box: IP68,3diodes
- Connector: QC 4.10-351/MC4-EVO2A
- Cable Length(Including Connector): Portrait:300mm(+)/400mm(-) Landscape:1300mm(+)/1300mm(-)
- Front Glass/Back Glass: 2.0mm/2.0mm
- Packaging Configuration: 36pcs/Pallet, 720pcs/40HQ Container
- Warranty: 12-year product warranty, 30-year linear power output warranty
