Description

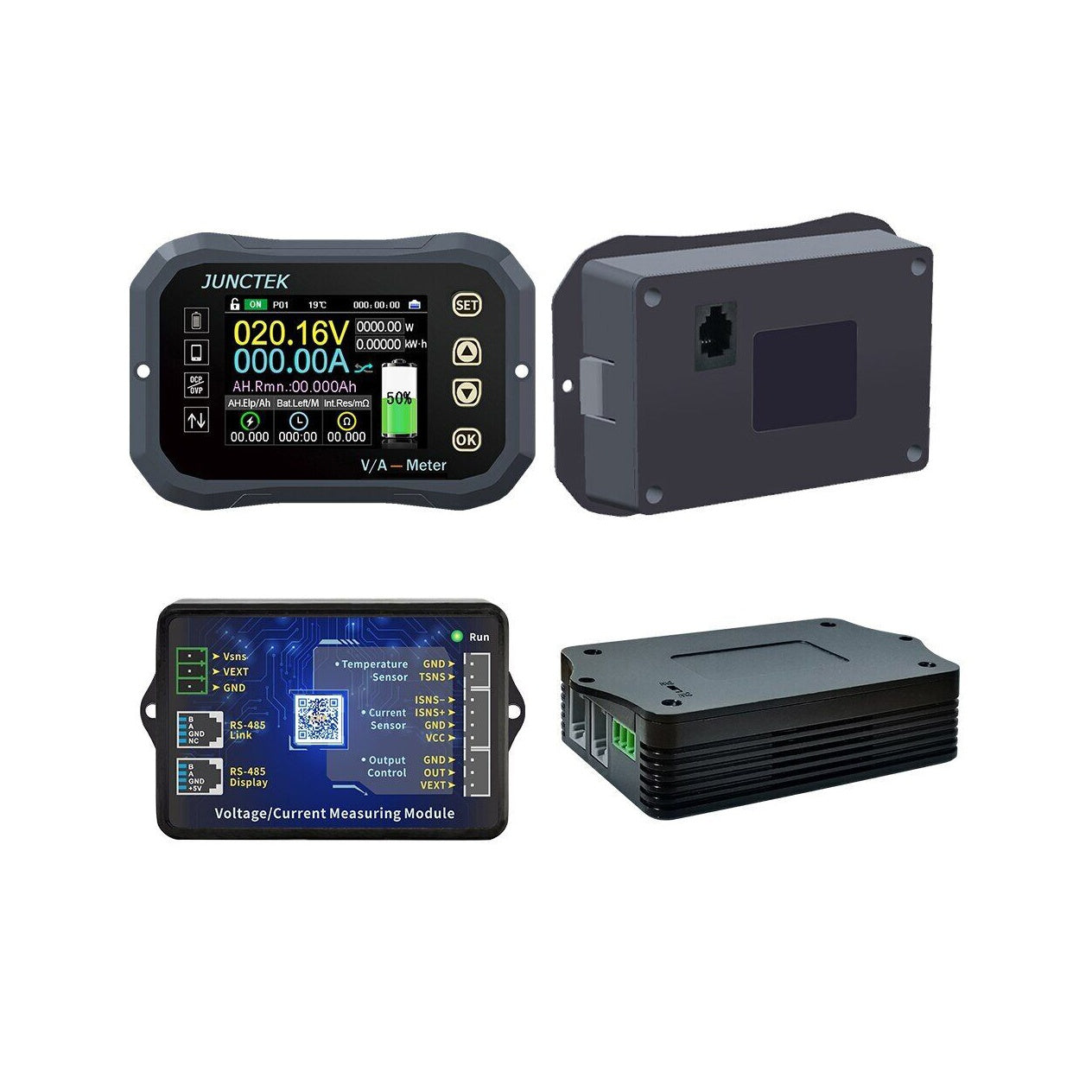

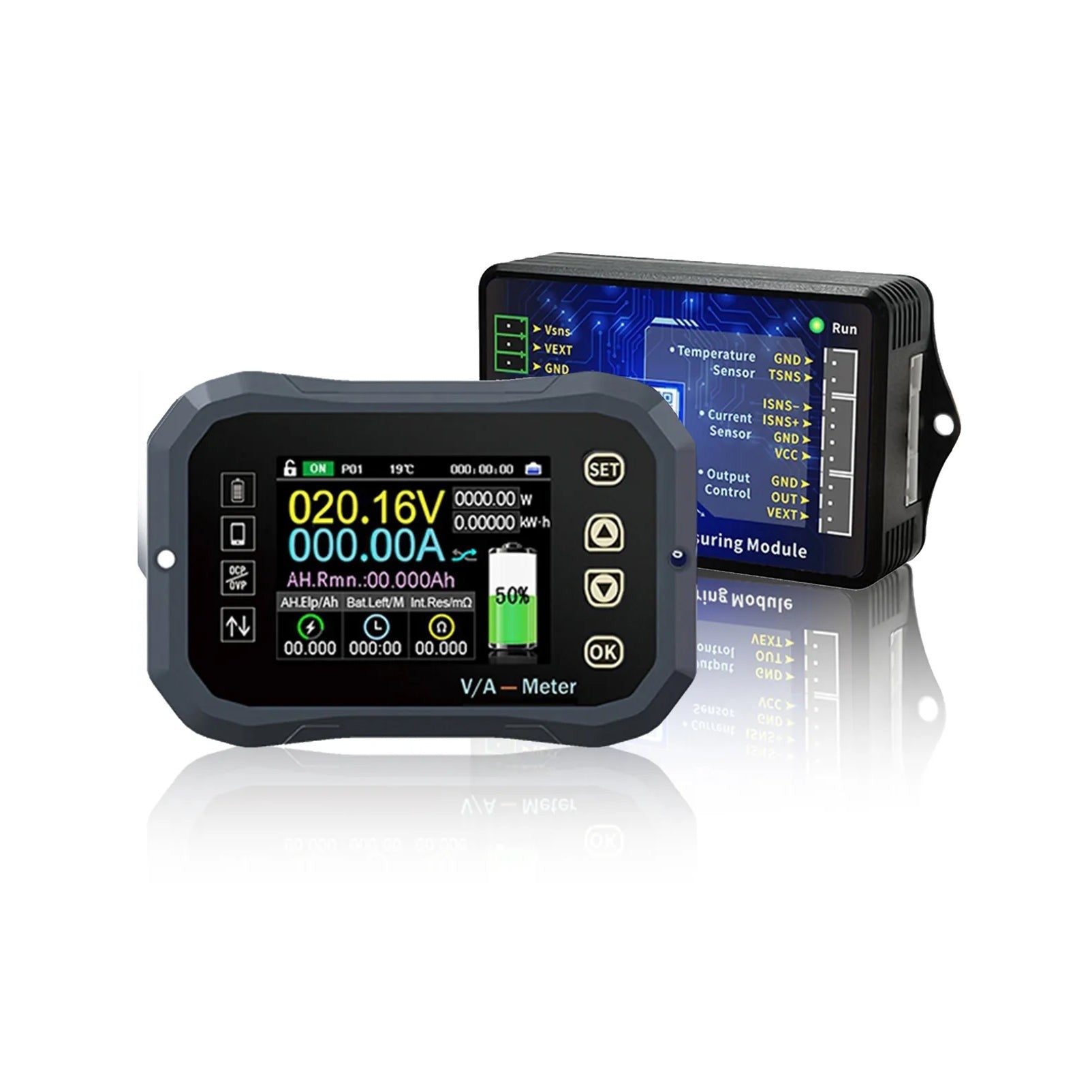

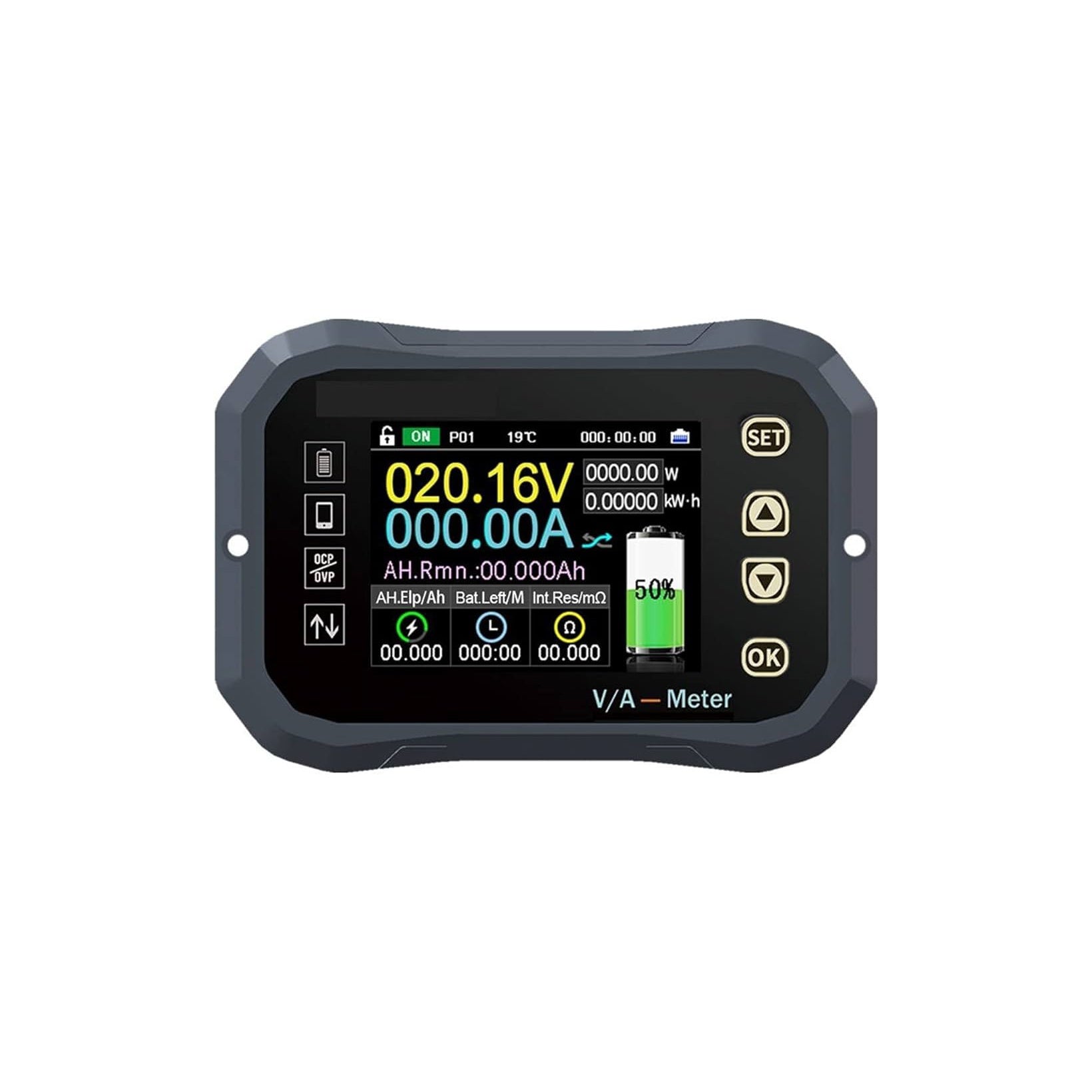

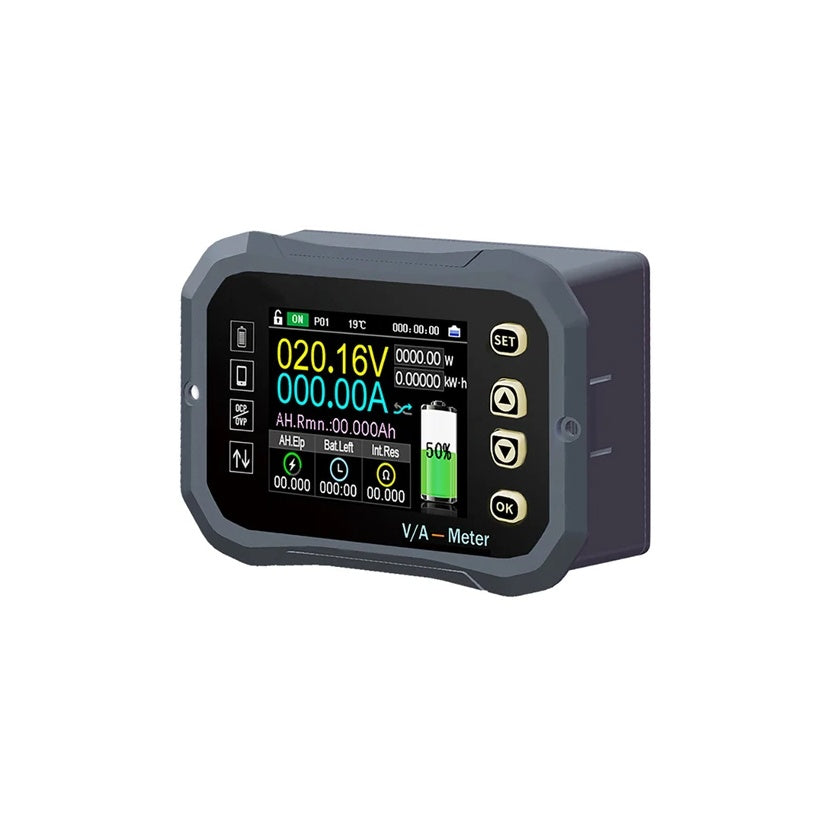

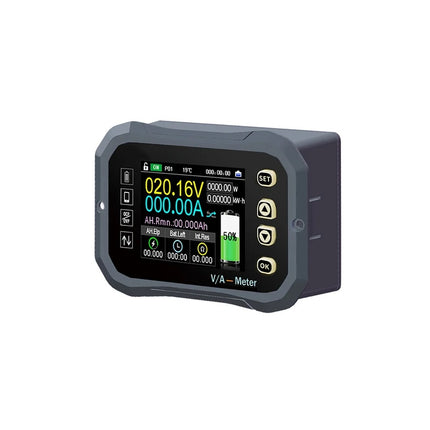

KG110F DC 0-120V 400A Battery Capacity Tester Voltage Current Meter Battery Monitor Indicator 12V 24V 36V 48V 60V Coulomb Meter
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
Specification：
Model： KG140F

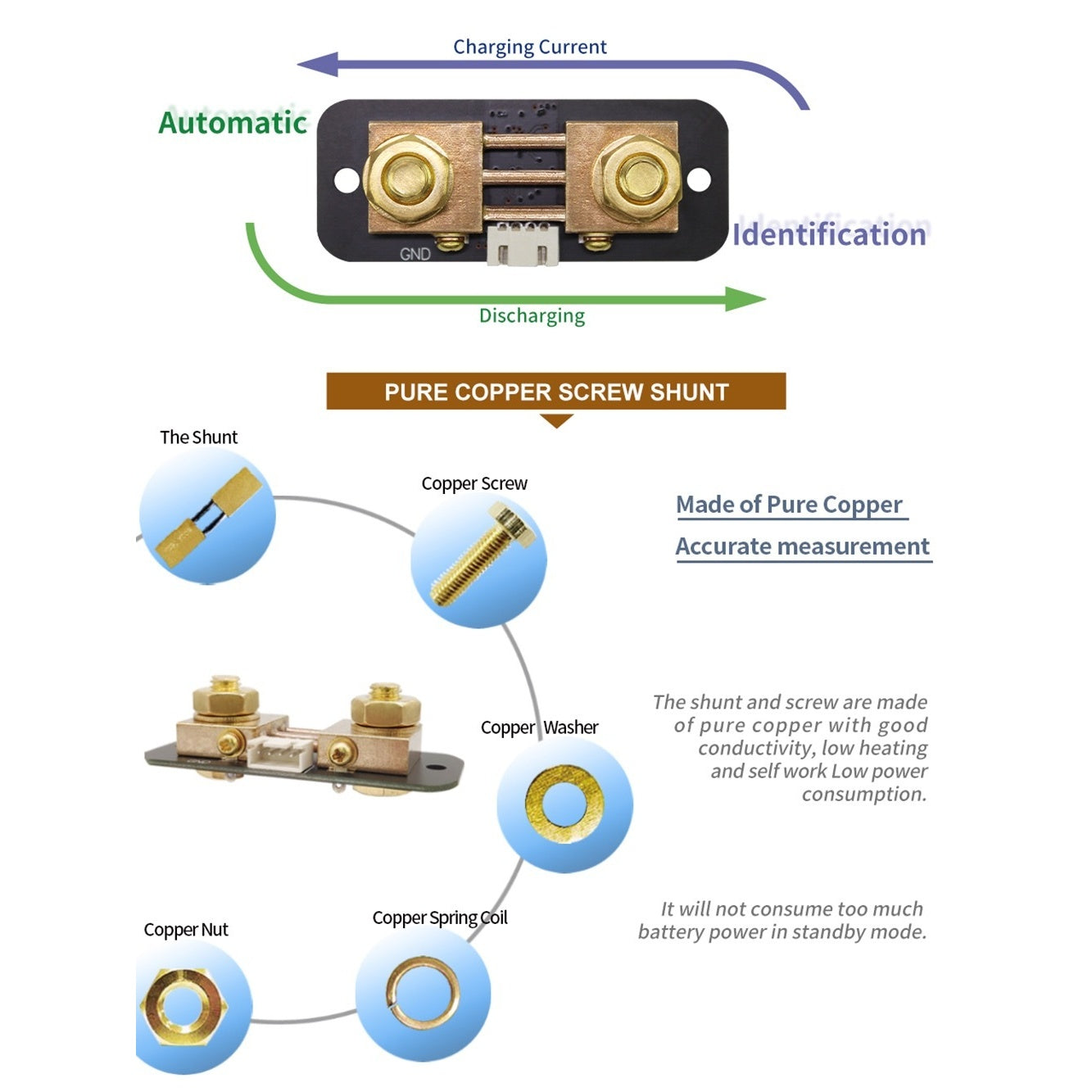

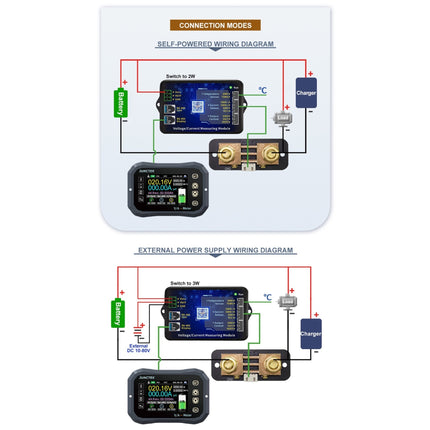

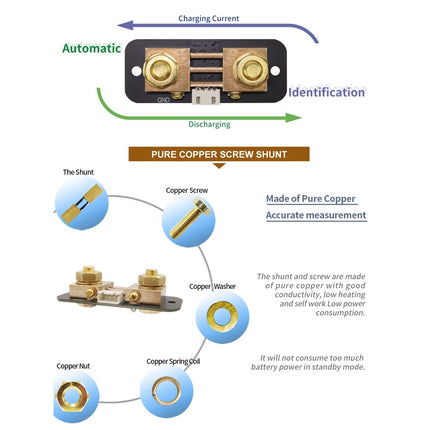

Shunt voltage measurement range (externally powered) 0-120V
Voltage measurement range (self-powered) 10-120V
Voltage fraction 0.01V
Current measurement range 0-400A
Current fraction 0.01A
Temperature measurement range -20-120° C
Capacity display range 0%-100%
Power measurement range 0-72KW
Power fraction 0.01W
Ampere-time measurement range 0-9999.99AH
Capacity fraction 0.001AH
Watt-hour measurement range 0-9999.99kWH
Watt-hour fraction 0.001WH
Time measurement range 0~999:59:59S
Time division rate 1 second

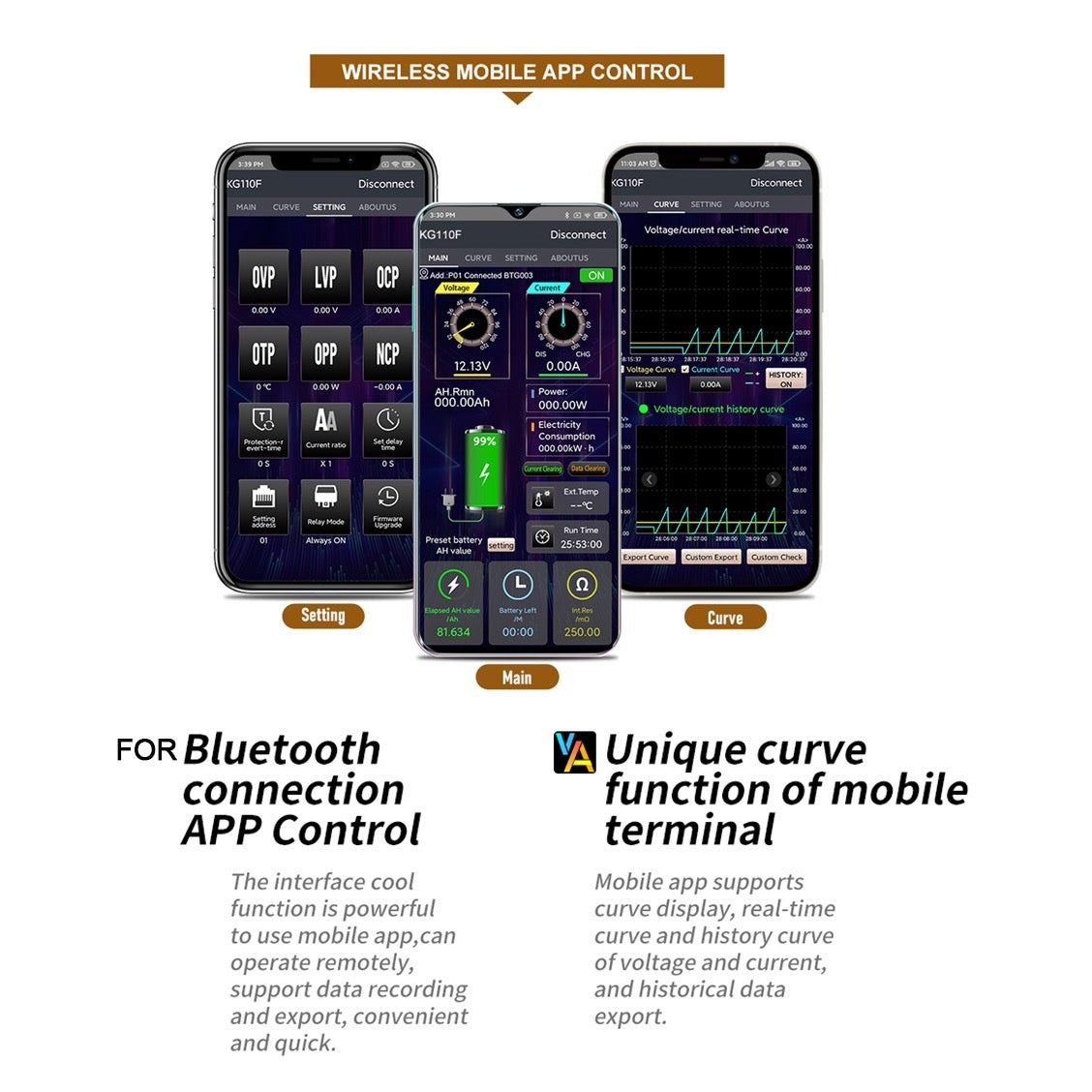

Bluetooth communication distance Accessible up to 10m
Voltage Accuracy ±2%+3 words
Current accuracy 5%+10 words
Sampling rate 1 time/second
Power consumption of measurement board approx. 0.4W
Power consumption of display head approx. 0.5W
Over power protection 0-99999.99W
Negative overcurrent protection 0-400A
Positive overcurrent protection 0-400A
External over-temperature protection 0-120° C
Protection recovery time 0-99s
Enter standby time 0-60
Delay time setting 0-99S
