Description

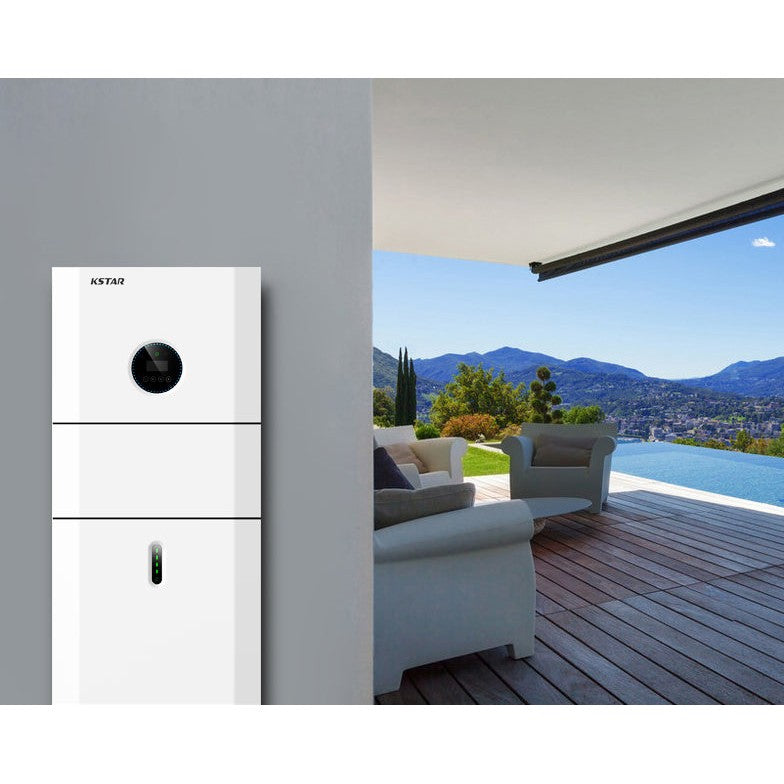

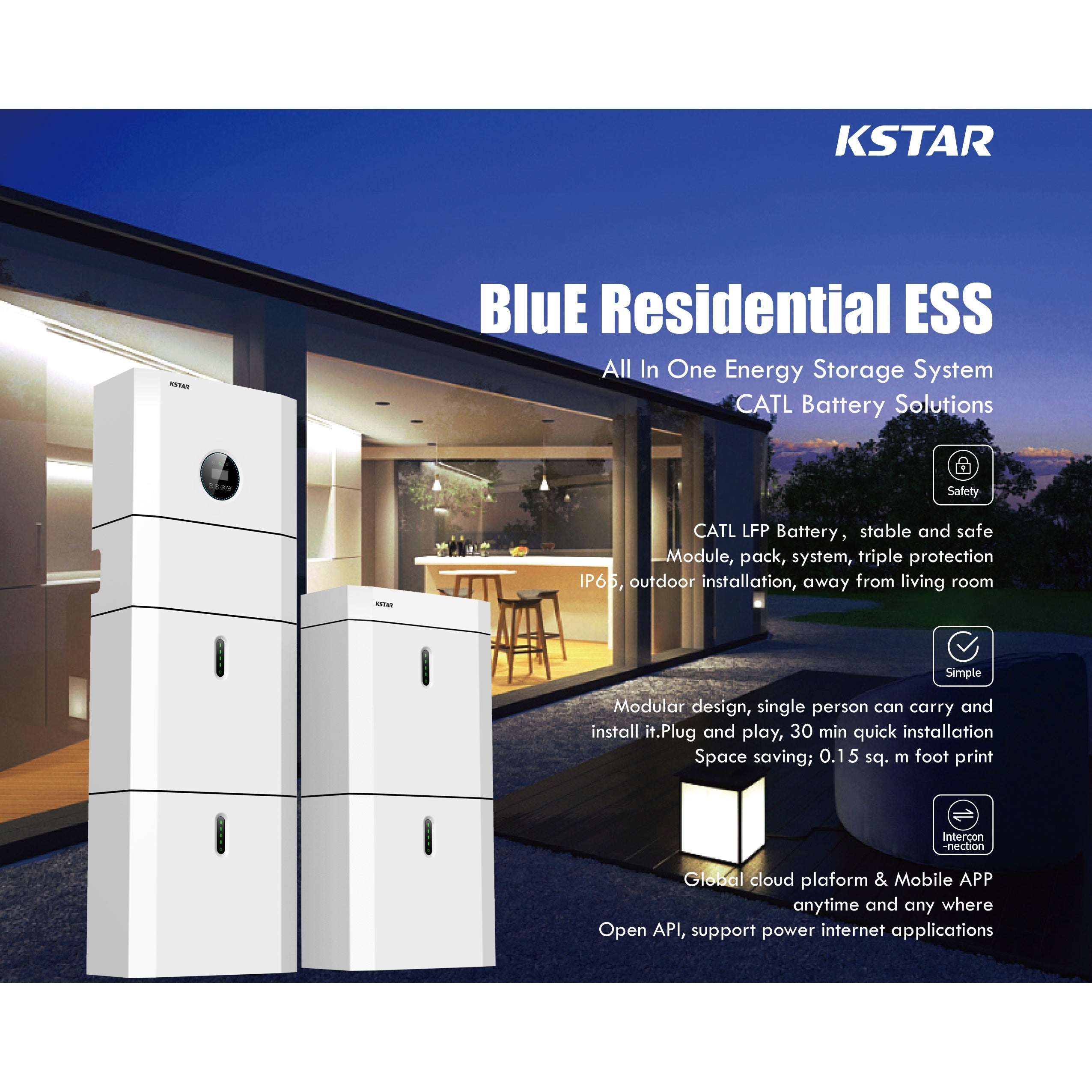

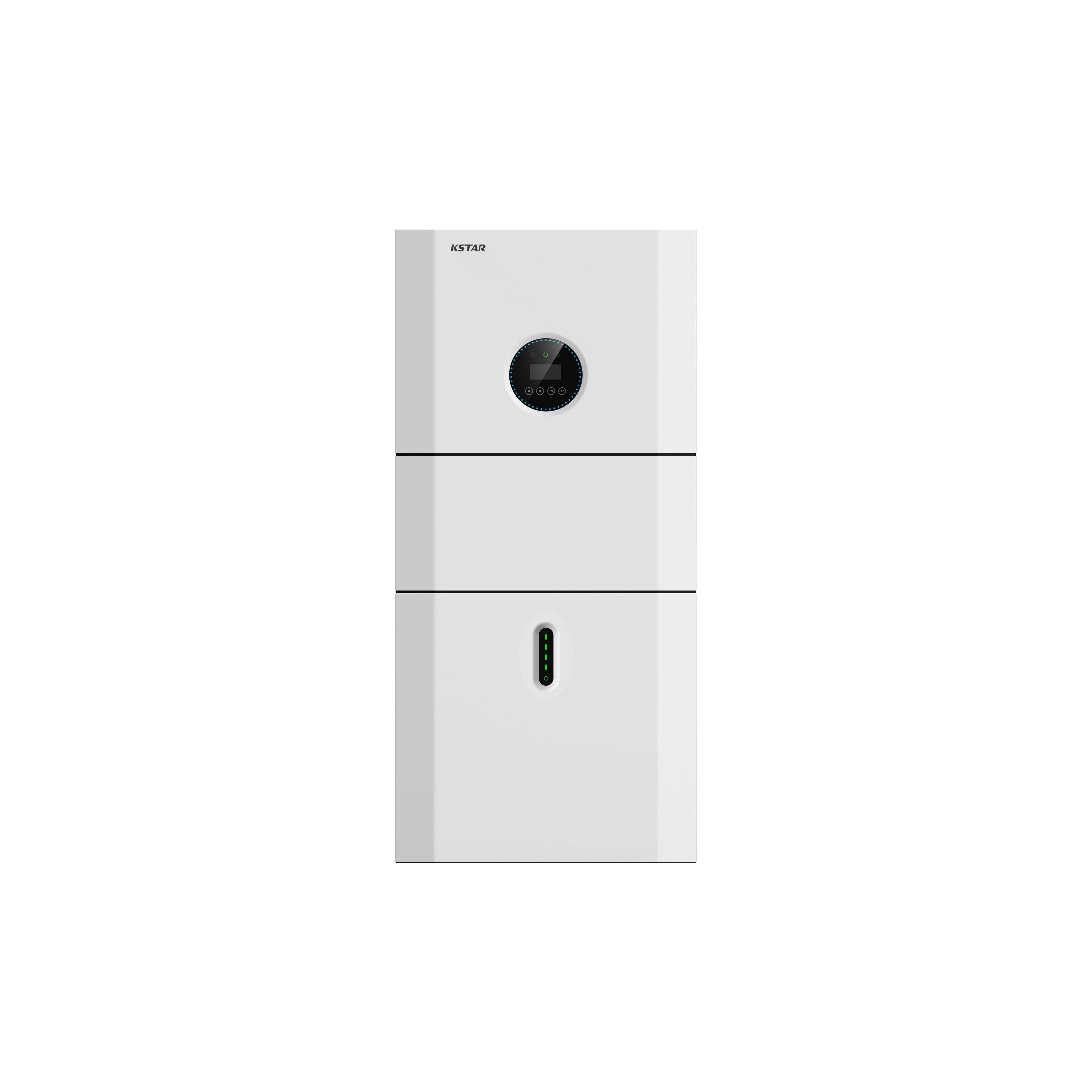

The KSTAR BluE Series represents a premium choice in hybrid energy storage solutions. It integrates CATL's advanced battery technology with KSTAR's innovative inverter solution. This all-in-one single-phase system prioritizes safety, reliability, and superior energy yields. Manufactured under the joint venture of CATL-KSTAR, it embodies a fusion of leading-edge technology and industry expertise.
Key Features:
All-In-One Design
High Efficiency
IP65 Protection
String Monitoring
Easy Installation
Digital Controller
DC/AC Surge Protection
Reactive Power Controller

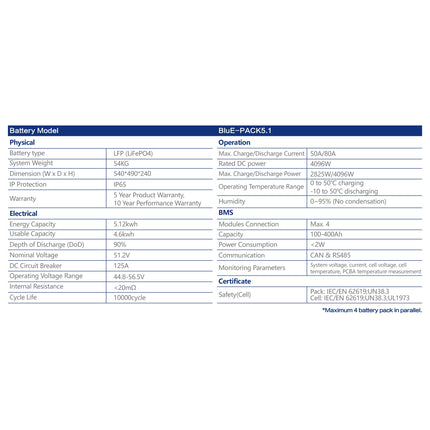

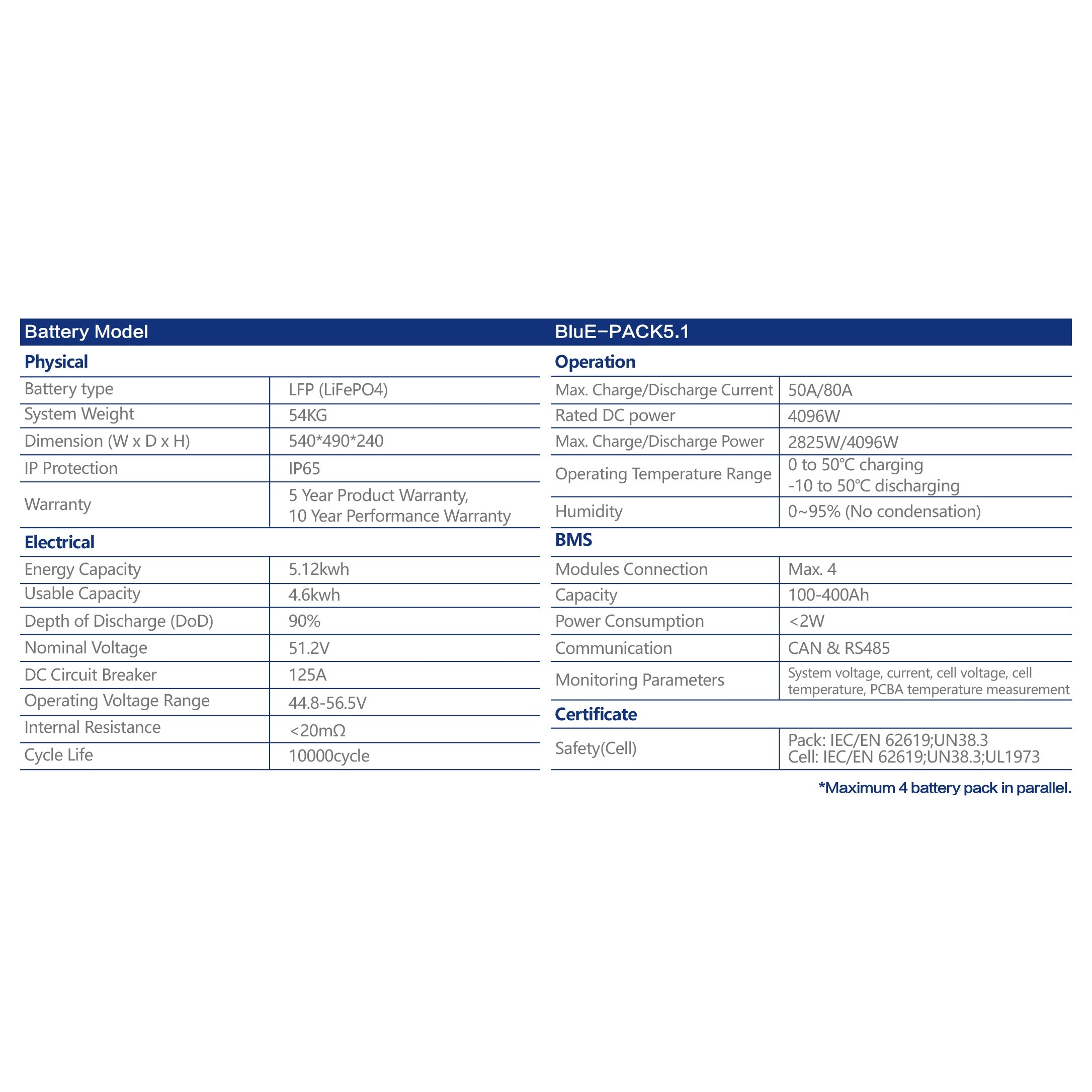

Battery Model: BluE-PACK5.1
Battery type: LiFePO4
Weight: 54KG
Dimensions W x H x D: 540x490x240mm
IP Protection: IP65
Energy Capacity: 5.12kwh
Usable Capacity: 4.6kwh
Depth of Discharge (DoD): 90%
Nominal Voltage: 51.2V
DC Circuit Breaker: 125A
Operating Voltage Range: 44.8-56.5V
Cycle Life: 10000cycle

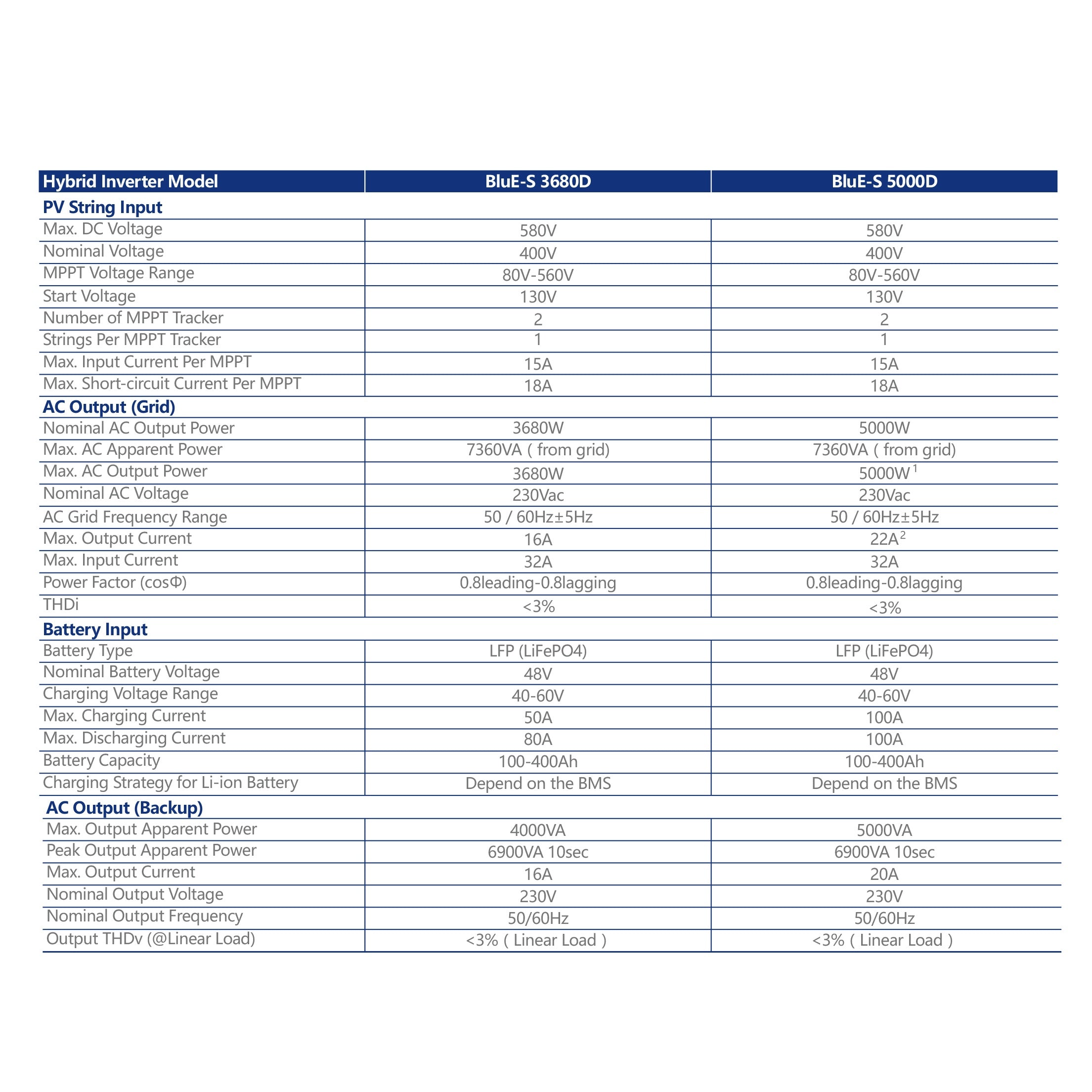

Hybrid Inverter Model: BluE-S 5000D
PV String Input
Max. DC Voltage: 580V
Nominal Voltage: 400V
MPPT Voltage Range: 80V-560V
Start Voltage: 130V
Number of MPPT Tracker: 2
Strings Per MPPT Tracker: 1
Max. Input Current Per MPPT: 15A
Max. Short-circuit Current Per MPPT: 18A
AC Output (Grid)
Nominal AC Output Power: 5000W
Max. AC Output Power: 5000W
Nominal AC Voltage: 230Vac
Battery Input
Battery Type: LFP (LiFePO4)
Nominal Battery Voltage: 48V
Charging Voltage Range: 40-60V
Max. Charging Current: 100A
Max. Discharging Current: 100A

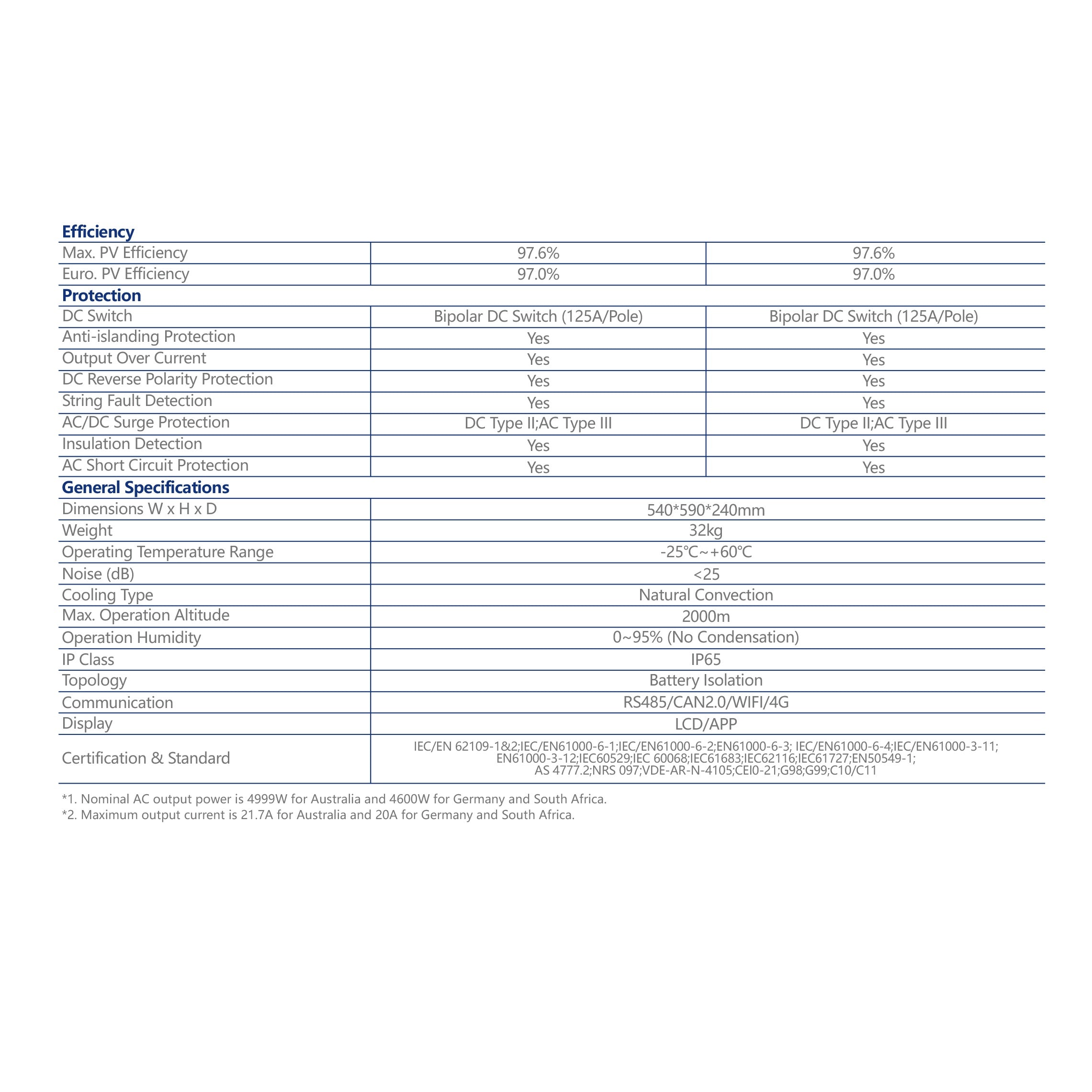

Dimensions W x H x D: 540x590x240mm
Weight: 32kg
Package included:
1 X Kstar BluE-PACK5.1 Lifepo4 Battery 5.12KWh
1 X Kstar BluE-S 5000D 5000W Hybrid Inverter

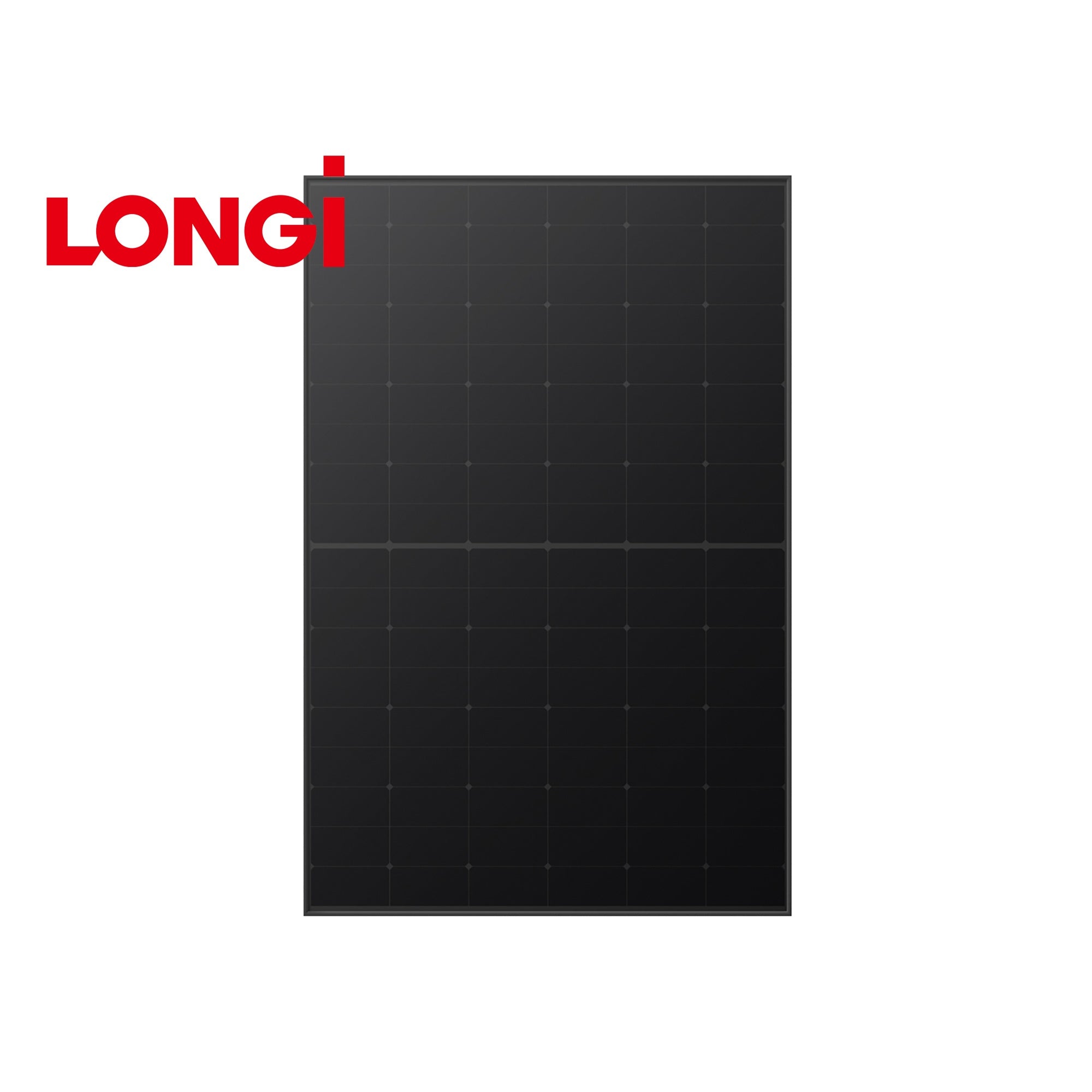

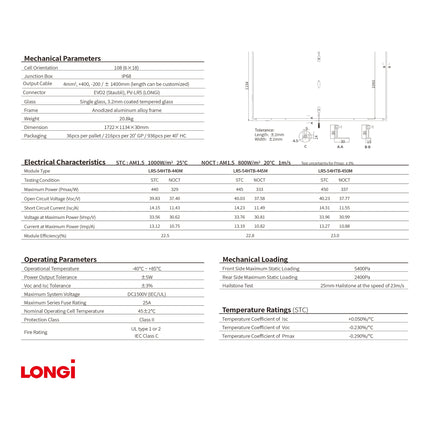

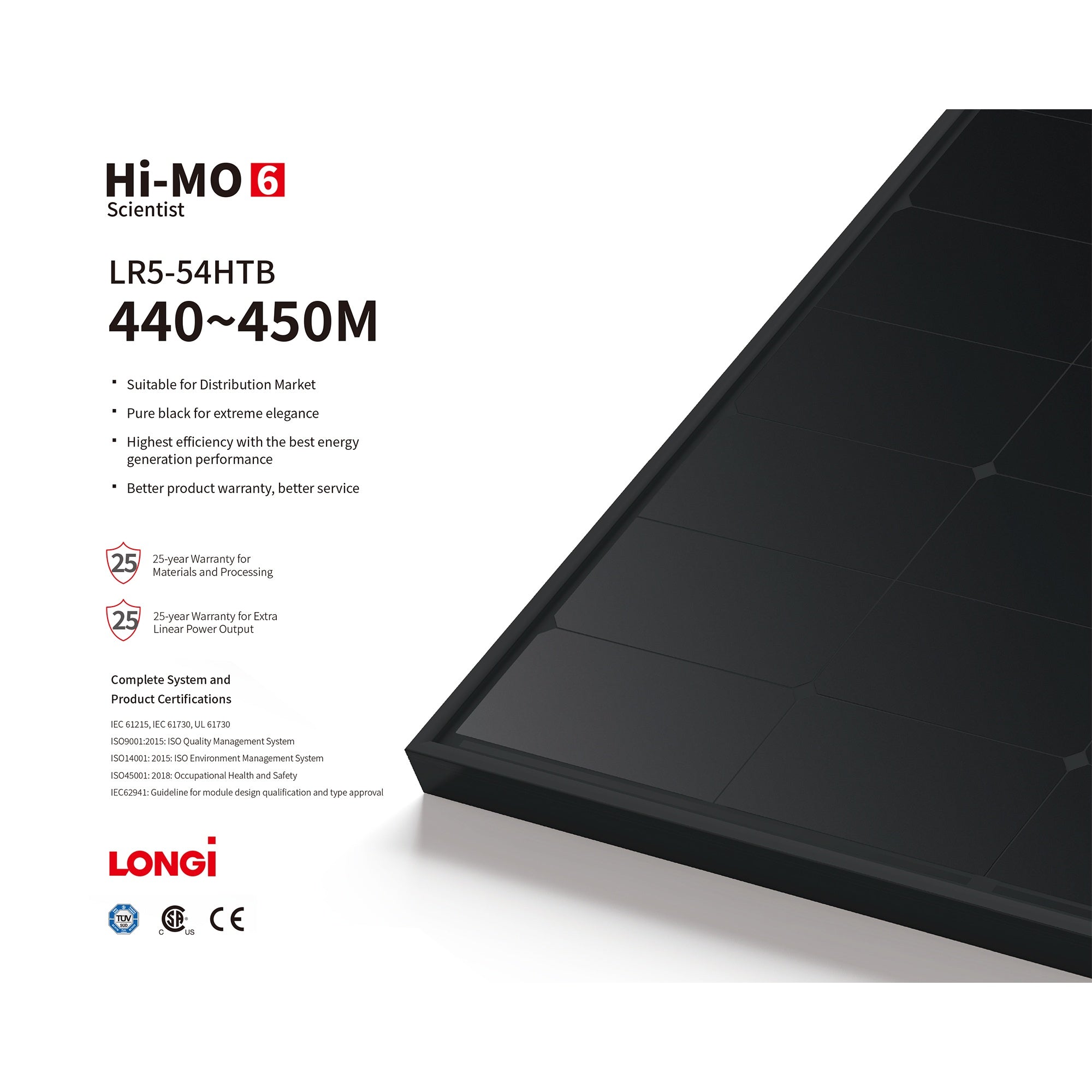

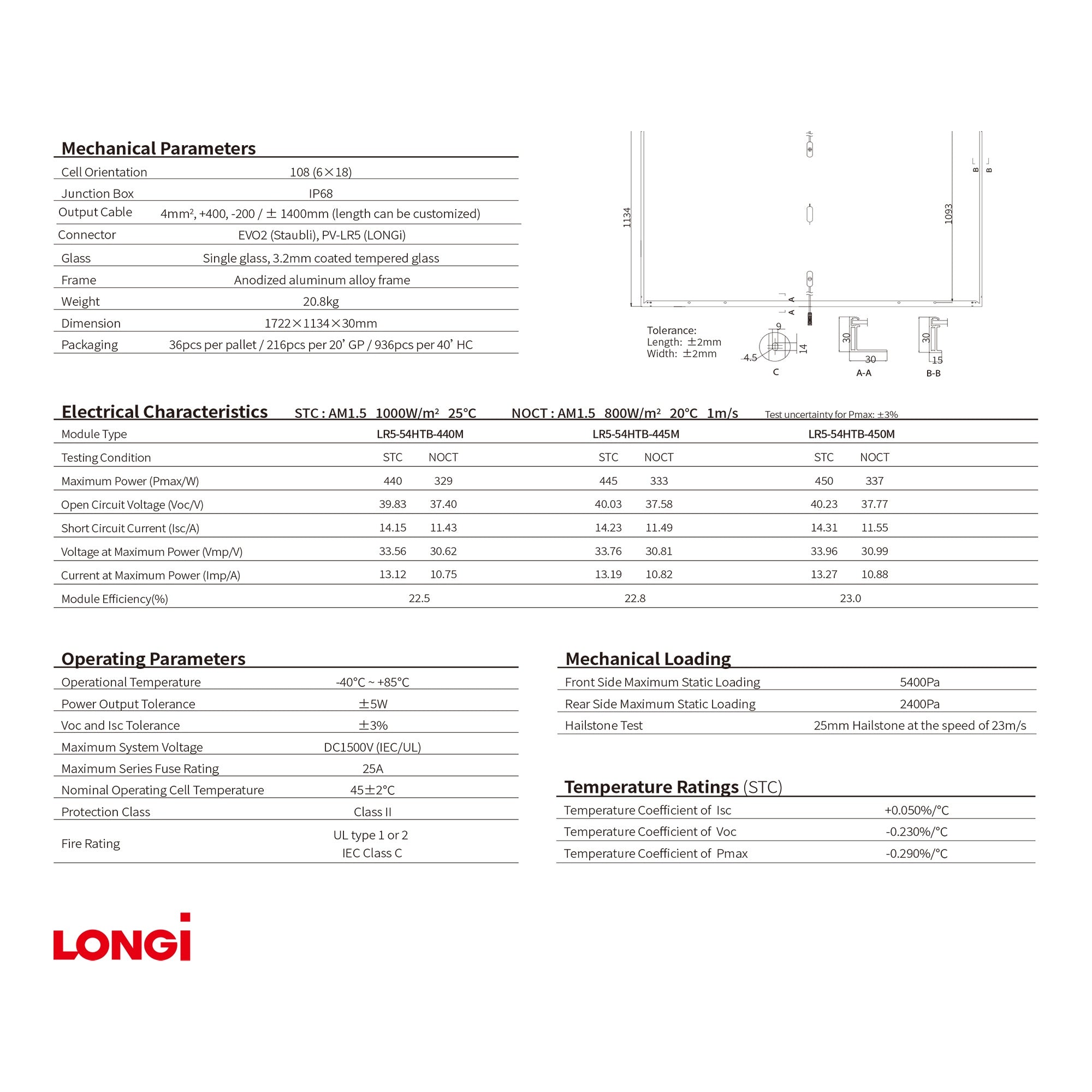

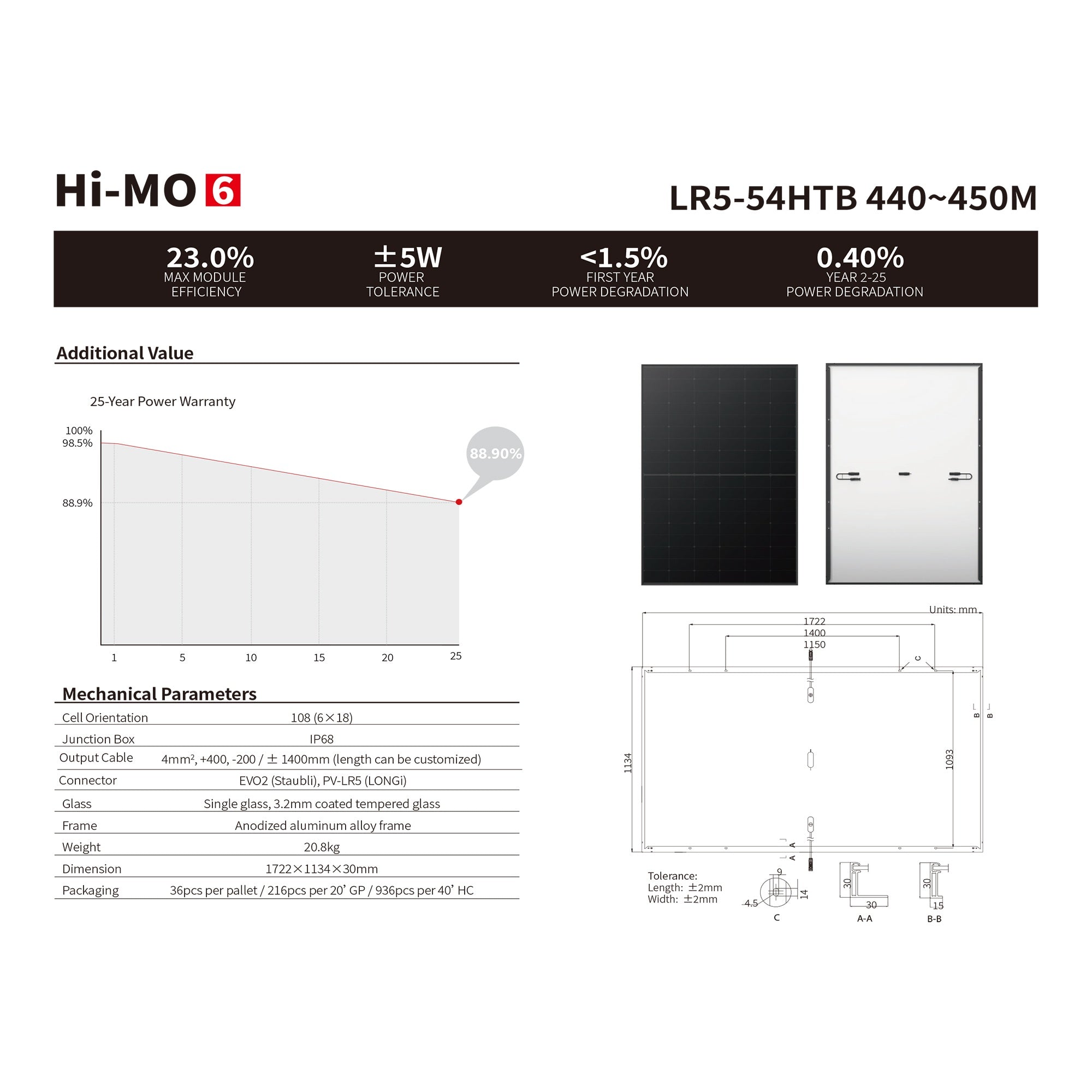

9 X LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

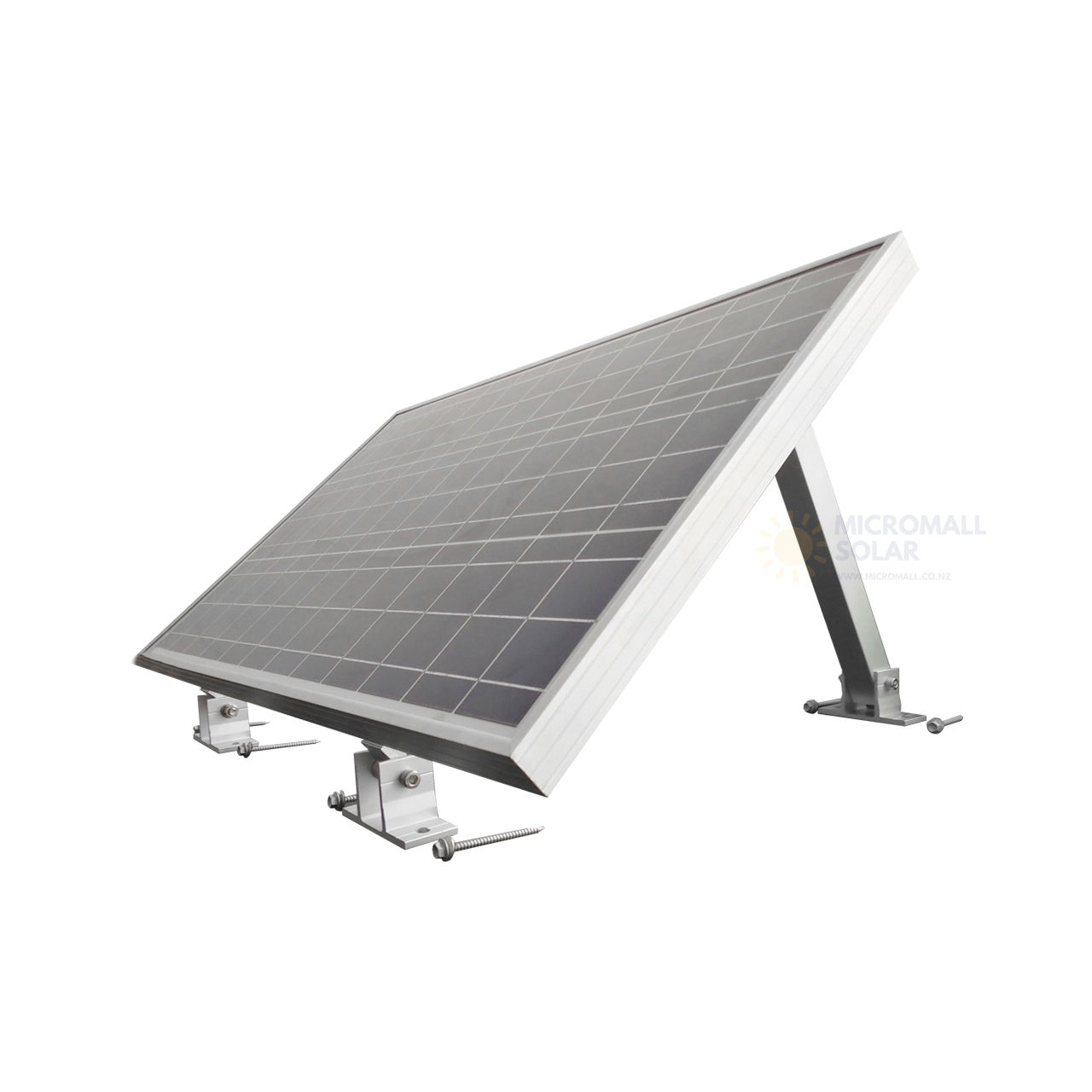

9 X Adjustable Solar Panel Mounting Bracket Tilt Mount

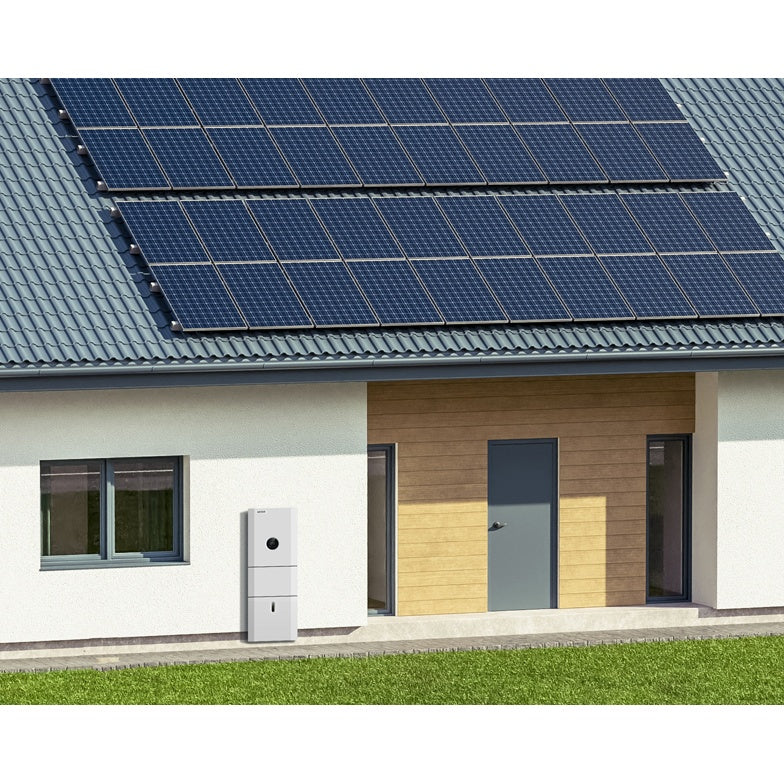

Ideal Use: This system is especially suited for residential or small commercial setups requiring a reliable, high-performance single-phase energy storage solution.
