Description
BETTIN Low Frequency Pure Sine Wave Inverter 48V 8000W Hybrid Inverter With Controllers
Features
Industrial frequency sine wave output with AC power complementary function.
- Adjustable working mode priority: AC mode/battery mode.
Supports lead-acid, gel, lithium iron phosphate, ternary lithium batteries, and user-defined battery modes.
- User-definable voltages: charging voltage/AC supply voltage/battery recovery supply voltage/alarm voltage/protection voltage.
Battery under-voltage/over-voltage/overload protection/high temperature protection/charging protection.
Selectable AC charging current.
Low no-load current for the whole device, inverter efficiency about 90%.
Low no-load loss.
Screen display selectable in Chinese or English.
Restore factory settings.

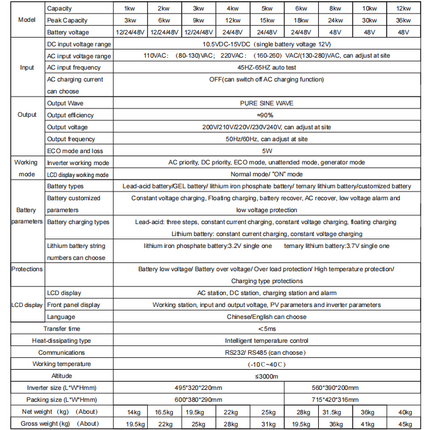

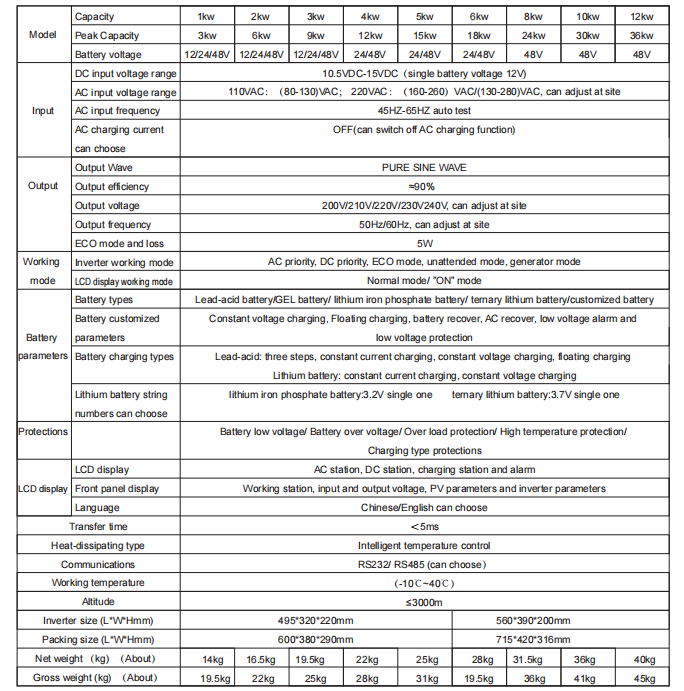

Technical parameters:
- Capacity: 8kW
- Peak Capacity: 24kW
- Battery voltage: 48V
- Inverter working mode: AC priority, DC priority, ECO mode, unattended mode, generator mode
- LCD display working mode: Normal mode/ ”ON” mode
- DC input voltage range: 10.5VDC-15VDC(single battery voltage 12V)
- AC input voltage range: 110VAC: (80-130)VAC； 220VAC：(160-260）VAC/(130-280)VAC, can adjust at site
- Output Wave: PURE SINE WAVE
- Output efficiency: ≈90%
- Output voltage: 200V/210V/220V/230V240V, can adjust at site
- Output frequency: 50Hz/60Hz, can adjust at site
- Transfer time: ＜5ms
- Heat-dissipating type: Intelligent temperature control
- Working temperature: -10℃~40℃
Inverter size (L*W*Hmm): 560*390*200mm
- Net weight: 31.5kg
- Gross weight: 36kg
Special voltage and power requirements, can be customized according to customer requirements.
