Description

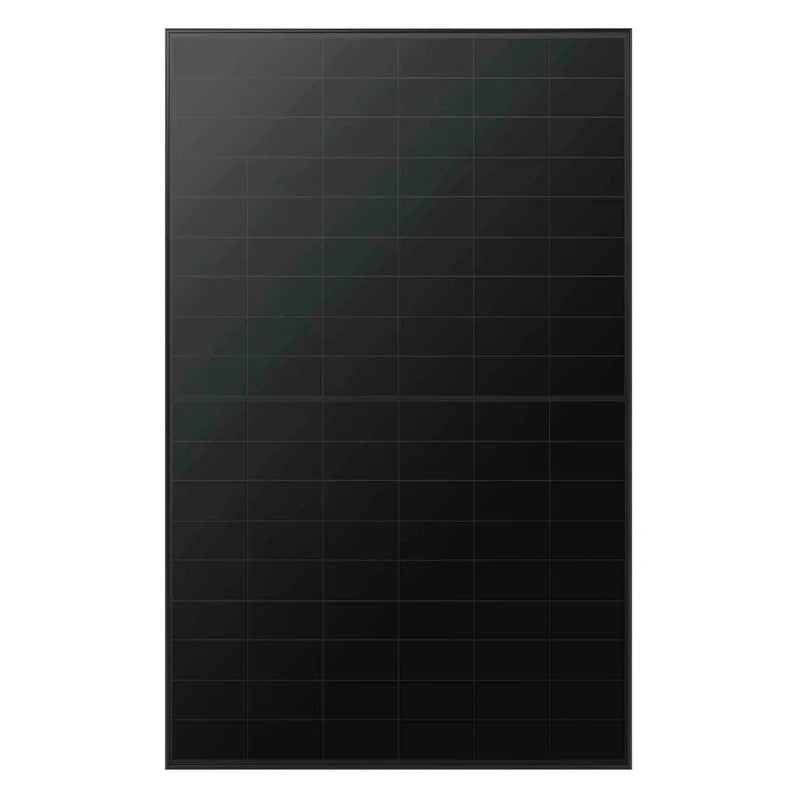

The LONGi EcoLife X10 LR7-54HVB-480M is a premium 480W full-black, single-glass solar panel designed for high-efficiency residential and light-commercial installations.
Key features
• 480W maximum power output
• 23.5% module efficiency
• HPBC 2.0 BC-cell technology for strong performance in partial shade
• 0–3% positive power tolerance
• 30-year power warranty with 88.85% warranted output at year 30
• Black anodised aluminium frame and 3.2mm coated tempered glass
• IP68 junction box and HW4 hail resistance
Electrical specifications (STC)
• Open-circuit voltage (Voc): 40.29V
• Short-circuit current (Isc): 15.13A
• Voltage at maximum power (Vmp): 33.28V
• Current at maximum power (Imp): 14.43A
• Maximum system voltage: 1500V DC
Dimensions
1800 × 1134 × 30mm; weight 21.6kg.
Warranty
• 30-year power warranty
• Guaranteed power output at year 30: 88.85%
Note: This is a power-output performance warranty.

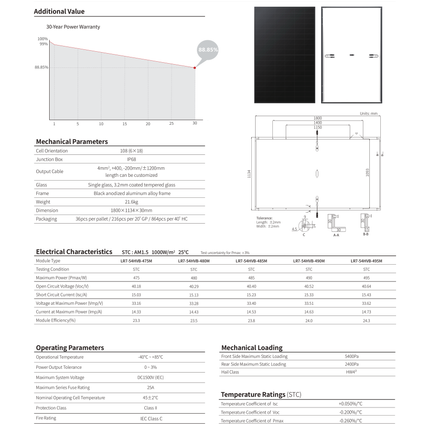

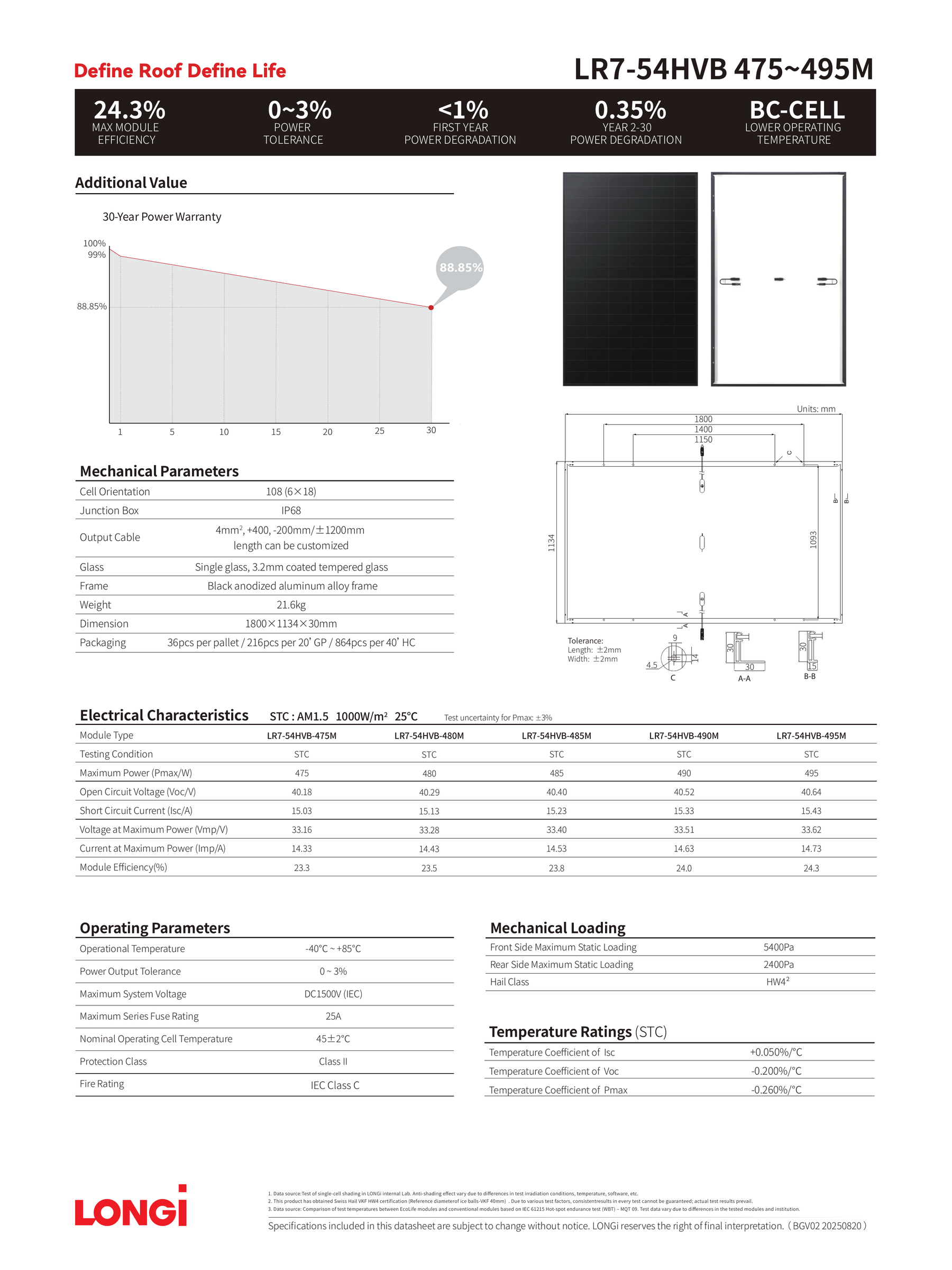

Specifications are based on the manufacturer datasheet and may change without notice.
