Description
12-year Warranty for Materials and Workmanship
30-year Warranty for Extra Linear Power Output
Key Features
- Advanced BC Technology: High-efficiency cell technology with lower temperature coefficient
- High Efficiency: 650W output with 24.1% module efficiency
- Bifacial Design: Bifaciality of 75±5% for additional rear-side power generation
- Corrosion Resistant: Designed for coastal, high-humidity and high-corrosion environments
- Enhanced Durability: Salt-mist-resistant junction box, connectors, coated glass and anodized aluminium frame
- Low Degradation: Less than 1% first-year degradation and only 0.35% annual degradation from Year 2–30
Extended Warranty
- 12-year warranty for materials and workmanship
- 30-year warranty for extra linear power output performance
Mechanical Parameters
- Cell Orientation: 132 (6 × 22)
- Junction Box: Salt-mist-resistant split junction box
- Output Cable: 4mm², +400mm / -200mm or ±1400mm
- Glass: Semi-tempered glass
- Frame: Weather-resistant anodized aluminium frame
- Weight: 32.7kg
- Dimensions: 2382 × 1134 × 30mm
- Packaging: 36 pcs per pallet
Electrical Characteristics

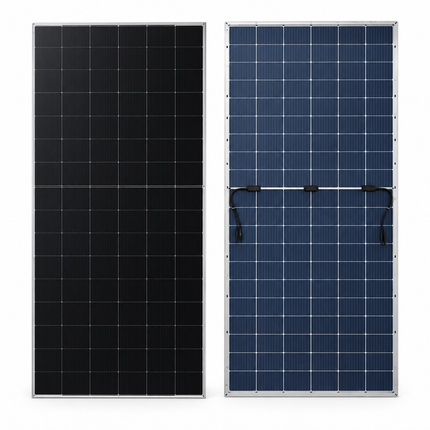

- Module Type: LR8-66HYD-650M
- Testing Condition: STC
- Maximum Power (Pmax): 650W
- Open Circuit Voltage (Voc): 49.72V
- Short Circuit Current (Isc): 16.54A
- Voltage at Maximum Power (Vmp): 40.98V
- Current at Maximum Power (Imp): 15.86A
- Module Efficiency: 24.1%
Operating Parameters
- Operational Temperature: -40°C ~ +85°C
- Power Output Tolerance: 0 ~ +3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Maximum Series Fuse Rating: 35A
- Protection Class: Class II
- Nominal Operating Cell Temperature: 45±2°C
- Bifaciality: 75±5%
- Fire Rating: UL Type 29 / IEC Class C
Temperature Coefficients
- Isc Temperature Coefficient: +0.050%/°C
- Voc Temperature Coefficient: -0.200%/°C
- Pmax Temperature Coefficient: -0.260%/°C
