Description

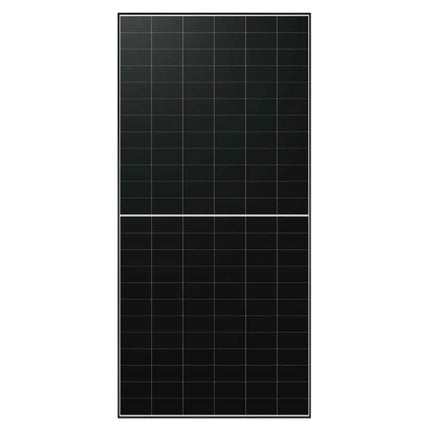

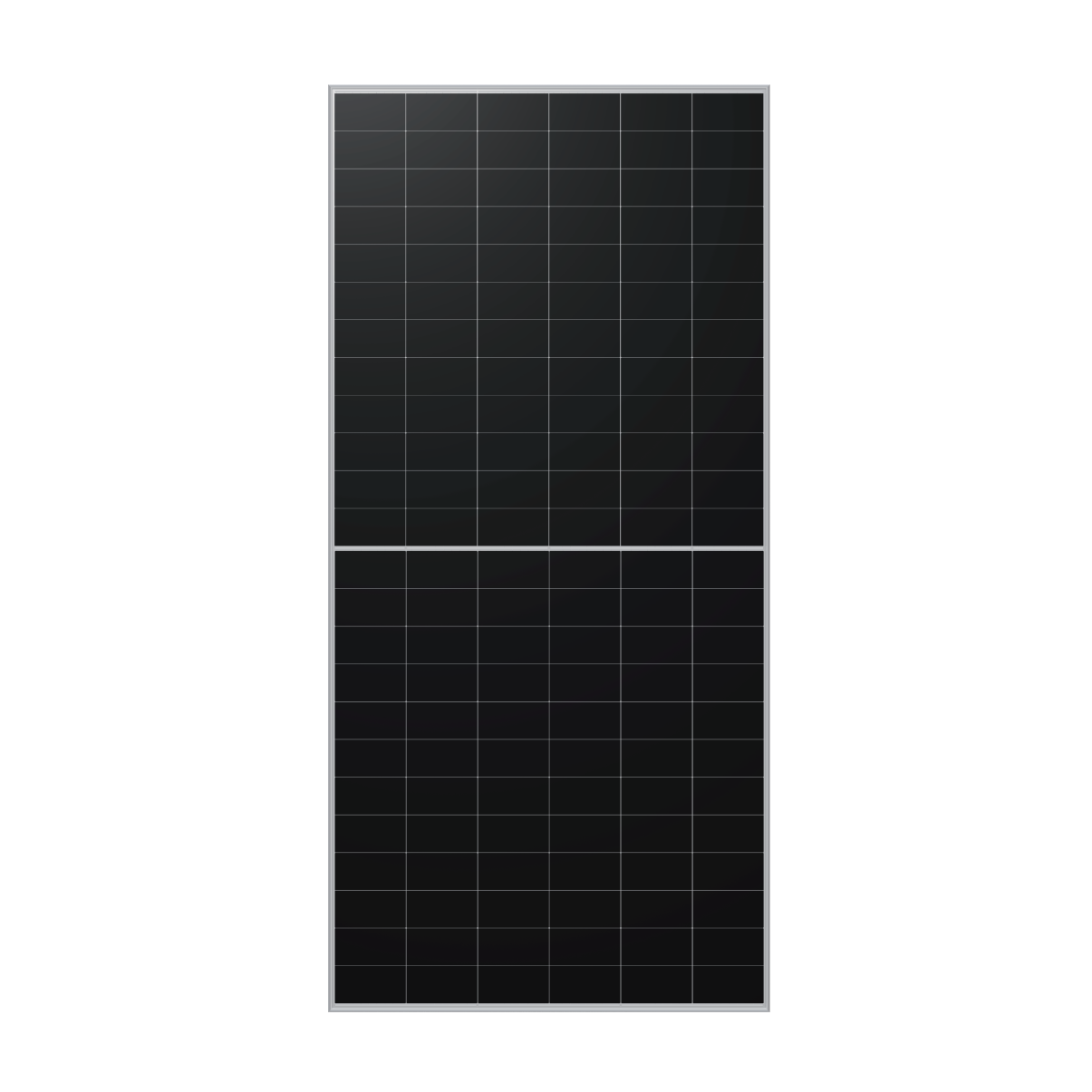

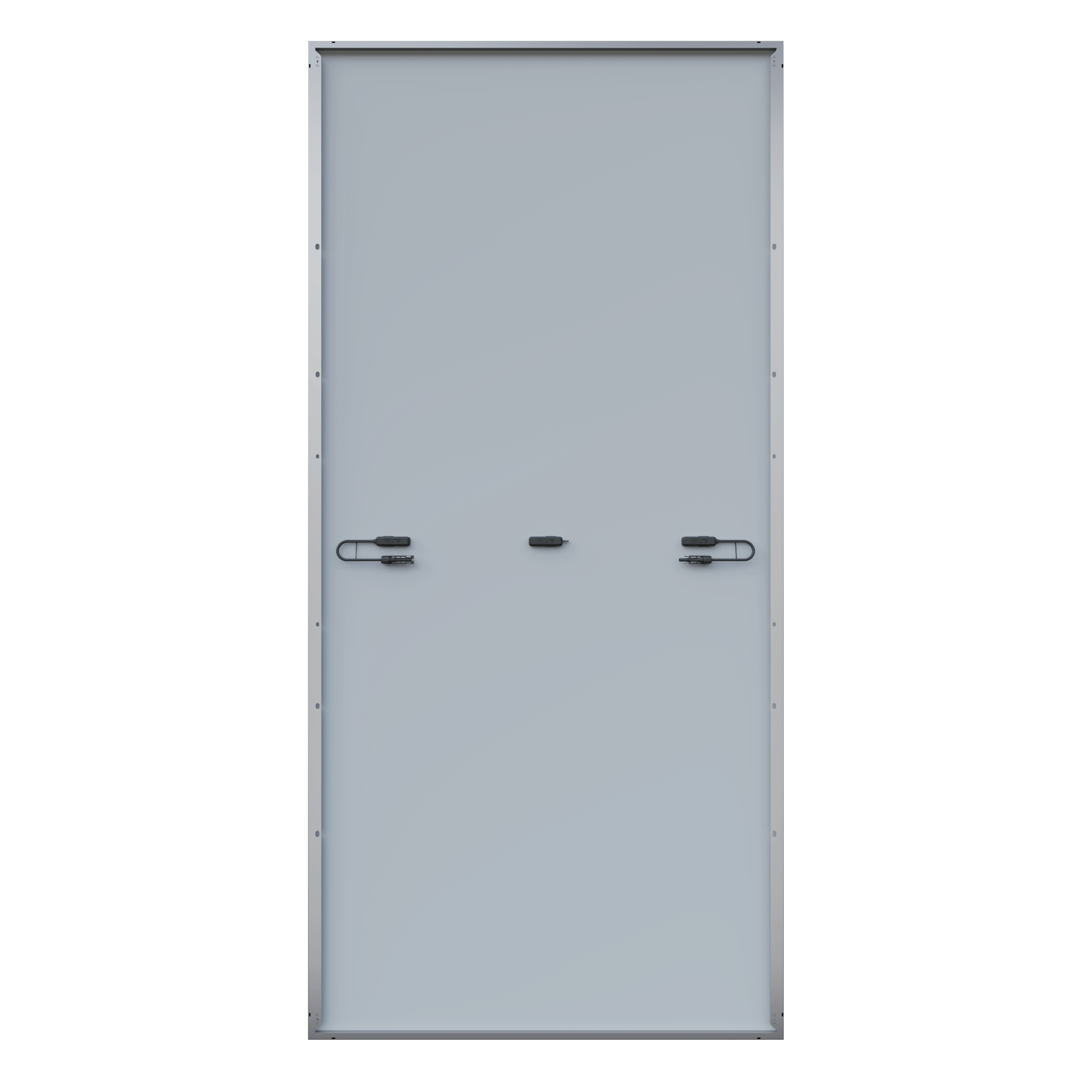

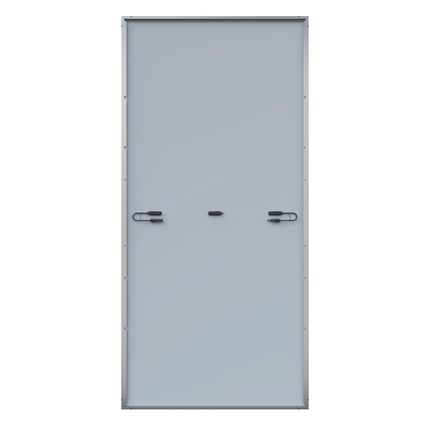

LONGi Hi-MO X10 Guardian HPBC2.0 650W Solar Panel LR7-72HVH-650M
15-year Warranty for Materials and Processing
30-year Warranty for Extra Linear Power Output

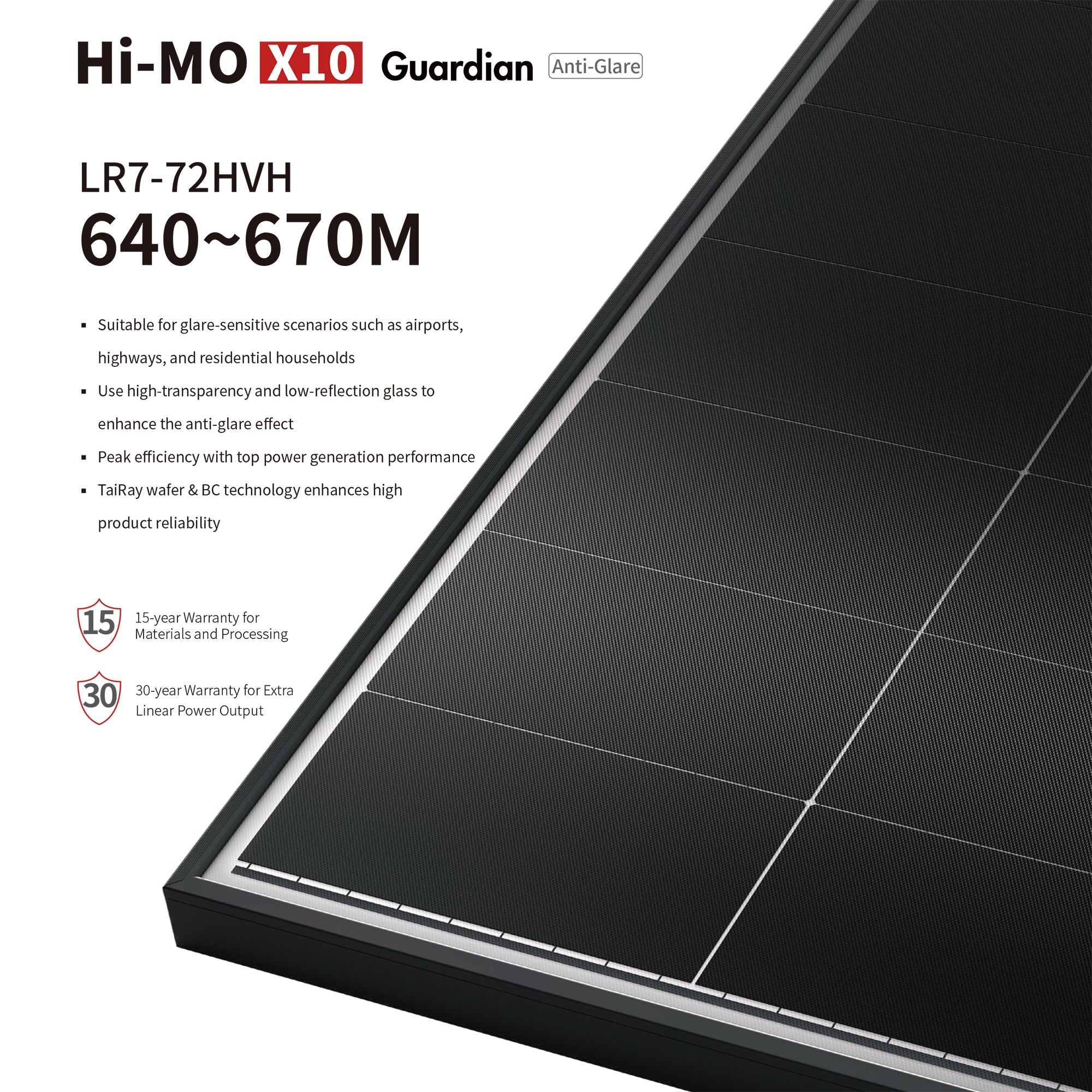

Key Features
Suitable for glare-sensitive scenarios such as airports, highways, and residential households
Use high-transparency and low-reflection glass to enhance the anti-glare effect
Peak efficiency with top power generation performance
TaiRay wafer & BC technology enhances high product reliability

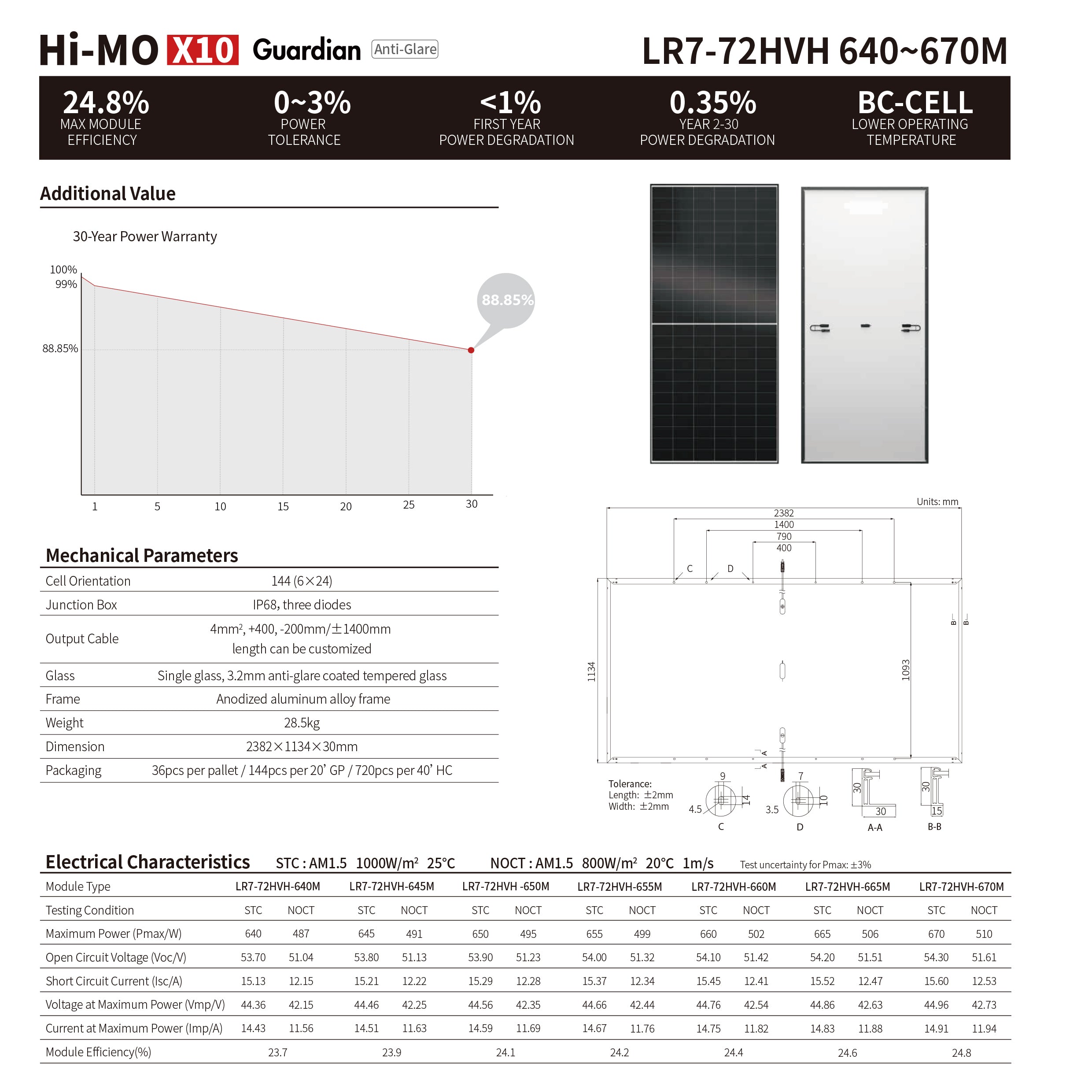

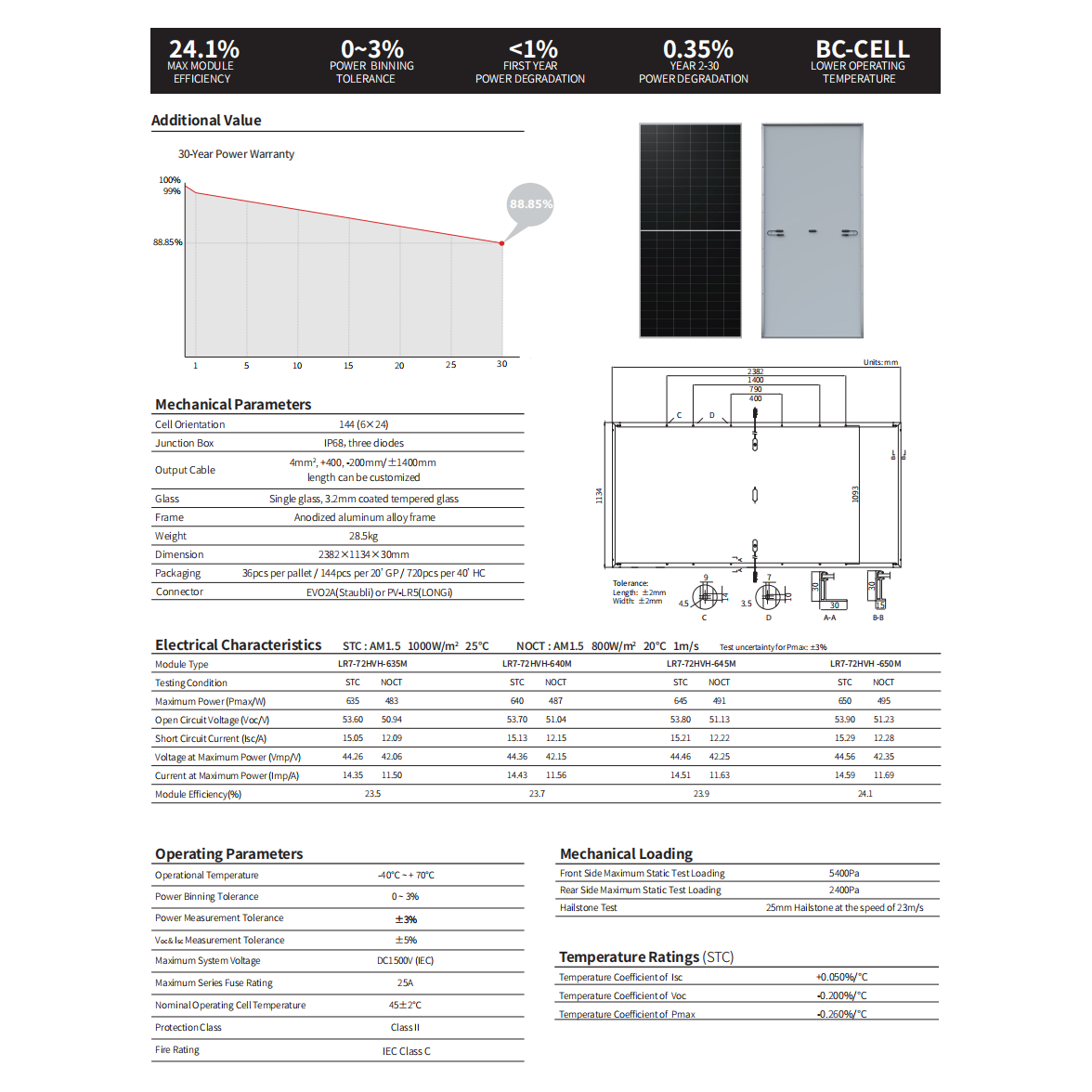

Mechanical Parameters
Cell Orientation: 144 (6×24)
Junction Box: IP68, three diodes
Output Cable: 4mm2, +400, -200mm/+-1400mm
Glass: Single glass, 3.2mm anti-glare coated tempered glass

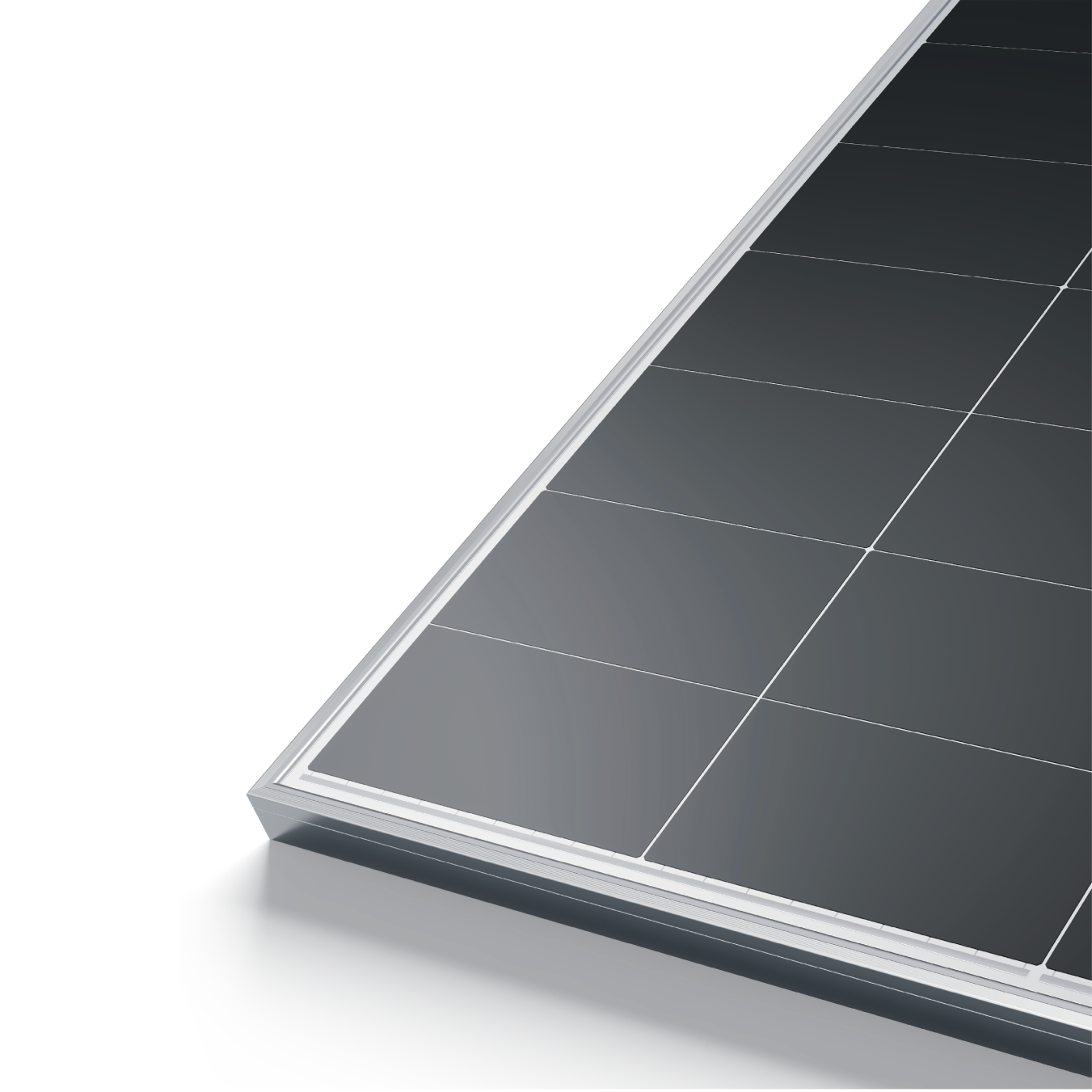

Frame: Anodized aluminum alloy frame
Weight: 28.5kg
Dimension: 2382x1134x30mm
Packaging: 36pcs per pallet

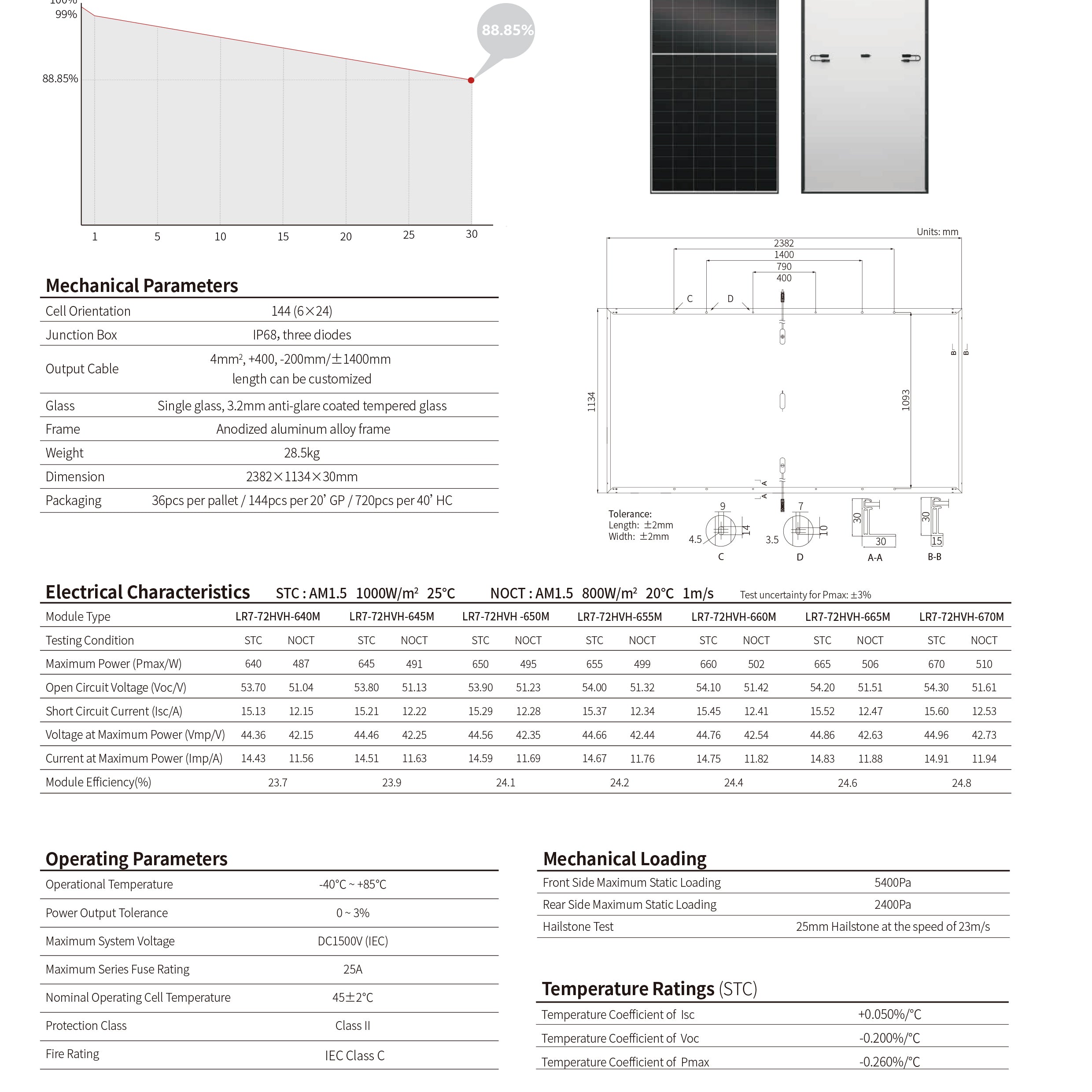

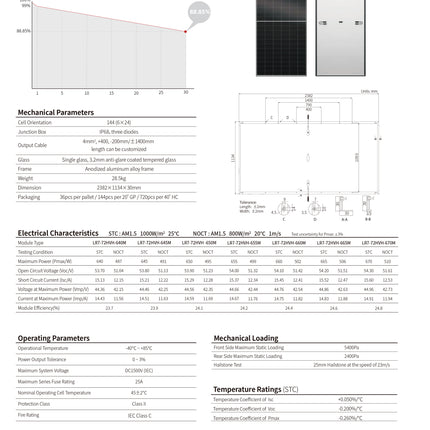

Electrical Characteristics
Module Type: LR7-72HVH -650M
Testing Condition: STC
Maximum Power (Pmax/W) : 650
Open Circuit Voltage (Voc/V): 53.90
Short Circuit Current (Isc/A) : 15.29
Voltage at Maximum Power (Vmp/V) : 44.56
Current at Maximum Power (Imp/A) : 14.59
Module Efficiency(%) : 24.1
Operating Parameters
Operational Temperature: -40°C - +85°C
Power Output Tolerance 0 - 3%
Maximum System Voltage: DC1500V (IEC)
Maximum Series Fuse Rating: 25A
Protection Class: Class II
Nominal Operating Cell Temperature: 45+-2°C
Fire Rating: IEC Class C
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.
