Description
**Authorised Longi distributor in New Zealand**
25-Year Warranty for Materials and Processing
30-Year Warranty for Extra Linear Power Output
Extreme Efficiency 24.0%

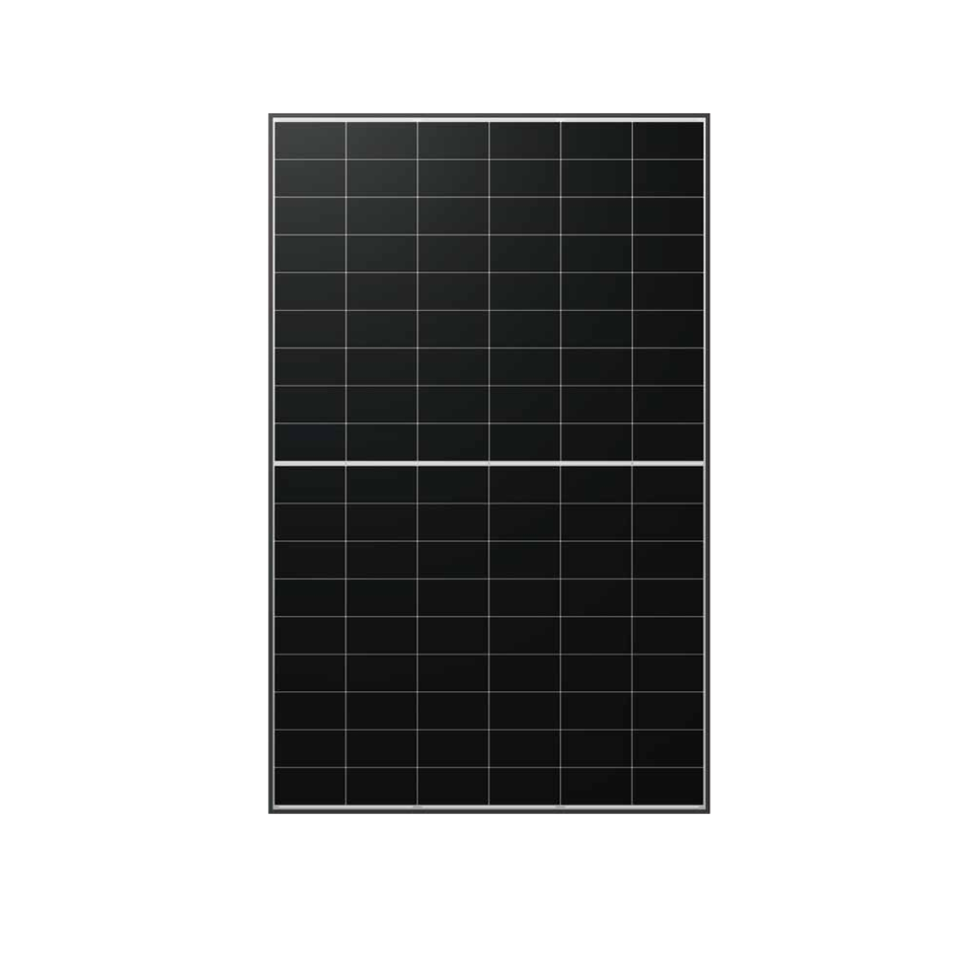

LONGi Explorer X10 Series – 475M HPBC Solar Panel
Superior Performance and Style for Residential Rooftops
The LONGi Explorer X10 series combines high efficiency and elegant design for the discerning homeowner. Using advanced HPBC 2.0 cell technology, these panels deliver exceptional power generation—up to 24.0% efficiency—in the same space as conventional modules.
Built with durability in mind, the panels feature 3.2mm coated tempered glass, anti-shading functionality, and resistance to hot spots. They are backed by a 30-year product and performance warranty, ensuring long-term reliability. Eco-conscious customers will appreciate the low-carbon manufacturing and full international certifications.
Highlights:
475W output | 24.0% efficiency
HPBC 2.0 technology for better low-light and temperature performance
30-year warranty | IEC Class C fire rating

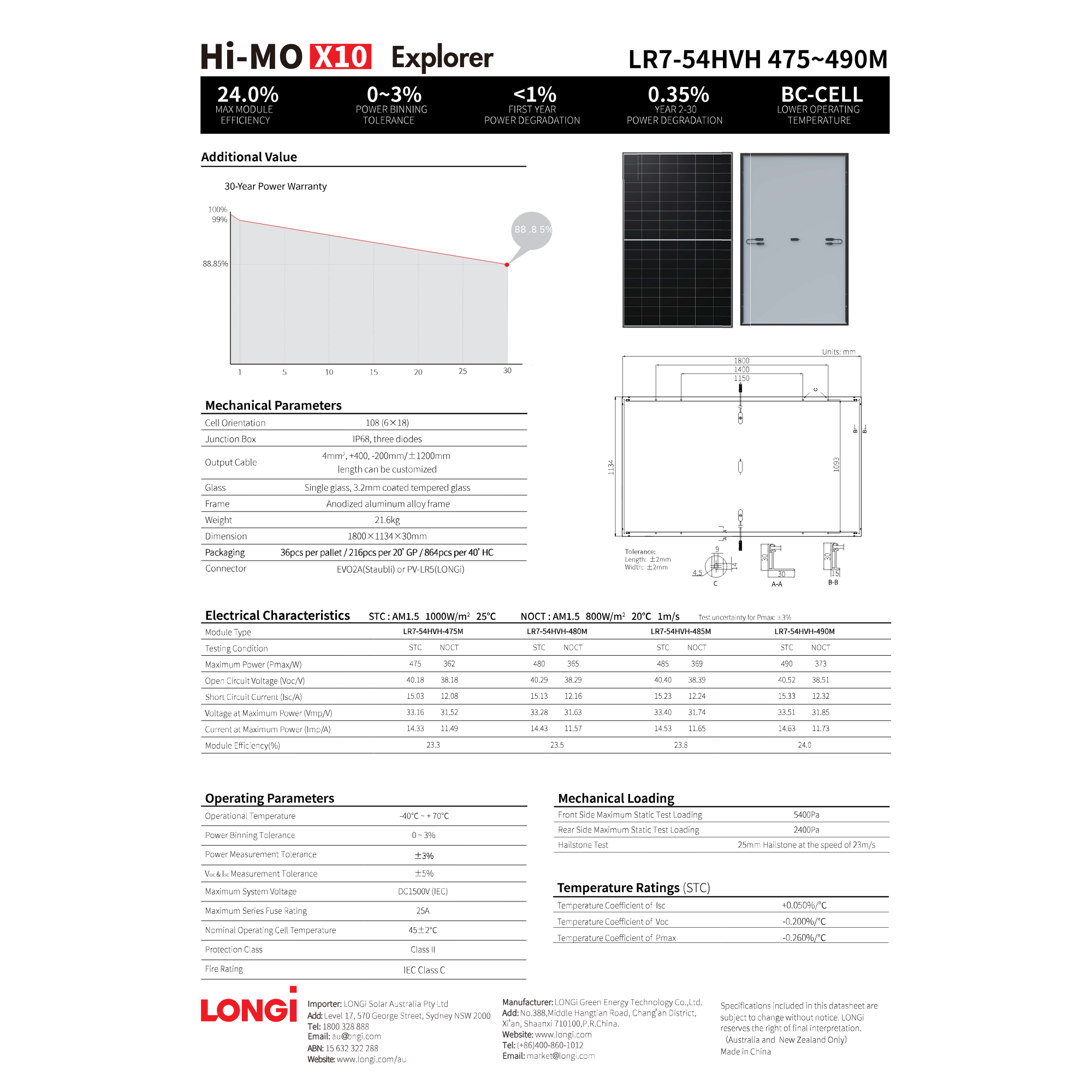

Module Type: LR7-54HVH-475M
Testing Condition: STC
Maximum Power (Pmax/W): 475
Open Circuit Voltage (Voc/V): 40.18
Short Circuit Current (Isc/A): 15.03
Voltage at Maximum Power (Vmp/V): 33.16
Current at Maximum Power (Imp/A): 14.33
Module Efficiency(%): 23.3
Mechanical Parameters
Cell Orientation: 108 (6×18)
Junction Box: IP68, three diodes
Output Cable: 4mm2, +400, -200mm/±1200mm length can be customized
Glass: Single glass, 3.2mm coated tempered glass
Frame: Anodized aluminum alloy frame
Weight: 21.6kg
Dimension: 1800×1134×30mm
Ideal for space-limited and high-end residential installations
Choose LONGi Explorer X10—where power meets beauty.
