Description
Low Light Performance
12 Years Material Workmanship Warranty
25 Years Linear Power Output Warranty
Features:
Half-cut Technology
New circuit design with lower internal current and reduced internal resistance loss.
Significantly avoiding heat spot
The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.
Lower cost
Increasing power generation helps reduce the cost per kilowatt-hour.
Excellent performance of PID resistance
The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.
Excellent light blocking performance
The module delivers higher power output under low-light conditions, such as haze and cloudy days.
High efficiency output power
High conversion efficiency.
Specifications:
ELECTRICAL DATA (STC)
MODEL NUMBER: 250
Maximum Power(Pmax/w): 250
Open Circuit Voltage (Voc/V): 22.66
Short Circuit Current (lsc/A): 13.95
Voltage at maximum Power (Vmp/V): 19.03
Current at maximum Power (Vmp/V): 13.14
Module Efficiency (%): 18.9
STC(Standard Testing Conditions):irradiance 1000W/m ,Cell Temperature25℃, Spectra at AM1.5
ELECTRICAL DATA (NOCT)
Maximum Power(Pmax/w): 186
Open Circuit Voltage (Voc/V): 16.16
Short Circuit Current (lsc/A): 11.51
Voltage at maximum Power (Vmp/V): 13.75
Current at Maximum Power (lmp/A): 10.86
NOCT(Normal Operating Cell Temperature):lrradiance800W/m%, Ambient Temperature20℃, Wind speed 1m/s
TEMPERATURE & MAXIMUM RATING
Maximum System Voltage(V): 1000V
Maximum Series Fuse Rating(A): 15A
Power Tolerance: 0 - +3W
NOCT Nominal Operating Cell Temperature(c): 45 +- 2℃
Operating and Storage Temperature(C): -40 - +85℃

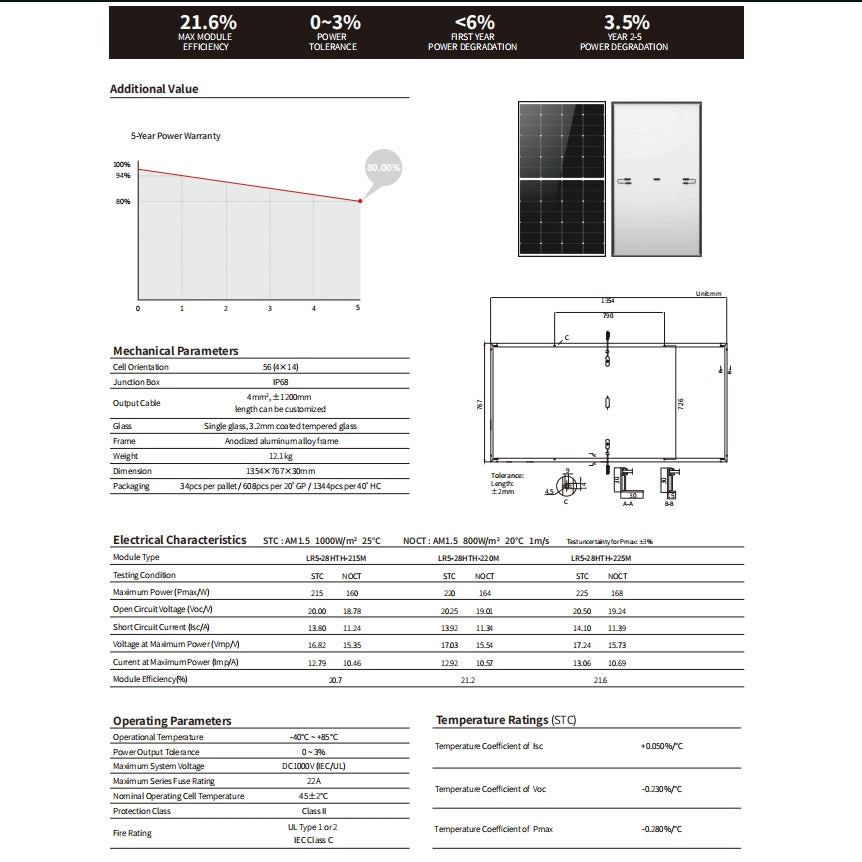

MECHANICAL CHARACTERISRTICS
Cell Type: 182x91mm
Dimensions: 1354x767x30mm
Weight: 12.4kg
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
