Description
High-Current Power Distribution:

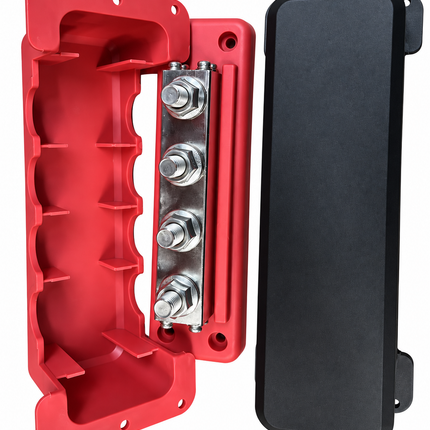

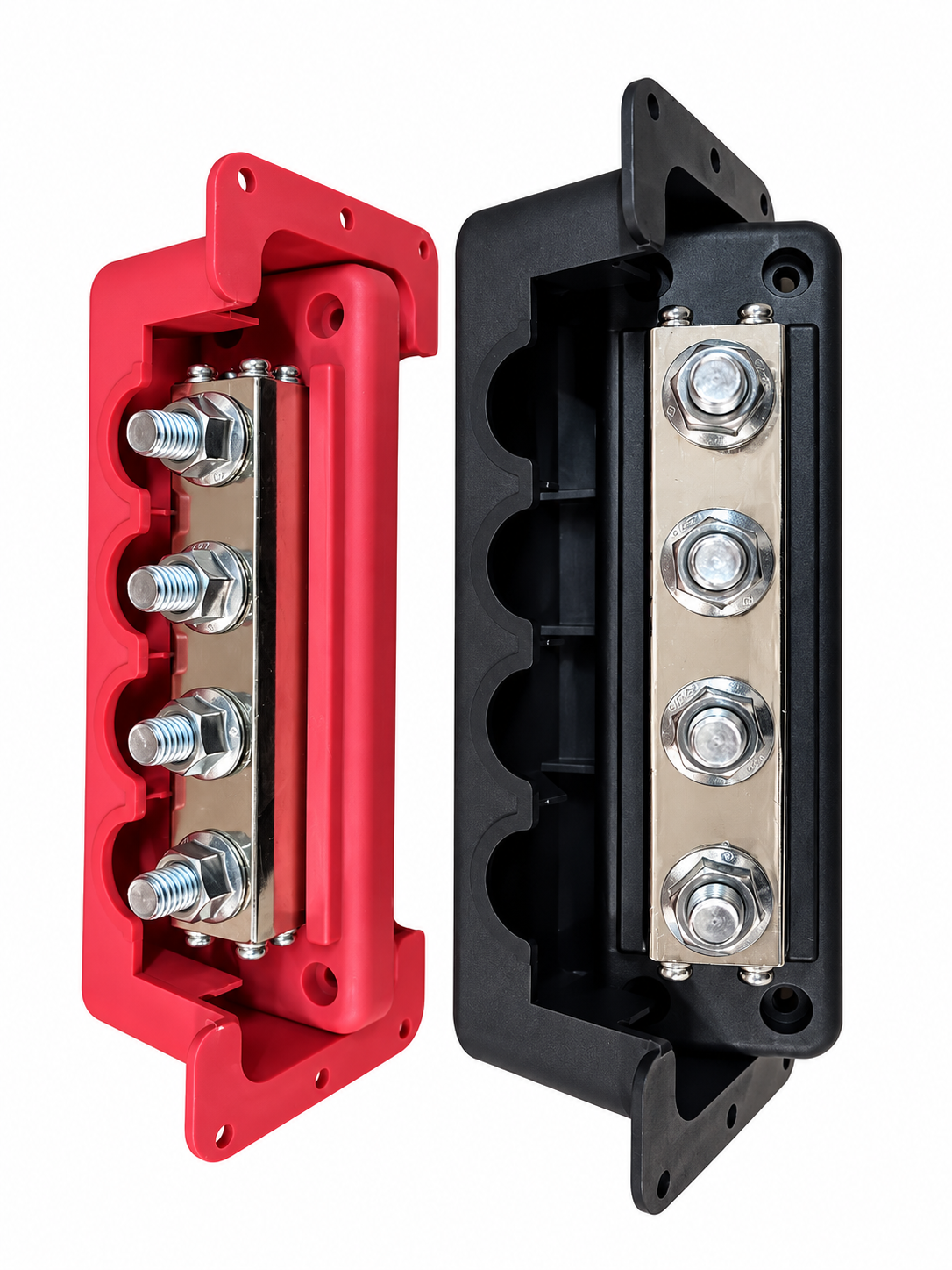

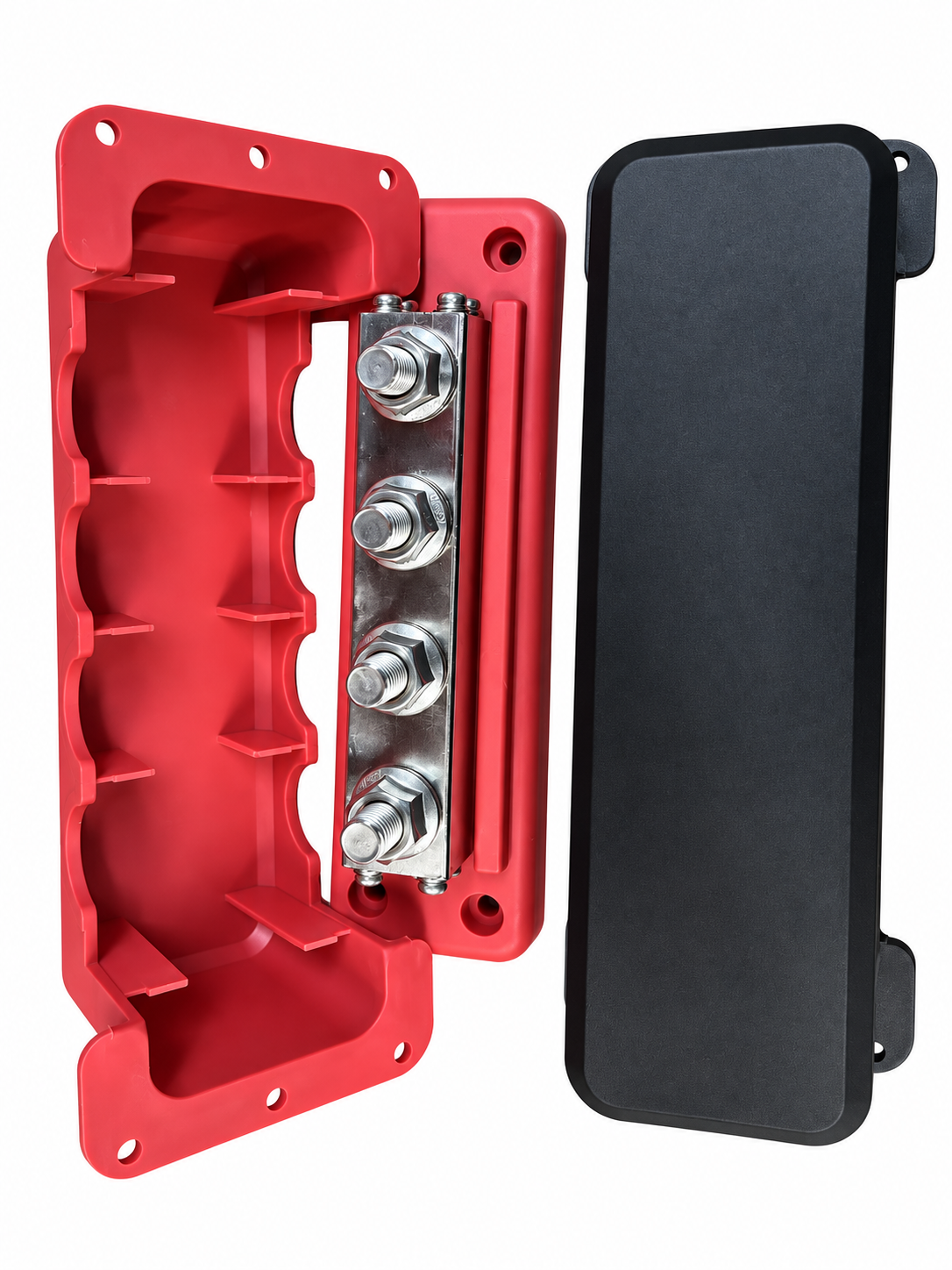

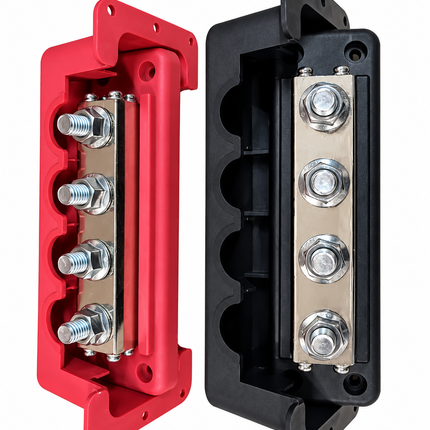

This 4-post bus bar provides a clean and reliable way to distribute high-current DC power in solar, battery, marine, RV and off-grid electrical systems.
600A Continuous Rating:
Designed for demanding DC installations with a continuous current rating of 600A and a maximum voltage of 70V DC.
M10 Stainless-Steel Hardware:
Four M10 terminal studs with stainless-steel studs and nuts provide secure, corrosion-resistant cable connections.
Protective Covers and Colour Coding:
Red and black covers help identify positive and negative circuits while protecting the terminals from accidental contact.
Specifications:
Type: 4-way power distribution bus bar
Colour: Red and black
Maximum voltage: 70V DC
Continuous current rating: 600A
Operating temperature: -40°C to 85°C
Terminal studs: 4 × M10
Stud material: Stainless steel
Nut material: Stainless steel
Applications:
Suitable for solar power systems, battery banks, inverters, RVs, caravans, boats, trucks and other high-current DC power distribution applications.
Package Includes:
1 pair of 4-post bus bars with red and black protective covers.
