Description

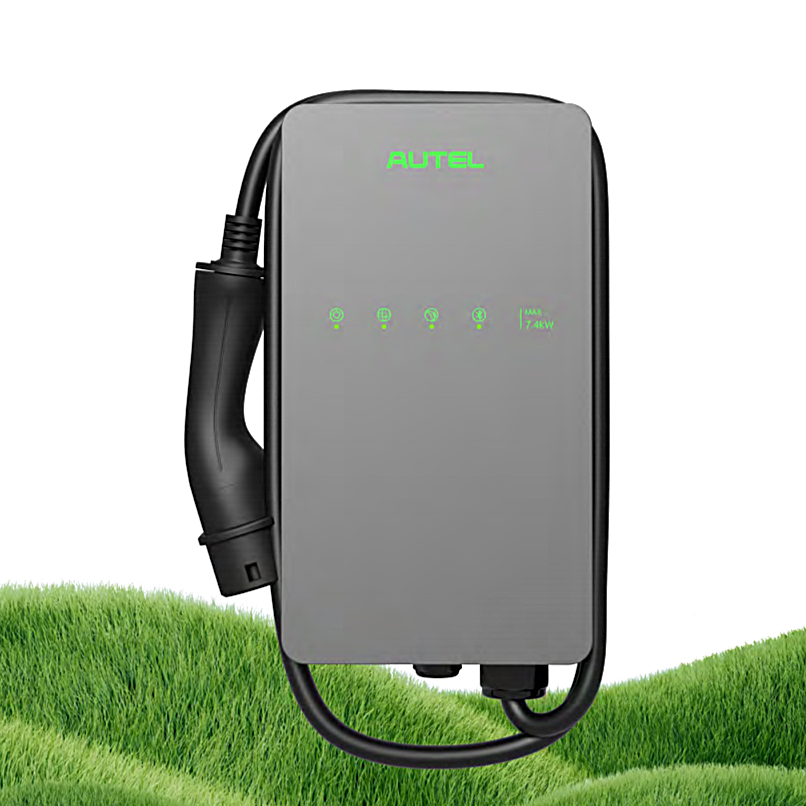

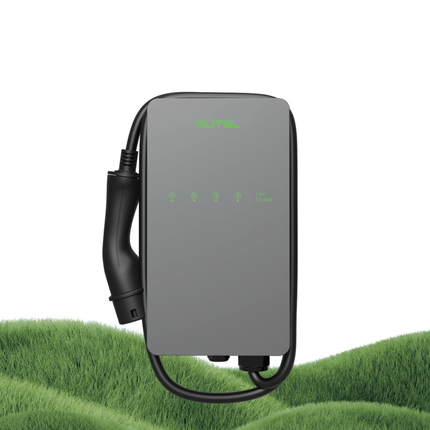

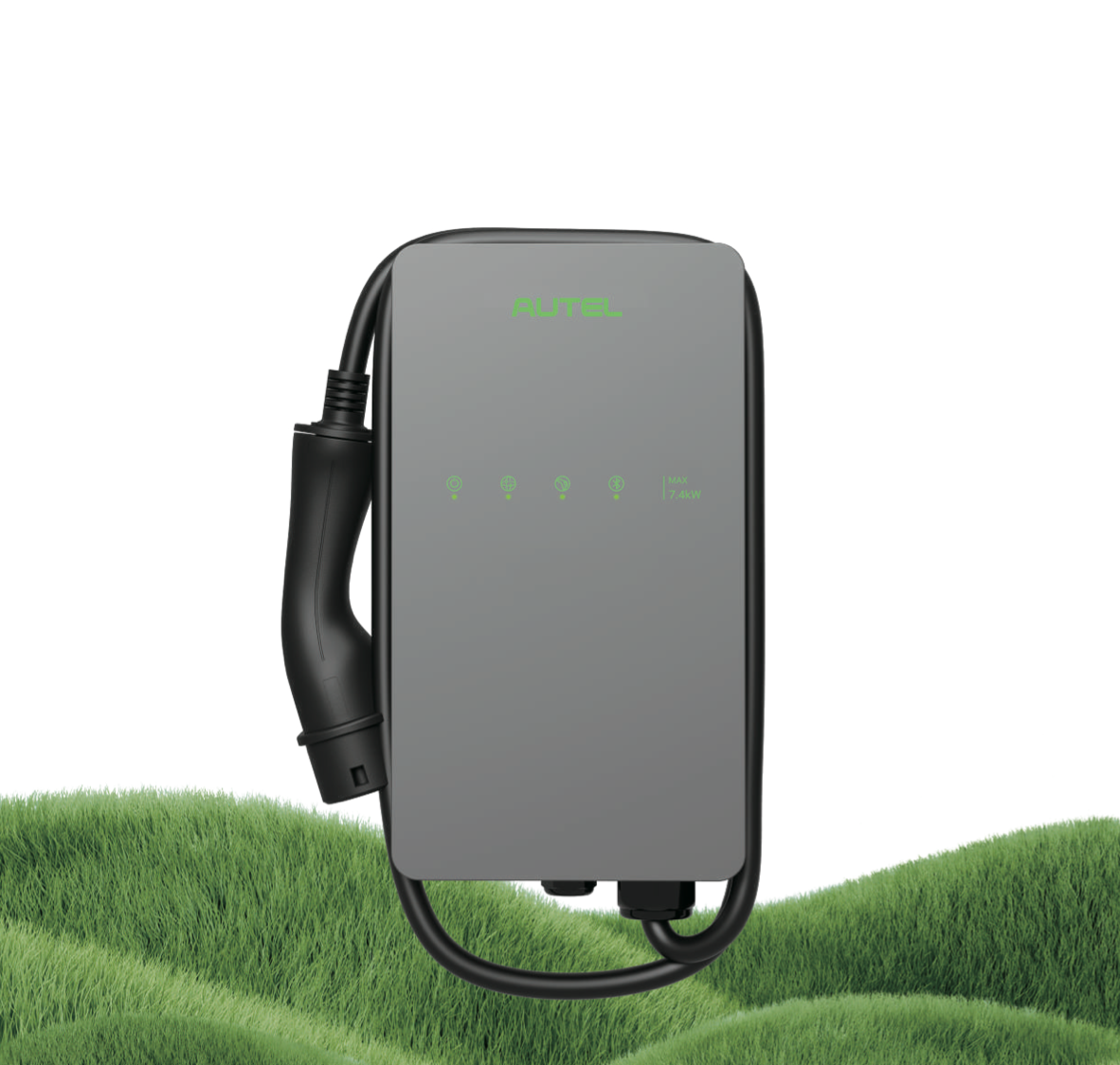

AUTEL MAXICHARGER AC Lite – 7.4kW Smart Level 2 AC EV Charger (5m cable)
The Autel Maxicharger AC Lite is a sleek, entry-level 7.4kW home charger designed for simplicity and affordability, offering all the essential functions to complete a charging session without the complexity of advanced settings, while maintaining high compatibility across a wide range of EV models for smooth, reliable performance.

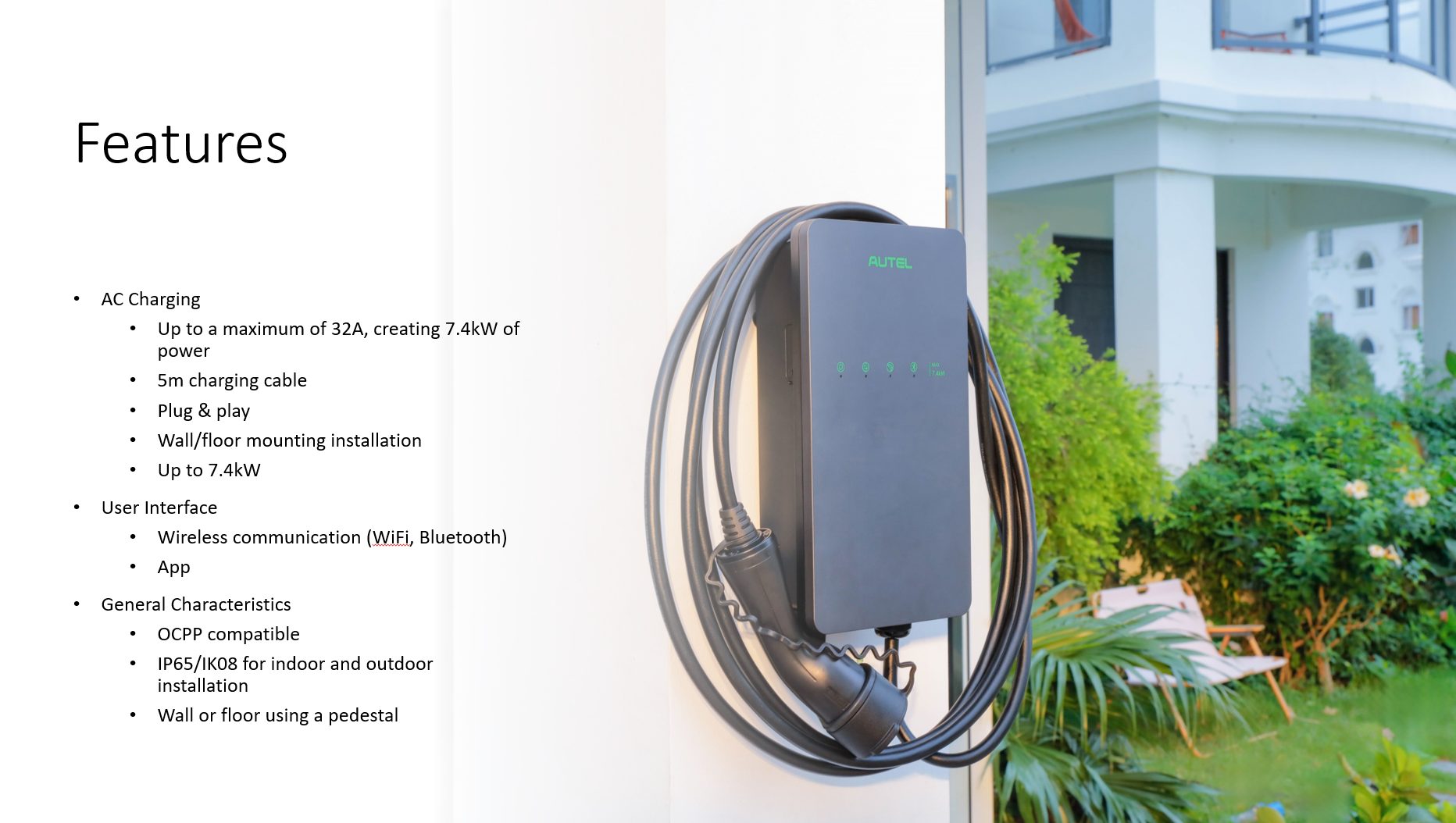

Features
Fast & Safe Charging: Charge your EV with up to 32A, providing up to 7.4kW of power.
- Secure Connectivity: Effortless Wi-Fi, Bluetooth.
- Safe Assurance: DC 6mA leakage protection.

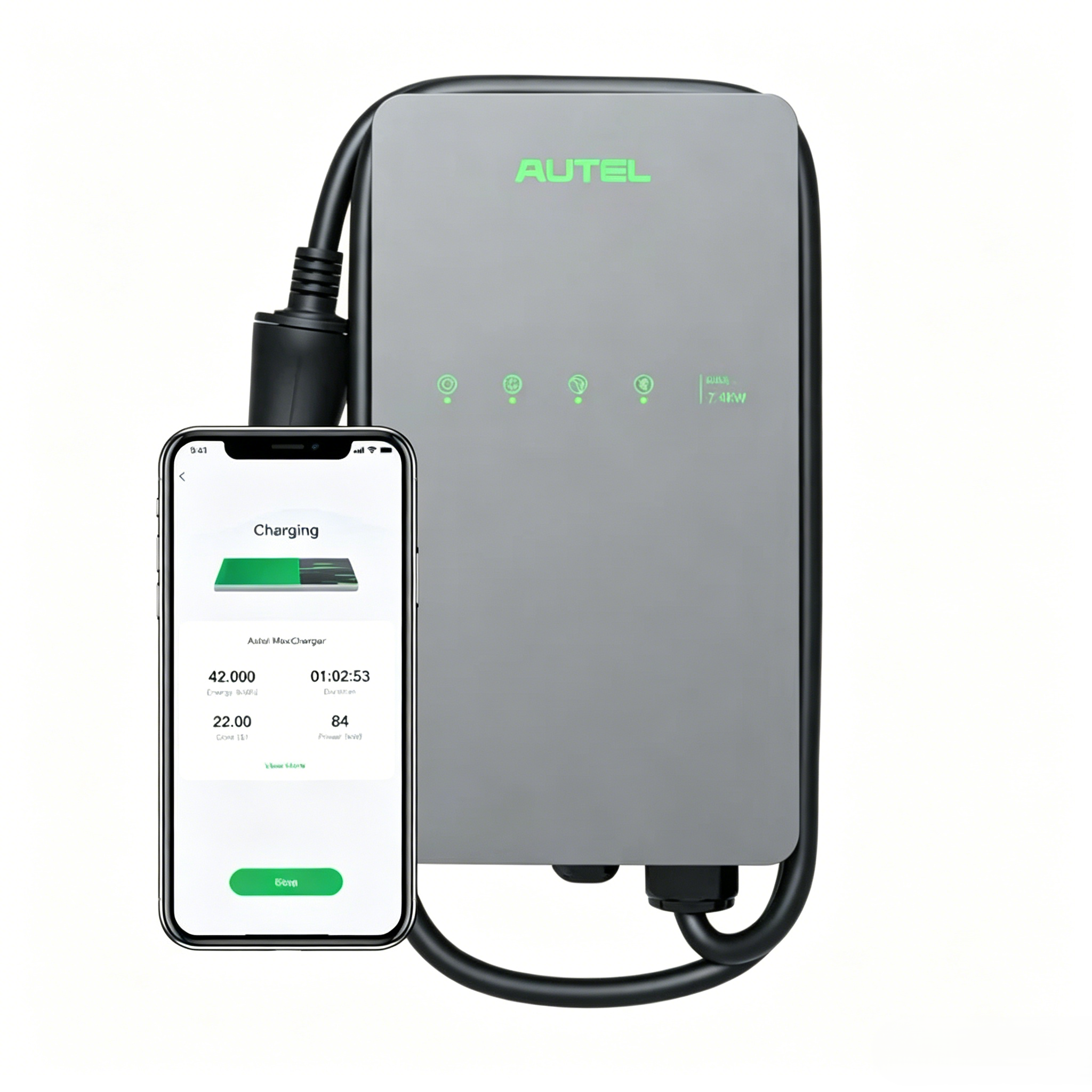

Charge Smarter: OCPP 1.6 Compatible, App control via Autel Charge allow you to charge with flexibility, monitor sessions, and receive real-time notifications and reports. Firmware update via online, ensure your device is always up-to-date.

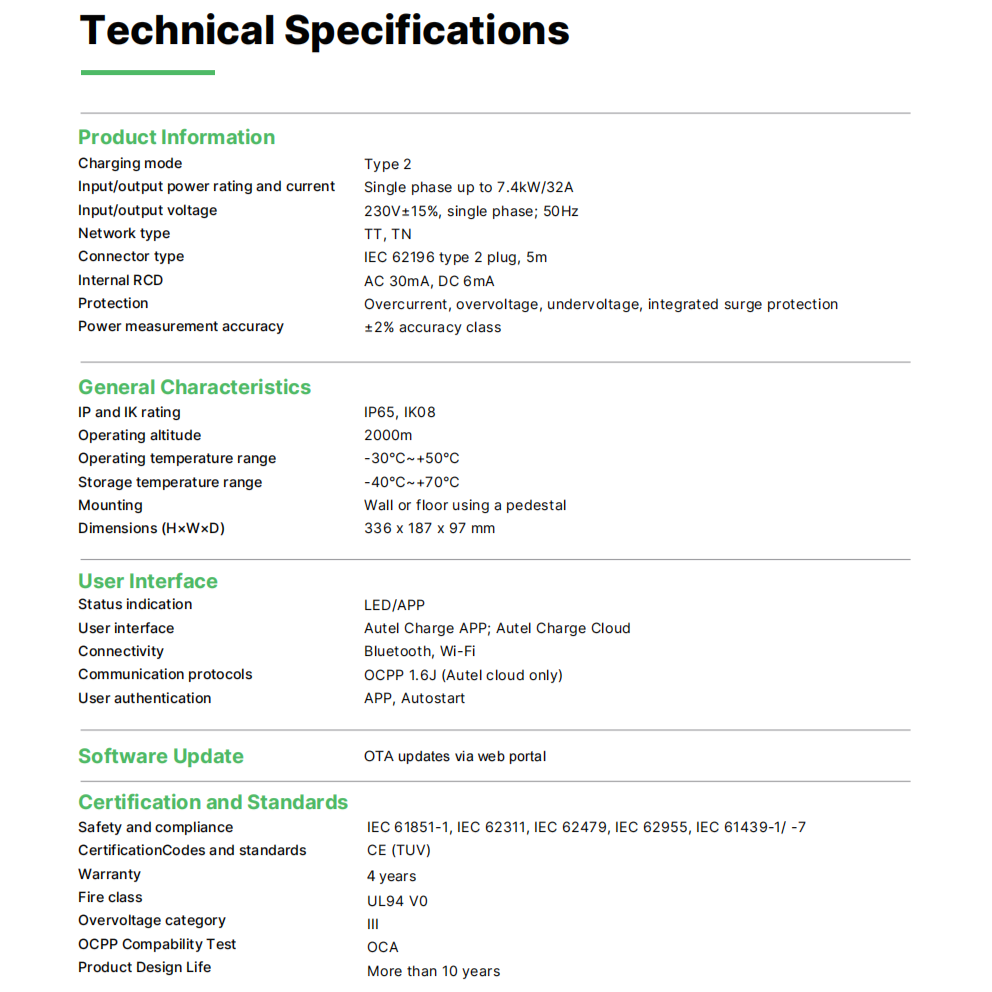

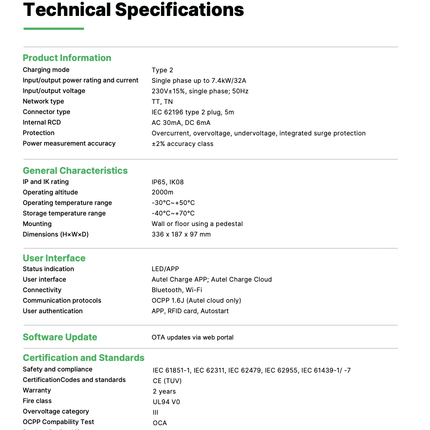

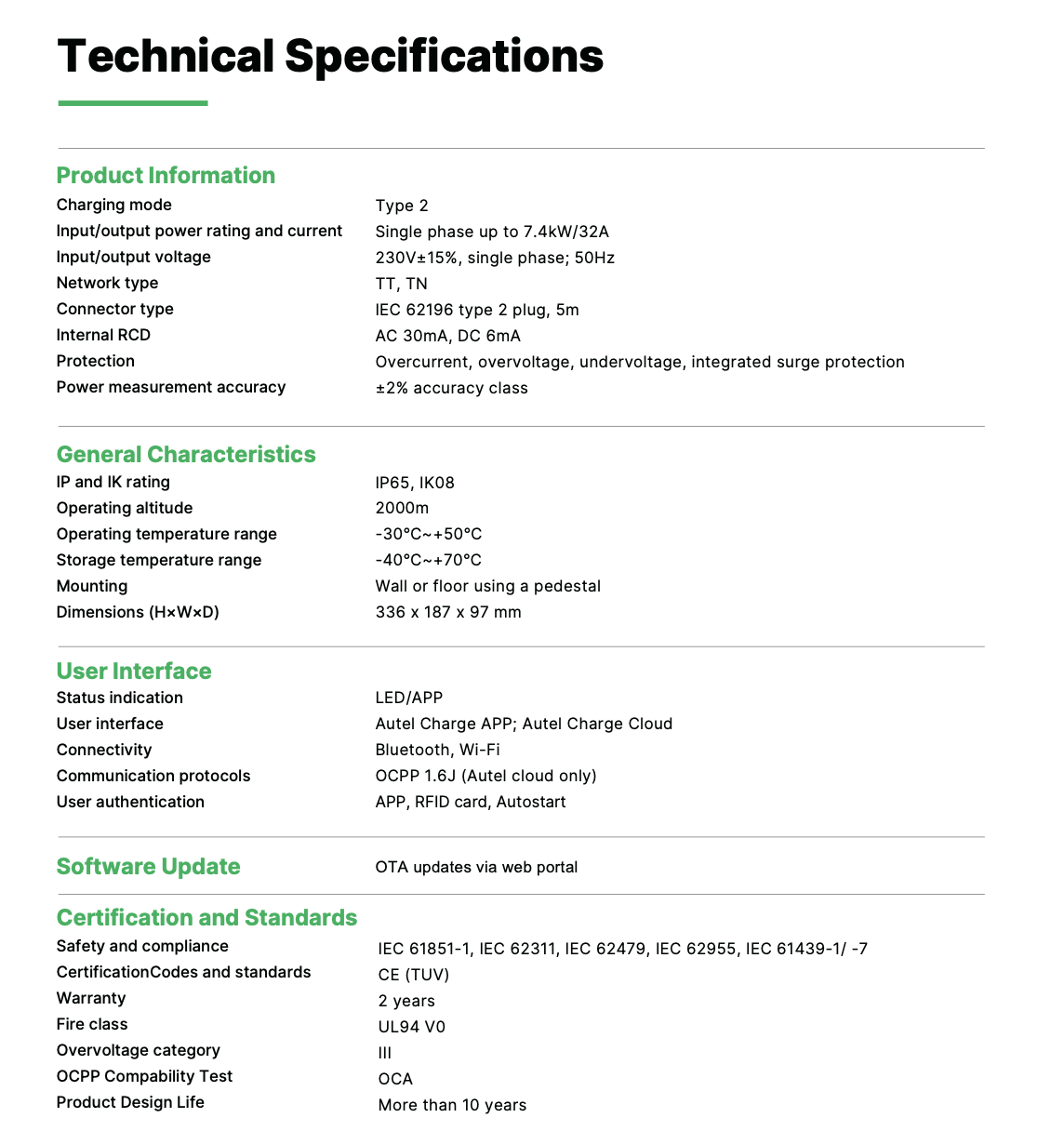

- Product Information:
- Charging mode: Type 2
- Input/output power rating and current: Single phase up to 7.4kW/32A
- Input/output voltage: 230V±15%, single phase, 50Hz
- Network type: TT, TN
- Connector type: IEC 62196 type 2 plug, 5m
- Internal RCD: AC 30mA, DC 6mA
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection
- Power measurement accuracy: ±2% accuracy class
- General Characteristics:
- IP and IK rating: IP65, IK08
- Operating altitude: 2000m
- Operating temperature range: -30℃ - +50℃
- Storage temperature range: -40℃ - +70℃
- Mounting: Wall or floor using a pedestal
Dimensions (H×W×D): 336 x 187 x 97 mm
- Warranty: 4 years
- Product Design Life: More than 10 years
