Description

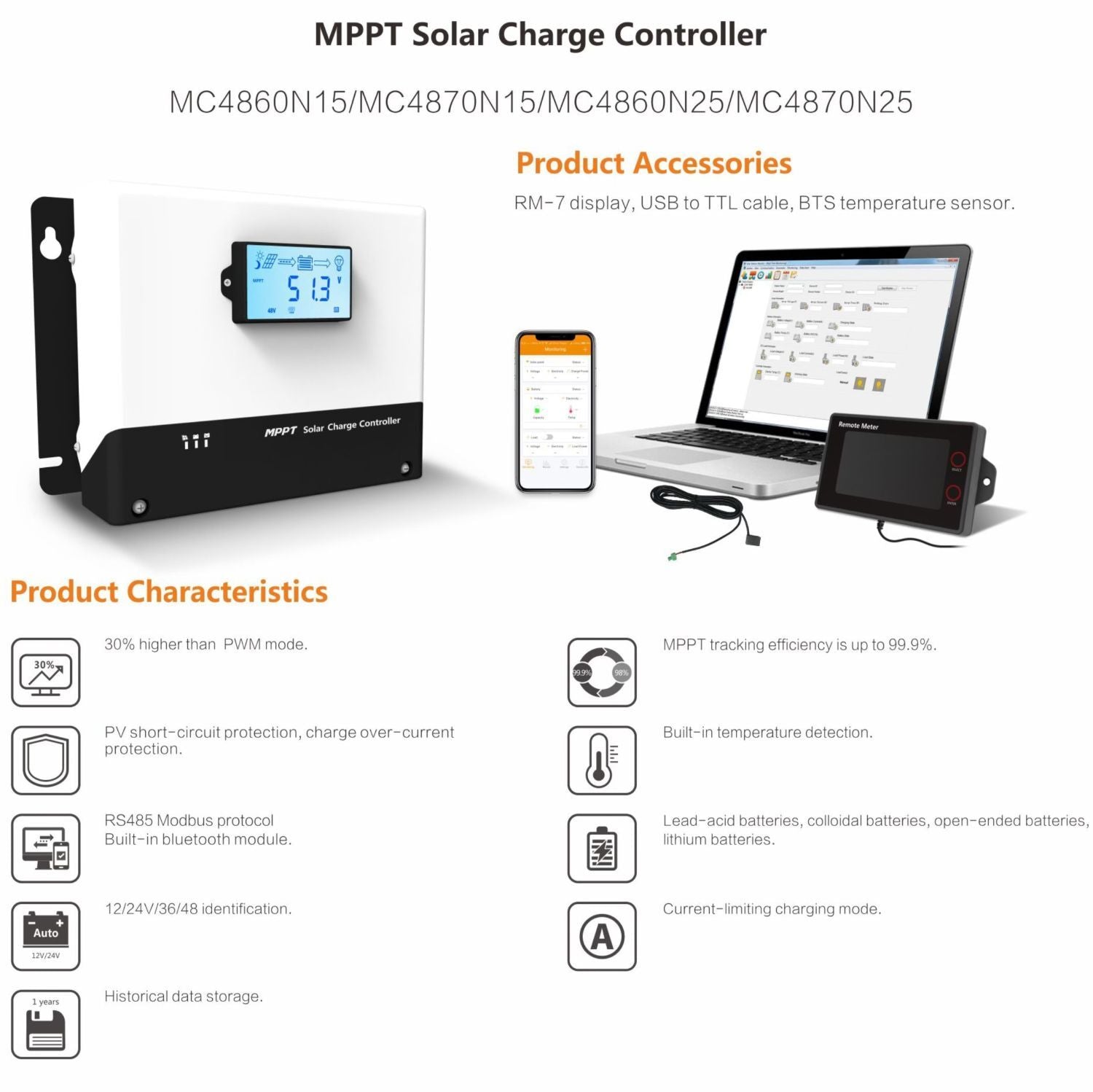

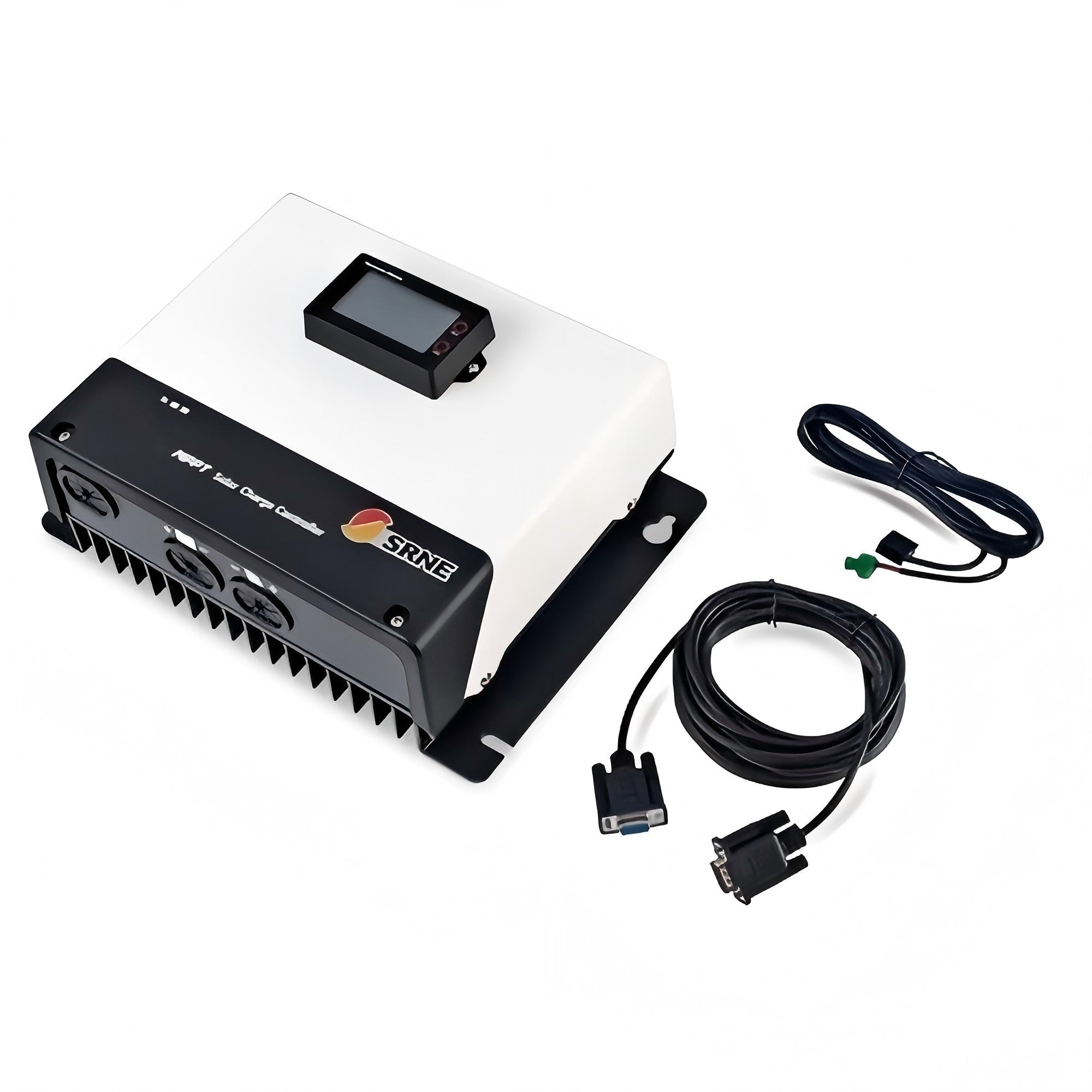

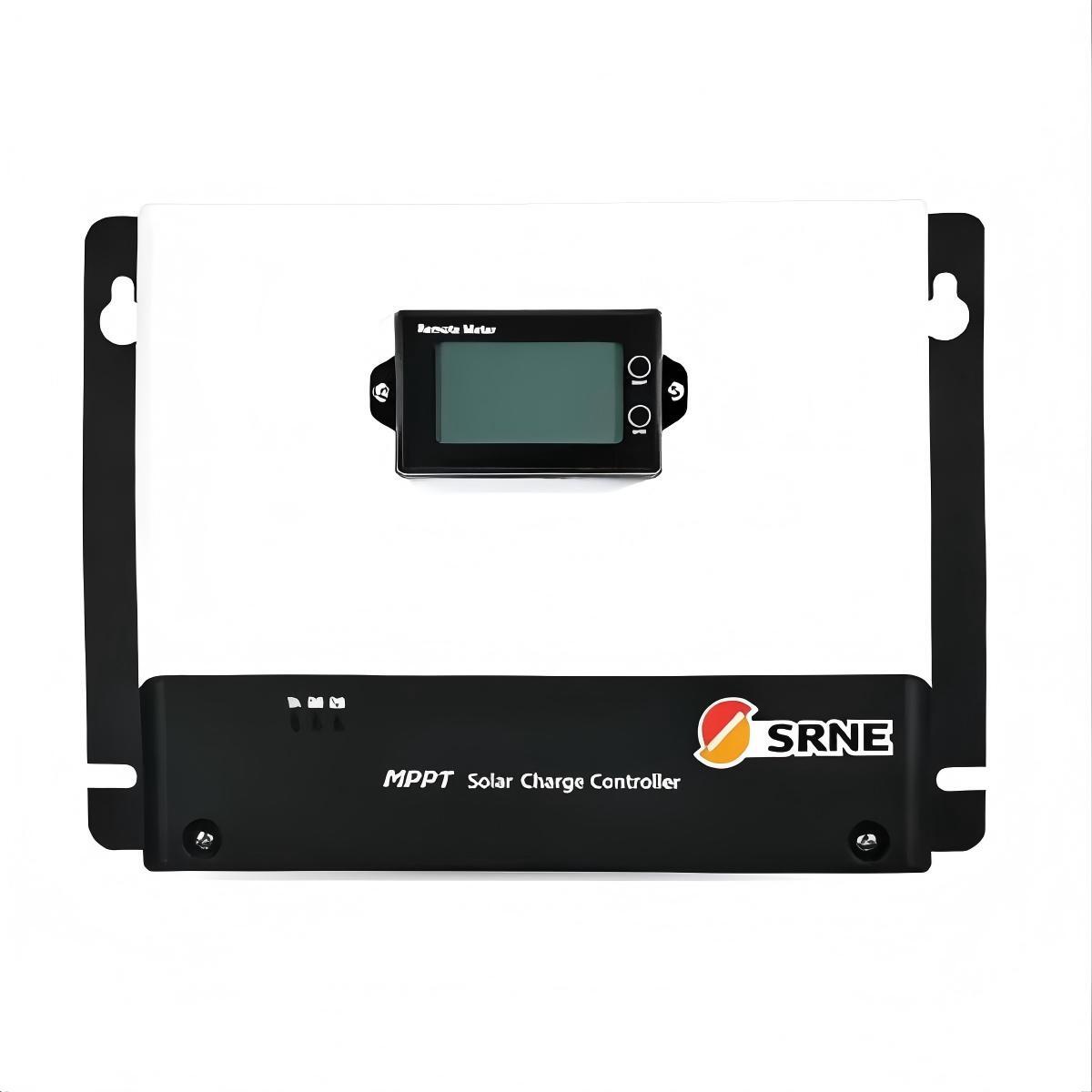

SRNE MC4860N15 MPPT Controller 60A MPPT Solar Charge Controller 12V 24V 36V 48V
The controller adopts the industry-leading PowerCatcher maximum power point tracking (MPPT) technology, enabling maximum energy harvesting from solar panels. It can quickly and accurately track the maximum power point of the solar cells under any environmental conditions, capture the maximum available energy from the solar panels in real time, and significantly improve the energy utilization efficiency of the solar system.
Features
- High Efficiency: with 99.9% tracking efficiency and 98% conversion efficiency, 30% higher performance than PWM controllers.
Full-range circuit protection
- Smart Temperature Control: Built-in temperature detection, fanless cooling, and automatic temperature compensation.
- Versatile Connectivity: Supports Modbus protocol and built-in Bluetooth module.
- Wide Compatibility: Compatible with lead-acid and lithium batteries, customizable charging parameters.
Recognition 12V/24V voltage automatically.
- Intelligent Operation: Limited charge mode to prevent overcurrent.
Supports 1-year historical data storage.

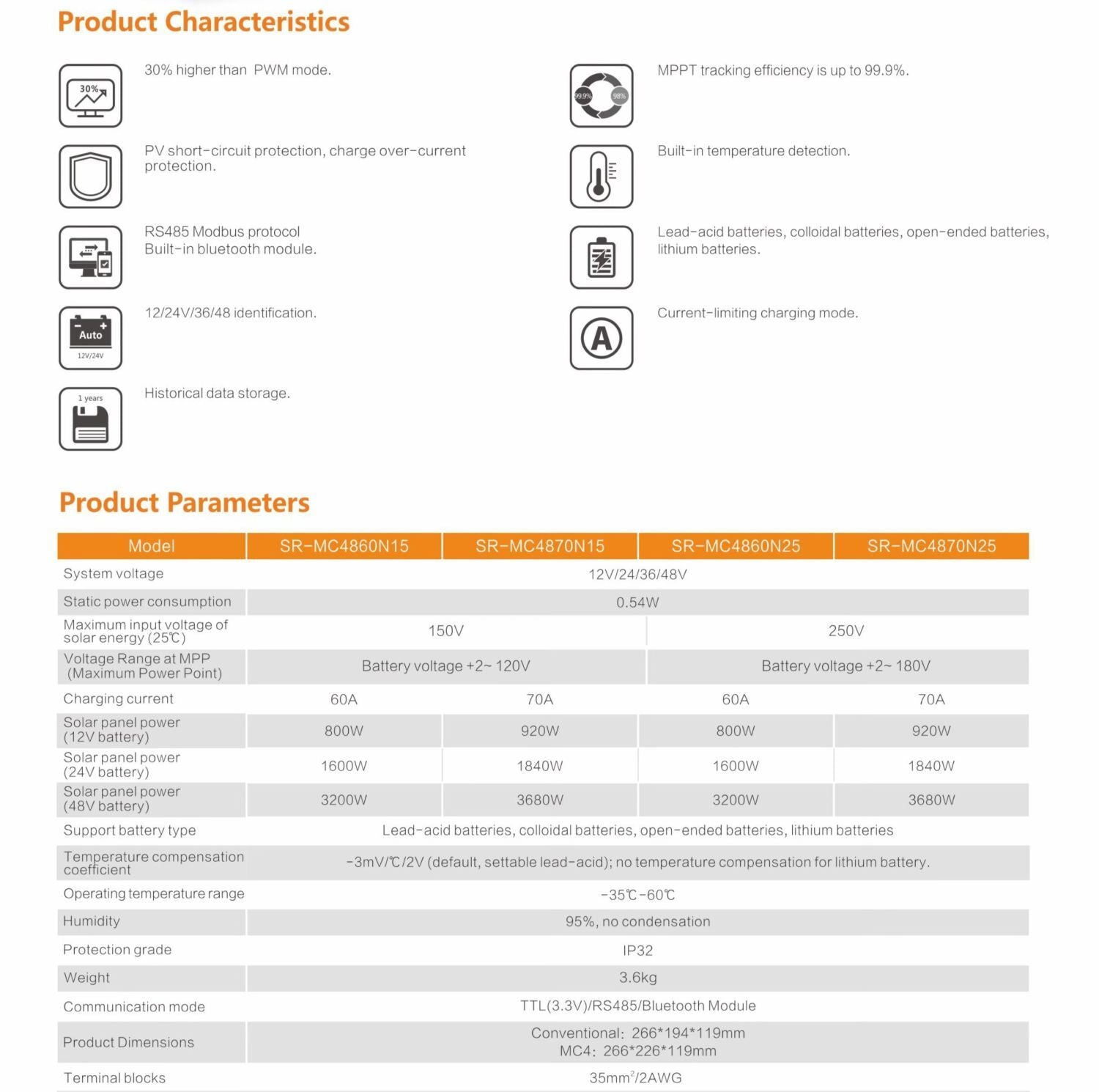

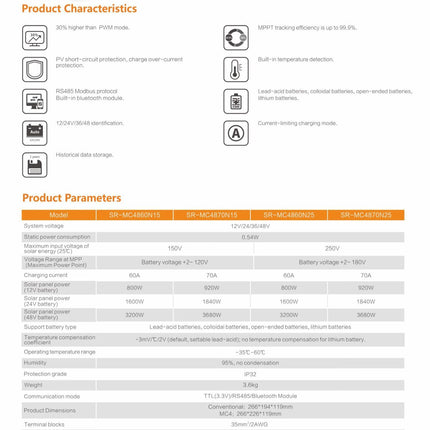

Specifications
PV input
Maximum input voltage of solar energy(25℃): 150V
- Voltage at Maximum Power Point: Battery voltage+2~120V
- Charging current: 60A
- Solar panel power(12V battery): 800W
- Solar panel power(24V battery): 1600W
- Solar panel power(48V battery): 3200W
- Operating temperature range: -35℃~60℃
- Humidity: 95%, no condensation
- Protection grade: IP32
- Weight: 3.6kg
- Product Dimensions: 266 × 194 × 119 mm
Boasts high-efficiency solar tracking and outstanding conversion performance, integrated with full-range circuit protection, smart temperature control, multi-mode connectivity, wide battery compatibility and intelligent operation – your top choice for solar charging management.
