Description

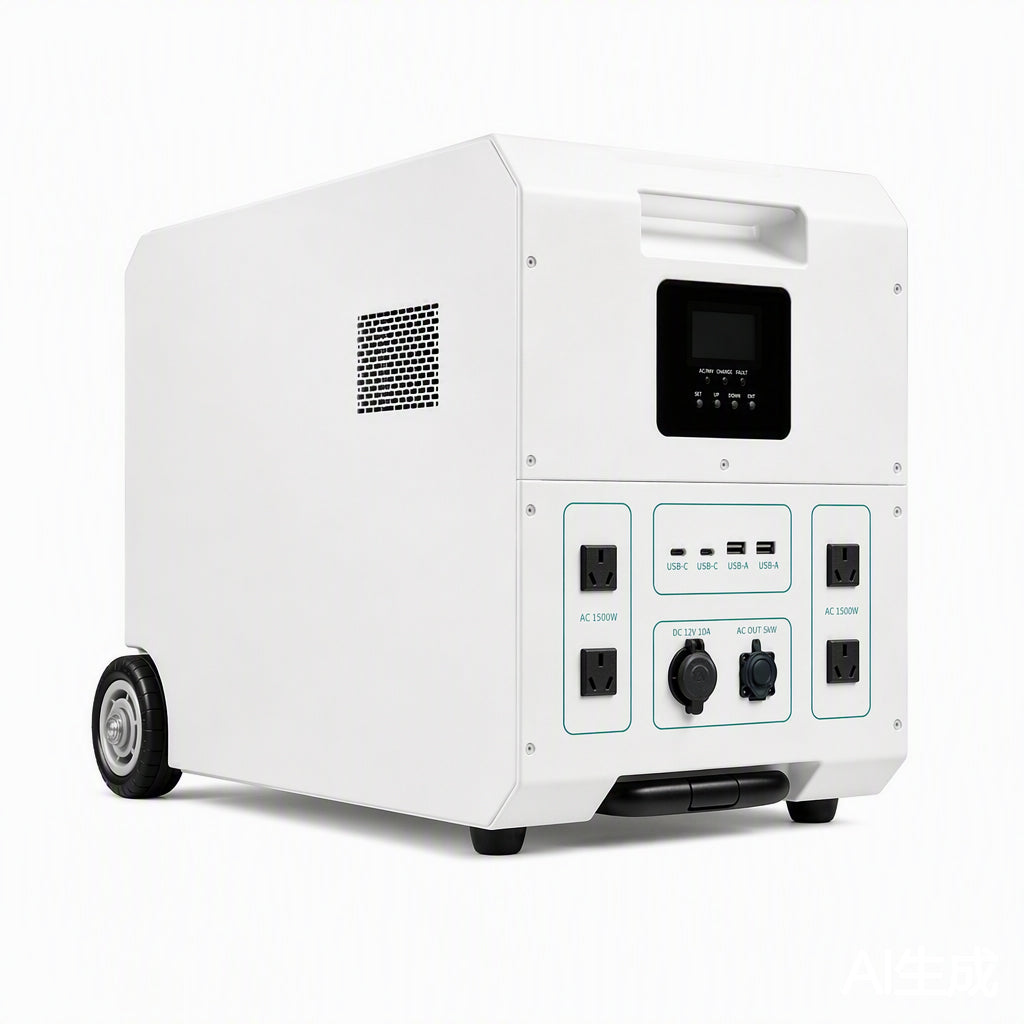

The Micromall ALL-B5K-H is a portable all-in-one solar power station combining a 5kW pure sine wave inverter, a 5.22kWh lithium-ion battery, high-voltage MPPT solar charging and multiple AC, USB and DC outputs in a wheeled enclosure.
Designed for backup power, off-grid living, workshops, mobile applications and temporary power requirements, the ALL-B5K-H can accept solar, utility or generator charging and supports the optional B5K-Pack battery expansion module.
Key Features
- 5,000W rated pure sine wave AC output
- 10,000VA maximum peak output
- Built-in 51.2V 102Ah lithium-ion battery
- 5,222.4Wh nominal battery energy
- 7,500W maximum PV input power
- Single MPPT tracker with a 60-450V DC operating range
- 230V AC utility or generator input

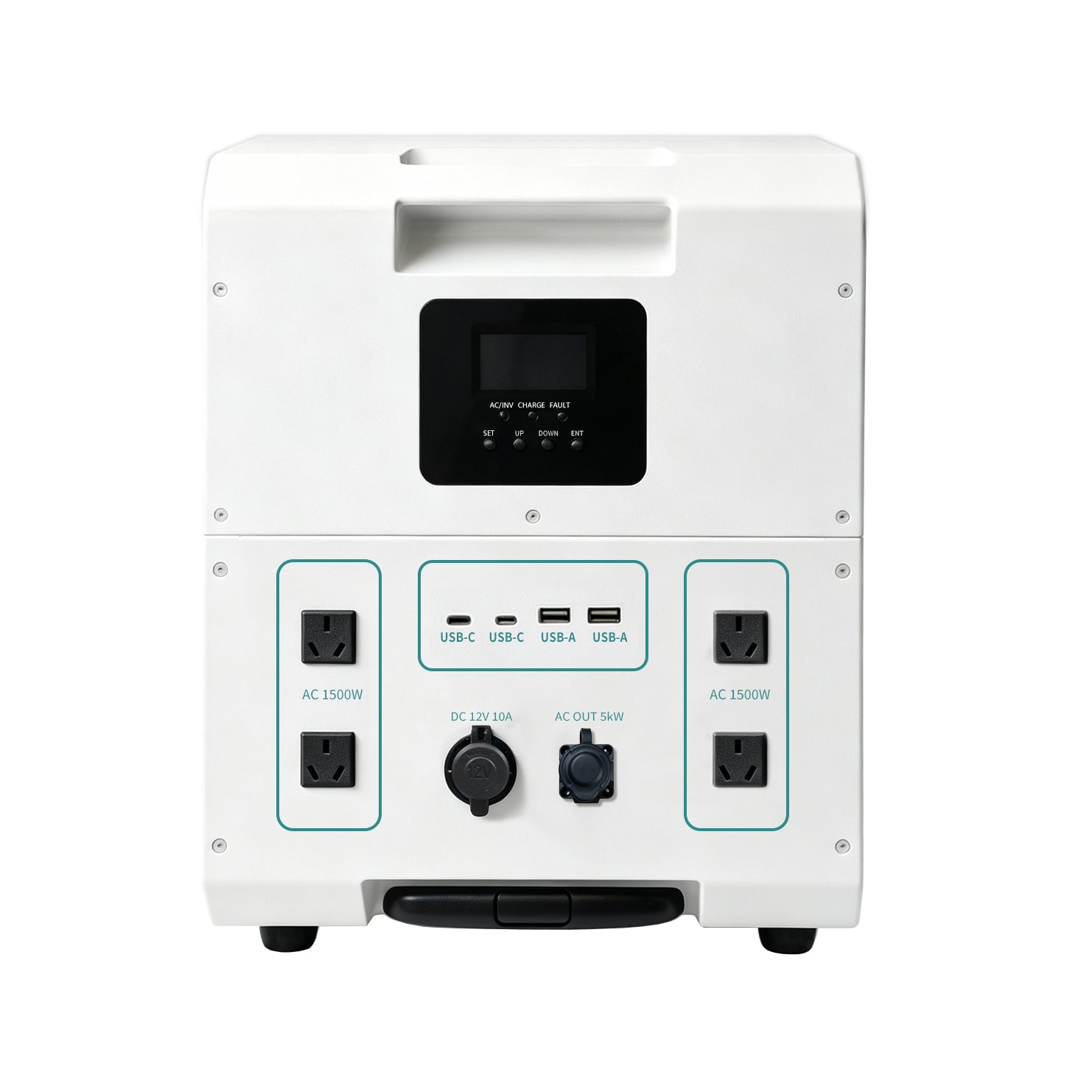

- Multiple 230V AC outlets, USB-C, USB-A and 12V DC outputs

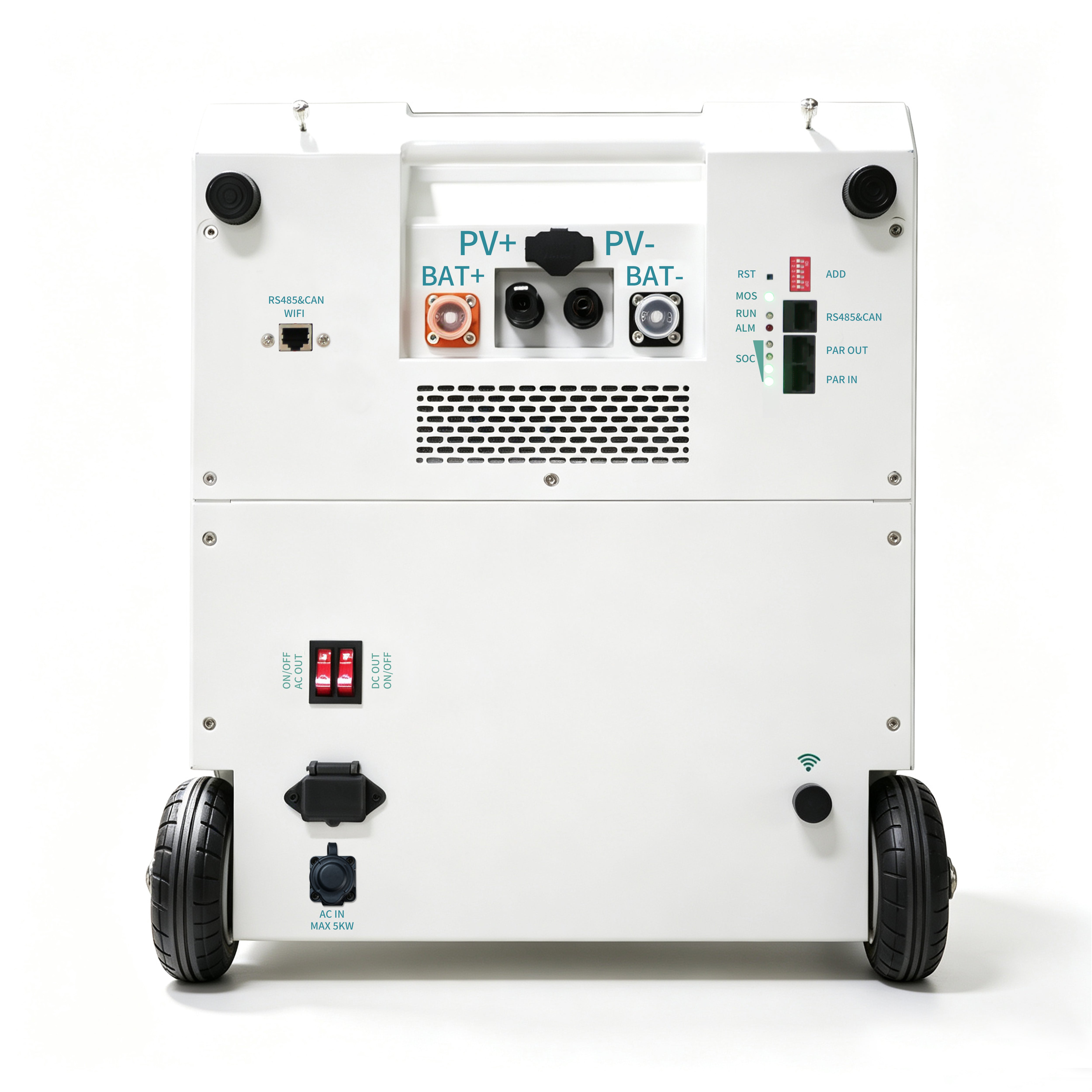

- RS485, CAN, Bluetooth and WiFi communication

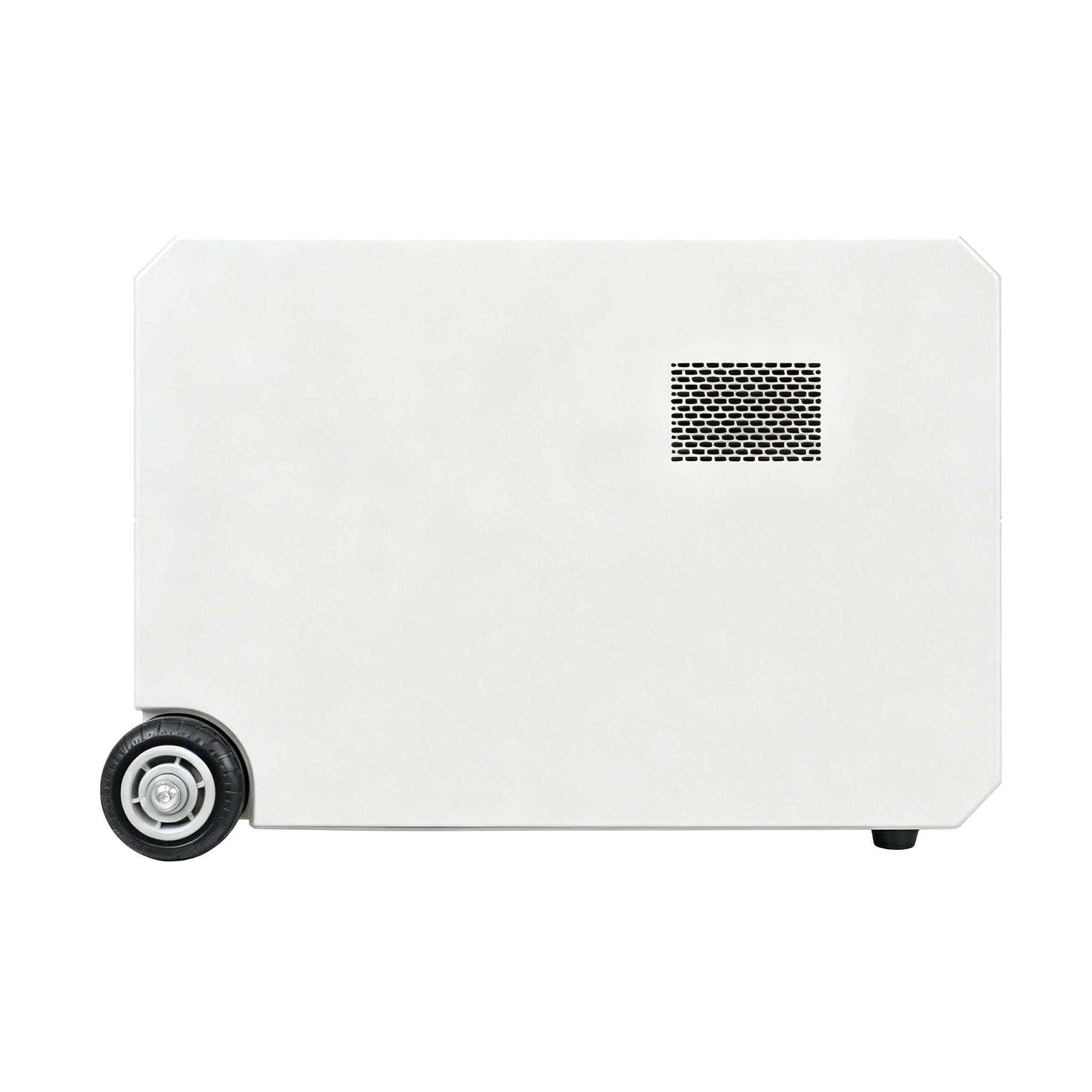

- Integrated wheels and carry handles for easier movement
- Optional B5K-Pack battery expansion support
AC Input
- Rated input power: 5,000W
- Rated input voltage: 230V AC
- Rated frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
AC Output
- Rated output power: 5,000W
- Maximum peak power: 10,000VA
- Rated output voltage: 230V AC
- Load motor capacity: 4HP
- Rated frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
- Output waveform: Pure sine wave
- Transfer time: 10ms typical
Battery
- Battery type: Lithium-ion
- Rated battery voltage: 51.2V
- Capacity: 102Ah
- Nominal energy: 5,222.4Wh
- Battery voltage range: 46-57.6V DC
- Maximum grid / generator charging current: 80A
- Maximum hybrid charging current: 100A
- Active balancing system: Standard
Solar Input
- Number of MPPT trackers: 1
- Maximum PV input power: 7,500W
- Maximum PV input current: 30A
- Maximum PV open-circuit voltage: 500V DC
- MPPT voltage range: 60-450V DC
- MPPT tracking efficiency: 99.9%
- Maximum system efficiency: Greater than 92%
Physical Specifications
- Model: ALL-B5K-H
- Dimensions (W x D x H): 355 x 600 x 435mm
- Approximate weight: 60 ±5kg
- Enclosure rating: IP20
- Noise: ≤60dB
- Charging temperature: 0 to 55°C, optional heating
- Discharging temperature: -20 to 55°C, with derating above 45°C
Protection Functions
PV current and power limiting, PV night reverse-current protection, utility over-voltage and under-voltage protection, battery over-voltage and under-voltage protection, output short-circuit protection, over-temperature protection, overload protection, PV reverse-polarity protection, AC backfeed protection, bypass overcurrent protection, battery input overcurrent protection and charging short-circuit protection.
Optional B5K-Pack Expansion Battery
The optional B5K-Pack adds 5,222.4Wh of nominal storage using a 51.2V 102Ah battery module. Expansion pack dimensions are 355 x 600 x 225mm and approximate weight is 40 ±5kg. The B5K-Pack is not included unless specifically stated.
Certifications
IEC 62109-1, IEC 62109-2, EN 61000-6-1, EN 61000-6-3 and FCC Part 15 Class B.
