Description

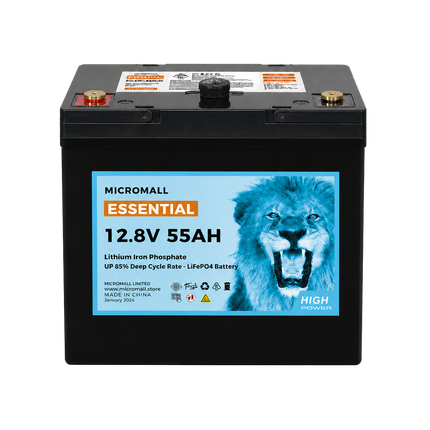

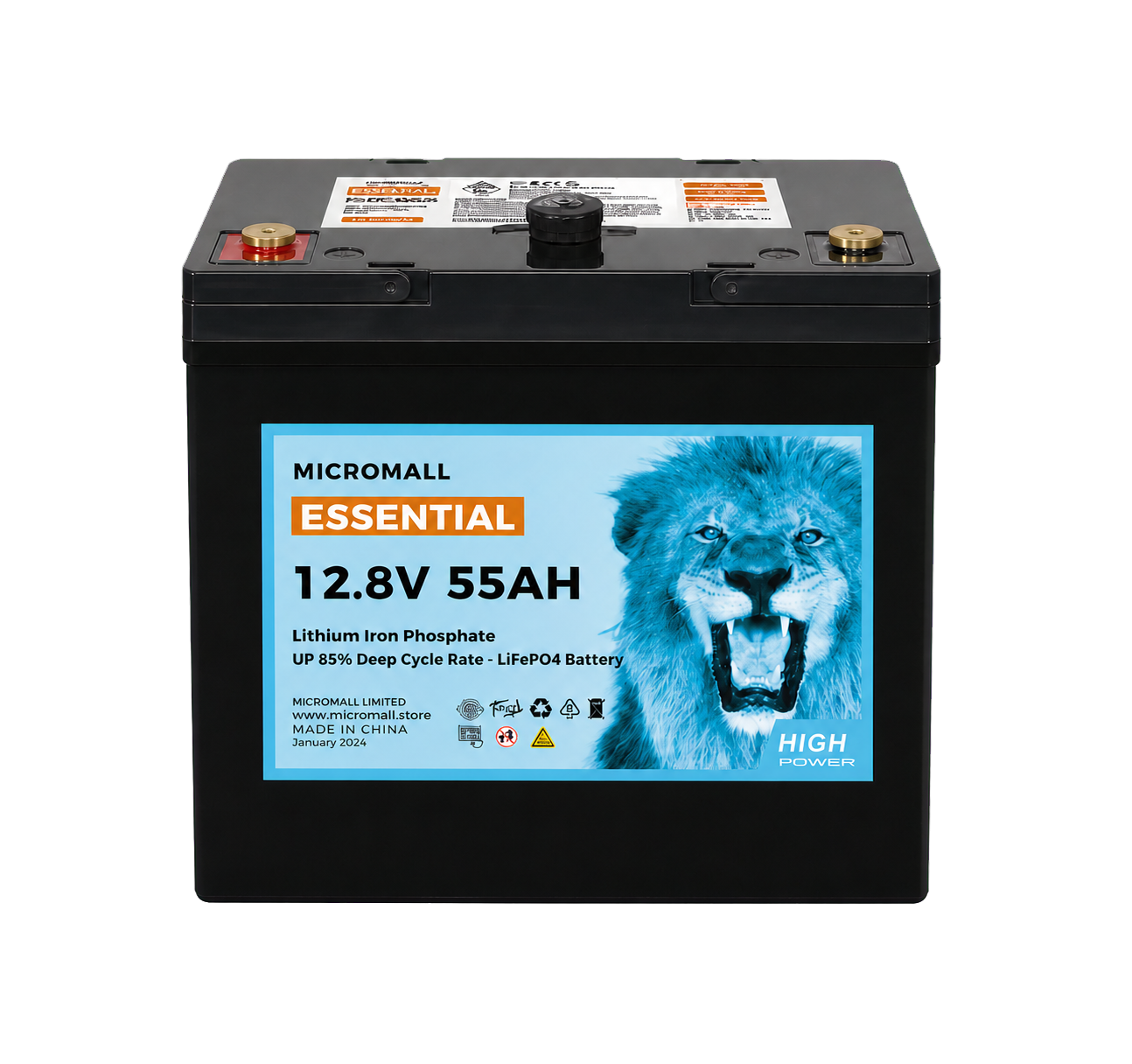

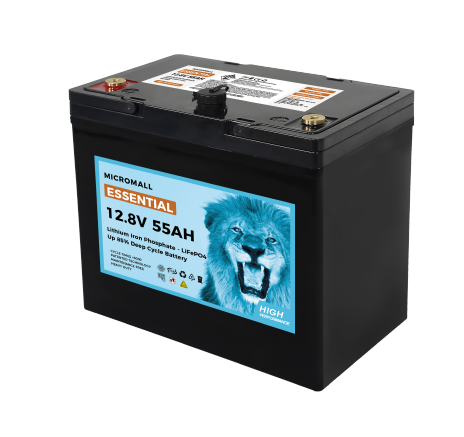

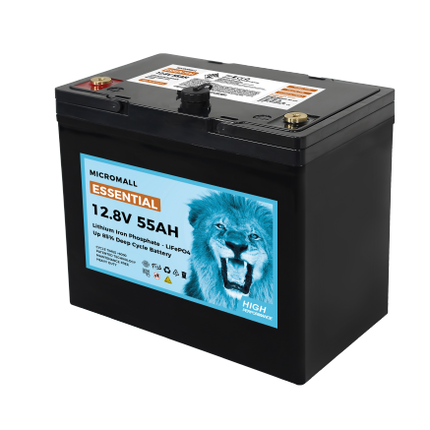

The Micromall Essential 12.8V 55Ah LiFePO4 battery is a compact deep-cycle energy-storage battery for solar, RV, marine and general auxiliary-power applications. Its lithium iron phosphate chemistry provides long cycle life, high usable capacity and dependable everyday performance.
Key Features
- 12.8V nominal voltage and up to 55Ah capacity
- Approximately 0.7kWh total energy and 0.6kWh usable energy
- Recommended 90% depth of discharge
- Recommended charge/discharge current of 25A and maximum current of 50A
- Peak current of 100A for 500ms at 25 C
- Bluetooth communication for convenient battery monitoring
- At least 6,000 cycles under the datasheet test conditions
- Compact floor-mounted enclosure

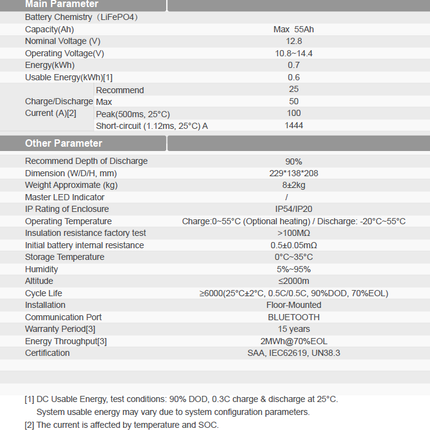

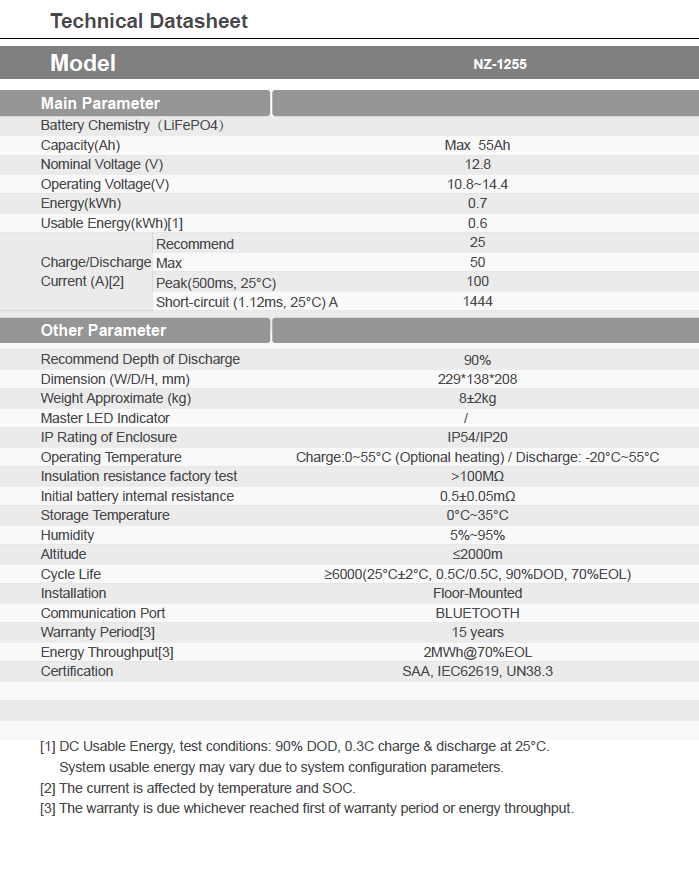

Specifications
-
Model: NZ-1255
-
SKU: BTL-12.8V55
-
Battery chemistry: Lithium Iron Phosphate (LiFePO4)
-
Nominal voltage: 12.8V
-
Operating voltage: 10.8-14.4V
-
Capacity: Up to 55Ah
-
Total energy: 0.7kWh
-
Usable energy: 0.6kWh
-
Recommended current: 25A
-
Maximum charge/discharge current: 50A
-
Peak current: 100A for 500ms at 25 C
-
Recommended depth of discharge: 90%
-
Dimensions (W x D x H): 229 x 138 x 208 mm
-
Actual weight: Approximately 8 kg (datasheet tolerance +/- 2 kg)
-
Communication: Bluetooth
-
Operating temperature: Charge 0 to 55 C; discharge -20 to 55 C
-
Storage temperature: 0 to 35 C
-
Operating humidity: 5%-95%
-
Maximum altitude: 2,000m
-
Cycle life: At least 6,000 cycles under specified test conditions
-
Installation: Floor-mounted
-
Certifications: SAA, IEC 62619 and UN 38.3
Use a compatible LiFePO4 charger and follow the installation and operating requirements supplied with the battery.
