Description

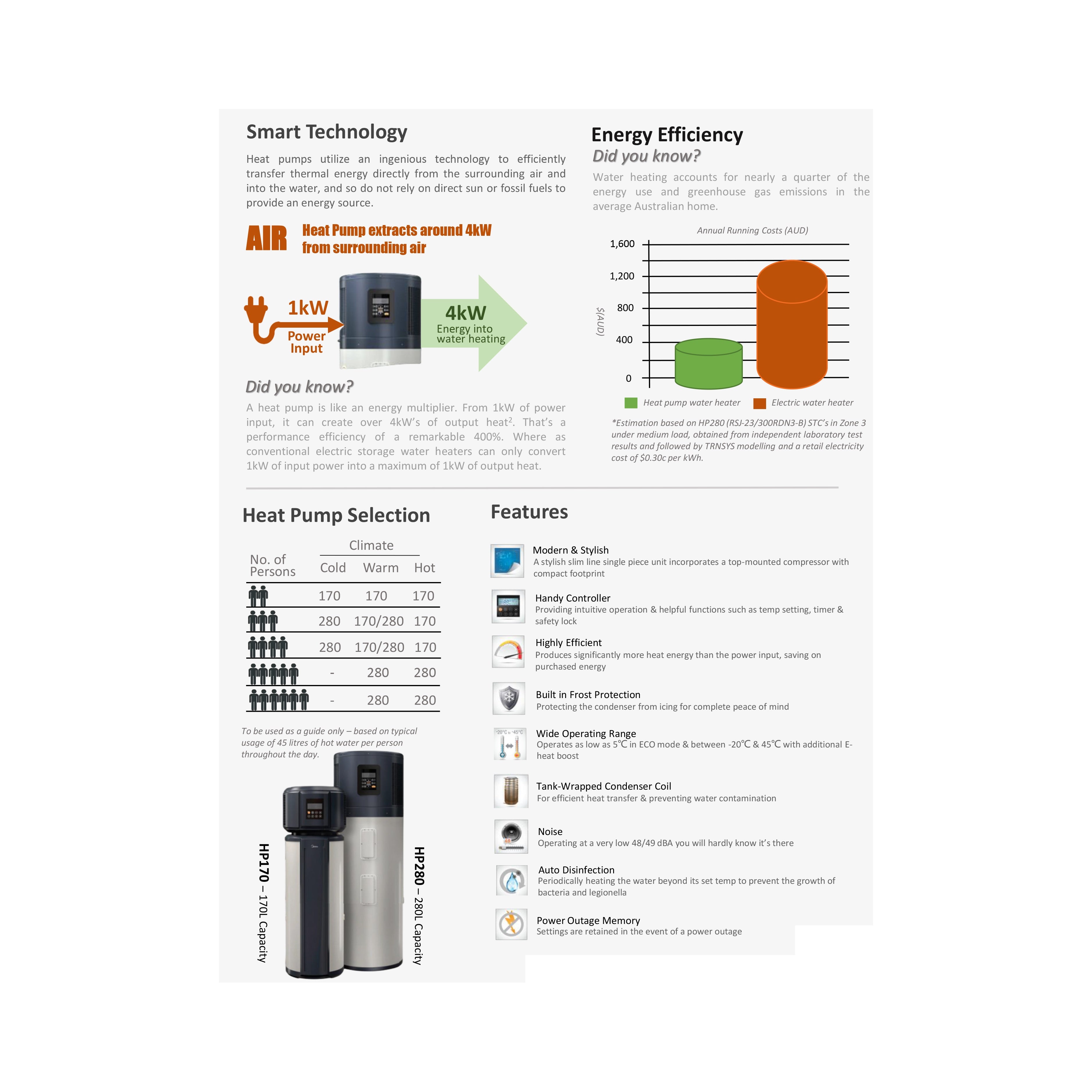

FEATURES

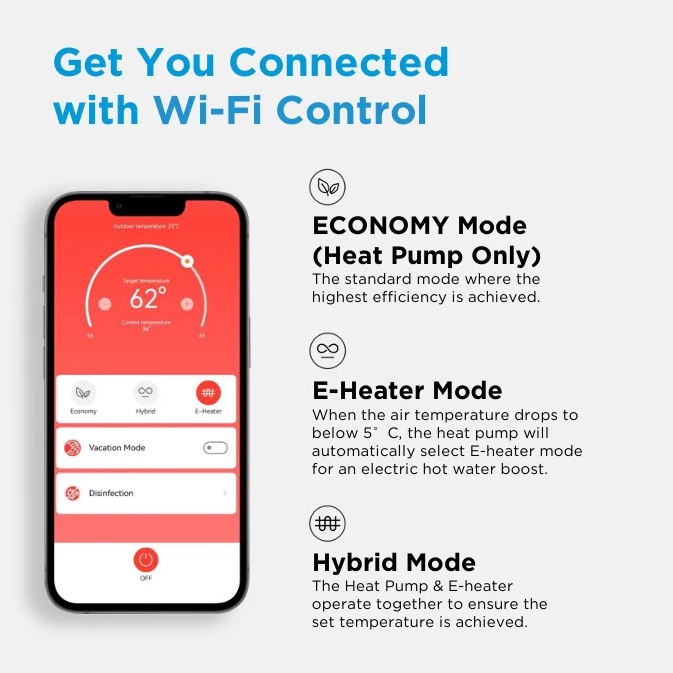

Built-in WiFi connectivity (Press and hold On/Off button for 3 seconds)
Real-time water temperature display
Automatic defrost function for all-weather operation
Weekly auto-disinfection cycle for hygienic water use
System query function for quick performance checks

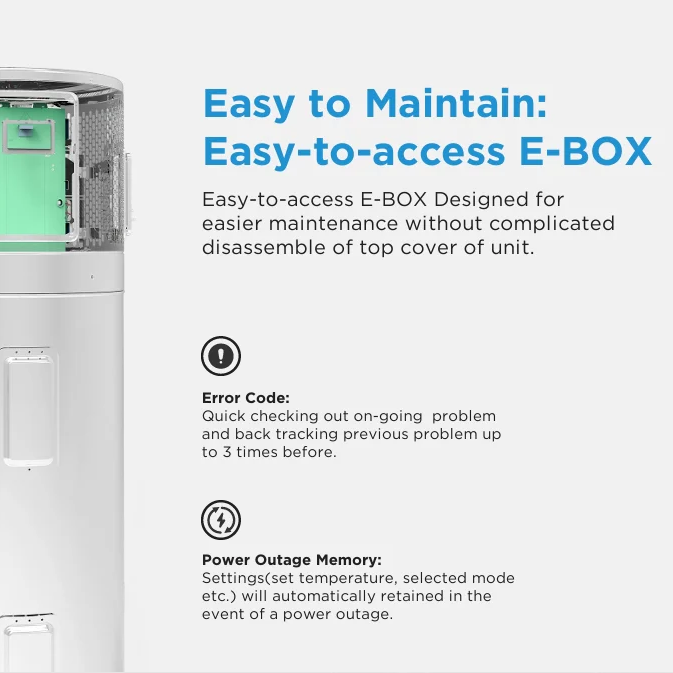

Maintenance reminder alert for easy servicing
Child safety lock function
High-temperature protection alarm
Multiple operating modes: Vacation / Hybrid / E-Heat / Economy
24-hour programmable timer (On/Off or On only)
High energy efficiency for lower running costs
Low operating noise level

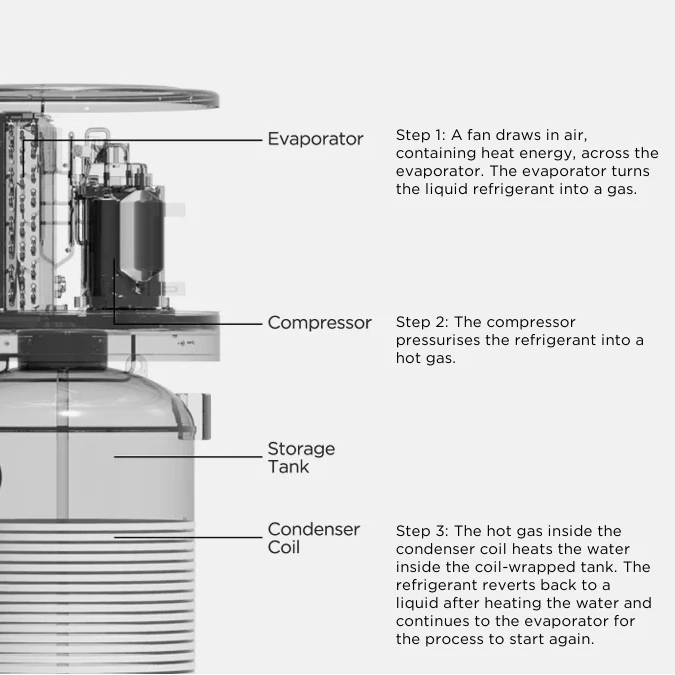

Condenser coil wrapped around the tank for enhanced heat transfer
Power-outage memory function
Clear LCD digital display
Suitable for outdoor installation only
SPECIFICATIONS
Brand: MIDEA

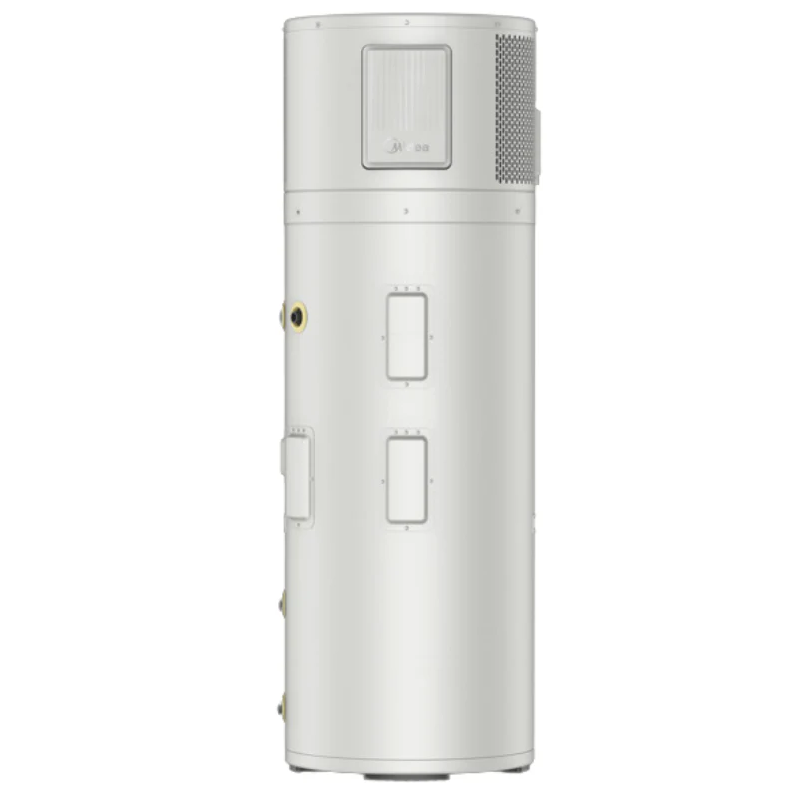

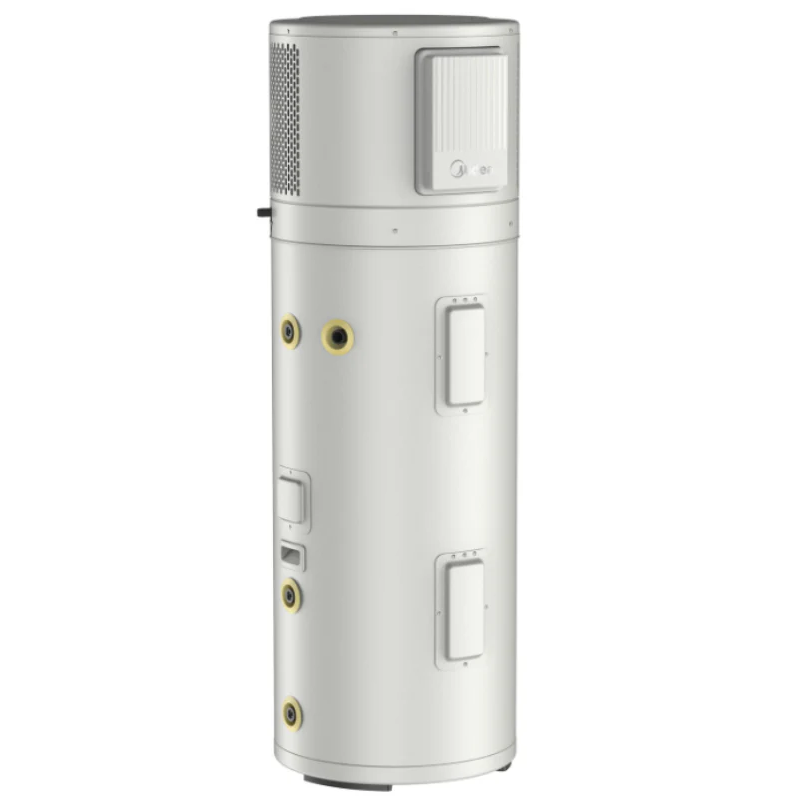

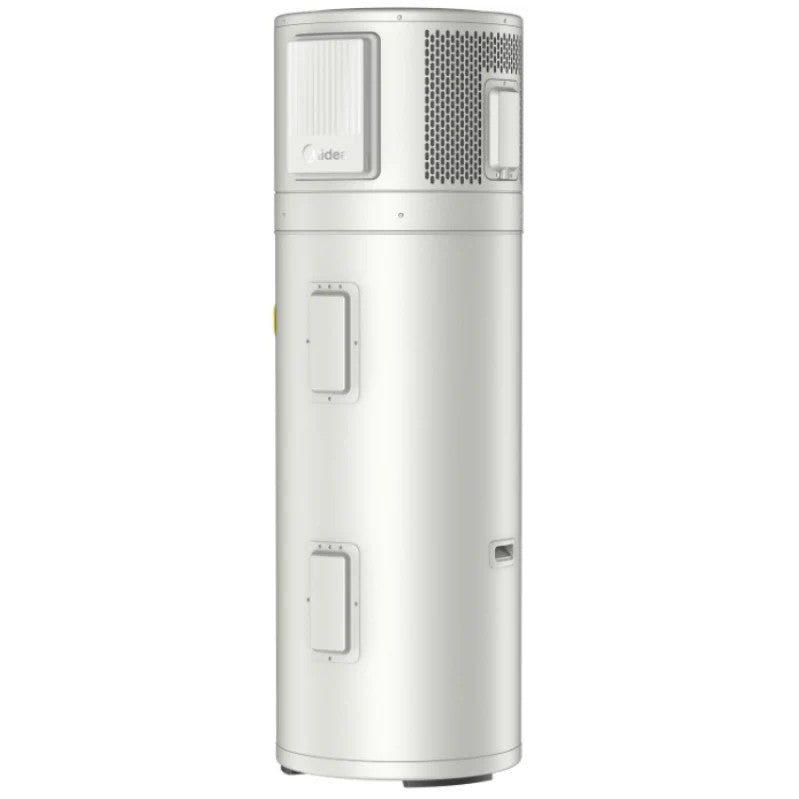

Product Type: Heat Pump Water Heater
Tank Capacity: 280L
Dimensions: Ø 650mm × H 1962mm
Refrigerant: R290 / 0.42kg
Maximum Pressure: 850kPa (Mains Pressure)
Outlet Water Temperature
Default: 60°C / Adjustable: 55°C – 70°C
Materials:Hydrophilic Aluminium Fin, Inner Groove Copper Tube
Operating Modes: Economy (Heat Pump Only), Hybrid (Heat Pump + E-Heater), E-Heater, Vacation
Heating Capacity
Hybrid Mode: 4600W / E-Heater Mode: 3250W
Maximum Current: 18.4A
Protection Features
TCO, PTR Valve, Automatic Defrosting, Overload Protection, High-Pressure Protection
Power Supply: 220–240V / 1Ph / 50Hz
Weight: Gross: 170kg / Net: 138kg
Warranty
Tank Cylinder: 5 years (3 years labour)
Compressor: 3 years (1 year labour)
Electronics, Parts & Labour: 1 year
Installation Note:
All electrical installations must be carried out by a licensed electrical worker.
